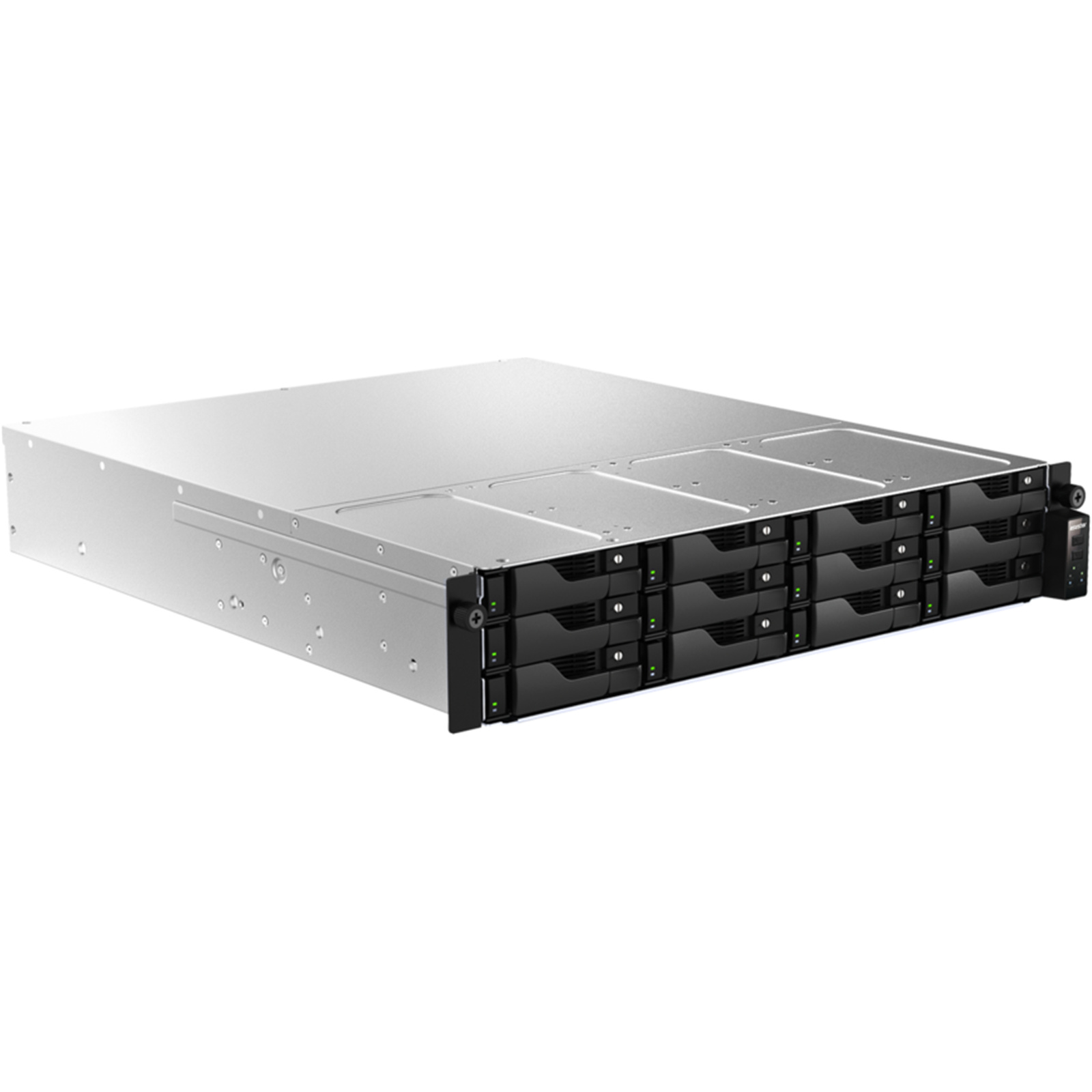

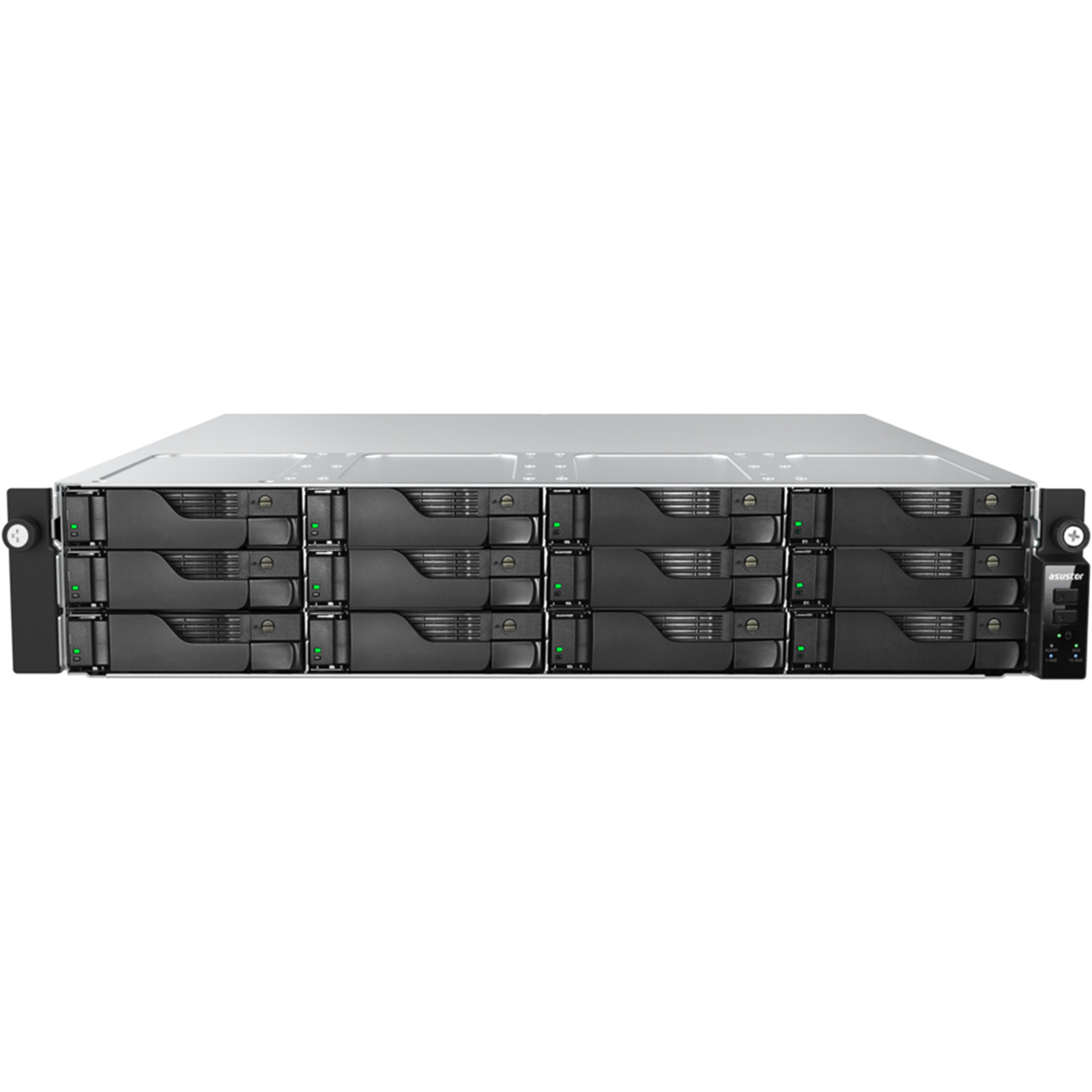

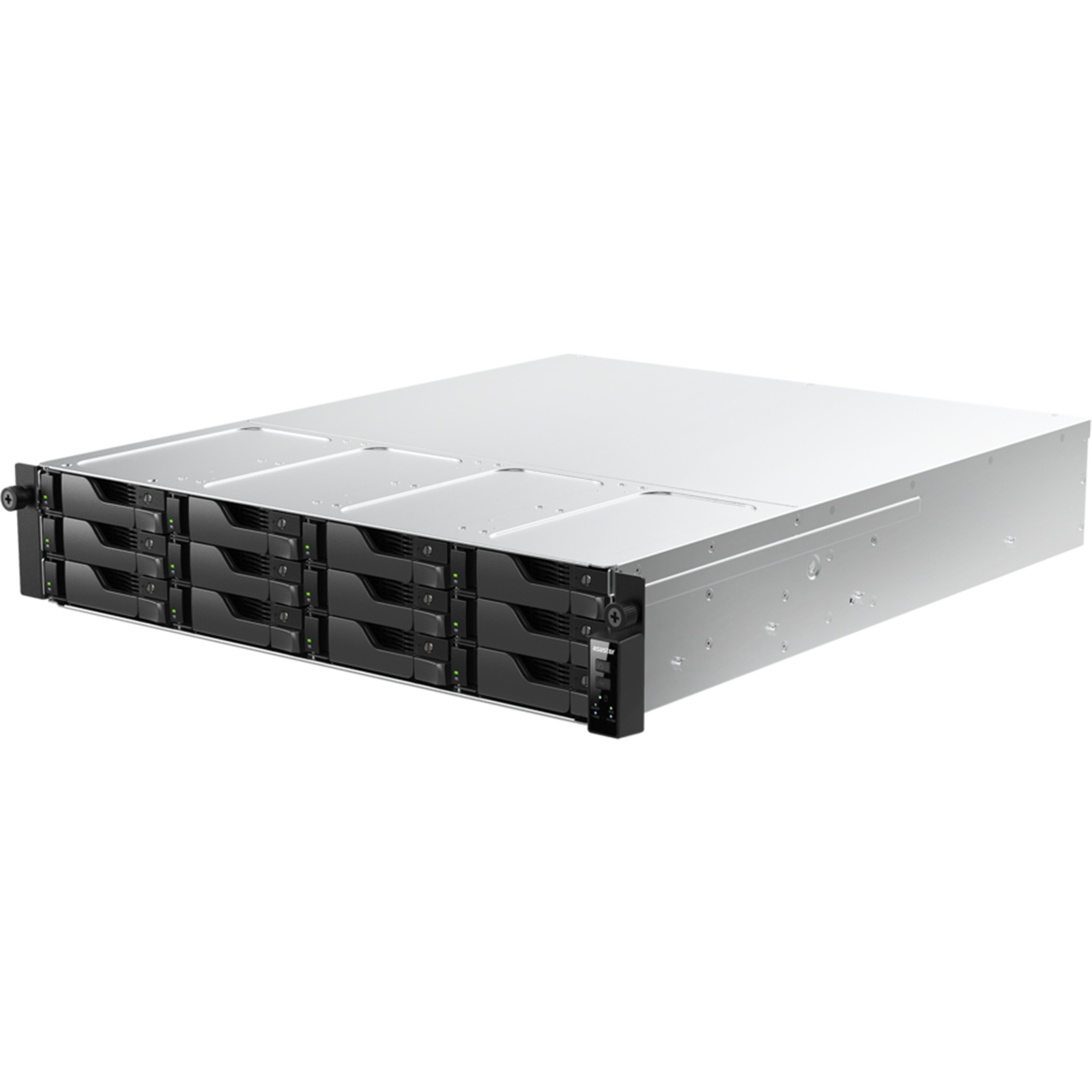

Asustor Lockerstor 12R Pro Gen 2 AS7212RDX 12-Bay NAS, 2U Rackmount, AMD Ryzen 7 Pro Upto 5.3GHz, 16GB ECC RAM (192GB Max), 2x GbE, 2x10GbE, 1x M.2, 2x PCIe, 4x USB,1x HDMI, Dual redundant Power Supplies, 5 Years Warranty, Come With 4 Free
Asustor Lockerstor 12R Pro Gen 2 AS7212RDX 12-Bay NAS, 2U Rackmount, AMD Ryzen 7 Pro Upto 5.3GHz, 16GB ECC RAM (192GB Max), 2x GbE, 2x10GbE, 1x M.2, 2x PCIe, 4x USB,1x HDMI, Dual redundant Power Supplies, 5 Years Warranty, Come With 4 Free
- Brand: Asustor
- MPN: AS7212RDX
- Part #: NASAST7212DX
- UPC:
- Brand: Asustor
- MPN: AS7212RDX
- Part #: NASAST7212DX
- UPC:
Features

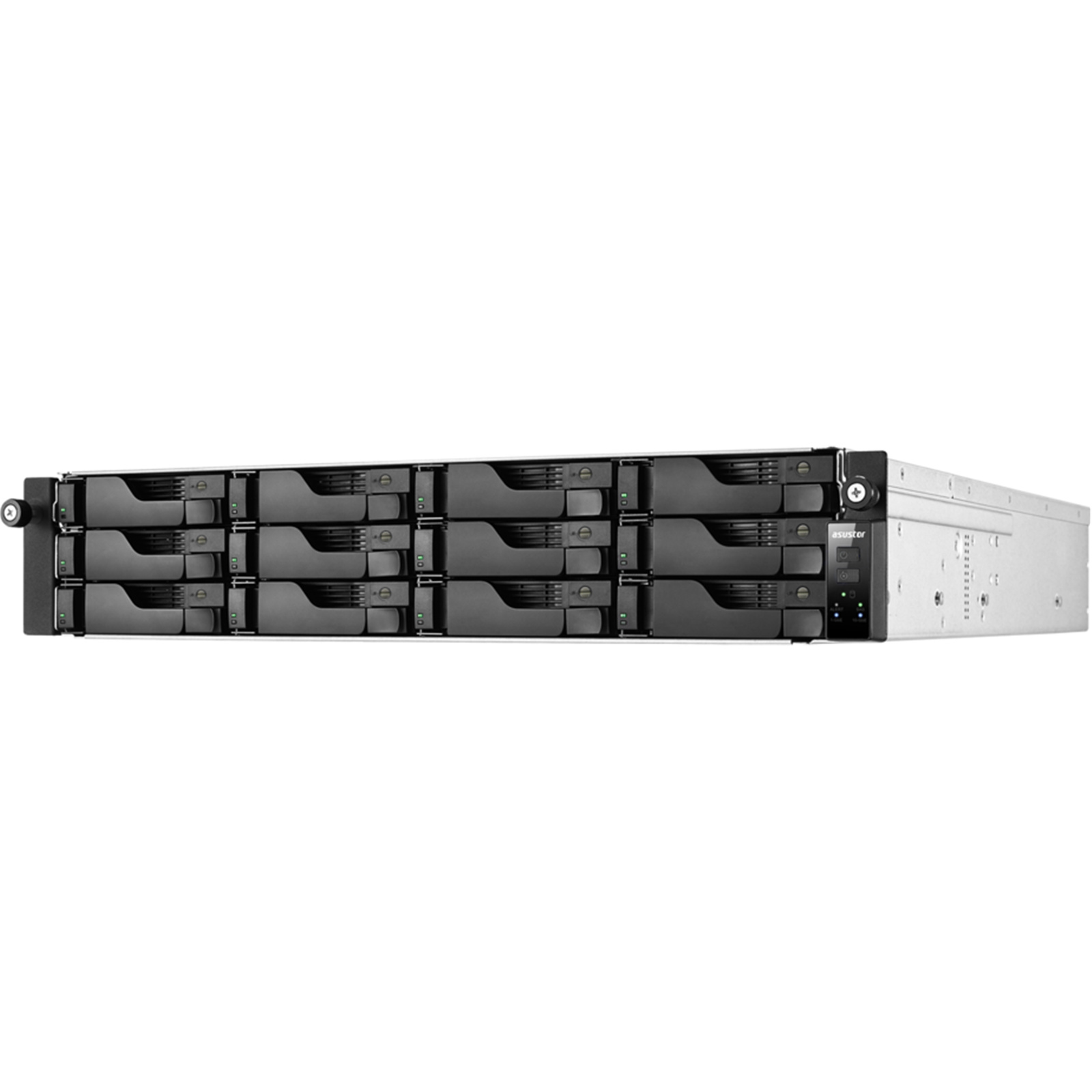

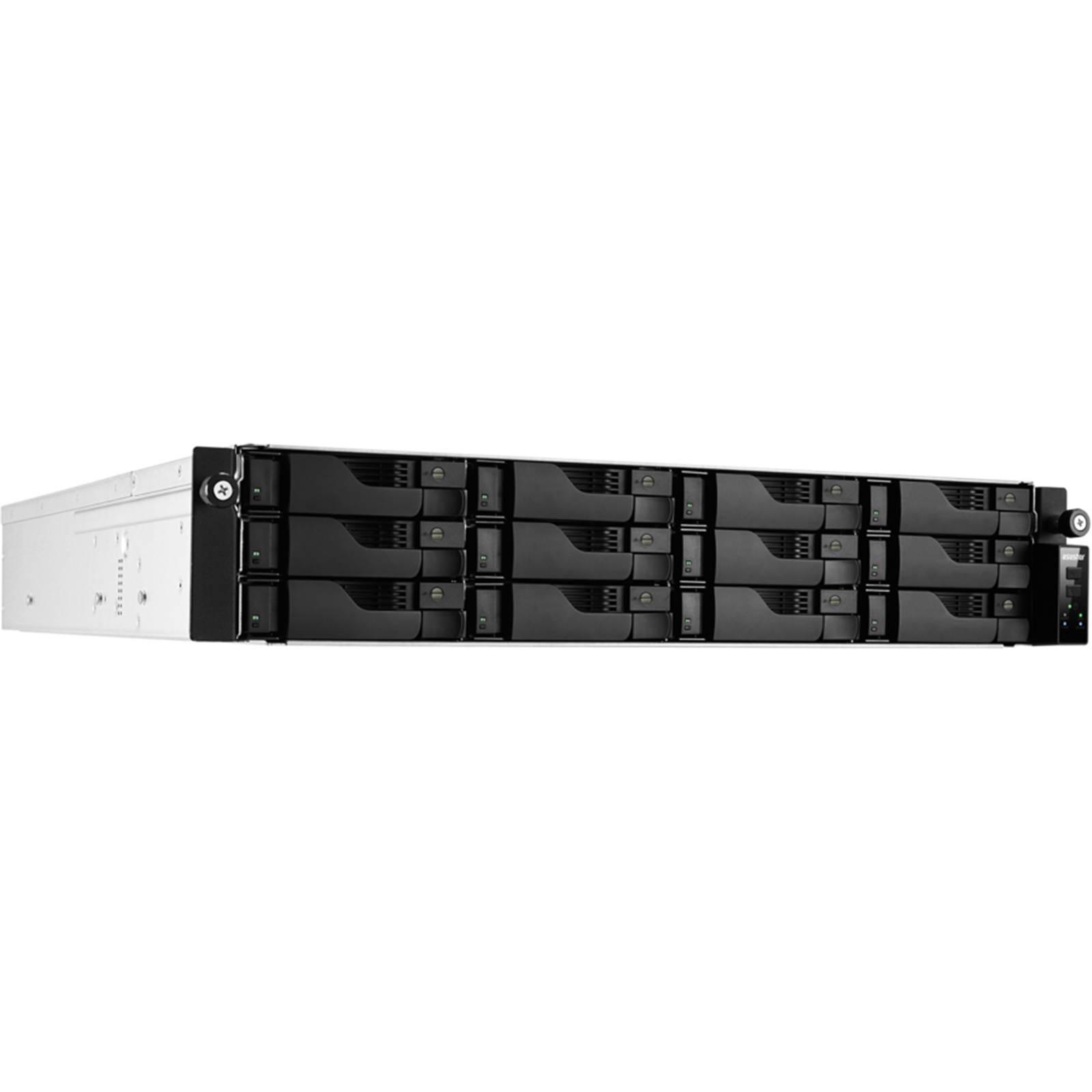

LOCKERSTOR 12R Pro Gen2 AS7212RDX
The Lockerstor 12R Pro and 16R Pro Gen2 Bring Rising and Ryzen Speeds!
- Powered by the AMD Ryzen 7 Pro 7745 processor with 8 cores and 16 threads
- Equipped with 16 GB ECC DDR5-4800 memory, expandable up to 192 GB
- Dual 10GbE + Dual Gigabit Ethernet
- Expansion slots: PCIe 5.0 x8 and PCIe 5.0 x4
- Supports PCIe Gen5 SSDs
- Dual redundant 80 PLUS Platinum power supplies
- Supports Wake on LAN on the Gigabit Ethernet ports
Powerful Core for Enterprise-Level High-Speed Computing
The Lockerstor 12R Pro Gen2 and 16R Pro Gen2 are equipped with the AMD Ryzen™ 7 Pro 7745 embedded processor, featuring 8 cores and 16 threads with clock speeds of up to 5.3 GHz. The Lockerstor R Pro Gen2 series with its powerful Ryzen CPU chews through virtualization and containerized workloads as it delivers smooth and stable high-performance computing, making it ideal for diverse enterprise environments.

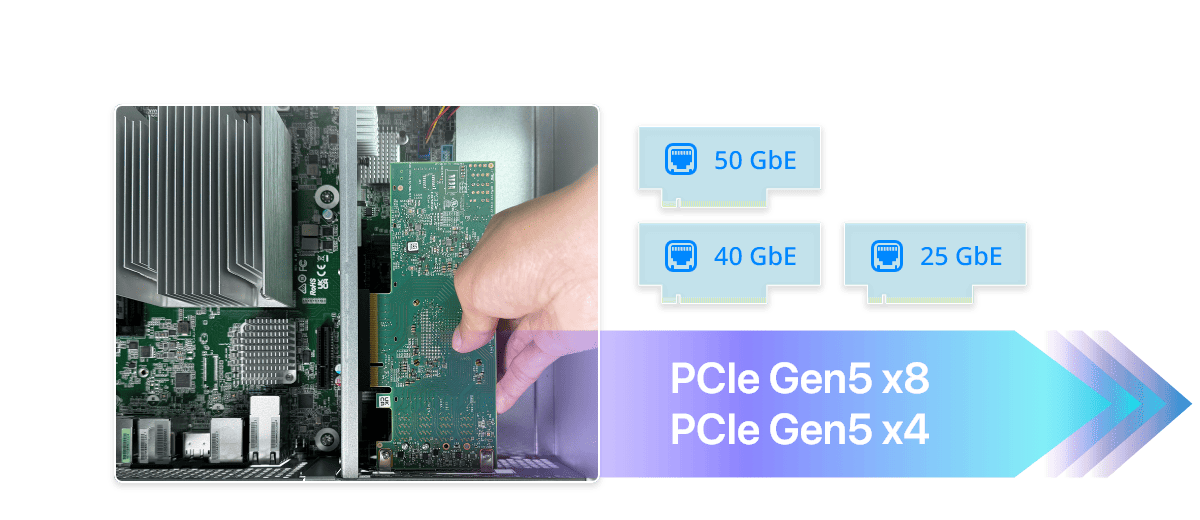

Expandable for Future Demands
With PCIe Gen5 x8 and Gen5 x4 expansion slots, high-speed devices like 50GbE network cards, SAS storage controllers, and other peripherals can be installed to scale storage and network performance based on evolving business needs.

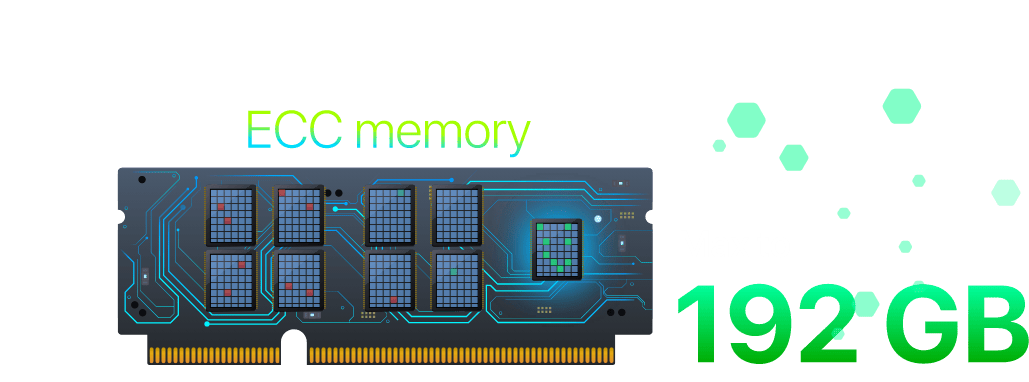

DDR5-4800 ECC Server-Grade Memory
The Lockerstor 12R Pro Gen2 and 16R Pro Gen2 are equipped with DDR5-4800 ECC memory, which is expandable up to 192GB. ECC memory supports automatic error correction and helps prevent system crashes as well as data corruption, ensuring stable and accurate long-term operation.

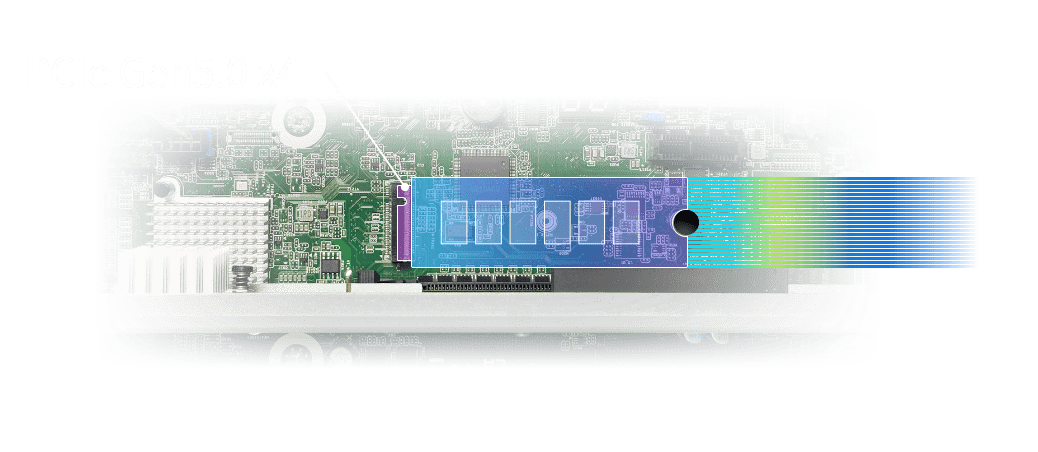

PCI Express 5.0
Includes one PCIe Gen5 x4 M.2 2280 NVMe slot, allowing users to install SSDs for high performance caching or storage, significantly improving access speed for small files and enhancing data processing in multi-user environments.
SMB Multichannel (RAID 5)
- 10 GbE * 2
- 2308 MB/s Read
- 1602 MB/s Write
* Performance figures are achieved in the ASUSTOR lab using state of the art client computers under optimized network settings, and could vary in different environments. Ordinary desktop or notebook computers may be unable to reproduce these figures.

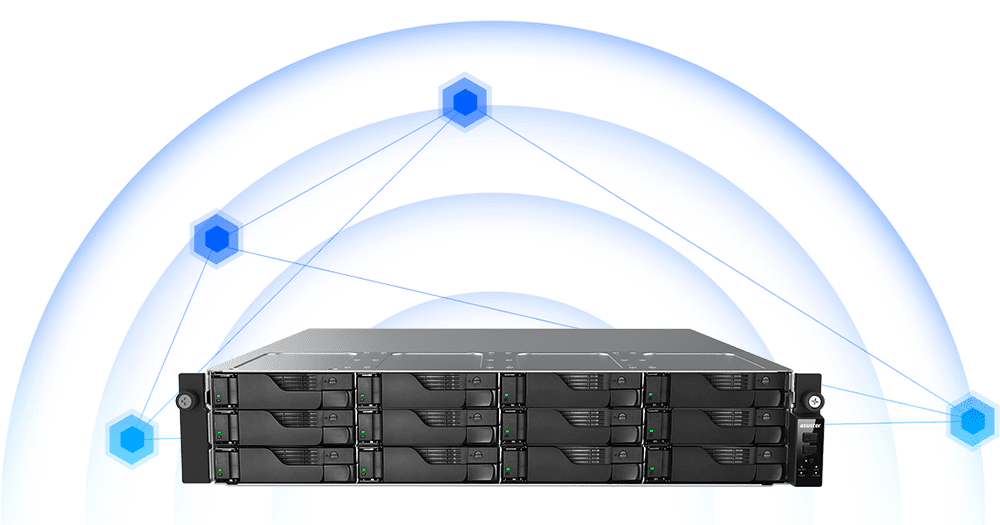

More than Just 10-Gigabit Ethernet!
The Lockerstor 12R Pro Gen2 and 16R Pro Gen2 offer dual 10GbE and dual Gigabit Ethernet RJ45 network ports, supporting link aggregation and SMB multichannel, while also delivering ultra-low latency and high-speed data transfer rates. If 10-Gigabit is not enough, the included PCI Express slot allows for 25GbE / 40GbE / 50GbE NICs for even faster networking.

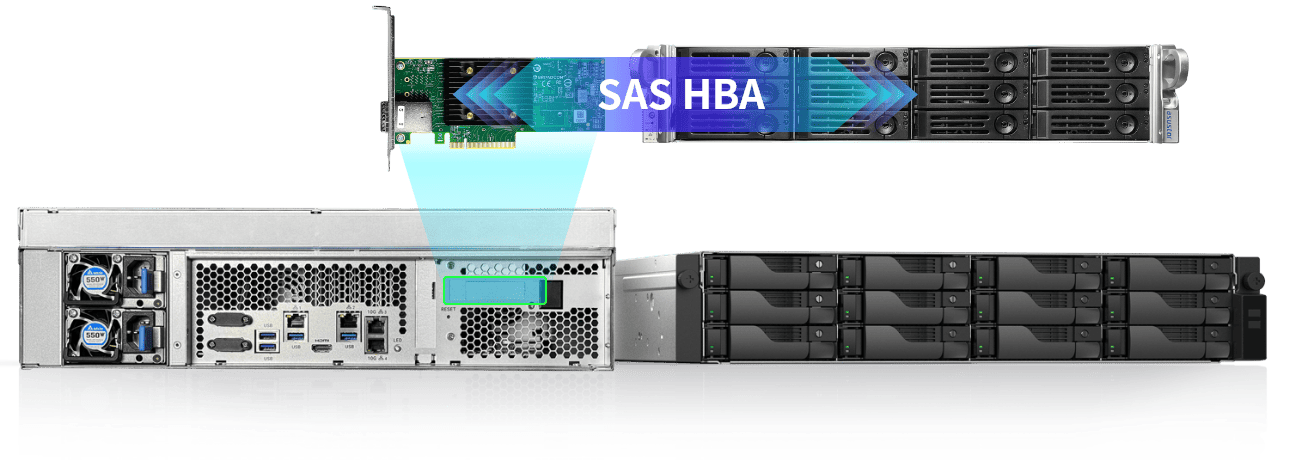

Feels Like Unlimited Space
Your Lockerstor connect to an Xpanstor 12R device using a SAS controller card to add 12 additional drive bays. This provides a stable, high-speed enterprise-grade storage expansion solution without replacing existing hardware and allows your NAS to grow with you.

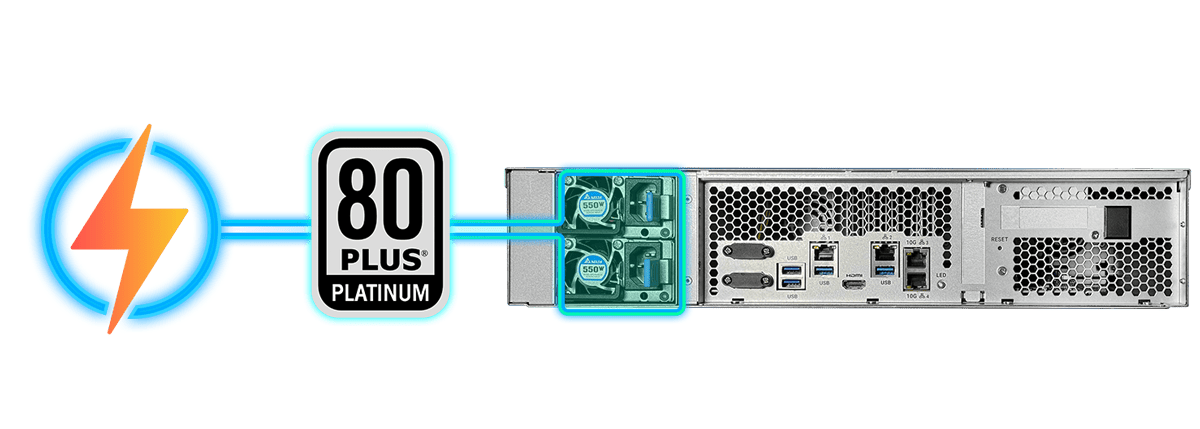

Efficiently Large and In Charge
Built with dual-redundant 80 PLUS Platinum certified power supplies, providing stable power delivery with up to 92% power conversion efficiency. This ensures optimal energy use even under high workloads, helping businesses save on electricity costs while supporting eco-friendly operations.

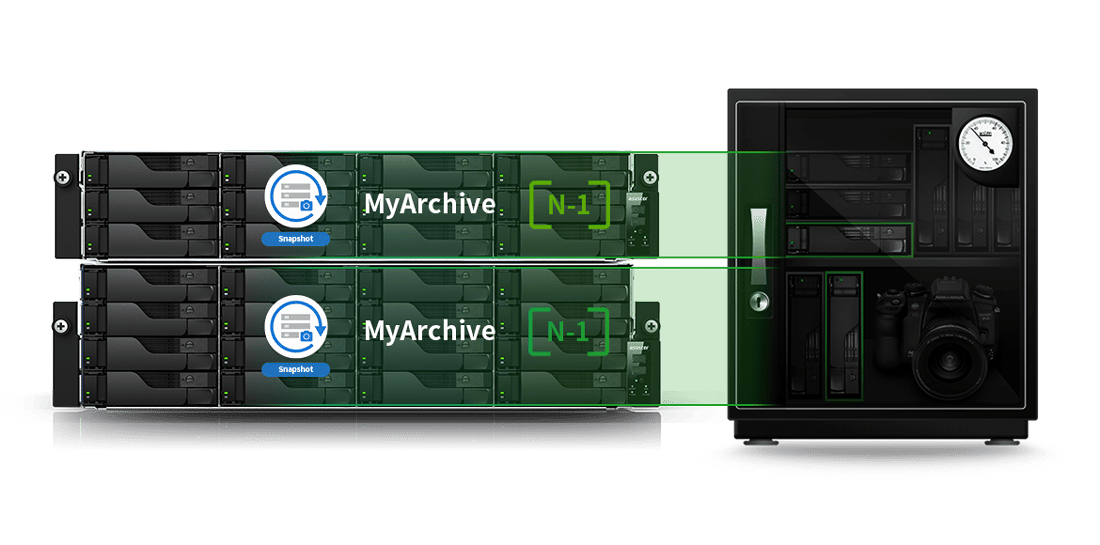

Exclusive MyArchive Cold Backup Technology - Unlimited Capacity Expansion
MyArchive cold backup technology turns NAS hard disks into removable storage archives. Directly insert a MyArchive hard disk into the NAS to easily access, backup and share terabytes of content.
360° Backup solution and enterprise virtualization application
- MyArchive cold storage backups
- Snapshot Center, Cloud Backup Center, DataSync Center
- Complete iSCSI/IP-SAN and NFS support
- VMware, Citrix and Hyper-V ready
- Supports Virtualization and Docker apps
"Find Me" Function and Service Light for Server Rooms
In enterprise environments, storage devices are commonly placed together in a server room. In order to allow administrators to quickly find the NAS from among many servers the Lockerstor 12R Pro Gen2(2U) / Lockerstor 16R Pro Gen2(3U) provides a dedicated button on front panel. When this button is pressed, the LED service light on the rear panel of the NAS will light up. ASUSTOR also offers the mobile NAS management app, AiMaster which provides the exclusive Find Me function. When Find Me is activated, the system status light on the front of the NAS will flash and the system buzzer will sound, helping users to quickly find the NAS.
Protected From the Inside and Out
Protect your data from loss, damage and attacks with the ASUSTOR NAS. An ASUSTOR NAS is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus, MyArchive and ADM's various backup tools help protect ransomware even better.
Network Attack Protection
- Firewall
- ADM Defender
- Cloud Backup Center offsite backups
Secure Data Transmission
- VPN connection
- SSL certificate connection
- Automatic logout
Internal Data
- AES-256 folder encryption
- Antivirus software
- MyArchive
Access Control
- File/folder/app isolation
- 2-Step Verification
- Wake-on-LAN (WOL)
Snapshot Center
Snapshot Center is a new feature for ASUSTOR NAS devices to utilize Btrfs and iSCSI volumes to take snapshots of the information inside a NAS. Snapshot Center supports up to 256 snapshots of a volume and can be done every five minutes, creating a backup that can be restored easily if data is damaged or lost.
MyArchive now supports Btrfs and snapshots. Btrfs for MyArchive supports snapshots and version history to help protect against accidental deletions or modifications.

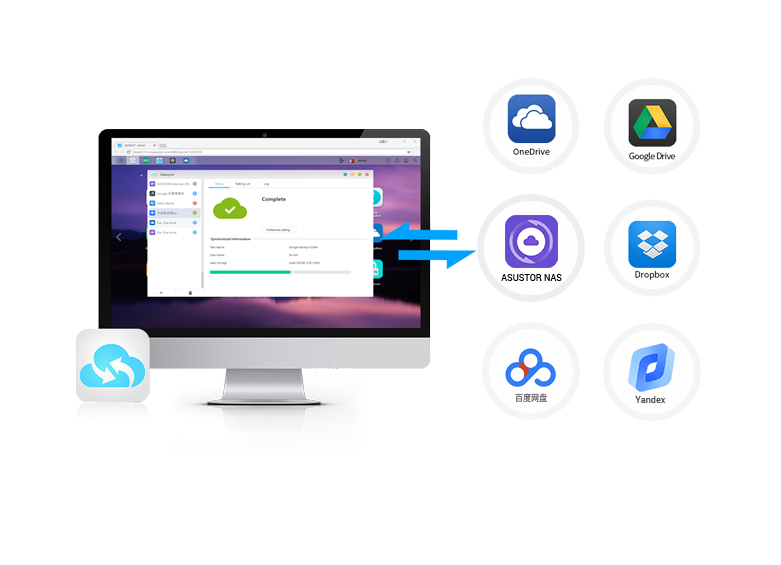

DataSync Center
DataSync Center combines multiple cloud services into a single app. DataSync Center includes, but is not limited to Google Drive, Dropbox, OneDrive and Yandex and supports multitasking as well as multiple accounts. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.

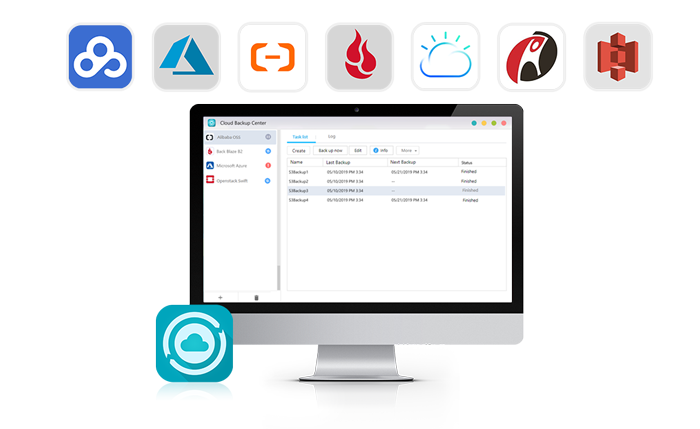

Cloud Backup Center
Cloud Backup Center brings support for various business cloud services including, but not limited to Amazon S3, Backblaze B2, Baidu Cloud, IBM Cloud, Rackspace Cloud Files, Microsoft Azure Blob Storage, Alibaba Cloud, Google Cloud Storage, Box, hicloud S3, Lyve Cloud, SFTP and WebDAV. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.
File Editing and Project Collaboration
Nextcloud and OnlyOffice make collaborating on projects easier than ever by creating a cloud office suite for offices to work on documents, spreadsheets, presentations and more.
Portainer - Easy Docker Deployments
Even more possibilities for ADM with Portainer for Docker images. With thousands of images, Portainer can download and deploy more types of programs than ever before. Portainer is incredibly user friendly and employs a graphical interface to make docker images easier to deploy than ever.

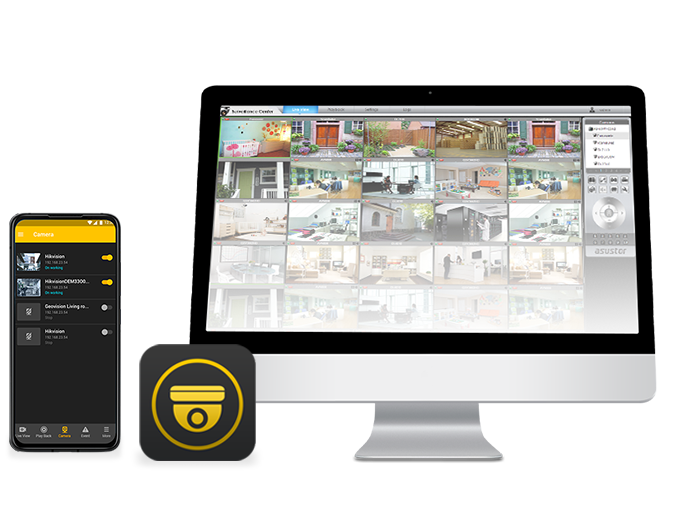

Comprehensive Surveillance System
An ASUSTOR NAS provides optimal reliability for home and small business users looking to set up a surveillance system. Four free camera channels are offered, making it an extremely cost-effective surveillance solution for those looking to protect their home or small business. ASUSTOR provides each NAS with the capability to expand to more cameras for those with bigger demands. Up to 125 camera channels can be purchased through camera licenses. After installing Surveillance Center and its corresponding mobile app AiSecure, stream live surveillance feeds to virtually any internet-connected Android or iOS smartphone to keep an eye on your most valued assets from anywhere, inside or outside.
- Purchasable Camera Licenses
- Compatible with a wide range of cameras
- 5 Steps 60 Sec Setup your surveillance system in a flash
1 - Start quick installation wizard
2 - Automatic camera search
3 - Add cameras with just one click
4 - Configure video format
5 - Configure recording schedule
- Supports up to 125 camera channels

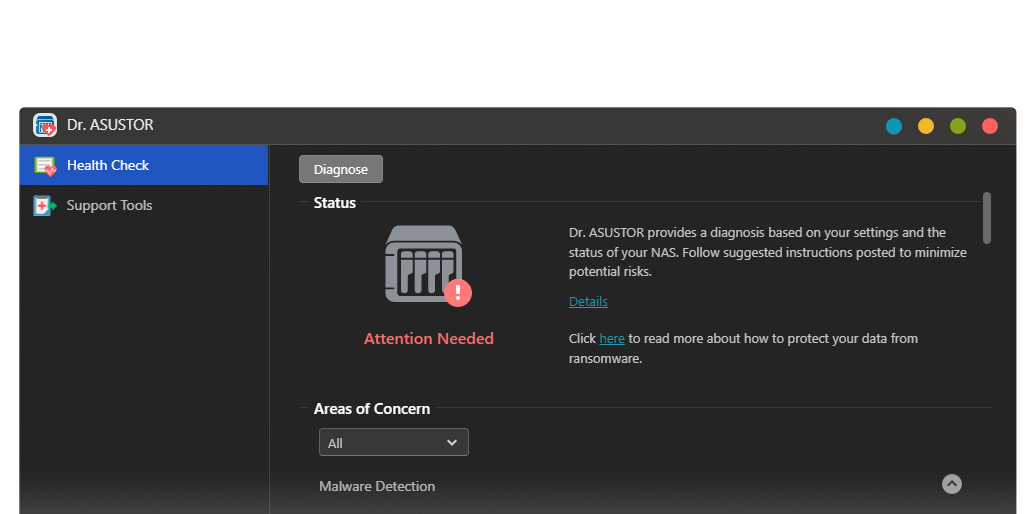

Dr. ASUSTOR
ASUSTOR provides a holistic solution for protecting your data against a variety of threats using Dr. ASUSTOR. Dr. ASUSTOR helps protect your data from a variety of threats, including, but not limited to ransomware attacks.

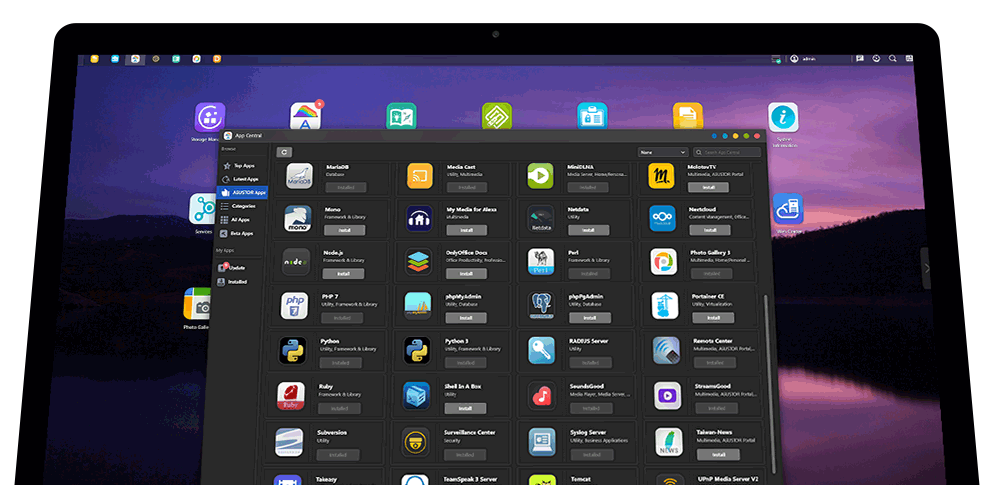

App Central
Unleash the unlimited potential of ASUSTOR NAS. The applications that come pre-installed with each ASUSTOR NAS device are just the beginning. At your convenience, you can browse through and download any applications that pique your interest from App Central. Whether your interests lie in business, website construction or even digital home entertainment, App Central has got you covered. With over 200 unique Apps, App Central provides you with the boundless variety of applications that you require to satisfy your digital lifestyle needs. Explore the unlimited potential of ASUSTOR NAS devices while creating a personalized NAS device for yourself.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular NAS Devices
Synology DiskStation DS223j 2-Bay NAS Server, Realtek Quad Core ,...
Synology DiskStation DS925+ 4-Bay NAS Server, AMD Ryzen V1500B...
Ubiquiti UNAS-Pro 2U 10Gbps Rack-Mount NAS with (7) 2.5/3.5"...
Synology DiskStation DS223 2-Bay NAS Server, Realtek Quad Core,...
Asustor Drivestor 2 Lite AS1102TL 2-Bay NAS, Quad Core 1.7 GHz,...
Asustor Lockerstor 12R Pro Gen 2 AS7212RDX 12-Bay NAS, 2U Rackmount, AMD Ryzen 7 Pro Upto 5.3GHz, 16GB ECC RAM (192GB Max), 2x GbE, 2x10GbE, 1x M.2, 2x PCIe, 4x USB,1x HDMI, Dual redundant Power Supplies, 5 Years Warranty, Come With 4 Free
- Brand: Asustor
- MPN: AS7212RDX
- Part #: NASAST7212DX
Product URL: https://www.pbtech.co.nz/product/NASAST7212DX/Asustor-Lockerstor-12R-Pro-Gen-2-AS7212RDX-12-Bay
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Newmarket | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
LOCKERSTOR 12R Pro Gen2 AS7212RDX
The Lockerstor 12R Pro and 16R Pro Gen2 Bring Rising and Ryzen Speeds!
- Powered by the AMD Ryzen 7 Pro 7745 processor with 8 cores and 16 threads
- Equipped with 16 GB ECC DDR5-4800 memory, expandable up to 192 GB
- Dual 10GbE + Dual Gigabit Ethernet
- Expansion slots: PCIe 5.0 x8 and PCIe 5.0 x4
- Supports PCIe Gen5 SSDs
- Dual redundant 80 PLUS Platinum power supplies
- Supports Wake on LAN on the Gigabit Ethernet ports
Powerful Core for Enterprise-Level High-Speed Computing
The Lockerstor 12R Pro Gen2 and 16R Pro Gen2 are equipped with the AMD Ryzen™ 7 Pro 7745 embedded processor, featuring 8 cores and 16 threads with clock speeds of up to 5.3 GHz. The Lockerstor R Pro Gen2 series with its powerful Ryzen CPU chews through virtualization and containerized workloads as it delivers smooth and stable high-performance computing, making it ideal for diverse enterprise environments.
Expandable for Future Demands
With PCIe Gen5 x8 and Gen5 x4 expansion slots, high-speed devices like 50GbE network cards, SAS storage controllers, and other peripherals can be installed to scale storage and network performance based on evolving business needs.
DDR5-4800 ECC Server-Grade Memory
The Lockerstor 12R Pro Gen2 and 16R Pro Gen2 are equipped with DDR5-4800 ECC memory, which is expandable up to 192GB. ECC memory supports automatic error correction and helps prevent system crashes as well as data corruption, ensuring stable and accurate long-term operation.
PCI Express 5.0
Includes one PCIe Gen5 x4 M.2 2280 NVMe slot, allowing users to install SSDs for high performance caching or storage, significantly improving access speed for small files and enhancing data processing in multi-user environments.
SMB Multichannel (RAID 5)
- 10 GbE * 2
- 2308 MB/s Read
- 1602 MB/s Write
* Performance figures are achieved in the ASUSTOR lab using state of the art client computers under optimized network settings, and could vary in different environments. Ordinary desktop or notebook computers may be unable to reproduce these figures.
More than Just 10-Gigabit Ethernet!
The Lockerstor 12R Pro Gen2 and 16R Pro Gen2 offer dual 10GbE and dual Gigabit Ethernet RJ45 network ports, supporting link aggregation and SMB multichannel, while also delivering ultra-low latency and high-speed data transfer rates. If 10-Gigabit is not enough, the included PCI Express slot allows for 25GbE / 40GbE / 50GbE NICs for even faster networking.
Feels Like Unlimited Space
Your Lockerstor connect to an Xpanstor 12R device using a SAS controller card to add 12 additional drive bays. This provides a stable, high-speed enterprise-grade storage expansion solution without replacing existing hardware and allows your NAS to grow with you.
Efficiently Large and In Charge
Built with dual-redundant 80 PLUS Platinum certified power supplies, providing stable power delivery with up to 92% power conversion efficiency. This ensures optimal energy use even under high workloads, helping businesses save on electricity costs while supporting eco-friendly operations.
Exclusive MyArchive Cold Backup Technology - Unlimited Capacity Expansion
MyArchive cold backup technology turns NAS hard disks into removable storage archives. Directly insert a MyArchive hard disk into the NAS to easily access, backup and share terabytes of content.
360° Backup solution and enterprise virtualization application
- MyArchive cold storage backups
- Snapshot Center, Cloud Backup Center, DataSync Center
- Complete iSCSI/IP-SAN and NFS support
- VMware, Citrix and Hyper-V ready
- Supports Virtualization and Docker apps
"Find Me" Function and Service Light for Server Rooms
In enterprise environments, storage devices are commonly placed together in a server room. In order to allow administrators to quickly find the NAS from among many servers the Lockerstor 12R Pro Gen2(2U) / Lockerstor 16R Pro Gen2(3U) provides a dedicated button on front panel. When this button is pressed, the LED service light on the rear panel of the NAS will light up. ASUSTOR also offers the mobile NAS management app, AiMaster which provides the exclusive Find Me function. When Find Me is activated, the system status light on the front of the NAS will flash and the system buzzer will sound, helping users to quickly find the NAS.
Protected From the Inside and Out
Protect your data from loss, damage and attacks with the ASUSTOR NAS. An ASUSTOR NAS is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus, MyArchive and ADM's various backup tools help protect ransomware even better.
Network Attack Protection
- Firewall
- ADM Defender
- Cloud Backup Center offsite backups
Secure Data Transmission
- VPN connection
- SSL certificate connection
- Automatic logout
Internal Data
- AES-256 folder encryption
- Antivirus software
- MyArchive
Access Control
- File/folder/app isolation
- 2-Step Verification
- Wake-on-LAN (WOL)
Snapshot Center
Snapshot Center is a new feature for ASUSTOR NAS devices to utilize Btrfs and iSCSI volumes to take snapshots of the information inside a NAS. Snapshot Center supports up to 256 snapshots of a volume and can be done every five minutes, creating a backup that can be restored easily if data is damaged or lost.
MyArchive now supports Btrfs and snapshots. Btrfs for MyArchive supports snapshots and version history to help protect against accidental deletions or modifications.
DataSync Center
DataSync Center combines multiple cloud services into a single app. DataSync Center includes, but is not limited to Google Drive, Dropbox, OneDrive and Yandex and supports multitasking as well as multiple accounts. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.
Cloud Backup Center
Cloud Backup Center brings support for various business cloud services including, but not limited to Amazon S3, Backblaze B2, Baidu Cloud, IBM Cloud, Rackspace Cloud Files, Microsoft Azure Blob Storage, Alibaba Cloud, Google Cloud Storage, Box, hicloud S3, Lyve Cloud, SFTP and WebDAV. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.
File Editing and Project Collaboration
Nextcloud and OnlyOffice make collaborating on projects easier than ever by creating a cloud office suite for offices to work on documents, spreadsheets, presentations and more.
Portainer - Easy Docker Deployments
Even more possibilities for ADM with Portainer for Docker images. With thousands of images, Portainer can download and deploy more types of programs than ever before. Portainer is incredibly user friendly and employs a graphical interface to make docker images easier to deploy than ever.
Comprehensive Surveillance System
An ASUSTOR NAS provides optimal reliability for home and small business users looking to set up a surveillance system. Four free camera channels are offered, making it an extremely cost-effective surveillance solution for those looking to protect their home or small business. ASUSTOR provides each NAS with the capability to expand to more cameras for those with bigger demands. Up to 125 camera channels can be purchased through camera licenses. After installing Surveillance Center and its corresponding mobile app AiSecure, stream live surveillance feeds to virtually any internet-connected Android or iOS smartphone to keep an eye on your most valued assets from anywhere, inside or outside.
- Purchasable Camera Licenses
- Compatible with a wide range of cameras
- 5 Steps 60 Sec Setup your surveillance system in a flash
1 - Start quick installation wizard
2 - Automatic camera search
3 - Add cameras with just one click
4 - Configure video format
5 - Configure recording schedule
- Supports up to 125 camera channels
Dr. ASUSTOR
ASUSTOR provides a holistic solution for protecting your data against a variety of threats using Dr. ASUSTOR. Dr. ASUSTOR helps protect your data from a variety of threats, including, but not limited to ransomware attacks.
App Central
Unleash the unlimited potential of ASUSTOR NAS. The applications that come pre-installed with each ASUSTOR NAS device are just the beginning. At your convenience, you can browse through and download any applications that pique your interest from App Central. Whether your interests lie in business, website construction or even digital home entertainment, App Central has got you covered. With over 200 unique Apps, App Central provides you with the boundless variety of applications that you require to satisfy your digital lifestyle needs. Explore the unlimited potential of ASUSTOR NAS devices while creating a personalized NAS device for yourself.
Specifications
Hardware Specifications
CPU
CPU Model
AMD Ryzen 7 Pro
CPU Architecture
x64 64-bit
CPU Frequency
3.8GHz up to 5.3GHz
Memory
Memory
16GB ECC DDR5-4800 UDIMM
Memory Module Pre-installed
16GB (1x 16GB)
Total Memory Slots
4
Memory Expandable up to
192GB (4x 48GB)
Support mixed capacity
Flash Memory
32GB SATA DOM
Storage
Drive Bays
12
M.2 Drive Slots
1
Compatible Drive Type
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
M.2 2280 NVMe
M.2 PCIe Interface
PCIe 5.0 x4
Maximum Drive Bays with Expansion Unit
36
Supports Hot Swappable Drives
Yes
External Ports
Expansion
4x USB 3.2 Gen 1 Type-A
Network
2 x Gigabit Ethernet (1G/100M, WOL)
2 x 10Gigabit Ethernet (10G/1G)
PCIe Expansion Slots
1 x Gen5 x8 slot (x8 link); 1 x Gen5 x4 slot (x4 link)
for optional 10/25/40/50 GbE card and SAS card
Multimedia Output
HDMI x1 (for service only)
Others
System Fan
3x 60mm
Power Supply Unit / Adapter
550W x2
Input Power Voltage
100V to 240V AC
Redundant power supply
Yes
Service LED Indicator
Yes
Certification
FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, UKCA
Operation
Power Consumption
102W (Operation);
99W (Disk Hibernation);
Noise Level
N/A
Operation Temperature
0°C~40°C (32°F~104°F)
Storage Temperature
-20°C~70°C (-4°F~158°F)
Humidity
5% to 95% RH
Size and Weight
Size
88(H) x 439(W) x 576(D) mm
Weight
14 kg / 30.9lb
Software & Features
General Specifications
Supported OS
Windows 10, 11, Server 2016, Server 2019, Server 2022
macOS
UNIX, Linux, and BSD
Supported Languages
Deutsch, English, Français, Italiano, Nederlands, Русский, 日本語, 한글, 简体中文, 繁體中文, Česká, Polski, Svenska, Dansk, Norsk, Suomi, Português, Türkçe, Español, Magyar, ภาษาไทย
Supported Browsers
Firefox
Chrome
Safari
Microsoft Edge
Network
Network Protocols
CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Connection and transmission
TCP/IP (IPv4 & IPv6)
Link Aggregation: Supports 802.3ad and Six Other Modes for Load Balancing and/or Network Failover
Jumbo Frame (MTU)
VLAN
EZ Connect
Wireless Network
DDNS and EZ-Router
Supports Wake-on-LAN (WOL)
File Management & Sharing
File System
Internal Disk: EXT4, Btrfs
External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT, Btrfs
File Explorer
Web-based File Management
ISO File Mounting
Share Links
Task Monitor
Browse Files on Local PC
Thumbnail Previews
Data Access via External Optical Drive
Supports video playback
Network Recycle Bin
Share folder-based
Maintains original directory structure and file permission
On-click restore
Supports scheduled emptying
Filtering rules
1. File size
2. File extension
Deletion Settings
1. File size
2. File date
Storage management
Supported RAID levels
Single
JBOD
RAID 0
RAID 1
RAID 5
RAID 6
RAID 10
Supported RAID migration methods
Single to RAID 1
Single to RAID 5
Single to RAID 6
Single to RAID 10
RAID 1 to RAID 5
RAID 1 to RAID 6
RAID 1 to RAID 10
RAID 5 to RAID 6
Volume
RAID levels supporting storage expansion by complete drive replacement
RAID 1
RAID 5
RAID 6
RAID 10
RAID levels supporting storage expansion by drive addition
RAID 5
RAID 6
RAID 10
RAID spare drive support
RAID 1
RAID 5
RAID 6
RAID 10
M.2 Volume
Supported RAID levels (M.2 Volume)
Single
Supported RAID migration methods (M.2 Volume)
-
RAID levels supporting storage expansion by complete drive replacement (M.2 Volume)
-
RAID levels supporting storage expansion by drive addition (M.2 Volume)
-
Supported RAID migration methods (M.2 Volume)
-
MyArchive
Hot swappable design enables easy transfer or exchange of high amounts of data
Works on any empty bay on an ASUSTOR NAS
File system support: EXT4, NTFS, HFS+, Btrfs and exFAT
Supports AES 256-bit encryption on EXT4 and Btrfs
Supports Btrfs snapshots
Supports decryption with a USB key
iSCSI/IP-SAN
Maximum Targets: 256
Maximum LUNs: 512
Maximum Snapshot Versions of a Single LUN: 256
Target Masking
LUN Mapping
ISO File Mounting
Supports MPIO
Persistent (SCSI-3) Reservations
Disk Management
Scheduled Bad Block Scans
Scheduled S.M.A.R.T Scans
Access & Security
Access Control
Maximum Number of Users: 16384
Maximum Number of Groups: 512
Maximum Number of Shared Folders: 512
Maximum Number of Concurrent Connections: 2048
Supports Windows Active Directory
Supports Windows Active Directory / LDAP
ACL
Provides both Windows ACL and Linux ACL permission configuration methods
Can enable Windows ACL for specific shared folders
Comprehensive support for Windows' 13 types of advanced permission settings
Can view Windows ACL permission settings from within ADM
Supports local users and groups
Exclusive permission reset function allows users to quickly restore default permissions
SSD Cache
SSD-like performance with traditional hard drives
Supports read-only access and read-write cache mode
System Administration
Log Type: System Log, Connection Log, File Access Log
Real-time Online User Monitor
Real-time System Monitor
User Quota
Virtual Drive (ISO Mounting, Maximum 16)
UPS Support
Security
AES 256-Bit Encryption
Firewall: Prevent Unauthorized Access
Alert Notifications: E-mail, SMS
Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
Built-in Hardware Encryption Engine
RAID Scrubbing: detects the integrity and consistency of RAID 5 and RAID 6 drive data.
Network Defender
Auto black list
Trusted list
Black/White list
- Supports IP/IP range/geolocation
Backup
Backup Solutions
Rsync (Remote Sync) Backup
Cloud Backup
FTP Backup
External Backup
One Touch Backup
EZ Sync
SMB Backup
Snapshots
Btrfs Snapshots
256 Snapshots
iSCSI LUNs
Others
ASUSTOR Highlight
System Migration
EZ Connect
Dr. ASUSTOR
2-way Backup
Task Monitor
Eco-Friendly Design
Auto-Standby for Both Internal and External Disks
Auto Fan Control
LED Night Mode
Power Schedule: On, Off, Restart
Energy Control
Configurable Disk Hibernation Wait Time
