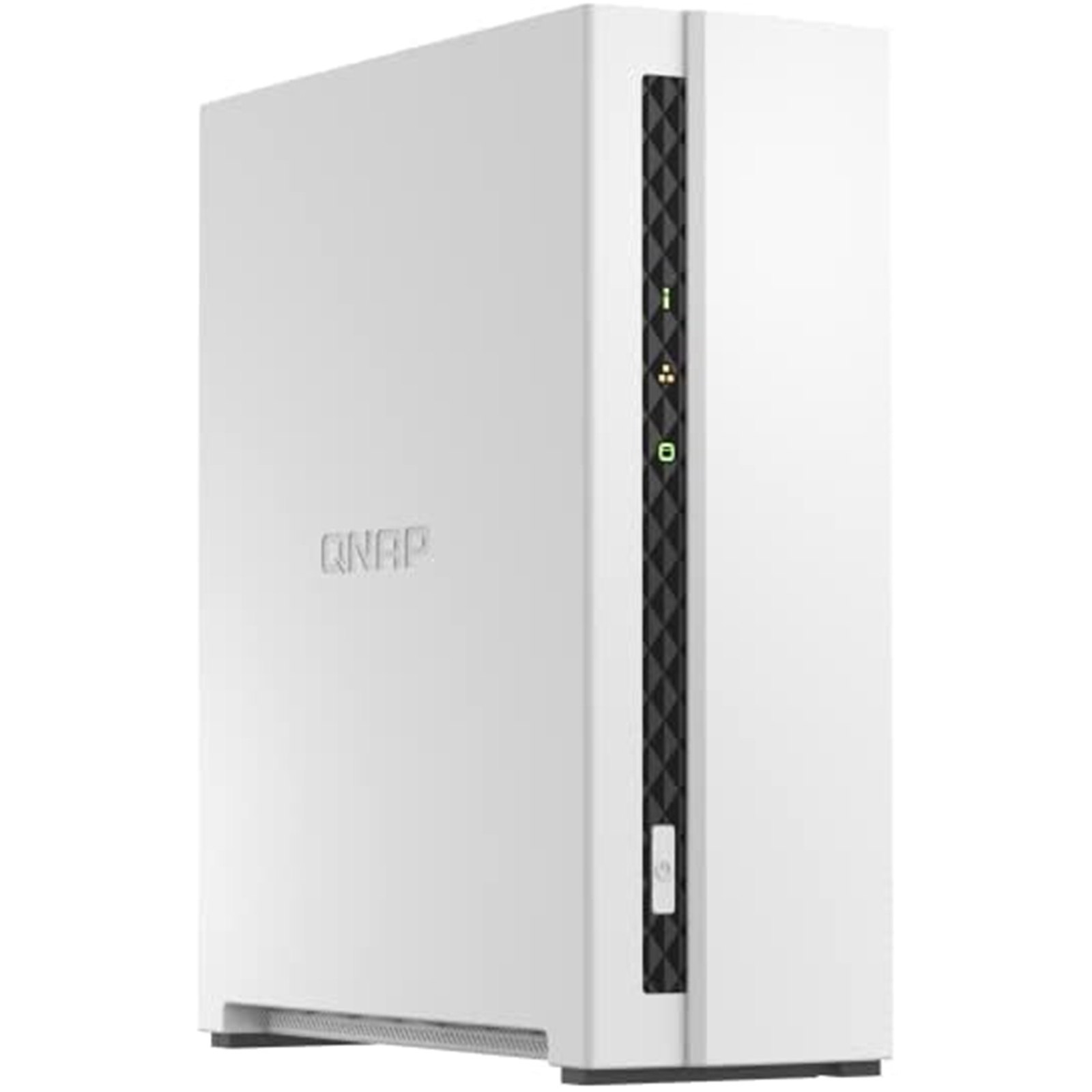

QNAP TS-133 Home NAS Server, Single Bay, Quad Core 1.8Ghz 2GB Memory, 1x GbE, 2X USB, 1X 3.5"/2.5" SATA, Come with 8 Camera License

PB Tech price
PB Tech price
$ 225 .21
 +GST
$ 258 .99
 inc GST
$225.21  +GST
$258.99  inc GST

QNAP TS-133 Home NAS Server, Single Bay, Quad Core 1.8Ghz 2GB Memory, 1x GbE, 2X USB, 1X 3.5"/2.5" SATA, Come with 8 Camera License

  • Brand: QNAP
  • MPN: TS-133
  • Part #: NASQNP1330
  • UPC: 885022022953
3
PB Tech price
$ 225 .21 $ 258 .99
 +GST  inc GST
Tax free price $238.72


Click & Collect: Available from 17 stores.
Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
$225.21  +GST
$258.99  inc GST

Six easy payments of $44.46 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Laybuy

Four payments of $66.37 per fortnight*

Klarna lets you spread the cost of your purchase over 4 interest free fortnightly payments.

Click the button below or select Klarna as your payment method during the checkout process.

If you do not have a Klarna account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Klarna

Finance from $3.22 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

12 months interest free from $6.04 per week*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate of 28.50% p.a. applies to outstanding balance at the end of LTF Interest-Free Period (see Ts&Cs for Q Mastercard Standard Interest Rate). Approved applicants only. The indicative monthly repayment is the purchase amount and Establishment Fee divided by the number of weeks in the Start-up interest Period. The indicative repayments assume there are no additional purchases, cash withdrawals, fees or charges. The indicative repayments are only an estimate and figures should be used as an indication only. They do not represent either a quote. pre-qualification or approval. To repay the purchase amount by the expiry of the Start-up interest Free Period, the indicative monthly repayments stated would need to be made by the due date for each statement period.

*See here for full T&C

  • Brand: QNAP
  • MPN: TS-133
  • Part #: NASQNP1330
  • UPC: 885022022953

Number of Bays

1 Bay

Form Factor

Desktop

Number of Cores

4

Processor Speed

1400Mhz

Memory Size

1GB

Hard Drives Installed

None Included

1Gb RJ45 Ports

1 Port

10Gb RJ45 Ports

None

What PB Tech customers are saying about this product...

See More Reviews

"This system is very sophisticated with many features that a power user may require. It can be a little daunting for a beginner to set up and figure out the allocation of space on ...view more"

GU
By: GregU16 03/08/23
Verified Owner

"... and I wasn't disappointed. I prised out the hdd from my old unsupported WD MyCloud NAS and popped it into the QNAP. The installation was a breeze and the range of supporting ap ...view more"

CR
By: ChrisR23 01/06/23
Verified Owner

"This single bay NAS server is actually better than the figur ...view more"

GZ
By: GordonZ 28/03/23
Verified Owner

Features

QNAP TS-133 Home NAS Server

Run your own personal cloud storage and enjoy easy file access, sharing, and syncing with the TS-133. Designed to enhance collaboration and increase remote work productivity, the TS-133 also features rich multimedia applications and provides a complete home entertainment portal.

Centralized multimedia management

Centrally store photos, music, and videos; easily browse, organize, and share multimedia files.

AI-powered image recognition

With a built-in NPU (Neural network Processing Unit) processor, the TS-133 boosts performance for high-speed face and object recognition.

Home entertainment center

Supports ARM NEON technology that accelerates video processing for a greater entertainment experience.

Secure remote access

myQNAPcloud allows you to easily access, manage, and share NAS files via the Internet.

Snapshot protection against Ransomware

Protect your files and data from accidental deletion and malware attacks by using advanced snapshot protection.

Comprehensive security management

Serves as a secure private cloud and supports user account protection, IP blocking, 2-step verification, encryption access, and more.

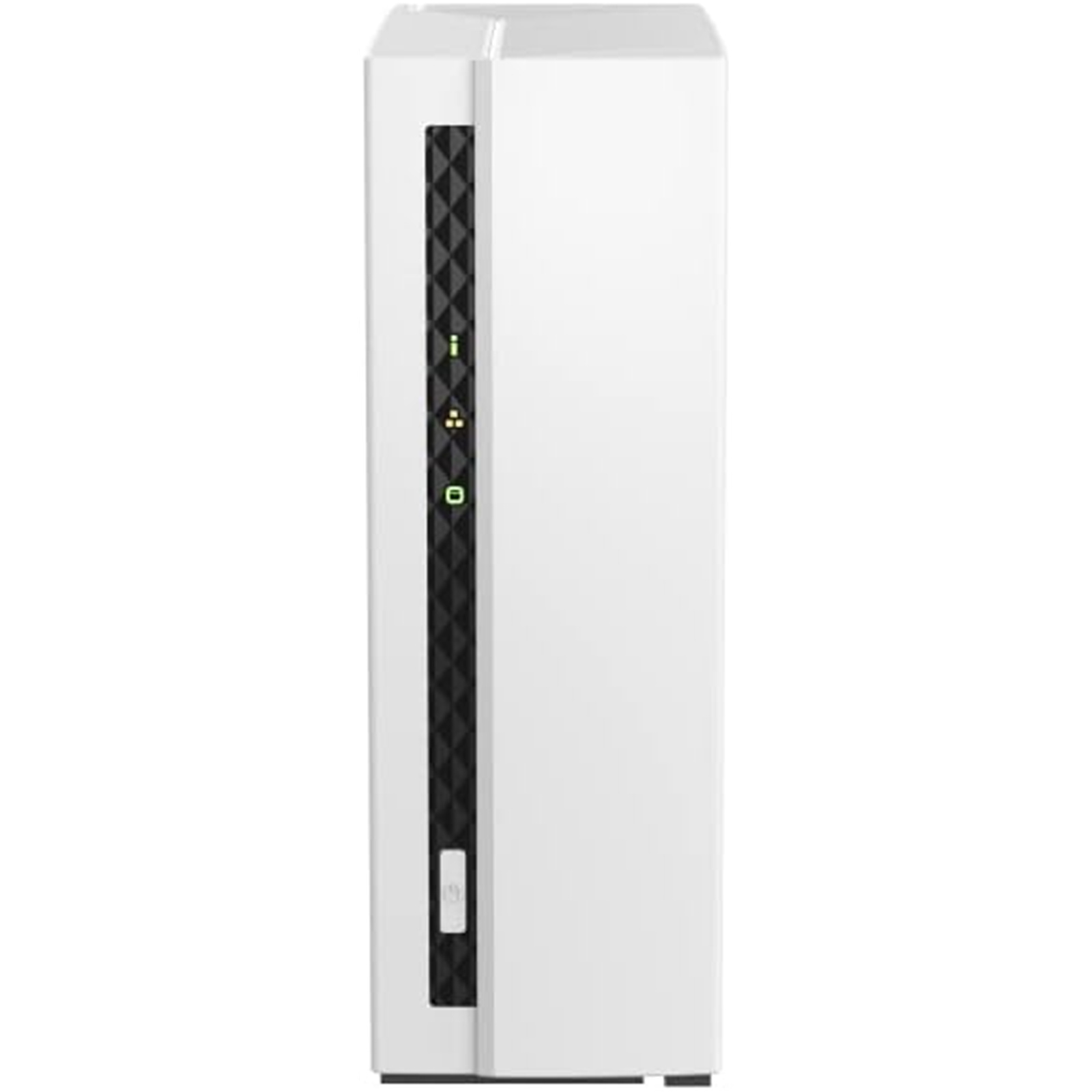

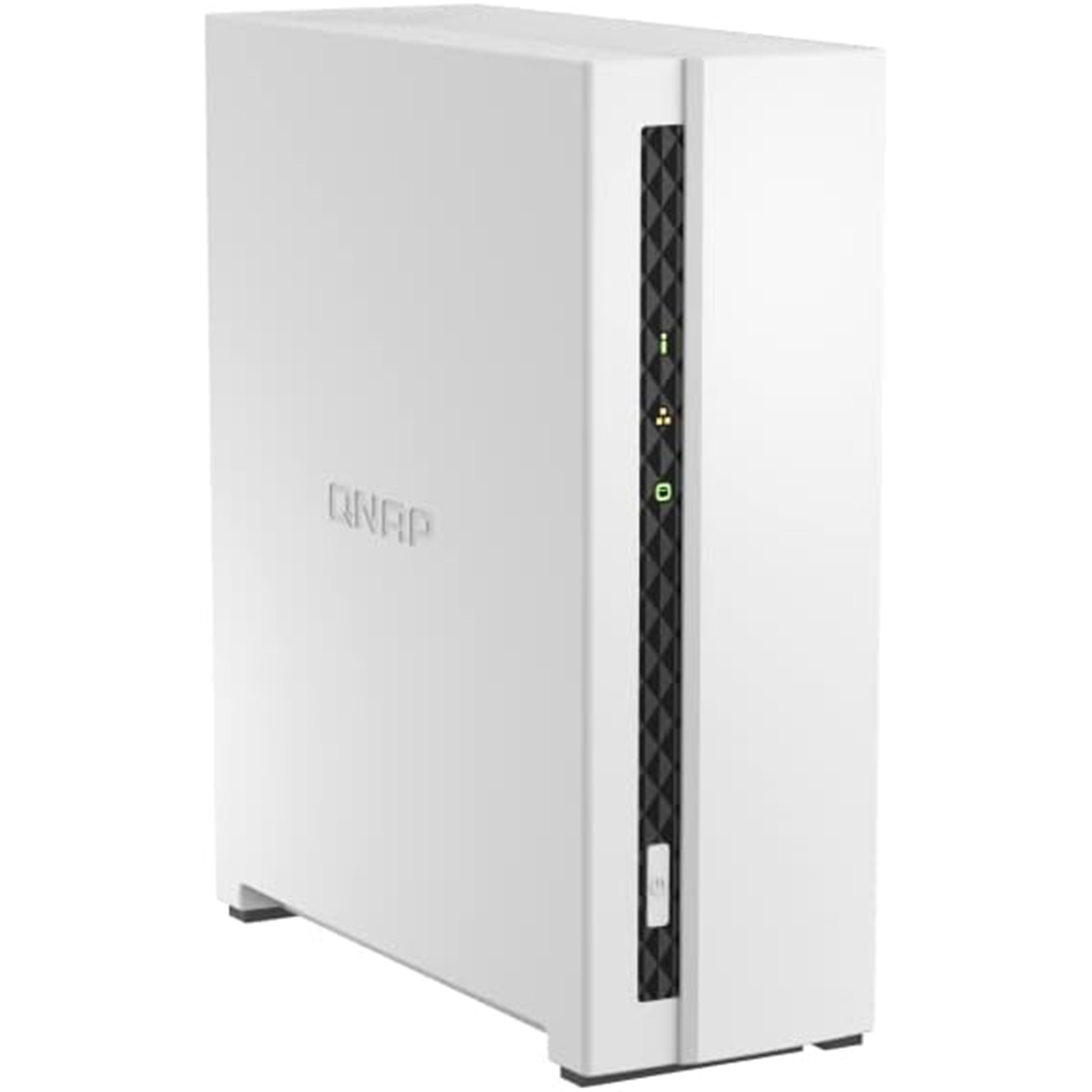

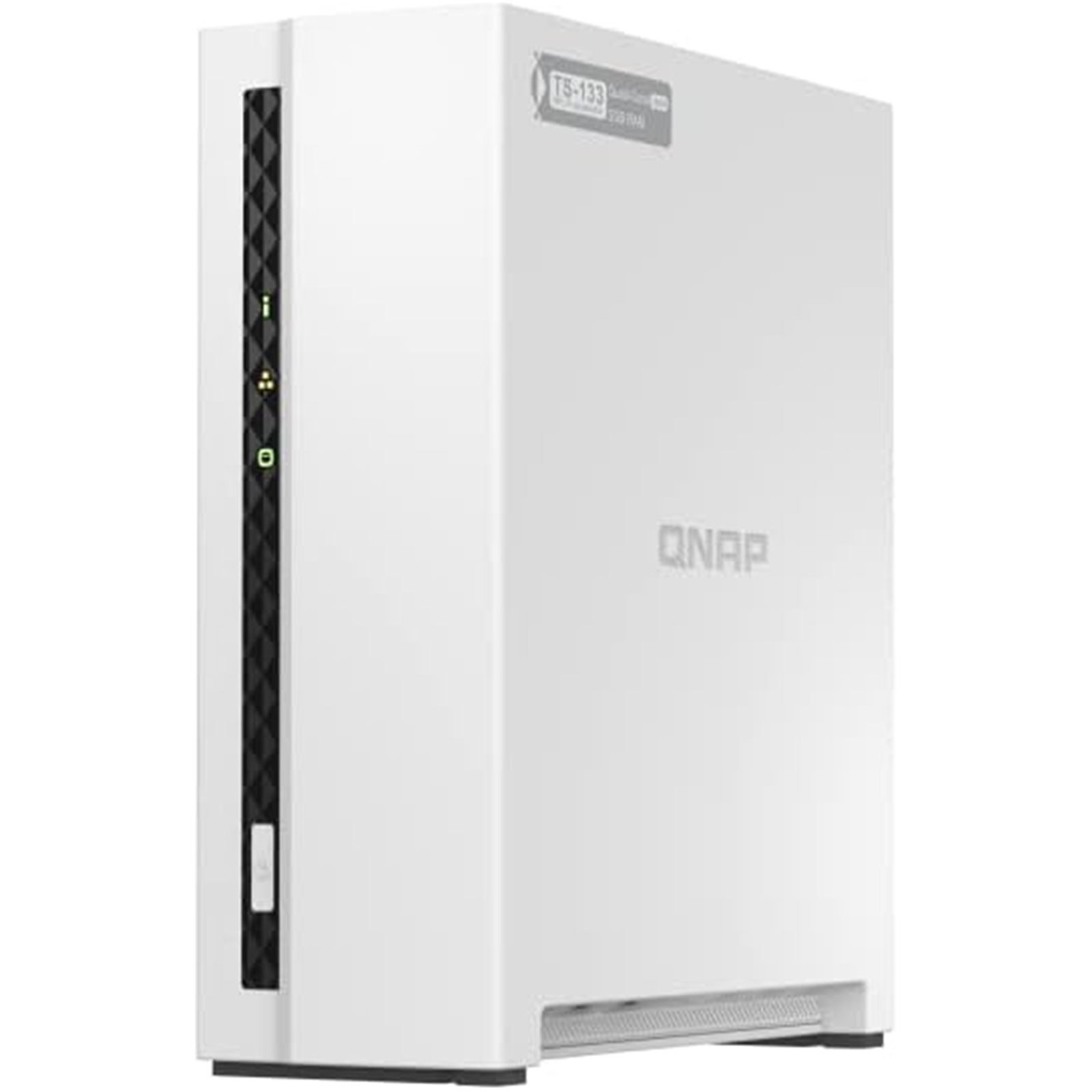

Minimalist design

The compact and slim TS-133 prioritizes a clean and essential design, and perfectly blends into your home or office.

Effective cooling fan for heat flow

The TS-133 is small in size and remains high-performance, cool, and quiet with an effective cooling fan.

64-bit Cortex-A55 quad-core 1.8 GHz CPU NAS for everyday use and collaboration

Powered by a ARM® Cortex-A55 quad-core 1.8 GHz processor, built-in 2 GB RAM, one Gigabit LAN port, and supports one SATA 6Gb/s hard drive, the TS-133 provides dependable read/write performance for running various home and business NAS applications. The TS-133 features AES-NI 256 hardware-accelerated encryption for both full NAS volumes and shared folders, boosting system performance while securing sensitive data.

NPU accelerates on-device AI performance. 6x Faster face recognition.

With a built-in NPU (Neural network Processing Unit) processor, the TS-133 boosts QNAP AI Core (the AI-powered engine for image recognition) performance for high-speed face and object recognition.

QuMagie Smart photo management

The AI-powered QuMagie with intelligent face and object recognition brings you the ultimate photo management and sharing solution. Includes timeline scrolling, customizable folder covers, iOS® Live Photo display, a powerful search tool, and more.

QTS 5, Fast, smooth, and easy-to-use!

The TS-133 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.

Brighter. Smoother. You'll like it.

When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.

Get started with the notice board

When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.



Smooth and reactive user interface

Whether clicking buttons, switching between apps, expanding/collapsing windows - every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.


An easy-to-use, all-in-one backup solution

The TS-133 can do many things, but at its heart is a complete backup solution to protect your files and data. By regularly backing up your files and device content, you can make data loss a thing of the past.

- Back up Windows®/Mac® files: For Windows®, install NetBak Replicator to back up your PC to the TS-133. In macOS®, simply set up the built-in Time Machine® to back up files to NAS.
- Back up photos on mobile devices: Install Qfile or QuMagie mobile app and enable the "auto-upload" function. Photos will be automatically uploaded to your TS-133 as soon as they are taken.
- Back up Google Drive™: Hybrid Backup Sync can safely back up files and data from Google Drive™ to the TS-133, helping you save money on cloud storage costs.
- Back up NAS files to the cloud: Hybrid Backup Sync supports all your favorite public cloud services, allowing you to effortlessly back up or sync NAS files to cloud storage.
- Back up NAS files to remote sites: With Hybrid Backup Sync, you can easily backup or sync files and data from the TS-133 to a remote QNAP NAS or server for multiplied data protection.

Protect your data from ransomware threats with Snapshots

Snapshots are an advanced backup method and are normally reserved for high-end business NAS. QNAP provides snapshots as standard for all NAS - including the TS-133. Snapshots work by recording the current state of the system, allowing it to be restored back this state at any time - greatly helping in mitigating the threat of ransomware.

Back up PCs to your NAS

Always remember to back up! You should routinely (or automatically) back up files and data from your computer to your TS-133.

Take snapshots within seconds

Instantly take snapshots to record the current state of your system and data. You can quickly restore files and data to a previously recorded state by selecting a snapshot version from a specific time point.

Back up snapshots

Multiply data protection by backing up snapshot files! Replicate snapshots in the TS-133 to a remote NAS (Snapshot Replica) and only copy the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.

Restore data using snapshots

Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.

The best storage for your high-resolution multimedia files

High-resolution RAW files eat up phone storage so quickly. Whether you are a photographer enthusiastic, YouTuber, or professional photo/video editors, use the TS-133 with high-capacity hard drives to alleviate your storage anxiety and organize files efficiently as the best storage center.

Storage for music collections

Use Music Station to collect and play lossless music, sing along with lyrics, and share albums, playlists or folders with friends and family. You can also put tons of music right in your pocket using the Qmusic mobile app.

Store high-resolution videos

Centrally collect GoPro diaries, videos of your family, friends, and pets in Video Station, and easily share your favorites. Take all your videos with you on your mobile devices using the Qvideo mobile app.

Enhanced multimedia experience

The TS-133 supports ARM NEON technology to accelerate video processing for a greater entertainment experience. Stream media files from the TS-133 to DLNA® devices and TVs using common media streaming devices including Roku®, Apple TV® (via Qmedia), Google Chromecast™, and Amazon Fire TV®.

*Playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth. H.265 hardware transcoding requires installing CAYIN MediaSign Player with Plus license.

Tips for a more productive workday

With a wide range of awesome apps, you can easily access files from various devices, instantly synchronize files with friends' or colleague's devices, quickly find specific files, and automatically organize your documents and media files. You can also map the TS-133's shared folders as network drives on your computers, making accessing NAS files easy and intuitive. The TS-133 helps you save time while being more efficient and productive.

File Station

Easily manage files stored in your TS-133 using the web-based File Station. The Qfile companion mobile app also puts all your files at your fingertips, providing a complete personal cloud service that is accessible from anywhere!

Qsync

Qsync is a perfect replacement of Dropbox®, allowing you to synchronize files with computers and mobile devices belonging to your family, friends, colleagues, and clients.

Qfiling

Save time organizing and archiving your files with Qfiling. Simply categorize your files, set a schedule, and Qfiling will automatically organize and archive them.

Access your NAS from anywhere

The myQNAPcloud service enables quick and easy remote access to your TS-133, allowing you to be always connected without needing to configure complex network settings. With myQNAPcloud Link you are provided with a unique domain name for your TS-133, and will automatically connect using the best method based on your network environment.

Protect your data with higher security

The TS-133 provides advanced privacy and security settings but is easy to set up and use. Besides IP blocking and HTTPS connectivity, there are more apps that help ensure an optimal level of NAS protection against threats like malware and hackers.

2-step verification

When activated, anyone who logs in to the TS-133 must enter a one-time verification code after their username and password.

Advanced folder permissions

Easily manage folder permissions, specifying read, read/write, and deny access of individual users to each folder and subfolder.

QuFirewall protection

Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.

Superior security with QVPN

A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-133 as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection.

Security Counselor

A security portal for the TS-133 to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Host container applications

If you are curious about Docker or are a hobbyist developer, Container Station on the TS-133 integrates Docker® lightweight virtualization technology, allowing you to run all kinds of self-contained applications. You can download apps from the built-in Docker Hub®, including popular and fully-configured applications, and deploy them with just one click. From smart homes to multimedia applications, you can explore your creativity and bring containerized applications to life.

Besides Container Station, more apps (including tools for backup/sync, content management, communications, download, and entertainment) are available from the App Center. Simply click and install on-demand to further extend the functionality of your TS-133.

Flexible and economical storage expansion

QNAP provides easy and affordable solutions to expand your NAS storage capacity.

Attach QNAP expansion enclosures

Connect expansion enclosures to the TS-133, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.

Mount cloud storage or remote file servers

Mount cloud storage or remote file servers to expand the capacity of the TS-133 while also centrally managing files on the NAS, cloud storage, and remote devices.

Migrate to a new NAS

Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

Upgrade RAID capacity

Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your files and multimedia collections.

Specifications

Hardware

CPU

ARM 4-core Cortex-A55 1.8GHz processor

CPU Architecture

64-bit ARM

Floating Point Unit

Y

Encryption Engine

Y

System Memory

2 GB on board (non-expandable)

Maximum Memory

2 GB on board (non-expandable)

Flash Memory

4 GB (Dual boot OS protection)

Drive Bay

1 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

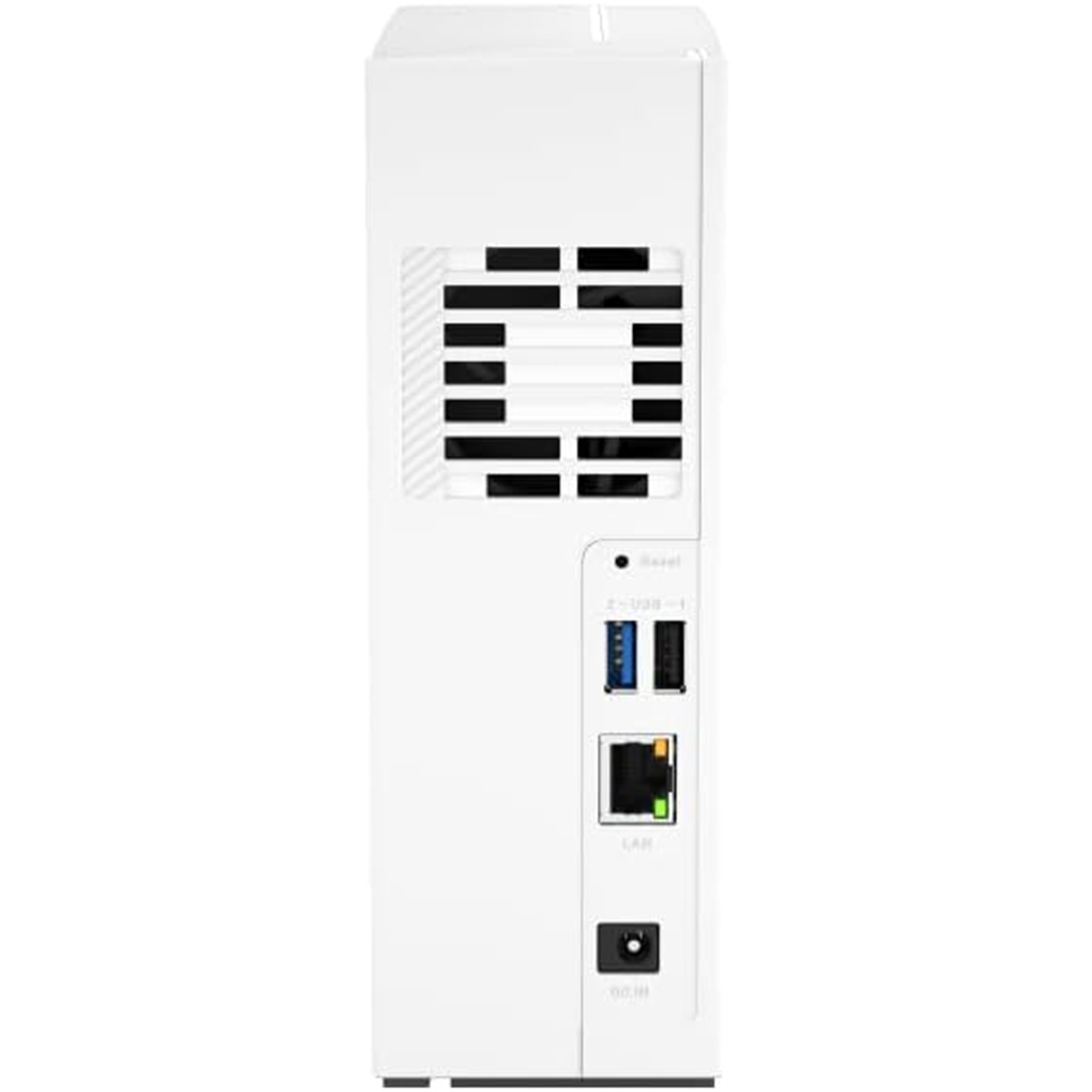

Gigabit Ethernet Port (RJ45)

1

Wake on LAN (WOL)

Jumbo Frame

Y

USB 2.0 port

1

USB 3.2 Gen 1 port

1

Form Factor

Tower

LED Indicators

System Status, LAN, HDD

Buttons

Power, Reset

Dimensions (HxWxD)

7.38 × 2.6 × 6.2 inch

Weight (Net)

1.34 lbs

Weight (Gross)

2.8 lbs

Operating Temperature

0 - 40 °C (32°F - 104°F)

Storage Temperature

-20 - 70°C (-4°F - 158°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27°C (80.6°F)

Power Supply Unit

36W Adapter, 100-240V

Power Consumption: HDD Sleep Mode

2.74 W

Power Consumption: Operating Mode, Typical

7.32 W

Fan

1 x 50mm, 12VDC

System Warning

Buzzer

Max. Number of Concurrent Connections (CIFS) - with Max. Memory

200

Software

Operating System

QTS 5.0.1

Supported Client Operating Systems

Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10 and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, and 2019

Supported Browsers

Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version)

Supported Languages

Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish

Storage Pool

SED Storage Pool

Y

Maximum Pool size

308 TB

Maximum number of storage pool

128

Volume Type

Thick, Thin, Static

Maximum volume size

250 TB

Maximum number of volume

128

Maximum shared folder size

250 TB

Maximum number of shared folder

512

JBOD Expansion

Y

VJBOD / VJBOD Cloud

Y

iSCSI Service

Y

Fibre Channel Service

Y

LUN Type

Thick, Thin

File-based iSCSI LUN

Y

Block-based iSCSI LUN

Y

Maximum LUN size

250 TB

Operating System

QTS 5.0.1

Supported Client Operating Systems

Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10 and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, and 2019
Show less...
Supported Browsers
Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version)
Supported Languages
Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish

Storage Pool

SED Storage Pool

Maximum Pool size

308 TB

Maximum number of storage pool

128

Volume Type

Thick, Thin, Static

Maximum volume size

250 TB

Note:

At least 4 GB RAM is required.

Maximum number of volume

128

Maximum shared folder size

250 TB

Maximum number of shared folder

512

JBOD Expansion

VJBOD / VJBOD Cloud

iSCSI Service

Fibre Channel Service

LUN Type

Thick, Thin

File-based iSCSI LUN

Block-based iSCSI LUN

Maximum LUN size

250 TB Note: At least 4 GB RAM is required.

Maximum number of targets LUN

256

LUN feature

LUN Mapping (LUN can be moved between iSCSI and FC)
LUN Masking
WWPN Aliases Import/Export
FC Port Group
FC Port Binding
Multipath IO (MPIO)
Online LUN capacity expansion
LUN snapshot
LUN snapshot replication and clon

Auto Tiering

Y

RAID Type

8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
2-bay: JBOD, Single, RAID 0, 1

RAID Group

Y

RAID Level Migration

RAID Expansion (by adding Disk)

Y

RAID Expansion (by replacing bigger Disks)

Y

Storage Pool Expansion (by adding RAID Group)

Y

RAID Hot Spare

Global, Local

RAID Sync/Rebuild/Scrubbing

Y

Internal drive

EXT4

External drive

EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)

Disk, Enclosure Locate

Disk S.M.A.R.T. Scan

Y

Disk S.M.A.R.T. Data Migration

Y

Ironwolf Health Management

Y

Secure Erase

Y

SSD Trim

Y

SSD Life Estimation

Y

Disk Roaming

Y

Disk Standby

Y

Volume Snapshot

Y

LUN Snapshot

Y

Maximum Snapshot (Per System)

Check maximum number of snapshots of your NAS

Maximum Snapshot (Per Volume / LUN)

Check maximum number of snapshots of your NAS

Minimum Snapshot Interval

5 minutes

Snapshot Retention Policy

Self-serve Snapshot Recovery

Y

Application Consisted Snapshot

Y

Snapshot Full Clone

Y

Snapshot Replica / Vault

Y

SSD profiling tool

Y

External Device Management

Y

Mount Smart Phone (MTP)

Y

External RAID Device (QNAP so on) Management (External Device Mode)

Y

External RAID Device (QNAP so on) Management (NAS Mode)

Y

File Server

File sharing across Windows, Mac, and Linux/UNIX
Microsoft networking (CIFS/SMB)
Apple networking (AFP)
NFS version 3/4 services

FTP Server

QuFTP
FTP, SFTP and TFTP protocols
FTP over SSL/TLS (explicit FTPS)
FXP support

Maximum FTP connection

1024

File Station (Web)

Object Storage

Y

Local user account

4,096

Local group account

512

Domain user/group account

200,000

Domain Security

Domain Controller

Y

Shared folder permission

Y

Advanced folder permission

Y, (AFP, CIFS/SMB, FTP, and File Station)

Windows ACL

Y, (CIFS/SMB)

User quota

Y

Group quota

Y

Folder quota

Y, (Snapshot shared folder)

Home folder

Resource Monitor

Y

SNMP

V2, V3

Network recycle bin

Recover files deleted using AFP, CIFS/SMB, and File Station
Automatic cleanup and file type filter

System Log & Notification Center

Log recording: 3,000 event per second

Smart Fan

Schedule on/off

Y

Internet protocol

IPv4, IPv6

Virtual Switch

Port trunking

Y, (7 modes)

VLAN

Y

DHCP Server

Y

DDNS (Dynamic Domain Name Service)

Y

Network access protection with auto-blocking

Y

SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP

Y

Security Counselor

Y

Malware Remover

Y

AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP

Y

2-step verification

Y

Allow/Deny List

Y

Access Protection

Y

Service binding

Y

Firewall

Y

vSphere Web Client Plug-in

Y

VMware vSphere VAAI for iSCSI

Y

VMware vSphere VAAI for NAS

Y

Windows ODX

Windows/VMware Snapshot Agent

Y

HTTP/HTTPS Connections

TLS 1.0/1.1/1.2/1.3

Supports WebDAV Connection

Y

Supports Virtual Hosts

32

Qsync

Y

[Qsync] Management Mode

User customization, Central

[Qsync] Qsync client supported platforms

Windows, macOS, Ubuntu, Android, and iOS

[Qsync] Maximum number of version control

64

HybridMount

Y

[HybridMount] File Cloud Gateway

Concurrent Connections = 20 Upload & 20 Download

[HybridMount] Network Drive Mount

Y

[HybridMount] Free cloud gateway sessions

2

HBS (Hybrid Backup Sync)

Y

[HBS (Hybrid Backup Sync)] NAS to NAS backup

Y

[HBS (Hybrid Backup Sync)] Cloud Backup

Y

[HBS (Hybrid Backup Sync)] Cloud Sync

Y

[HBS (Hybrid Backup Sync)] 2-way and Active Sync

Y

[HBS (Hybrid Backup Sync)] Apple Time Machine Backup

Y

[HBS (Hybrid Backup Sync)] External drive backup

Y

[HBS (Hybrid Backup Sync)] Maximum number of backup job

400

Qsirch

Y

[Qsirch] Previews

Photos, music, videos, PDFs, Gmail, and others

[Qsirch] Integrate Mac Finder

[Qsirch] Advanced picture search

Y

[Qsirch] Search filters

Y

QuMagie

Y

[QuMagie] Browse photos

Y

[QuMagie] Virtual and smart albums

Y

[QuMagie] AI-assisted photo management

People, things, places, and others

Antivirus (free)

QVPN Service

Y

[QVPN Service] Remote Access

PPTP, L2TP/IPSec, OpenVPN, QBelt (QNAP proprietary)

[QVPN Service] Supportedd utility and mobile app

Windows, macOS, iOS, and Android

[QVPN Service] Supported maximum clients

100

LDAP Server

RADIUS

Y

SQL server

Y

License Center

Y

Multimedia Console

Y

Photo Station

Y

Music Station

Y

Video Station

Y

Download Station

Y

Notes Station

Y

Qfiling

Y

Media Streaming add-on

Y

QmailAgent

Y

QuWAN

Y

DA Driver Analyzer

Y

Q'center

Y

Q'center Server

Y

Q'center Agent

Connect to Q'center

Y

Container Station

Y

[Container Station] Supported type

LXC/LXD and Docker

[Container Station] Docker Hub Registry

Y

[Container Station] Container importing and exporting

[Container Station] Console mode

QVR Elite

Y

[QVR Elite] Recording Technique

Standard MP4 file based

[QVR Elite] License Type

Subscription-based

[QVR Elite] User-defined trigger events

Y

[QVR Elite] QVR Pro Client (Desktop)

Windows, macOS, and QNAP HybridDesk Station

[QVR Elite] QVR Pro Client (Mobile)

Android and iOS

[QVR Elite] Recording camera streams

H.264

[QVR Elite] Free built-in camera channels

2

QVR Pro Client

Y

[QVR Pro Client] Dynamic View Layout

Y

[QVR Pro Client] Windows

Y

[QVR Pro Client] Mac

Y

[QVR Pro Client] HybridDesktop

Y

[QVR Pro Client] iOS

Y

[QVR Pro Client] Android

Y

QVR Human

Y

QVR Face

Y

QVR DoorAccess

Y

Manufacturer Part No:
TS-133
Brand:
Product Type:
Home NAS Server,
UPC
885022022953
Product Family:
-
Shipping Weight:
1.33 kg
PB Part No:
NASQNP1330
Product Model:
TS-133
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

4.7 out of 5 Stars Based on 3 Reviews
5 Stars
2
4 Stars
1
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

It really was a good price...

... and I wasn't disappointed. I prised out the hdd from my old unsupported WD MyCloud NAS and popped it into the QNAP. The installation was a breeze and the range of supporting apps was very wide. So I watched a Youtube video from https://www.youtube.com/watch?v=PvBwE2B13eg and all went very well with no hiccups.

Highly recommended.

CR
By: ChrisR23 01/06/23
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

This is a sophisticated NAP system, works well

This system is very sophisticated with many features that a power user may require. It can be a little daunting for a beginner to set up and figure out the allocation of space on hard dtives etc. Take it step by step. It seems to work well for my purposes primarly of file back up. I do wish I had got a multi-bay unit so could expand later. Note that each drive uses up space for the regular imaging of the drive storage that provides back u, so get a much bigger storage drive than you may think at first guess.

GU
By: GregU16 03/08/23
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Excellent Single Bay NAS Server Box for the promotion price

This single bay NAS server is actually better than the figures described in the title:
[1] it actually has a Arm A55 processor running at 1.8 GHz rather than 1.4 GHz in the title.
[2] it has 2GB RAM rather than 1GB described in the title.
In my test, running background task only can some times use about 1.2 GB RAM. So 2GB does offer better performance than 1GB.

It is quite easy to install a HDD disk and set up. It is light but looks not as solid as my old QNAP TS-433P. But, for its promotion price, there is nothing wrong with it. It comes with the screws for installing the HDD or SATA SSD drive.
Apart from one tricky bit, the set up i...view more

GZ
By: GordonZ 28/03/23
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Accessories

Delivery & Pick-up

Potential courier delays: Please note that due to the high volumes currently within the NZ courier network there is potential for some deliveries to be delayed.

Delivery Estimates

The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.

Next Day Delivery

Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.

Same Day Delivery

Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.

Shipping Costs

Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.

To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.

Shipping Security & Insurance

All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.

1 Hour Store Pick-up / Click & Collect

You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.

Overseas Shipments

PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com

Returns & Warranty

7 day right of exchange

If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.

To exchange a product, goods must be sealed / unopened, with packaging in original condition, and accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange.

If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase.

Please note, items purchased on finance cannot be exchanged for a gift card.



Hassle free warranty service

If your product develops a fault within the manufacturer warranty period, you can either contact the manufacturer directly (some manufacturers provide a high level of warranty service - including free pickup or in some cases onsite repair), or return to one of our services centres / stores. Where the product has been directly imported by PB Tech, you need to contact us directly or present the product at any one of our service centres / stores together with your proof of purchase.

If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.



Returning a product / making a warranty claim

To contact the manufacturer directly to troubleshoot your product or to request a warranty repair, please view the list of manufacturer / brand warranty contacts (for products imported directly by PB Tech please return to us directly by completing our request a return form).

To return a product to PB Tech directly, please complete our request a return form.

Or view our returns policy for more information.

QNAP TS-133 Home NAS Server, Single Bay, Quad Core 1.8Ghz 2GB Memory, 1x GbE, 2X USB, 1X 3.5"/2.5" SATA, Come with 8 Camera License

  • Brand: QNAP
  • MPN: TS-133
  • Part #: NASQNP1330
  • UPC:885022022953
PB Tech price $225.21 Excluding GST PB Tech price $258.99 Including GST

Date Created: 09:00, 17-04-2024
Product URL: https://www.pbtech.co.nz/product/NASQNP1330/QNAP-TS-133-Home-NAS-Server-Single-Bay-Quad-Core-1
Branch New Stock On Display
Albany 2
Glenfield 3
Queen Street 2
Auckland Uni 0
Newmarket 7
Westgate 5
Penrose 11
Henderson (Express) 2
St Lukes 4
Manukau 2
Hamilton 2
Tauranga 5
New Plymouth 4
Palmerston North 2
Petone 2
Wellington 1
Head Office 20+
Hornby 3
Christchurch Central 5

Features

QNAP TS-133 Home NAS Server

Run your own personal cloud storage and enjoy easy file access, sharing, and syncing with the TS-133. Designed to enhance collaboration and increase remote work productivity, the TS-133 also features rich multimedia applications and provides a complete home entertainment portal.

Centralized multimedia management

Centrally store photos, music, and videos; easily browse, organize, and share multimedia files.

AI-powered image recognition

With a built-in NPU (Neural network Processing Unit) processor, the TS-133 boosts performance for high-speed face and object recognition.

Home entertainment center

Supports ARM NEON technology that accelerates video processing for a greater entertainment experience.

Secure remote access

myQNAPcloud allows you to easily access, manage, and share NAS files via the Internet.

Snapshot protection against Ransomware

Protect your files and data from accidental deletion and malware attacks by using advanced snapshot protection.

Comprehensive security management

Serves as a secure private cloud and supports user account protection, IP blocking, 2-step verification, encryption access, and more.

Minimalist design

The compact and slim TS-133 prioritizes a clean and essential design, and perfectly blends into your home or office.

Effective cooling fan for heat flow

The TS-133 is small in size and remains high-performance, cool, and quiet with an effective cooling fan.

64-bit Cortex-A55 quad-core 1.8 GHz CPU NAS for everyday use and collaboration

Powered by a ARM® Cortex-A55 quad-core 1.8 GHz processor, built-in 2 GB RAM, one Gigabit LAN port, and supports one SATA 6Gb/s hard drive, the TS-133 provides dependable read/write performance for running various home and business NAS applications. The TS-133 features AES-NI 256 hardware-accelerated encryption for both full NAS volumes and shared folders, boosting system performance while securing sensitive data.

NPU accelerates on-device AI performance. 6x Faster face recognition.

With a built-in NPU (Neural network Processing Unit) processor, the TS-133 boosts QNAP AI Core (the AI-powered engine for image recognition) performance for high-speed face and object recognition.

QuMagie Smart photo management

The AI-powered QuMagie with intelligent face and object recognition brings you the ultimate photo management and sharing solution. Includes timeline scrolling, customizable folder covers, iOS® Live Photo display, a powerful search tool, and more.

QTS 5, Fast, smooth, and easy-to-use!

The TS-133 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.

Brighter. Smoother. You'll like it.

When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.

Get started with the notice board

When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.



Smooth and reactive user interface

Whether clicking buttons, switching between apps, expanding/collapsing windows - every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.


An easy-to-use, all-in-one backup solution

The TS-133 can do many things, but at its heart is a complete backup solution to protect your files and data. By regularly backing up your files and device content, you can make data loss a thing of the past.

- Back up Windows®/Mac® files: For Windows®, install NetBak Replicator to back up your PC to the TS-133. In macOS®, simply set up the built-in Time Machine® to back up files to NAS.
- Back up photos on mobile devices: Install Qfile or QuMagie mobile app and enable the "auto-upload" function. Photos will be automatically uploaded to your TS-133 as soon as they are taken.
- Back up Google Drive™: Hybrid Backup Sync can safely back up files and data from Google Drive™ to the TS-133, helping you save money on cloud storage costs.
- Back up NAS files to the cloud: Hybrid Backup Sync supports all your favorite public cloud services, allowing you to effortlessly back up or sync NAS files to cloud storage.
- Back up NAS files to remote sites: With Hybrid Backup Sync, you can easily backup or sync files and data from the TS-133 to a remote QNAP NAS or server for multiplied data protection.

Protect your data from ransomware threats with Snapshots

Snapshots are an advanced backup method and are normally reserved for high-end business NAS. QNAP provides snapshots as standard for all NAS - including the TS-133. Snapshots work by recording the current state of the system, allowing it to be restored back this state at any time - greatly helping in mitigating the threat of ransomware.

Back up PCs to your NAS

Always remember to back up! You should routinely (or automatically) back up files and data from your computer to your TS-133.

Take snapshots within seconds

Instantly take snapshots to record the current state of your system and data. You can quickly restore files and data to a previously recorded state by selecting a snapshot version from a specific time point.

Back up snapshots

Multiply data protection by backing up snapshot files! Replicate snapshots in the TS-133 to a remote NAS (Snapshot Replica) and only copy the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.

Restore data using snapshots

Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.

The best storage for your high-resolution multimedia files

High-resolution RAW files eat up phone storage so quickly. Whether you are a photographer enthusiastic, YouTuber, or professional photo/video editors, use the TS-133 with high-capacity hard drives to alleviate your storage anxiety and organize files efficiently as the best storage center.

Storage for music collections

Use Music Station to collect and play lossless music, sing along with lyrics, and share albums, playlists or folders with friends and family. You can also put tons of music right in your pocket using the Qmusic mobile app.

Store high-resolution videos

Centrally collect GoPro diaries, videos of your family, friends, and pets in Video Station, and easily share your favorites. Take all your videos with you on your mobile devices using the Qvideo mobile app.

Enhanced multimedia experience

The TS-133 supports ARM NEON technology to accelerate video processing for a greater entertainment experience. Stream media files from the TS-133 to DLNA® devices and TVs using common media streaming devices including Roku®, Apple TV® (via Qmedia), Google Chromecast™, and Amazon Fire TV®.

*Playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth. H.265 hardware transcoding requires installing CAYIN MediaSign Player with Plus license.

Tips for a more productive workday

With a wide range of awesome apps, you can easily access files from various devices, instantly synchronize files with friends' or colleague's devices, quickly find specific files, and automatically organize your documents and media files. You can also map the TS-133's shared folders as network drives on your computers, making accessing NAS files easy and intuitive. The TS-133 helps you save time while being more efficient and productive.

File Station

Easily manage files stored in your TS-133 using the web-based File Station. The Qfile companion mobile app also puts all your files at your fingertips, providing a complete personal cloud service that is accessible from anywhere!

Qsync

Qsync is a perfect replacement of Dropbox®, allowing you to synchronize files with computers and mobile devices belonging to your family, friends, colleagues, and clients.

Qfiling

Save time organizing and archiving your files with Qfiling. Simply categorize your files, set a schedule, and Qfiling will automatically organize and archive them.

Access your NAS from anywhere

The myQNAPcloud service enables quick and easy remote access to your TS-133, allowing you to be always connected without needing to configure complex network settings. With myQNAPcloud Link you are provided with a unique domain name for your TS-133, and will automatically connect using the best method based on your network environment.

Protect your data with higher security

The TS-133 provides advanced privacy and security settings but is easy to set up and use. Besides IP blocking and HTTPS connectivity, there are more apps that help ensure an optimal level of NAS protection against threats like malware and hackers.

2-step verification

When activated, anyone who logs in to the TS-133 must enter a one-time verification code after their username and password.

Advanced folder permissions

Easily manage folder permissions, specifying read, read/write, and deny access of individual users to each folder and subfolder.

QuFirewall protection

Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.

Superior security with QVPN

A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-133 as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection.

Security Counselor

A security portal for the TS-133 to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Host container applications

If you are curious about Docker or are a hobbyist developer, Container Station on the TS-133 integrates Docker® lightweight virtualization technology, allowing you to run all kinds of self-contained applications. You can download apps from the built-in Docker Hub®, including popular and fully-configured applications, and deploy them with just one click. From smart homes to multimedia applications, you can explore your creativity and bring containerized applications to life.

Besides Container Station, more apps (including tools for backup/sync, content management, communications, download, and entertainment) are available from the App Center. Simply click and install on-demand to further extend the functionality of your TS-133.

Flexible and economical storage expansion

QNAP provides easy and affordable solutions to expand your NAS storage capacity.

Attach QNAP expansion enclosures

Connect expansion enclosures to the TS-133, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.

Mount cloud storage or remote file servers

Mount cloud storage or remote file servers to expand the capacity of the TS-133 while also centrally managing files on the NAS, cloud storage, and remote devices.

Migrate to a new NAS

Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

Upgrade RAID capacity

Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your files and multimedia collections.

Specifications

Hardware

CPU

ARM 4-core Cortex-A55 1.8GHz processor

CPU Architecture

64-bit ARM

Floating Point Unit

Y

Encryption Engine

Y

System Memory

2 GB on board (non-expandable)

Maximum Memory

2 GB on board (non-expandable)

Flash Memory

4 GB (Dual boot OS protection)

Drive Bay

1 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

Gigabit Ethernet Port (RJ45)

1

Wake on LAN (WOL)

Jumbo Frame

Y

USB 2.0 port

1

USB 3.2 Gen 1 port

1

Form Factor

Tower

LED Indicators

System Status, LAN, HDD

Buttons

Power, Reset

Dimensions (HxWxD)

7.38 × 2.6 × 6.2 inch

Weight (Net)

1.34 lbs

Weight (Gross)

2.8 lbs

Operating Temperature

0 - 40 °C (32°F - 104°F)

Storage Temperature

-20 - 70°C (-4°F - 158°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27°C (80.6°F)

Power Supply Unit

36W Adapter, 100-240V

Power Consumption: HDD Sleep Mode

2.74 W

Power Consumption: Operating Mode, Typical

7.32 W

Fan

1 x 50mm, 12VDC

System Warning

Buzzer

Max. Number of Concurrent Connections (CIFS) - with Max. Memory

200

Software

Operating System

QTS 5.0.1

Supported Client Operating Systems

Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10 and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, and 2019

Supported Browsers

Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version)

Supported Languages

Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish

Storage Pool

SED Storage Pool

Y

Maximum Pool size

308 TB

Maximum number of storage pool

128

Volume Type

Thick, Thin, Static

Maximum volume size

250 TB

Maximum number of volume

128

Maximum shared folder size

250 TB

Maximum number of shared folder

512

JBOD Expansion

Y

VJBOD / VJBOD Cloud

Y

iSCSI Service

Y

Fibre Channel Service

Y

LUN Type

Thick, Thin

File-based iSCSI LUN

Y

Block-based iSCSI LUN

Y

Maximum LUN size

250 TB

Operating System

QTS 5.0.1

Supported Client Operating Systems

Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10 and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, and 2019
Show less...
Supported Browsers
Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version)
Supported Languages
Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish

Storage Pool

SED Storage Pool

Maximum Pool size

308 TB

Maximum number of storage pool

128

Volume Type

Thick, Thin, Static

Maximum volume size

250 TB

Note:

At least 4 GB RAM is required.

Maximum number of volume

128

Maximum shared folder size

250 TB

Maximum number of shared folder

512

JBOD Expansion

VJBOD / VJBOD Cloud

iSCSI Service

Fibre Channel Service

LUN Type

Thick, Thin

File-based iSCSI LUN

Block-based iSCSI LUN

Maximum LUN size

250 TB Note: At least 4 GB RAM is required.

Maximum number of targets LUN

256

LUN feature

LUN Mapping (LUN can be moved between iSCSI and FC)
LUN Masking
WWPN Aliases Import/Export
FC Port Group
FC Port Binding
Multipath IO (MPIO)
Online LUN capacity expansion
LUN snapshot
LUN snapshot replication and clon

Auto Tiering

Y

RAID Type

8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
2-bay: JBOD, Single, RAID 0, 1

RAID Group

Y

RAID Level Migration

RAID Expansion (by adding Disk)

Y

RAID Expansion (by replacing bigger Disks)

Y

Storage Pool Expansion (by adding RAID Group)

Y

RAID Hot Spare

Global, Local

RAID Sync/Rebuild/Scrubbing

Y

Internal drive

EXT4

External drive

EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)

Disk, Enclosure Locate

Disk S.M.A.R.T. Scan

Y

Disk S.M.A.R.T. Data Migration

Y

Ironwolf Health Management

Y

Secure Erase

Y

SSD Trim

Y

SSD Life Estimation

Y

Disk Roaming

Y

Disk Standby

Y

Volume Snapshot

Y

LUN Snapshot

Y

Maximum Snapshot (Per System)

Check maximum number of snapshots of your NAS

Maximum Snapshot (Per Volume / LUN)

Check maximum number of snapshots of your NAS

Minimum Snapshot Interval

5 minutes

Snapshot Retention Policy

Self-serve Snapshot Recovery

Y

Application Consisted Snapshot

Y

Snapshot Full Clone

Y

Snapshot Replica / Vault

Y

SSD profiling tool

Y

External Device Management

Y

Mount Smart Phone (MTP)

Y

External RAID Device (QNAP so on) Management (External Device Mode)

Y

External RAID Device (QNAP so on) Management (NAS Mode)

Y

File Server

File sharing across Windows, Mac, and Linux/UNIX
Microsoft networking (CIFS/SMB)
Apple networking (AFP)
NFS version 3/4 services

FTP Server

QuFTP
FTP, SFTP and TFTP protocols
FTP over SSL/TLS (explicit FTPS)
FXP support

Maximum FTP connection

1024

File Station (Web)

Object Storage

Y

Local user account

4,096

Local group account

512

Domain user/group account

200,000

Domain Security

Domain Controller

Y

Shared folder permission

Y

Advanced folder permission

Y, (AFP, CIFS/SMB, FTP, and File Station)

Windows ACL

Y, (CIFS/SMB)

User quota

Y

Group quota

Y

Folder quota

Y, (Snapshot shared folder)

Home folder

Resource Monitor

Y

SNMP

V2, V3

Network recycle bin

Recover files deleted using AFP, CIFS/SMB, and File Station
Automatic cleanup and file type filter

System Log & Notification Center

Log recording: 3,000 event per second

Smart Fan

Schedule on/off

Y

Internet protocol

IPv4, IPv6

Virtual Switch

Port trunking

Y, (7 modes)

VLAN

Y

DHCP Server

Y

DDNS (Dynamic Domain Name Service)

Y

Network access protection with auto-blocking

Y

SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP

Y

Security Counselor

Y

Malware Remover

Y

AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP

Y

2-step verification

Y

Allow/Deny List

Y

Access Protection

Y

Service binding

Y

Firewall

Y

vSphere Web Client Plug-in

Y

VMware vSphere VAAI for iSCSI

Y

VMware vSphere VAAI for NAS

Y

Windows ODX

Windows/VMware Snapshot Agent

Y

HTTP/HTTPS Connections

TLS 1.0/1.1/1.2/1.3

Supports WebDAV Connection

Y

Supports Virtual Hosts

32

Qsync

Y

[Qsync] Management Mode

User customization, Central

[Qsync] Qsync client supported platforms

Windows, macOS, Ubuntu, Android, and iOS

[Qsync] Maximum number of version control

64

HybridMount

Y

[HybridMount] File Cloud Gateway

Concurrent Connections = 20 Upload & 20 Download

[HybridMount] Network Drive Mount

Y

[HybridMount] Free cloud gateway sessions

2

HBS (Hybrid Backup Sync)

Y

[HBS (Hybrid Backup Sync)] NAS to NAS backup

Y

[HBS (Hybrid Backup Sync)] Cloud Backup

Y

[HBS (Hybrid Backup Sync)] Cloud Sync

Y

[HBS (Hybrid Backup Sync)] 2-way and Active Sync

Y

[HBS (Hybrid Backup Sync)] Apple Time Machine Backup

Y

[HBS (Hybrid Backup Sync)] External drive backup

Y

[HBS (Hybrid Backup Sync)] Maximum number of backup job

400

Qsirch

Y

[Qsirch] Previews

Photos, music, videos, PDFs, Gmail, and others

[Qsirch] Integrate Mac Finder

[Qsirch] Advanced picture search

Y

[Qsirch] Search filters

Y

QuMagie

Y

[QuMagie] Browse photos

Y

[QuMagie] Virtual and smart albums

Y

[QuMagie] AI-assisted photo management

People, things, places, and others

Antivirus (free)

QVPN Service

Y

[QVPN Service] Remote Access

PPTP, L2TP/IPSec, OpenVPN, QBelt (QNAP proprietary)

[QVPN Service] Supportedd utility and mobile app

Windows, macOS, iOS, and Android

[QVPN Service] Supported maximum clients

100

LDAP Server

RADIUS

Y

SQL server

Y

License Center

Y

Multimedia Console

Y

Photo Station

Y

Music Station

Y

Video Station

Y

Download Station

Y

Notes Station

Y

Qfiling

Y

Media Streaming add-on

Y

QmailAgent

Y

QuWAN

Y

DA Driver Analyzer

Y

Q'center

Y

Q'center Server

Y

Q'center Agent

Connect to Q'center

Y

Container Station

Y

[Container Station] Supported type

LXC/LXD and Docker

[Container Station] Docker Hub Registry

Y

[Container Station] Container importing and exporting

[Container Station] Console mode

QVR Elite

Y

[QVR Elite] Recording Technique

Standard MP4 file based

[QVR Elite] License Type

Subscription-based

[QVR Elite] User-defined trigger events

Y

[QVR Elite] QVR Pro Client (Desktop)

Windows, macOS, and QNAP HybridDesk Station

[QVR Elite] QVR Pro Client (Mobile)

Android and iOS

[QVR Elite] Recording camera streams

H.264

[QVR Elite] Free built-in camera channels

2

QVR Pro Client

Y

[QVR Pro Client] Dynamic View Layout

Y

[QVR Pro Client] Windows

Y

[QVR Pro Client] Mac

Y

[QVR Pro Client] HybridDesktop

Y

[QVR Pro Client] iOS

Y

[QVR Pro Client] Android

Y

QVR Human

Y

QVR Face

Y

QVR DoorAccess

Y

Date Created: 09:00, 17-04-2024
Product URL: https://www.pbtech.co.nz/product/NASQNP1330/QNAP-TS-133-Home-NAS-Server-Single-Bay-Quad-Core-1
