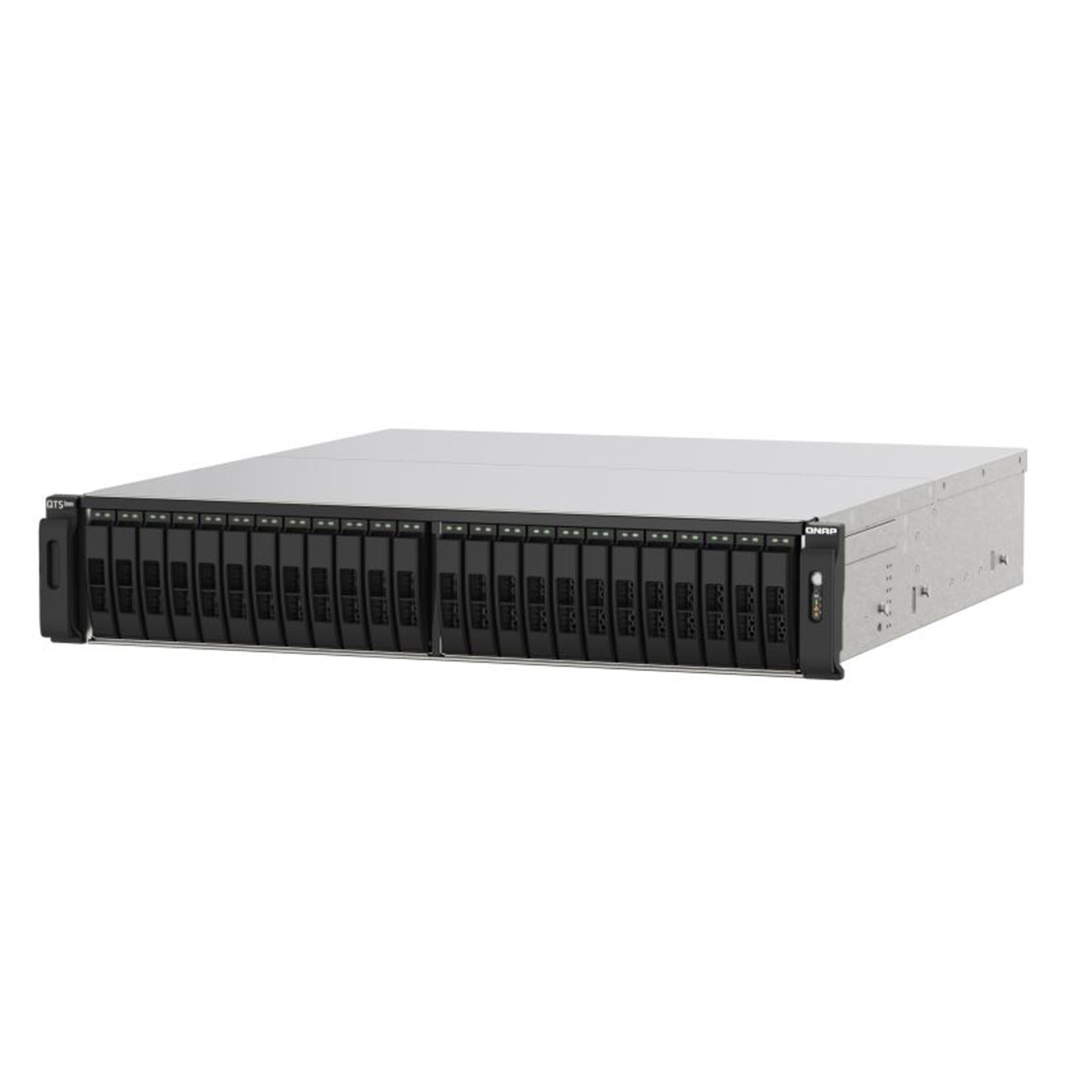

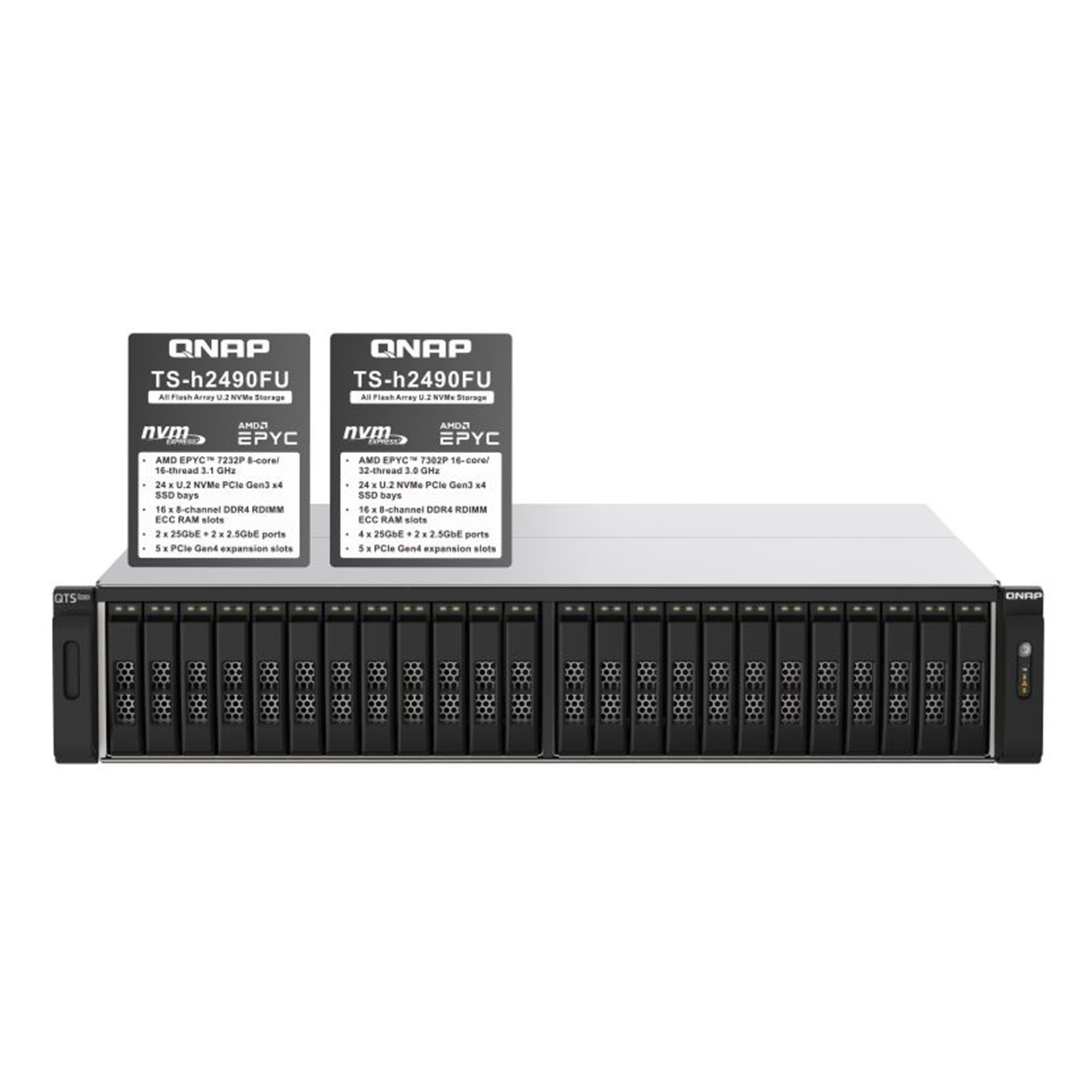

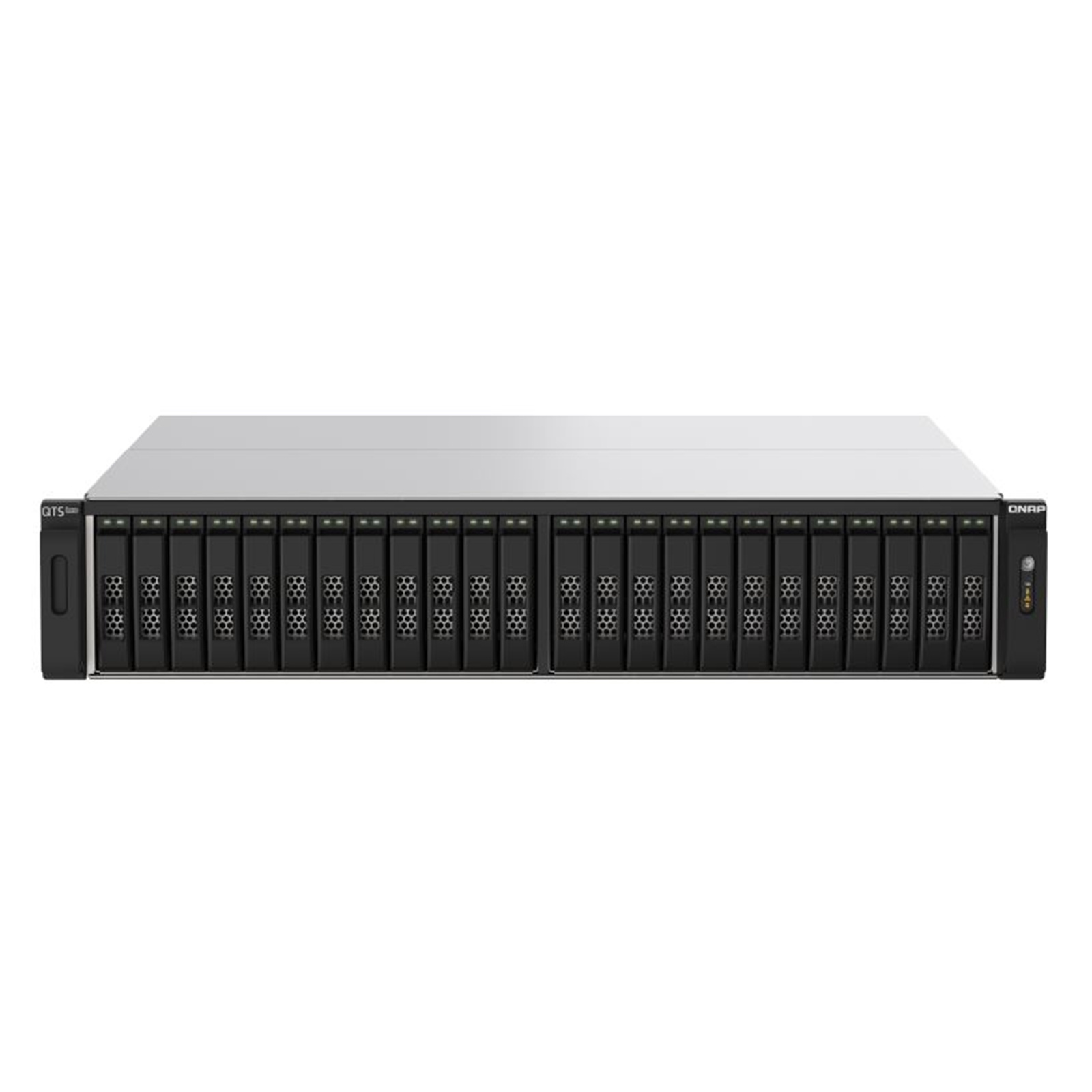

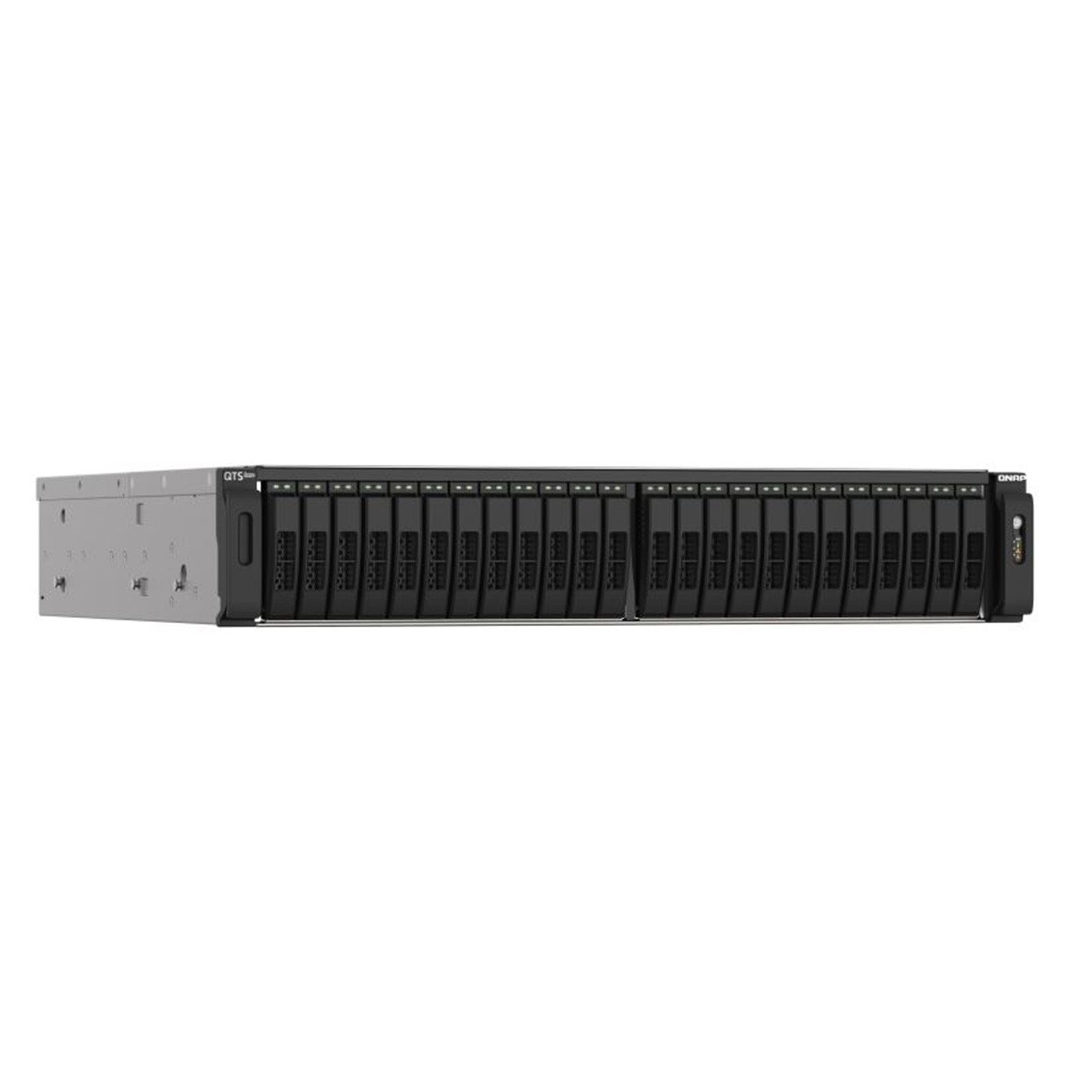

QNAP TS-h2490FU-7302P-256 Enterprise 2U 24-Bay Rackmount NAS Server AMD EPYC 16C/32T 3.0 GHz 256GB DDR4 ECC, 24 x 2.5-inch U.2 PCIe NVMe, 2 x 2.5GbE LAN, 4 x 25GbE SFP28, iSCSI, redundant power supply, Without Rail Kit, 5 Years Warranty
QNAP TS-h2490FU-7302P-256 Enterprise 2U 24-Bay Rackmount NAS Server AMD EPYC 16C/32T 3.0 GHz 256GB DDR4 ECC, 24 x 2.5-inch U.2 PCIe NVMe, 2 x 2.5GbE LAN, 4 x 25GbE SFP28, iSCSI, redundant power supply, Without Rail Kit, 5 Years Warranty
- Brand: QNAP
- MPN: TS-h2490FU-7302P-256G
- Part #: NASQNP70107
- UPC: 885022020706
- Brand: QNAP
- MPN: TS-h2490FU-7302P-256G
- Part #: NASQNP70107
- UPC: 885022020706
Features
TS-h2490FU
ZFS-based, 24-bay U.2 NVMe all-flash storage built for high-performance and low-latency virtualized workloads, data centers, and 8K streams
The NVMe all-flash TS-h2490FU is designed for providing extreme performance with high cost-efficiency. Featuring 24 U.2 NVMe Gen 3 x4 SSD bays, the TS-h2490FU delivers up to 472K/205K random read/write IOPS with ultra-low latency. The ZFS-based QuTS hero operating system supports inline data deduplication and compression for reducing I/O and SSD storage consumption, which significantly extends SSD lifespan with a higher price-performance ratio for all-flash storage arrays. Coupled with near-unlimited snapshots, real-time SnapSync, and petabyte-scale storage expansion capabilities, the TS-h2490FU is ideal for I/O-intensive and latency-sensitive applications, and eliminates productivity bottlenecks in modern data centers, virtualization, and mission-critical backup/restore tasks.
Inline data deduplication and compression, Pool Over-provisioning, and TRIM maximize SSD performance and lifespan.
Multi-connectivity of 25GbE SFP28 and 2.5GbE RJ45 accelerate virtualization, intensive file access, and large backup/restoration tasks.
PCIe Gen 4 slots allow for installing 10GbE/25GbE/40GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
Scalable design to grow with your business by connecting SAS 12Gb/s expansion enclosures for up to petabyte-scale storage capacity.
Build high-performance storage infrastructure for IOPS-demanding applications
- Virtualization
Eliminates storage bottlenecks for unstructured data and I/O intensive workloads; ideal for server virtualization and virtual desktop infrastructure (VDI).
- Data Centers
Delivers ultra-low latency and high IOPS performance, providing response times within microseconds for data centers that host significant business-critical systems and data.
- Media and Entertainment (M&E) production
Satisfies smooth 4K/8K media streaming and post-production, empowering multimedia workflows with faster data transfer, access, and backup for boosted efficiency.
- 2nd Gen AMD EPYC™ processors and DDR4 ECC memory
The TS-h2490FU is armed with 2nd Gen AMD EPYC™ 7002 series processors (Rome). Based on the "Zen 2" architecture with cutting-edge 7nm process technology, up to 128 PCIe lanes of I/O are provided for 32Gb/s dedicated bandwidth per SSD. With DDR4 ECC memory that detects and corrects single-bit memory errors for higher reliability, the TS-h2490FU provides 8-channel modules and 16 Long-DIMM slots to fulfill memory-intensive workloads. Demonstrating immense computing power and multi-tasking capabilities, the TS-h2490FU is the ideal choice for uncompromising performance demands in HPC, virtualization, and hybrid/multi-cloud applications.
U.2 NVMe Gen 3 x4 All-Flash Storage Array
The 2U rackmount TS-h2490FU has 24 drive bays for U.2 NVMe Gen 3 x4 SSDs, with each individual SSD having 32Gb/s dedicated bandwidth for the utmost application response times. Coupled with powerful ZFS data deduction and SSD optimization technologies, the TS-h2490FU provides solid foundations for overcoming complexity and performance demands in today's evolving data center workloads.
Tested in QNAP Labs. Figures may vary by environment.
Test Environment:
NAS: TS-h2490FU-7302P-128G with QuTS hero 4.5.0
Volume type: WD Ultrastar DC SN640 NVMe SSD *24 (RAID 50); Broadcom Dual-port 25GbE NIC with NetXtreme®-E Series BCM57414 controller *3
Client PC:
6* Client PC simultaneously read and write 16GB file (= 96GB totally)
Intel Core™ i7-7700 4.20GHz CPU, 32GB DDR4 RAM, QXG-25G2SF-CX4, Windows® Server 2016
Virtualization Certifications Supported by TS-h2490FU
Empower high-speed data transfer with four 25GbE ports
The TS-h2490FU provides breakthrough network connectivity with two pre-installed dual-port 25GbE SFP28 SmartNICs* (that use the Broadcom NetXtreme®-E Series BCM57414, Mellanox® ConnectX®-4 Lx, or the same level SmartNIC). With failover and Port Trunking for up to 100Gb/s bandwidth, the TS-h2490FU empowers your organization with the bandwidth to tackle the most demanding applications, including data centers, virtualization, massive file transfer, high-speed backup/restoration, and multimedia transmission.
* TS-h2490FU-7232P-64G is pre-installed with one dual-port 25GbE SFP28 SmartNIC.
* The 25GbE SmartNIC is backward compatible with 10GbE SFP+/1GbE SFP
Multiple PCIe Gen 4 slots for flexible expansion
The TS-h2490FU is equipped with five PCIe Gen 4 slots. With twice the I/O performance of PCIe Gen 3, the TS-h2490FU can take advantage of many PCIe cards to expand application potential.
![]()

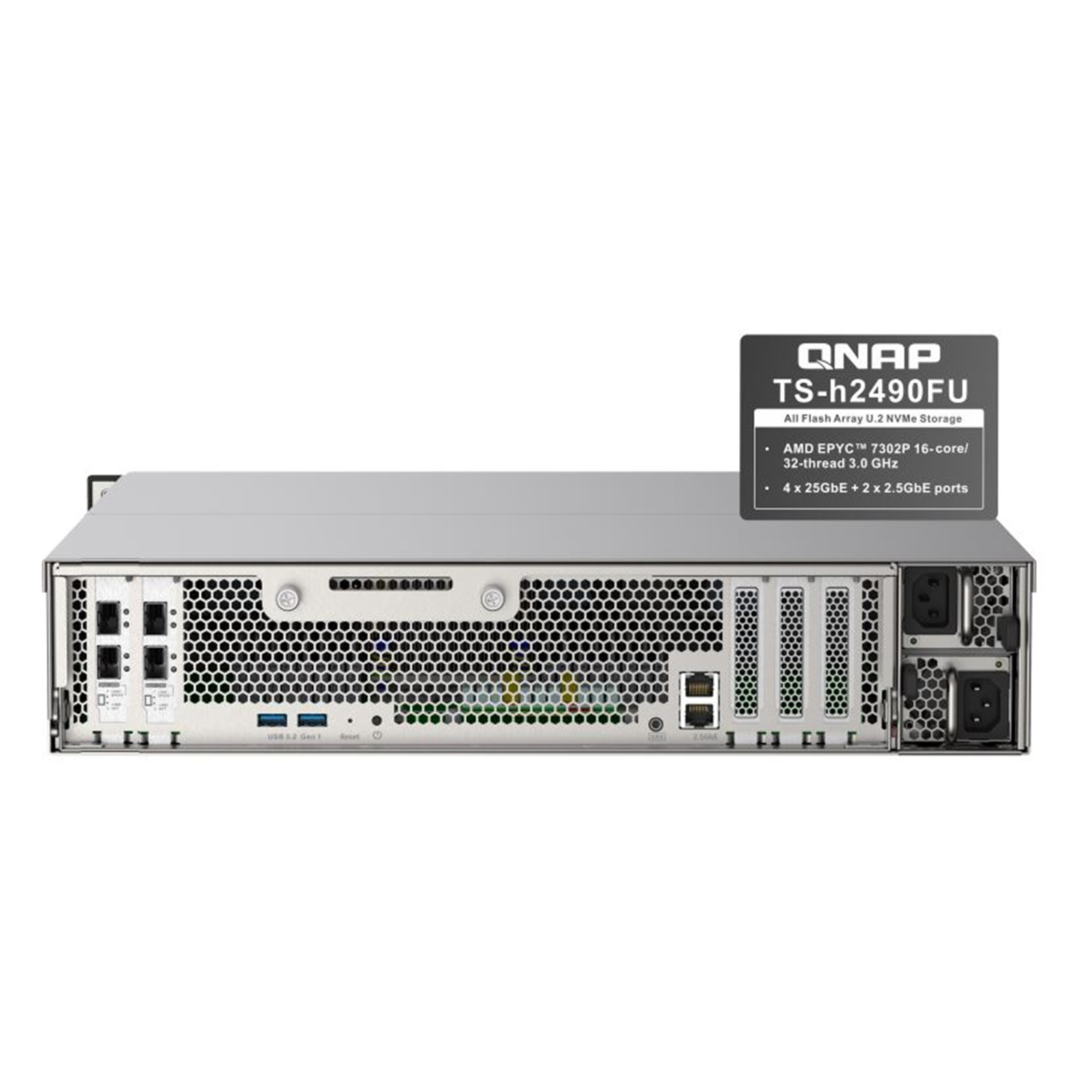

Robust hardware paralleled to boost all-flash NVMe performance
The TS-h2490FU features high-level hardware with an expandable architecture to provide businesses with high performance and low latency access. With a removable motherboard drawer design, IT staff can easily maintain the TS-h2490FU without needing to remove it from the rack.
1 - 2nd Gen AMD EPYC™ 7002 series processors
Designed for modern datacenter workloads with multi-core computing power. Up to 128 PCIe lanes of I/O provides 32Gb/s dedicated bandwidth for each SSD.
2 - DDR4 ECC memory
Supports 16 DDR4 eight-channel Long-DIMM memory modules.
3 - 4x 25GbE SFP28 ports
Includes two dual-port 25GbE SmartNICs, supporting up to 100Gb/s bandwidth under Port Trunking.
Note: TS-h2490FU-7232P-64G is pre-installed with one dual-port 25GbE SmartNIC.
4 - 2x USB 3.2 Gen 1 Type-A ports
Delivers up to 5 Gbps transfer speeds. Supports external hard drives or UPS
5 - 2x 2.5GbE RJ45 ports
Supports using existing CAT5e cables to instantly upgrade from 1GbE connections. Obtain up to 5 Gbps under Port Trunking.
6 - 5x PCIe Gen 4 slots
Supports installing 10/25/40GbE network cards, QM2 cards, and SAS/SATA storage expansion cards for greater application potential (slots 4 or 5 is pre-installed with dual-port 25GbE NIC).
7 - Redundant power supply
Redundant 1100W power supplies ensure continuous system uptime.
8 - Smart cooling
Monitors system temperatures and automatically adjusts fan speeds.
ZFS-based QuTS hero operating system enhances NAS performance and data integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
Inline data deduplication, compression, and compaction improve SSD endurance
QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h2490FU optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era. All-flash solutions thus achieve higher cost efficiency while improving both random write performance and SSD lifespan.
More SSD performance and lifespan optimization technologies
- Write Coalescing
Transforms all random writes to sequential writes along with reduced I/O, effectively increasing write performance in all-flash environments.
- Pool Over-provisioning
Dedicated space can be flexibly reserved in an SSD storage pool to allow new data to be written into a complete block even if the pool is almost full, thus improving the performance of fragmented pools.
- TRIM
Allows QuTS hero to inform SSDs to delete unneeded data blocks and process the deletion tasks during system idle times, meaning it does not have to wait for when new data is written to the block.

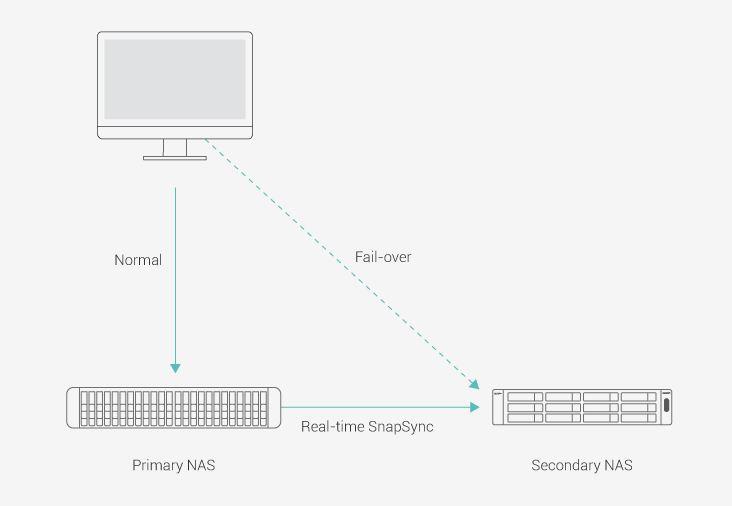

Real-time SnapSync ensures minimal RPO with real-time disaster recovery
Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.
Note: SnapSync will be available from QuTS hero h4.5.2.
The TS-h2490FU also supports snapshots and remote backup to help organizations accomplish routine backup tasks cost-effectively and efficiently.
- Snapshots multiply backup protection
Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.
- HBS simplifies 3-2-1 backup plans
HBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h2490FU to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.
All-in-one virtual machine and container hosting solution
You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
- Virtualization Station
Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.
- Container Station
Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.
License-free VMware® and Hyper-V backup appliance
With Hyper Data Protector, the TS-h2490FU becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.
Move business data to the cloud and enjoy low latency access to cloud-based data
The TS-h2490FU perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching, organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible and secure hybrid cloud applications.
HybridMount file-based cloud gateway
Flexibly expand storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
VJBOD Cloud block-based cloud gateway
VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.
High-performance, reliable storage solution for virtualization
- Supports block-based iSCSI LUN as a high-performance, reliable, and affordable storage solution for VMware®, Microsoft® Hyper-V®, and Windows Server® 2019 virtualization environments.
- Supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.

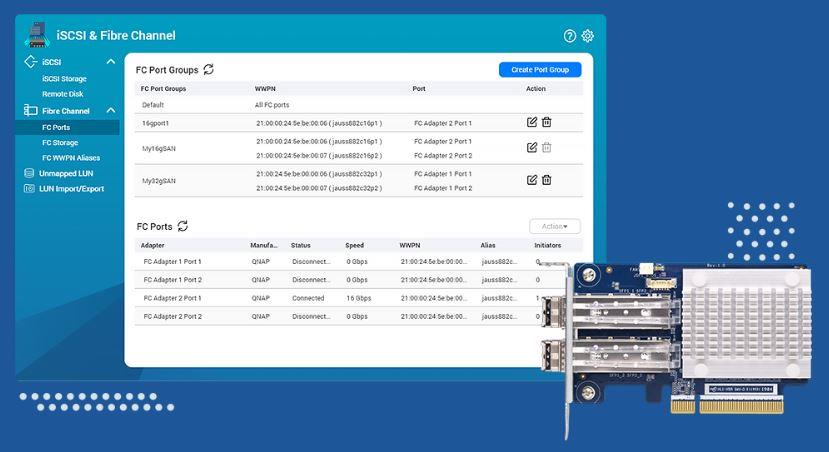

Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TS-h2490FU, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
More productivity applications;
- Boxafe
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars and contacts from Google™ G Suite and Microsoft® Office 365® to the TS-h2490FU.
- Security Counselor
A security portal for checking weaknesses and receiving recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
- Qsirch
QNAP's powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.
Standard 5-year warranty
TS-h2490FU is backed by a 5-year warranty at no extra cost. This premier warranty demonstrates QNAP's dedication to your essential business needs for continuous operations and non-interrupted services.
