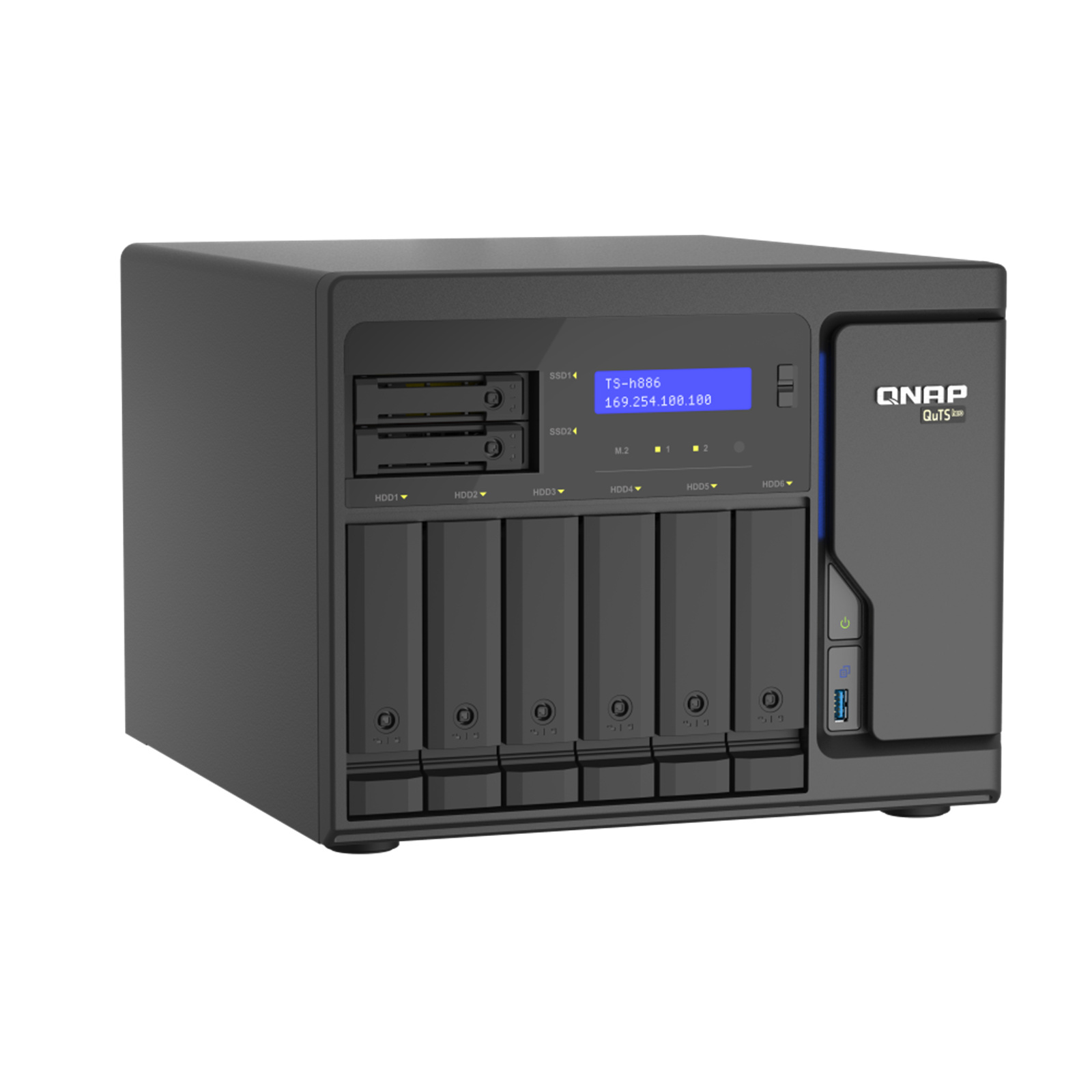

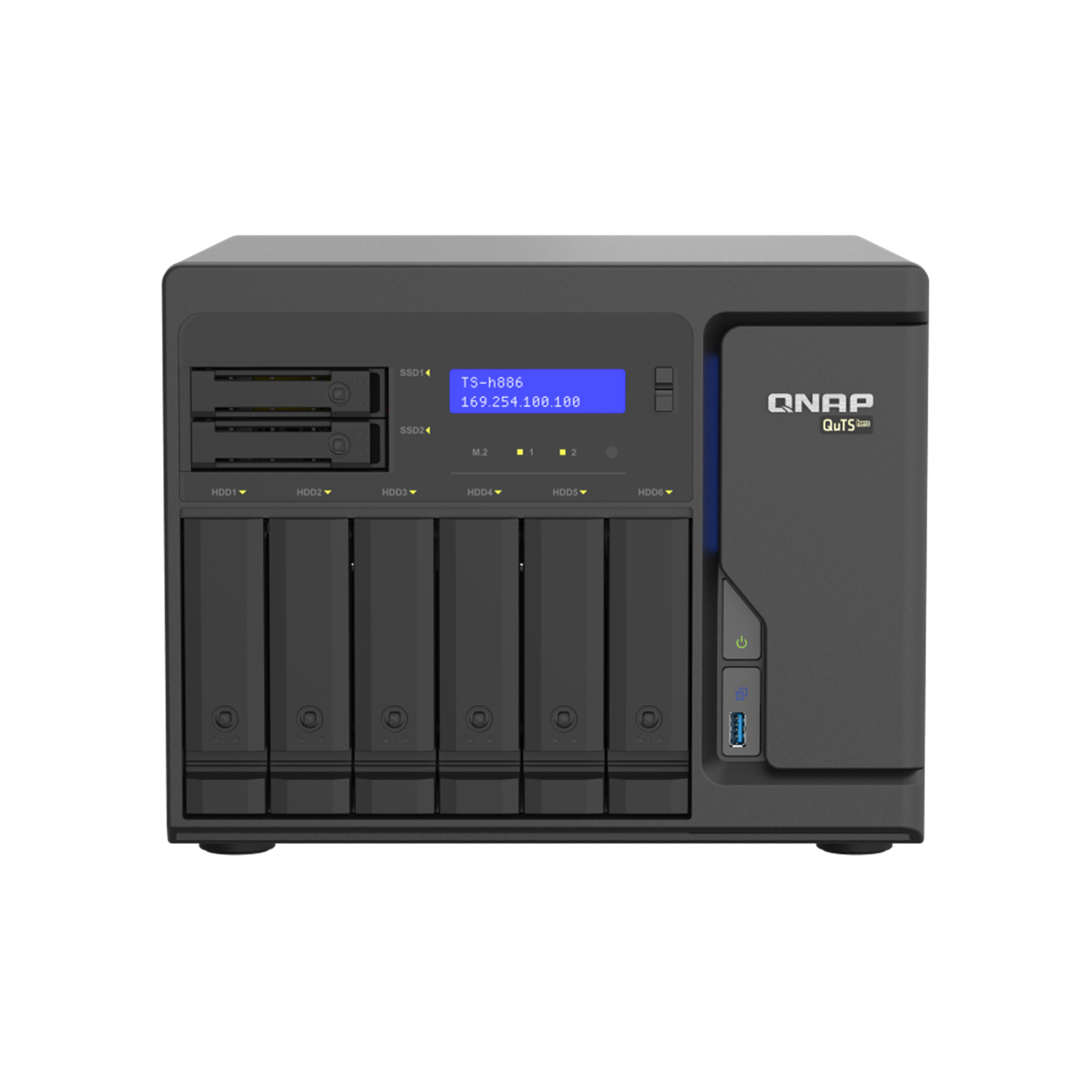

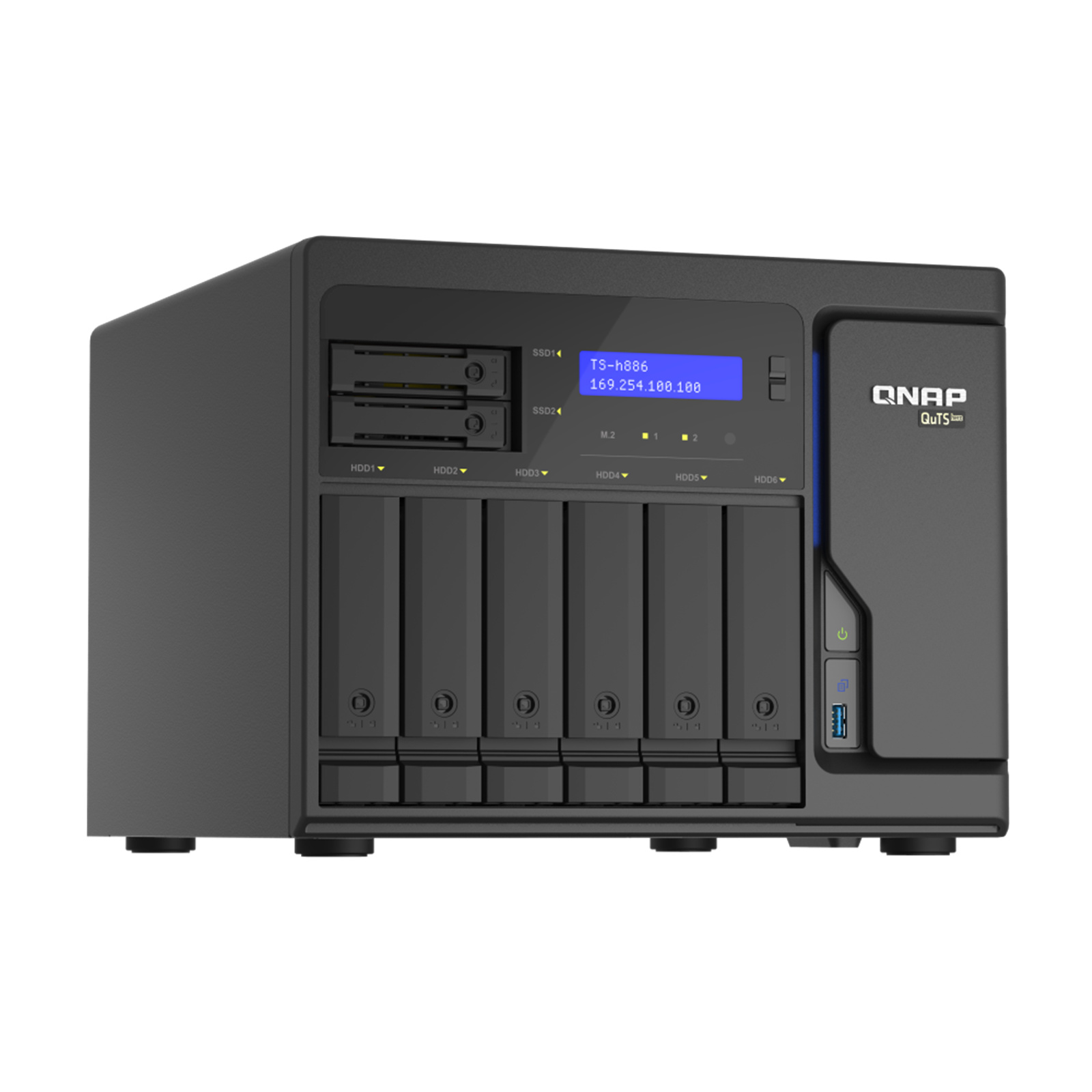

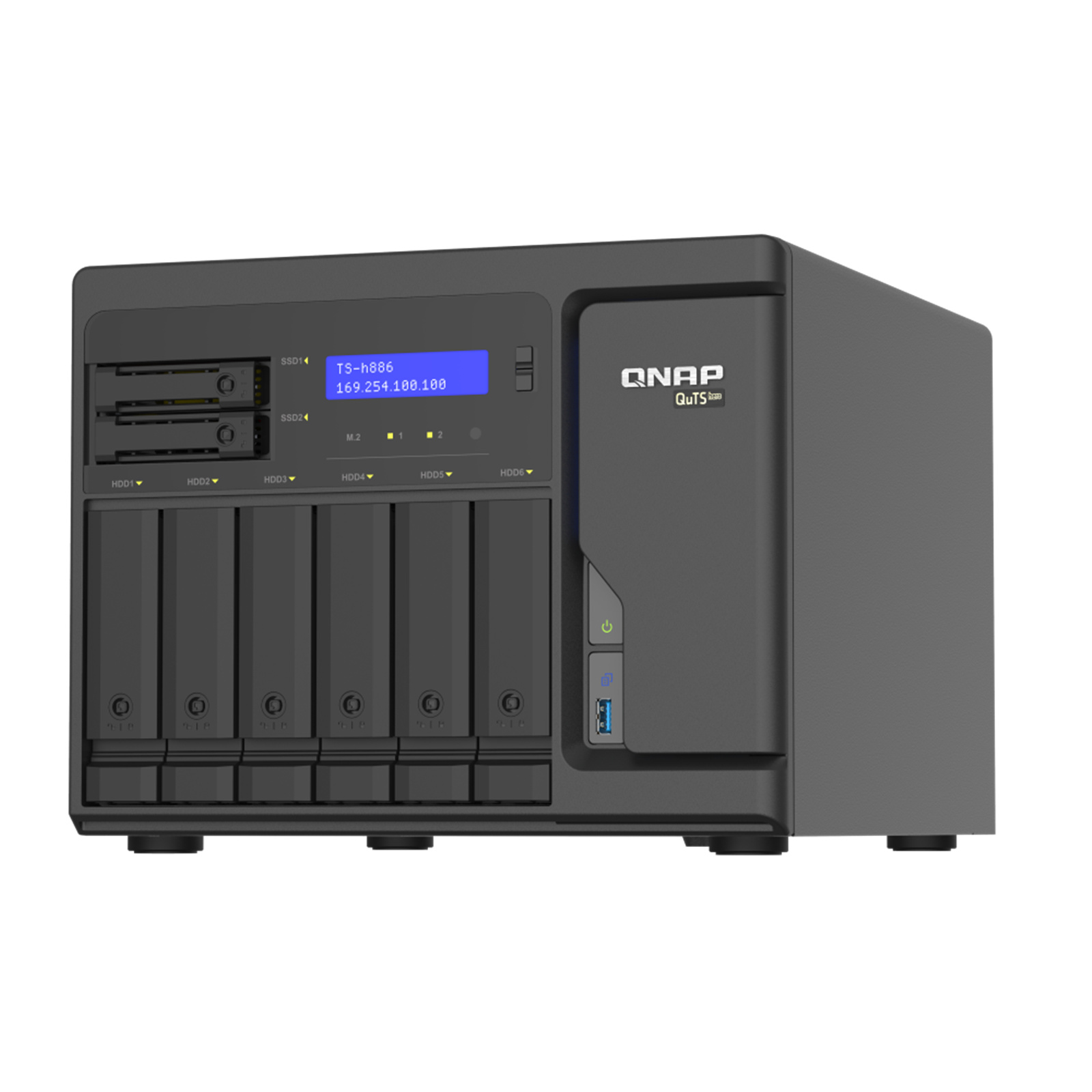

QNAP TS-h886-D1602-8G Enterprise 8-Bay (6x3.5" +2x 2.5") Desktop NAS Server, Intel Xeon D-1602 Dual Core, 2.5GHz, 8GB DDR4 ECC, (128GB Max), 6 x 3.5" Sata+ 2x2.5" Sata, Hot-swappable, 2xM.2, 4x2.5GbE, 2xPCIe, 3XUSB, 3 Years Warranty, Come w

TS-h886

Intel® Xeon® D desktop QuTS hero NAS with four 2.5GbE ports, designed for real-time SnapSync data backup and virtual machine applications

Delivering enterprise performance at SMB prices, the TS-h886 features an Intel® Xeon® D processor and DDR4 ECC (Error Correcting Code) memory (expandable to 128 GB) with dependable reliability. With the ZFS-based QuTS hero operating system, the TS-h886 ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync. The TS-h886 helps your business achieve reliable service-level agreement performance in various use cases, including mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications.

2.5GbE connectivity
Four 2.5GbE ports accelerate file sharing across teams and devices, virtual machine applications or multimedia transmission.

ECC memory
DDR4 ECC memory detects and corrects single-bit memory errors, demonstrating high reliability for crucial applications.

Dual M.2 PCIe slots
Two M.2 NVMe Gen 3 x4 SSD slots (each slot providing up to 3.2 GB/s bandwidth) enable SSD caching to boost random read/write performance.

Flexible PCIe expansion
Two PCIe slots allow for 5GbE/10GbE/25GbE/40GbE adapters, QM2 cards, or entry-level graphics cards to increase application performance.

Virtualization applications
Scalable storage supporting virtual machines, containerized apps, centralized storage, backup, sharing, and disaster recovery.

ZFS file system
QuTS hero combines ZFS advantages with the QTS App Center ecosystem to empower your business.

Powerful Intel® Xeon® D processor with up to 128 GB DDR4 ECC memory

The TS-h886 uses an Intel® Xeon® D-1600 series processor and DDR4 ECC memory that can detect and correct single-bit memory errors as they occur to prevent downtime and data loss. Supporting up to 128 GB RAM to cope with higher workloads, the TS-h886 provides a high-performance and reliable NAS solution for demanding business IT environments.

Virtualization Certifications Supported by TS-h886

Set SSD caching to boost IOPS with M.2 NVMe SSD

While SSD prices continue to fall, and SSD capacity and performance continue to increase, organizations can easily take advantage of SSD strengths. The TS-h886 comes with two 2.5-inch SSD drive bays and two M.2 NVMe Gen3 x4 SSD slots that allow you to flexibly configure SSD caching to increase IOPS performance and reduce storage volume latency. This is especially perfect for databases and virtual machine applications. Without occupying any 3.5-inch drive bays, the TS-h886 allows you to maximize both your storage capacity and performance.

Quad-port 2.5GbE meets today's high-bandwidth demands

Featuring four native 2.5GbE RJ45 LAN ports (backwards compatible with 1G/100M), the TS-h886 allows you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The support of Port Trunking and failover further satisfies bandwidth and reliability demanding applications including virtualization, large file transfers, high-speed backup/restoration, and any real-time application. QNAP also offers numerous options of managed and unmanaged 10GbE/2.5GbE switches, assisting organizations in implementing high-speed, secure and scalable network environments without going over budget.

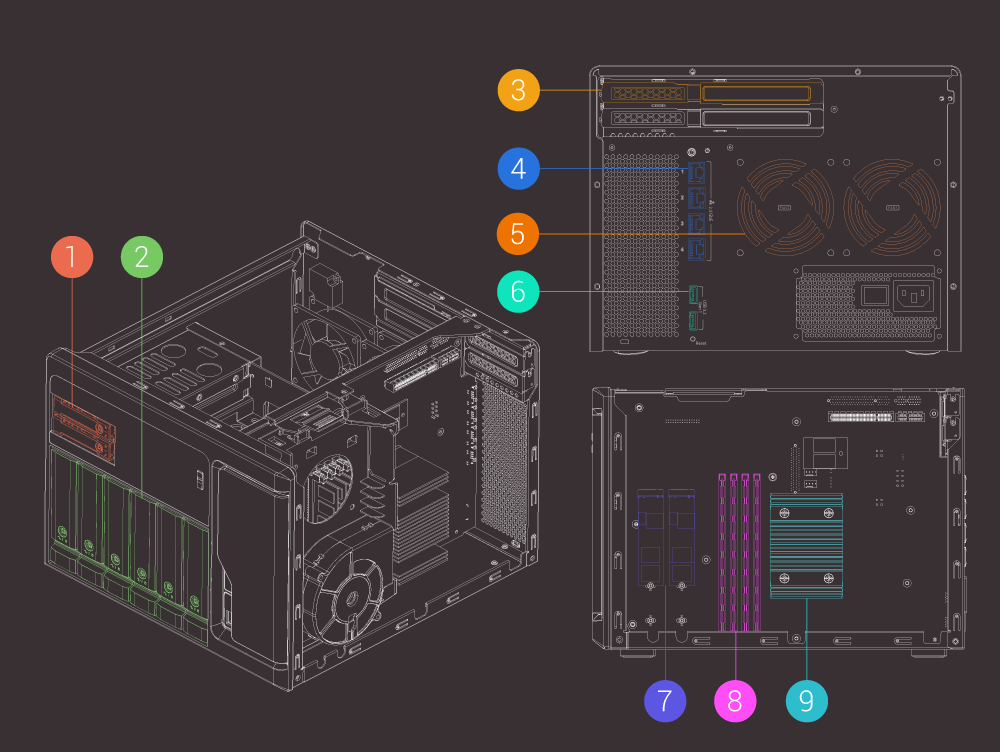

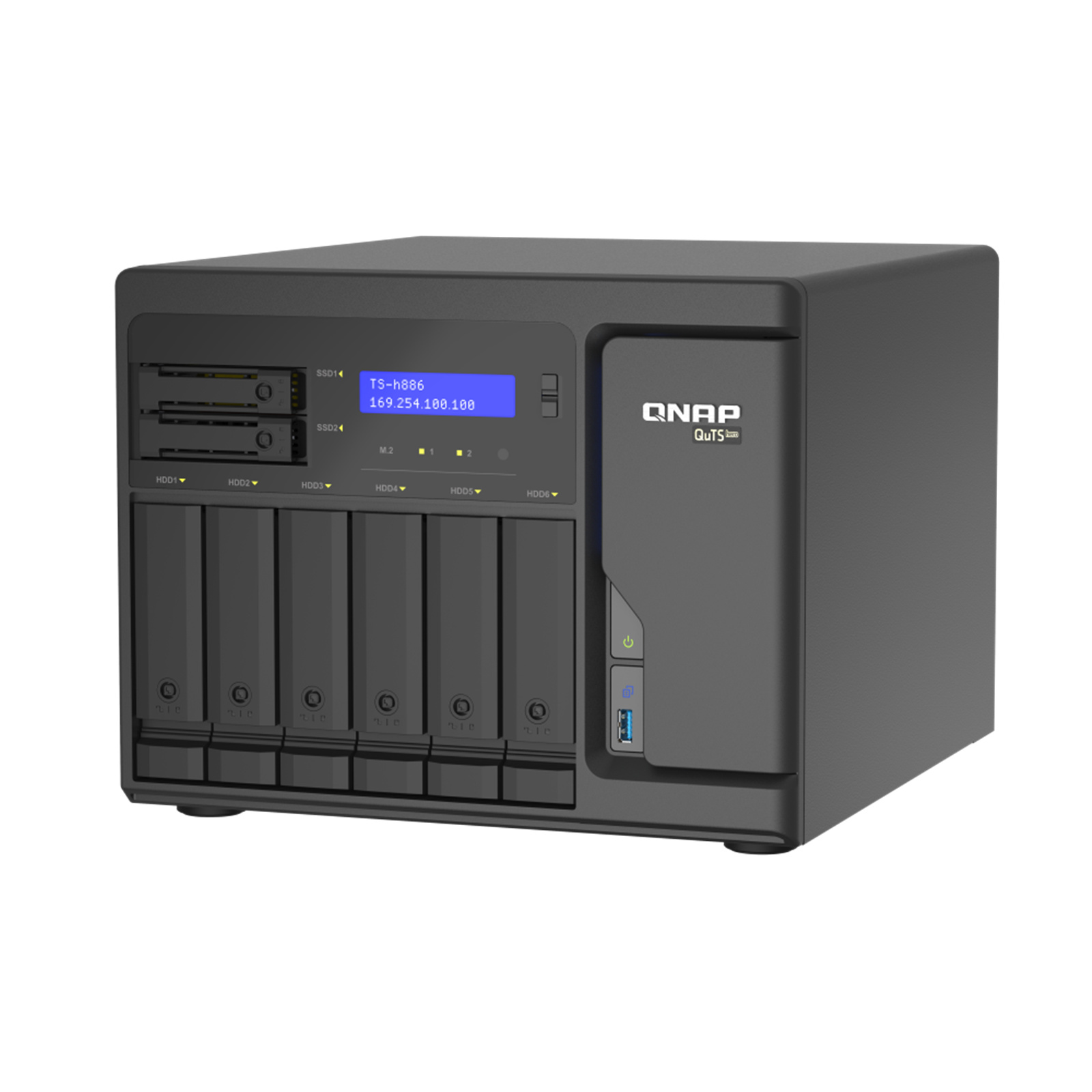

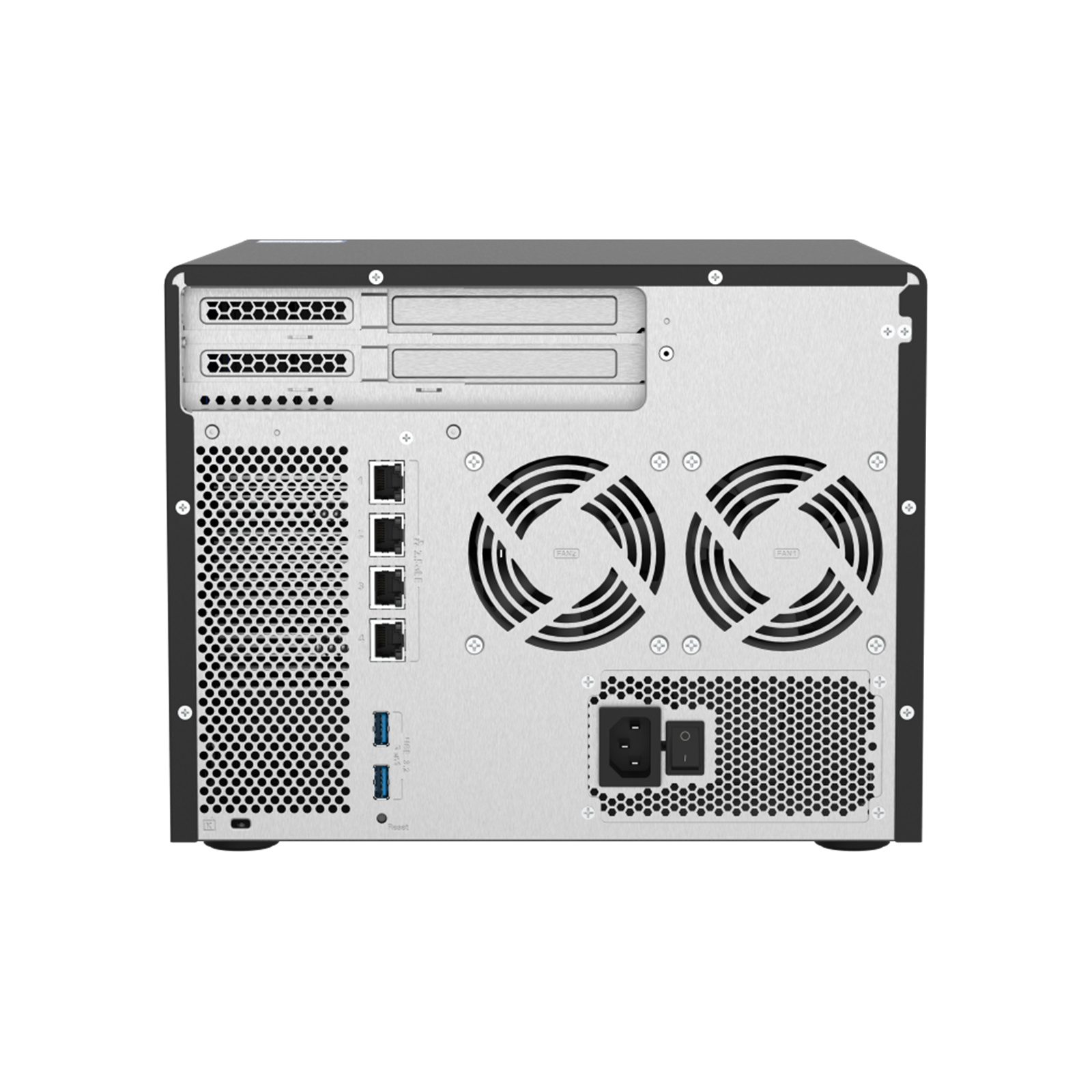

Hybrid Storage with high I/O expandability

1 - 2x 2.5-inch SSD bays
Offers flexible configuration for cache acceleration.

2 - 6x 3.5-inch drive bays
Supports SATA 6 Gb/s drives; lockable trays.

3 - 2x PCIe Gen 3 x8 expansion slots
Supports 5GbE/ 10GbE/ 25GbE/ 40GbE network expansion cards, QM2 cards, graphics cards, or QXP PCIe SATA expansion cards for greater application potential.

4 - 4x 2.5GbE LAN ports
Supports Port Trunking and failover.

5 - Smart cooling
The system fans automatically adjust their speed based on system temperatures.

6 - 2x USB 3.2 Gen 1 ports
Delivers transfer speeds up to 5 Gbps.

7 - 2x M.2 SSD slots
Supports NVMe Gen 3 x4 M.2 SSD with the 2280/22110 form factors for enabling cache acceleration.
Note: M.2 SSD sold separately.

8 - DDR4 ECC memory
Four DDR4 Long-DIMM slots supporting up to 128 GB RAM.

9 - Intel® Xeon® D processor
Intel® Xeon® D series processor with multi-core computing power and up to 3.2 GHz speeds.

Verified as Veeam Ready Object

QuObjects is verified Veeam® Ready, ensuring both compatibility and reliability for achieving efficient backup and recovery with Veeam Backup & Replication.

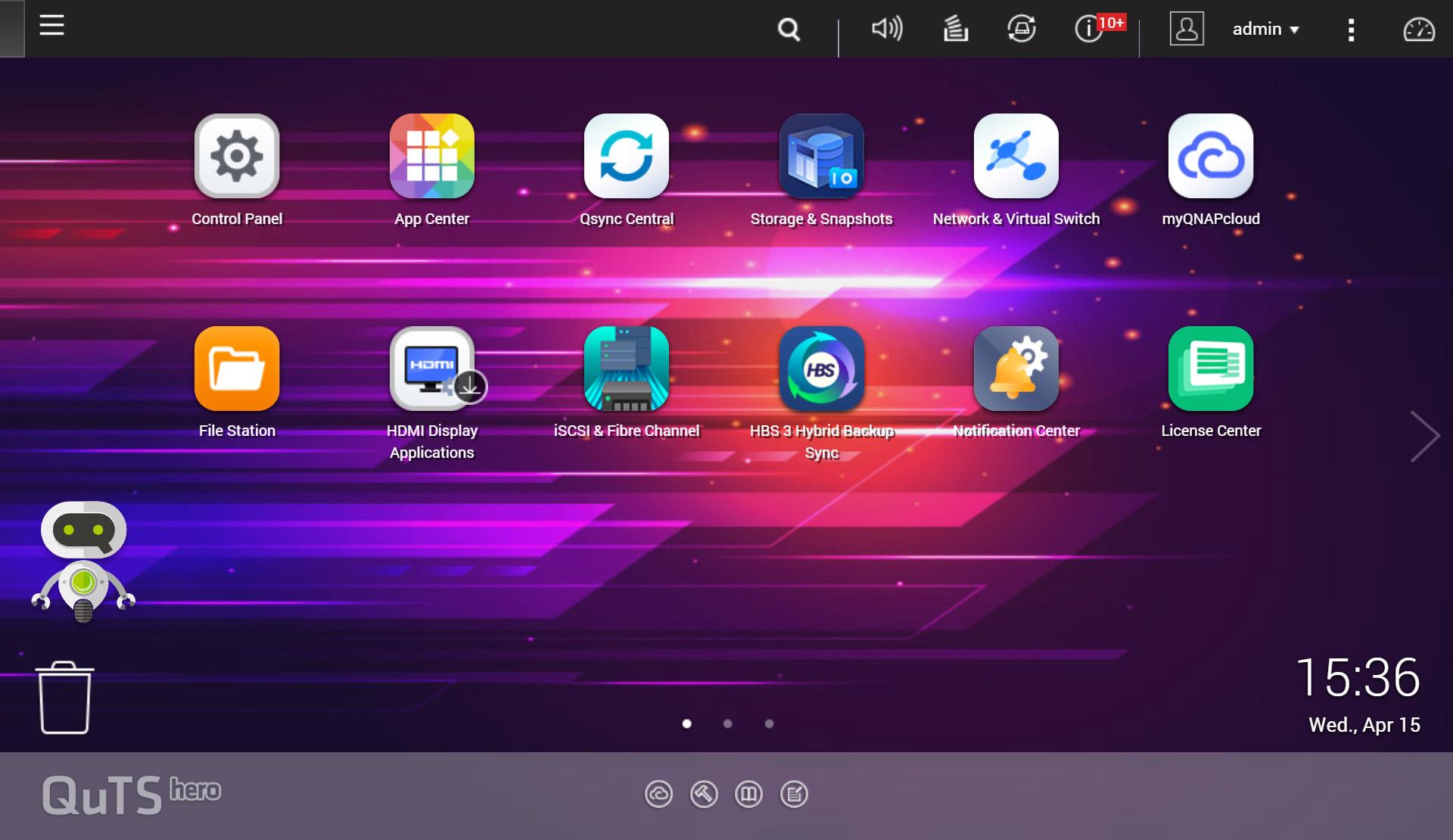

ZFS-based QuTS hero operating system enhances NAS performance and data integrity

QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.

Data integrity is key
QuTS hero's self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.

Data reduction improves storage efficiency and performance
Inline data deduplication, compression, and compaction reduce file size to conserve storage capacity and optimize performance.

Multi-level cache technology
Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security.

RAID Z enables robust data protection
Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection.

QSAL (QNAP SSD Antiwear Leveling) enhances data protection
RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability.

App Center ecosystem extends NAS functionality
Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the TS-h886.

Tiered storage configuration for a QuTS hero NAS

Basic requirements for setup are similar to QTS. We recommend you to follow these steps to acquire optimal storage efficiency and performance for QuTS hero.

Step 1: System Drive & Default Shared Folders
The first Storage Pool you create is where the system drive, default shared folders, and apps are stored. In this step, it is recommended to create an SSD RAID with at least two SSDs to attain optimal system performance and efficient app metadata management. (With an all-HDD configuration, the first Storage Pool is also where the system drive and default shared folders are stored.)

Step 2: Read Cache & ZIL
Use more SSDs for read cache or ZIL. You can also install QM2 expansion cards to add M.2 SSDs for expanding cache space.

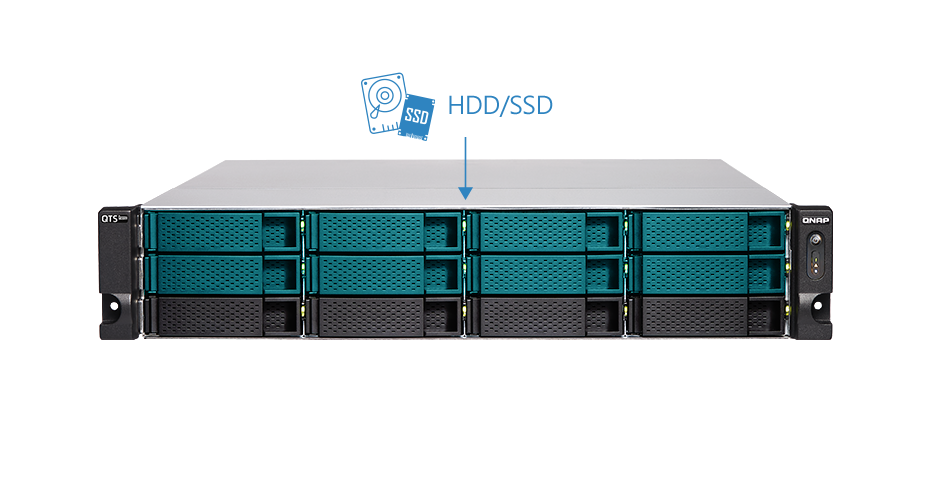

Step 3: Data Storage
Allocate HDDs/SSDs to create a RAID for storing files and application data. If needed, you can configure an all-flash configuration for optimal performance.

Inline data deduplication, compression, and compaction drives big data storage efficiency

QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h886 optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era.

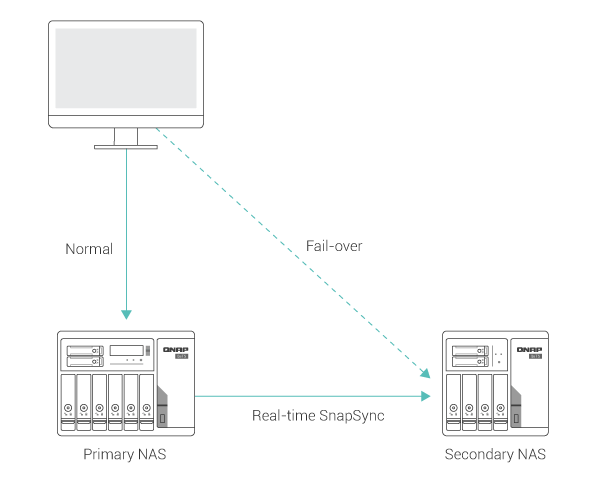

Real-time SnapSync ensures minimal RPO with real-time disaster recovery

Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.

The TS-h886 also supports snapshots and remote backup to help organizations accomplish routine backup tasks cost-effectively and efficiently.

Snapshots multiply backup protection
Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.

HBS simplifies 3-2-1 backup plans
HBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h886 to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.

All-in-one virtual machine and container hosting solution

You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

Virtualization Station
Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.

Container Station
Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.

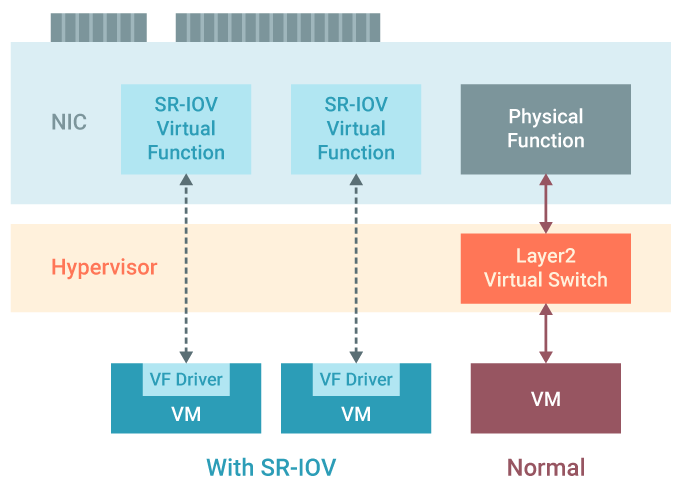

Single Root I/O Virtualization (SR-IOV)

By installing an SR-IOV compatible PCIe SmartNIC in the TS-h886, you can allocate bandwidth resources from a physical network card directly to VMs. With traffic bypassing the Hypervisor vSwitch, it helps enhance I/O throughout and network efficiency, ensuring reliable VM applications and reduced CPU overheads.

PCIe expansion for upgrading 10GbE transmission or enabling GPGPU computing

The TS-h886 features two PCIe Gen 3 x8 slots (each slot provides up to 64 Gb/s bandwidth) and supports installing expansion cards to enable additional functions and greater application potential.

5GbE/10GbE/25GbE/40GbE network cards
Enable lightning-fast throughput for bandwidth-hungry tasks (such as virtualization, massive data transmission, and fast backup/restoration).

QM2 M.2 SSD/10GbE cards
Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity for optimized performance and bandwidth.

Wireless adapter
Install a QXP-W6-AX200 Wi-Fi 6 wireless adapter to turn the TS-h886 into a wireless NAS. Or make the TS-h886 a wireless access point by installing the QWA-AC2600 wireless adapter and the WirelessAP Station app.

QXP expansion cards
Connect the TS-h886 to TL SATA JBOD enclosures by adding multi-lane SATA 6Gb/s transfer for high-performance storage expansion.

Graphics cards
Supports entry-level graphics cards that do not require additional power. Installing a graphics card in the TS-h886 adds HDMI™ output, streamlines video editing and 4K transcoding, and enables GPU pass-through to virtual machines.

Move business data to the cloud and enjoy low latency access to cloud-based data

The TS-h886 perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the TS-h886 using M.2 SSD slots (M.2 SSDs purchased separately), organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible and secure hybrid cloud applications.

HybridMount file-based cloud gateway
Flexibly expand storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

VJBOD Cloud block-based cloud gateway
VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.
Note: This feature will be available on QuTS hero soon.

Switch operating systems to upgrade current storage

The TS-h886 can also switch to using QTS - QNAP's standard NAS operating system. This allows you to migrate drives from your current QTS-based NAS to the more powerful TS-h886 to upgrade your storage infrastructure.

Attention: QTS and QuTS hero use different file systems. You must remove all the drives from the TS-h886 before switching from QuTS hero to QTS.

More productivity applications

Boxafe
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars and contacts from Google™ Workspace and Microsoft® Office 365® to the TS-h886.

Security Counselor
A security portal for checking weaknesses and receiving recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Qsirch
QNAP's powerful, Google-like search tool for quickly finding specific images, music, videos, documents, and emails by keywords, color, and more search conditions.
