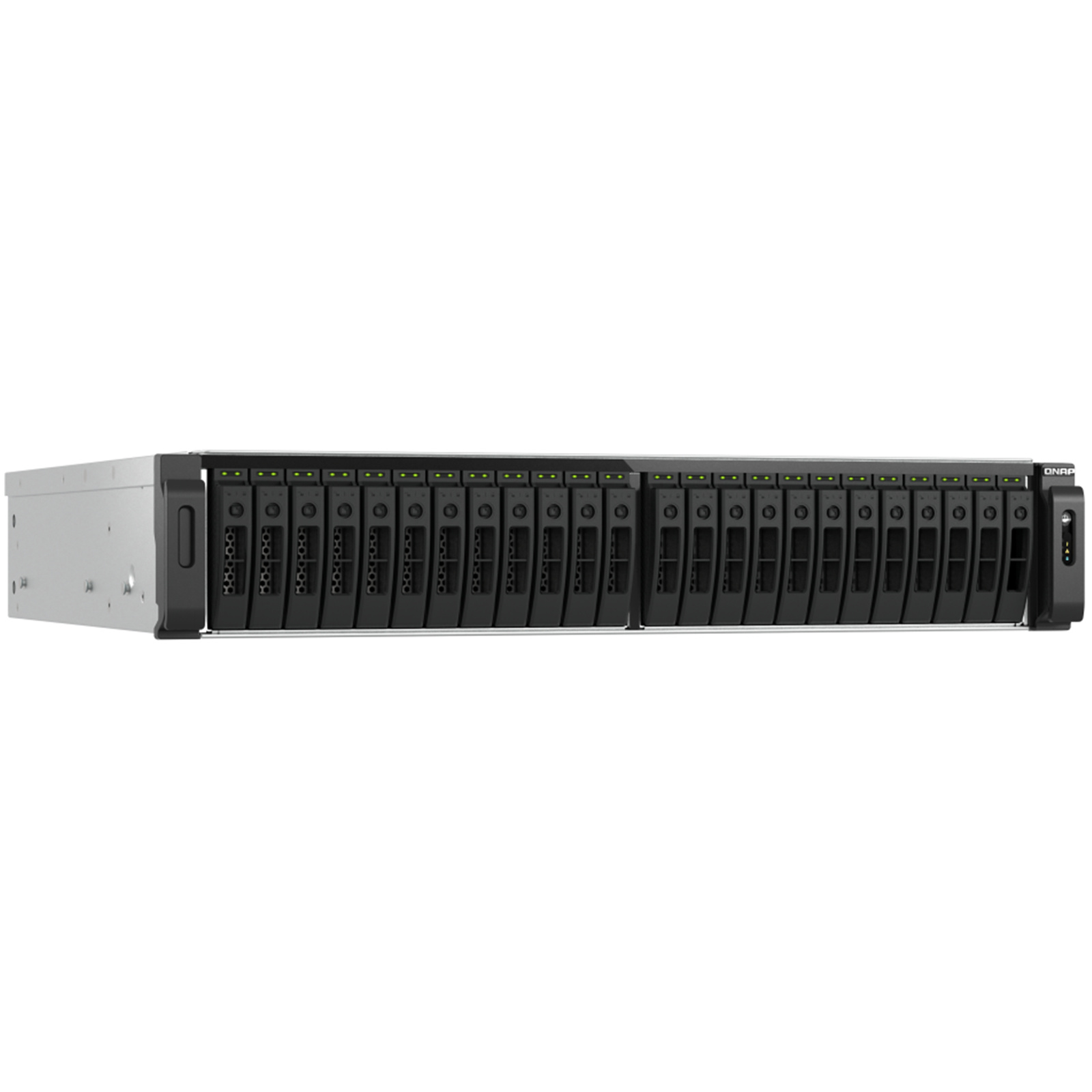

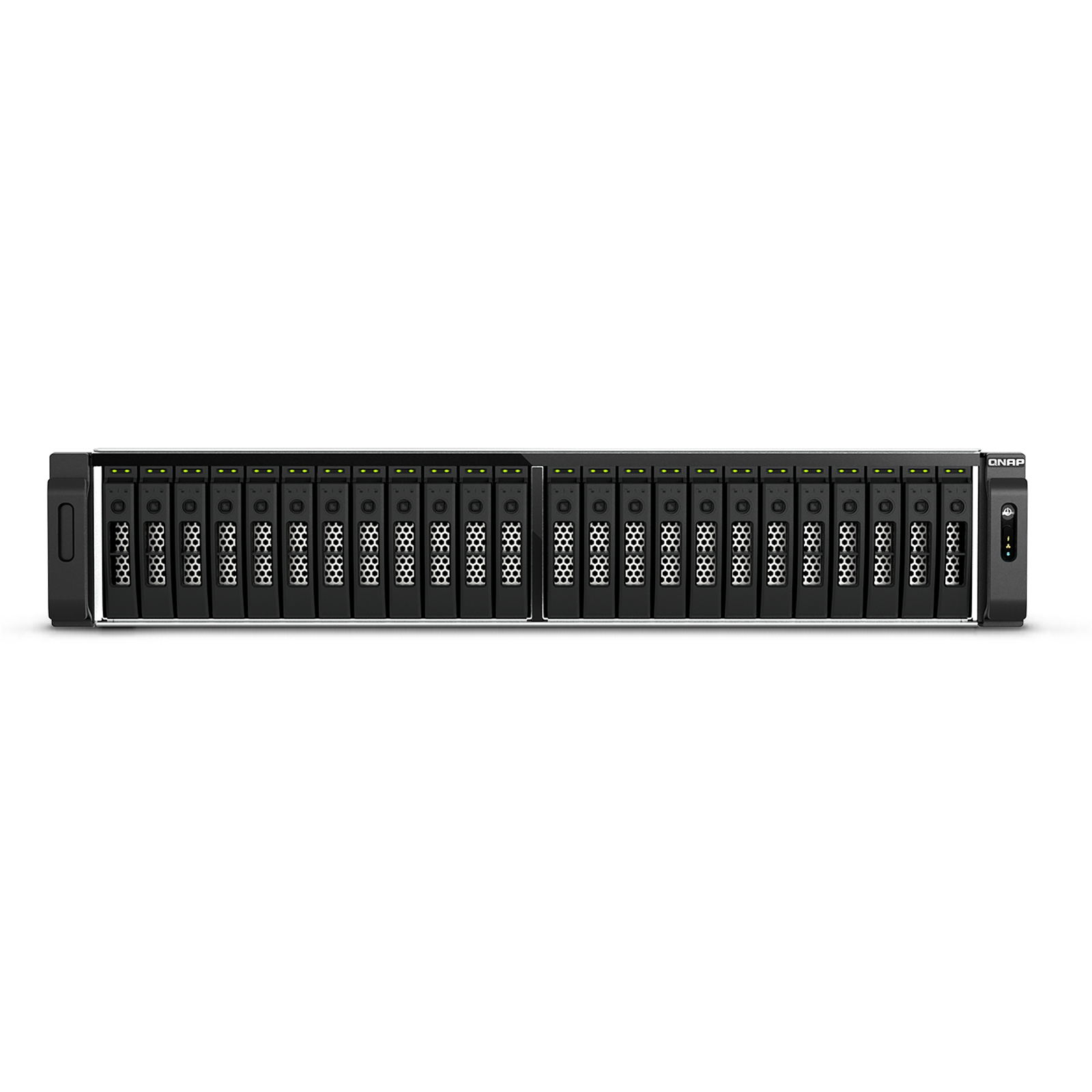

QNAP TS-h3077AFU-R5-32G Enterprise 2U 30-Bay Rackmount NAS Server, AMD Ryzen Pro 7645 6 cores /12 threads, Upto 5.1 GHz, 32 GB DDR4 (128GB Max). 30 x 2.5" Sata, 2x USB, 2x2.5GbE, 1x 10GbE, 4xPCIe, Redundant PSU, 5 Years Warranty, Come with

Gain a competitive advantage by deploying an AMD Ryzen™ 7000 series-powered SATA SSD all-flash storage with 30 drive bays. The TS-h3077AFU is ideal for media production companies, enterprises, and science research institutions that require high-performance large capacity storage for storing recordings, business assets, Big Data, and virtual machines.

Optimized SSD performance

The QuTS hero operating system maximizes SSD performance and lifespan by featuring technologies such as inline data deduplication, QSAL (QNAP SSD Antiwear Leveling), and more.

2 x 10/2.5 GbE as standard and upgradable to 100 GbE

Upgrade to 100/25 GbE using a PCIe network card and accelerate virtualization, intensive file access, media file transfer, and large backup/restoration tasks.

Long-term and stable supply

The TS-h3077AFU will be available and supported by QNAP for an extended period, up to 2030.

Built-in GPU for graphics

Power-efficient AMD Radeon™ Graphics streamlines video editing/transcoding and simultaneously runs multiple tasks.

Petabyte-scale storage

Connect up to eight 24-bay JBODs (TL-R2400PES-RP) to attain petabyte-scale storage capacity of 192 drives.

DDR5 RAM

Uses industry-leading DDR5 RAM. Expandable to 128 GB for handling more tasks, and supports ECC memory.

High-density SATA all-flash array architecture

The TS-h3077AFU offers an affordable all-flash storage solution, combining ample storage capacity and robust I/O performance. It caters to budget-conscious businesses, providing all-flash storage infrastructure capable of efficiently handling a range of demanding, business-critical applications.

Powered by AMD Ryzen™ 7000 series processors

The TS-h3077AFU is armed with enterprise-class AMD Ryzen™ 7000 series processors. The first gen of CPUs on the new AMD Socket AM5 platform provides greater performance and power efficiency compared to similar-grade processors.

AMD Radeon™ Graphics

Integrated AMD Radeon™ Graphics on the TS-h3077AFU provides energy-efficient high-quality graphics performance, enabling processing high-resolution videos, photos, and simultaneously running multiple tasks.

DDR5 RAM

DDR5 RAM comes as standard on the TS-h3077AFU to accommodate the increased performance of CPUs. Up to 128 GB can be installed to tackle memory-intensive and complex multitasking workloads, and ECC memory is also supported (sold separately).

Designed for media production and enterprises

Expandability is a concept for the TS-h3077AFU. Let's see how the all-flash TS-h3077AFU supercharges your organization in 4K/8K video workflows, storage centers, and virtualization applications.

Flexibly add petabyte-scale storage capacity

Use a TS-h3077AFU paired with multiple QNAP TL PCIe interface SATA JBOD expansion enclosures to achieve both breakthrough performance and massive capacity. The TS-h3077AFU supports up to eight 24-bay TL-R2400PES-RP JBOD enclosures, providing a storage capacity of 192 drives.

Upgrade up to 100 Gbps

The TS-h3077AFU empowers your organization with the bandwidth to tackle the most demanding applications, including storage centers, virtualization, massive file transfer, high-speed backup/restoration, and multimedia transmission. Utilizing Port Trunking (Link Aggregation) ensures network redundancy to improve fault tolerance.

Streamline post-production workflows

Store your projects on the super-fast TS-h3077AFU. NAS folders can be mounted on Windows® or Mac® via 25/10 GbE, allowing teams to save time and effort.

Backup business-critical data

The all-flash TS-h3077AFU delivers low latency and high IOPS performance. The ZFS-based QuTS hero operating system ensures data integrity and reliability while supporting multiple backup solutions.

Virtualization

With ultra-fast DDR5 memory which is optimized for large data processing, the TS-h3077AFU is ideal for server virtualization and virtual desktop infrastructure (VDI) usage.

Long-term and stable supply available

The TS-h3077AFU will be available until 2030. This long-term availability makes the TS-h3077AFU an ideal choice for organizations requiring matching NAS models for long-term projects.

Get a secondary backup to QNAP-hosted cloud storage

Back up NAS data to myQNAPcloud Storage, the perfect partner for QNAP's backup/recovery solutions, including Hybrid Backup Sync. We only charge for storage space, with transmitting data being completely free.

Future-proof PCIe Gen 4 slots

The TS-h3077AFU has three PCIe Gen 4 slots for you to add additional functionality (such as 100 GbE connectivity) to meet growing workload and business requirements.

ZFS-based QuTS hero operating system enhances NAS performance and data integrity

QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.

Data integrity is key

QuTS hero's self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.

Data reduction improves storage efficiency and performance

Inline data deduplication, compression, and compaction reduce file sizes to conserve storage capacity and optimize performance.

Multi-level cache technology

Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power failure protection are supported to boost performance and security.

QSAL (QNAP SSD Antiwear Leveling) enhances data protection

RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability.

Inline data deduplication, compression, and compaction improve SSD endurance

QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h3077AFU optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era. All-flash solutions thus achieve higher cost efficiency while improving both random write performance and SSD lifespan.

Real-time SnapSync ensures minimal RPO with real-time disaster recovery

Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.

Snapshots multiply backup protection

Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.

HBS simplifies 3-2-1 backup plans

HBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h3077AFU to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.

License-free VMware® and Hyper-V backup appliance

With Hyper Data Protector, the TS-h3077AFU becomes an agentless backup tool for VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.

Move business data to the cloud and enjoy low latency access to cloud-based data

The TS-h3077AFU perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching, organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible, and secure hybrid cloud applications.

HybridMount file-based cloud gateway

Flexibly expand storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

VJBOD Cloud block-based cloud gateway

VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.

Reliable, high-performance storage for virtualization

The TS-h3077AFU supports block-based iSCSI LUN as a reliable, high-performance, and affordable storage solution for mainstream virtualization environments. It supports VMware® VAAI and Microsoft® ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively.

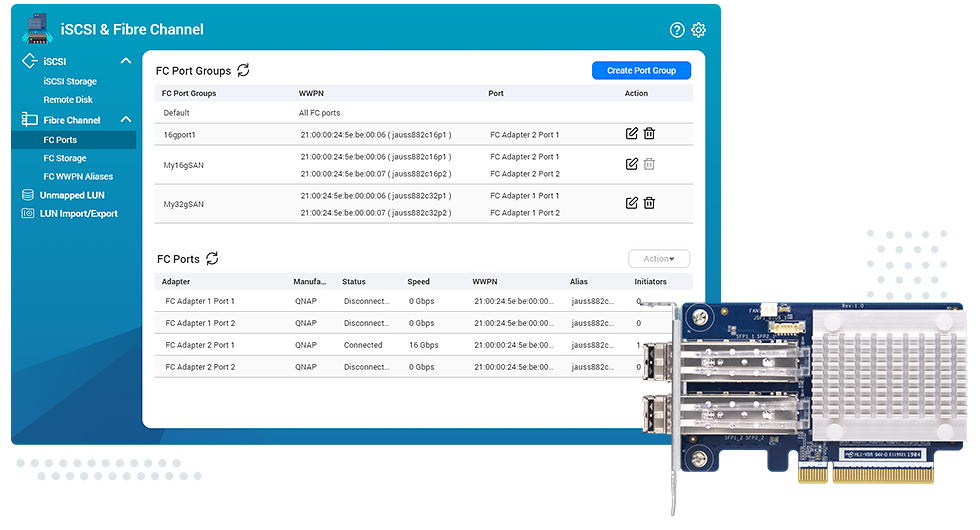

Build an affordable Fibre Channel SAN environment

Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TS-h3077AFU, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
