QNAP TBS-h574TX-i3-12G Thunderbolt 5-Bay Compac Flash NAS Book, Intel i3 8 Core/ 12 Threads, 12GB Memory, 5x E.1/ M.2, 1x 2.5GbE, 1x 10GbE, 2x Thunderbolt, 3x USB, 1x HDMI, 3 Years Warranty, Come with 8 Cmaera Licenses

PB Tech price
PB Tech price
$ 2,550 .00
 +GST
$ 2,932 .50
 inc GST
$2,550.00  +GST
$2,932.50

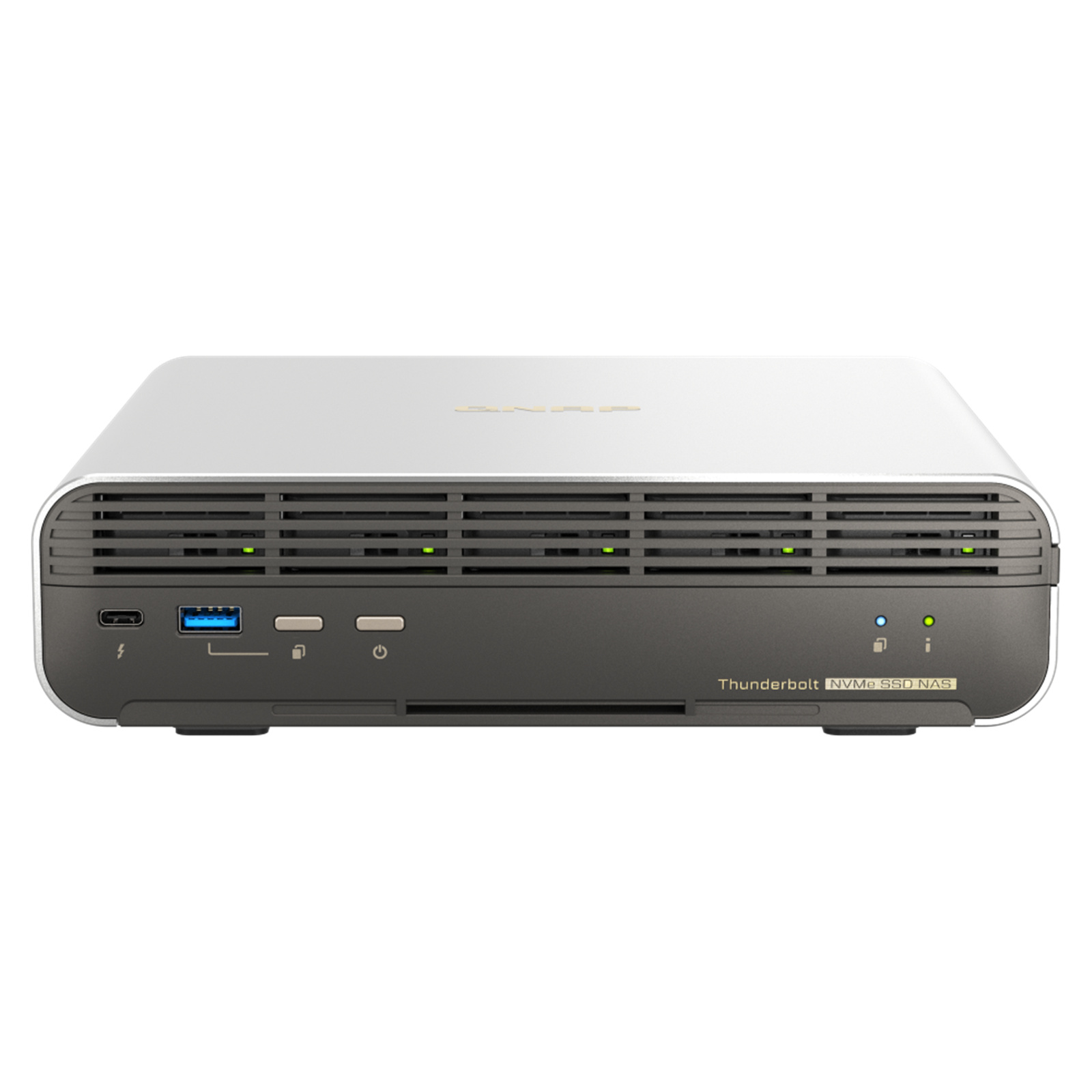

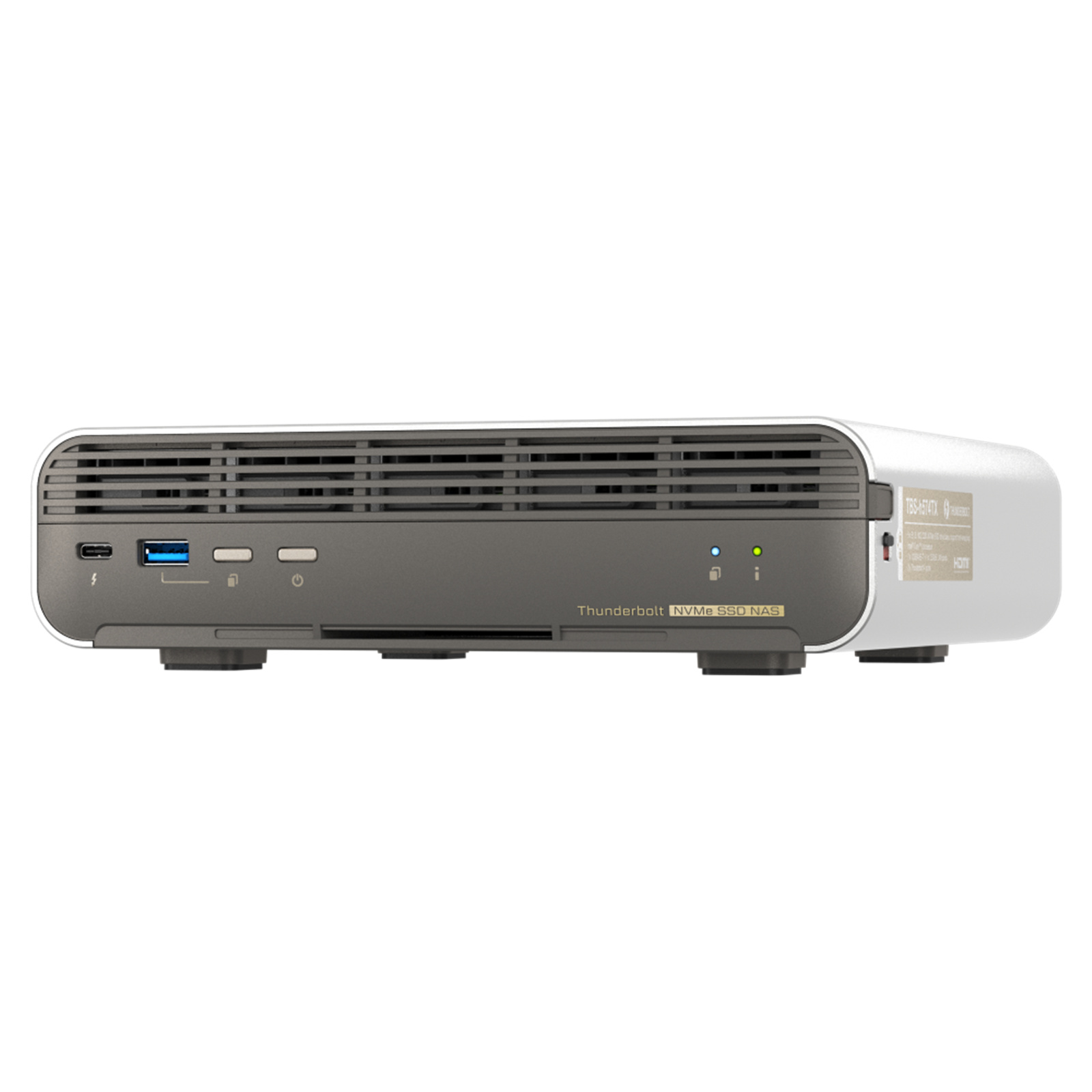

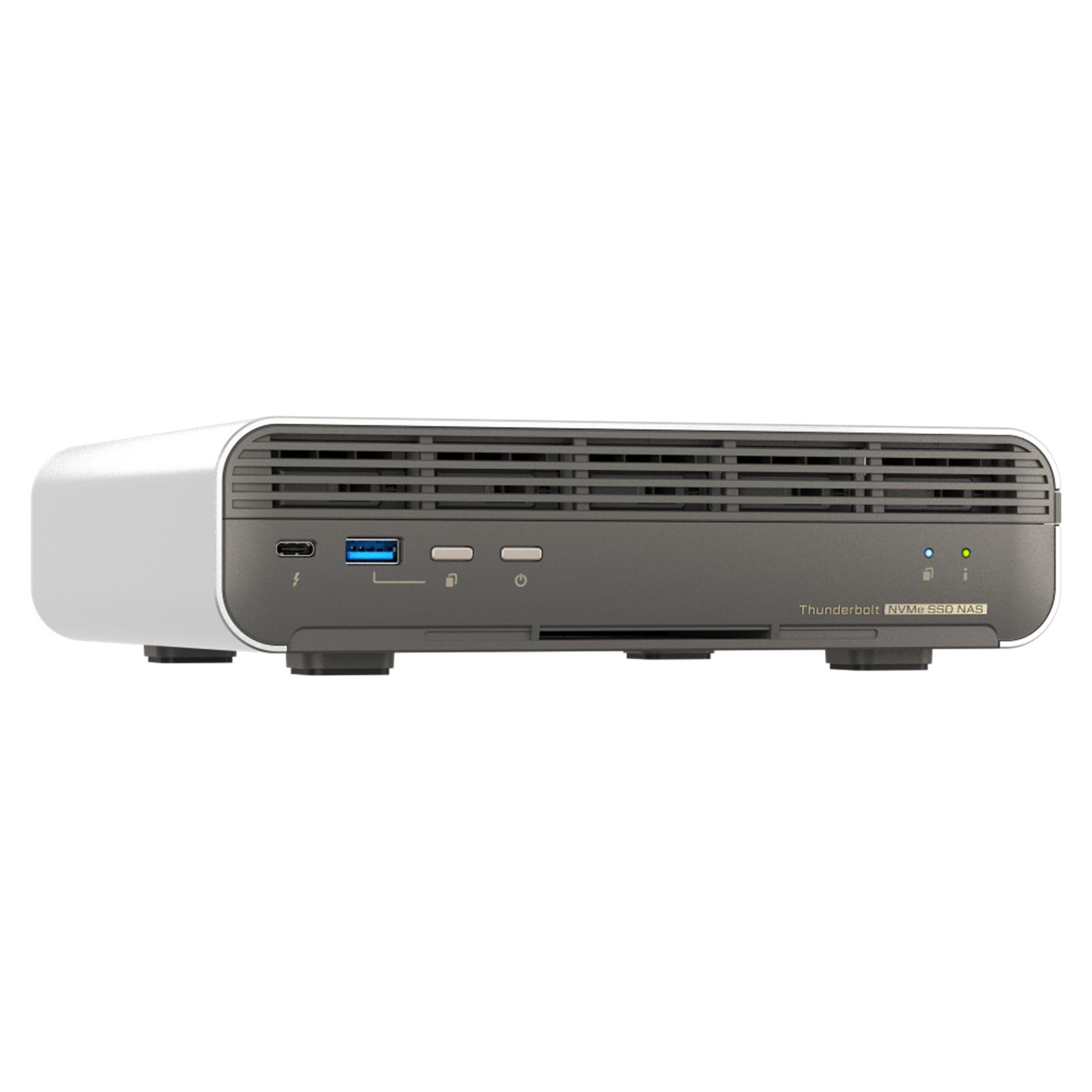

QNAP TBS-h574TX-i3-12G Thunderbolt 5-Bay Compac Flash NAS Book, Intel i3 8 Core/ 12 Threads, 12GB Memory, 5x E.1/ M.2, 1x 2.5GbE, 1x 10GbE, 2x Thunderbolt, 3x USB, 1x HDMI, 3 Years Warranty, Come with 8 Cmaera Licenses

  • Brand: QNAP
  • MPN: TBS-h574TX-i3-12G
  • Part #: NASQNP8757417
  • UPC: 885022026876
PB Tech price
$ 2,550 .00 $ 2,932 .50
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 13 Nov When will I receive it?
$2,550.00  +GST
$2,932.50

Finance from $26.21 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

  • Brand: QNAP
  • MPN: TBS-h574TX-i3-12G
  • Part #: NASQNP8757417
  • UPC: 885022026876

Number of Bays

5 Bays

HDD Included

None

Form Factor

Desktop

Number of Cores

8

Processor Speed

Not Specified

Memory Size

12GB

1Gb RJ45 Ports

1 Port

10Gb RJ45 Ports

1 Port

Features

TBS-h574TX

Make your creativity bloom with the lightning-fast Thunderbolt™ 4 All-Flash NASbook

Designed for film sets, small studios, small-scale video production teams and SOHO users, the compact TBS-h574TX Thunderbolt™ 4 all-flash NASbook elevates video production for optimum productivity. It packs high-speed I/O and Intel® Core™ performance required by video production, allowing creators using Mac® or Windows® to enjoy the smoothest experience ever in real-time video editing, large file transfer, video transcoding, and backup. The TBS-h574TX, as the bridge between pre-production and post-production, takes video projects and team collaboration to the next level. The TBS-h574TX runs the ZFS-based QuTS hero operating system that ensures data integrity. You can also switch to QTS operating system based on your needs.

Ultra-fast RAW file editing
With an E1.S to M.2 SSD adapter attached in each slot, you can flexibly install five E1.S or M.2 PCIe NVMe SSDs for lightning-fast multimedia file editing.

Stay agile for ongoing projects
Hot-swappable M.2 SSD and automatic RAID disk replacement enhance system reliability, reduce the risk of data loss, and smoothen ongoing projects.

Thunderbolt™ 4 for faster direct connections
Two Thunderbolt™ 4 ports allow directly connecting Mac®/PC workstations to the TBS-h574TX, delivering up to 20Gbps for 4K video editing.

Hybrid-architecture CPU for multitasking
The 13th Gen Intel® Core™ processors with hybrid-architecture (P-core and E-core) delivers high performance and efficiency.

2.5GbE and 10GbE as standard
2.5GbE and 10GbE networks accelerate large file transfer and allow for more connected devices/workstations by attaching a network switch.

Faster USB transfer
Two USB 3.2 Gen 2 (10Gbps) ports enable fast file import/export from/to external storage devices.



All-flash NASbook supporting E1.S/M.2 NVMe SSDs - a perfect companion for video production

Compared to large rackmount all-flash array storage, the TBS-h574TX all-flash NASbook features a compact, portable design with five SSD slots yet delivers extreme performance. It is the ideal choice to accelerate ongoing creative video projects from pre-production to post-production, and seamlessly works with USB DAS (TR-004) for file backup/archiving. The TBS-h574TX is always ready for your next project! An E1.S to M.2 SSD adapter is attached to each drive bay of the TBS-h574TX, providing great flexibility to choose between M.2 SSDs and E1.S SSDs on demand.

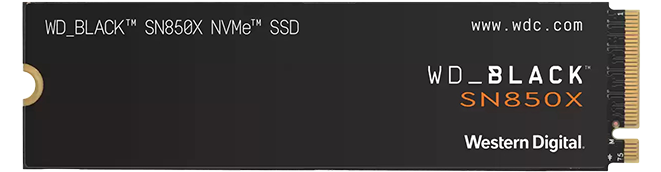

M.2 SSD
- Supports M.2 2280 modules
- Smaller capacity but more available on the market
- More affordable and more vendor options; suited for diverse applications
- Faster than SATA SSDs

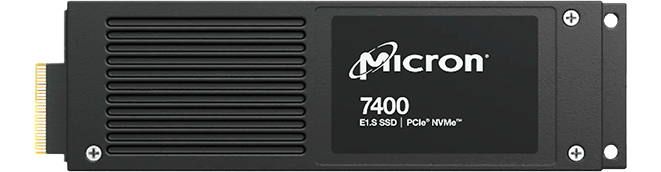

E1.S SSD
- Supports heights of 5.9mm / 9.5mm / 15mm
- Larger capacity but less common on the market
- Suited for high-intensity data transfer and is more future-proof
- Compared to M.2 SSDs, E1.S SSDs are hot-swappable and have higher heat dissipation efficiency
- Advanced power-loss protection (PLP) that prevents data loss

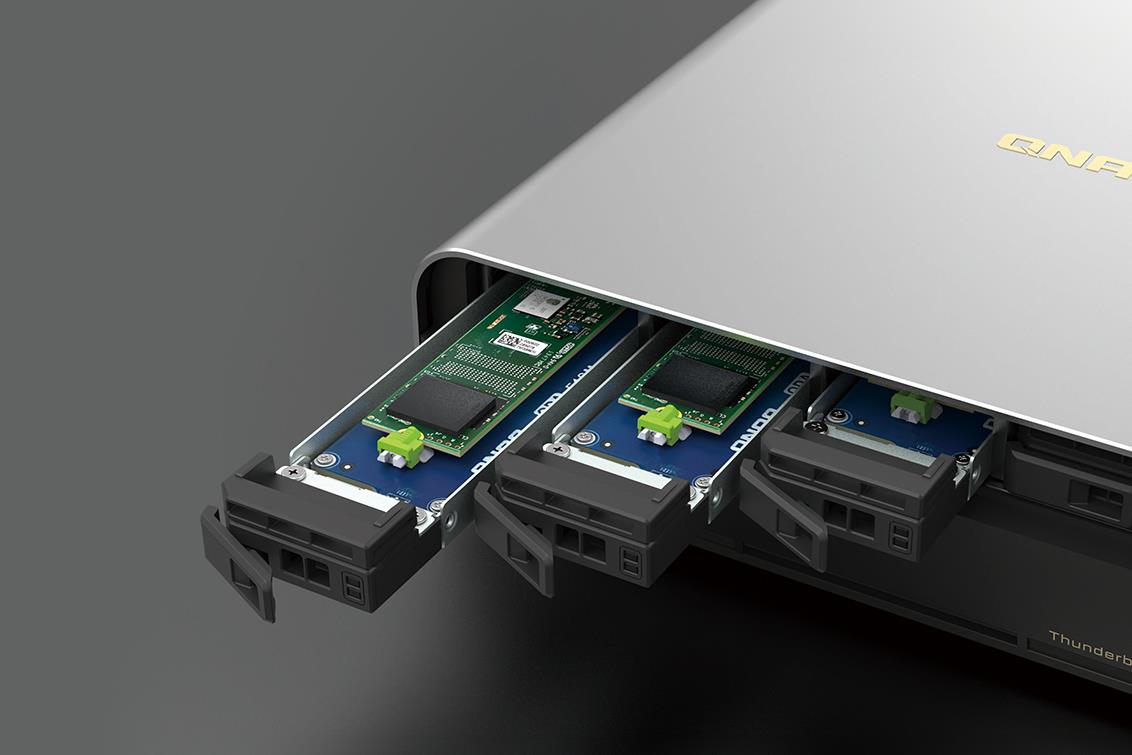

Enabling hot-swappable M.2 SSDs!

As a frontline video production team, there is the risk of project interruptions due to unexpected SSD failures in storage devices. The innovative TBS-h574TX makes M.2 SSDs become hot-swappable for easier drive replacement. Along with supporting automatic RAID replacement with spares (supported from QTS 5.1 / QuTS hero h5.1), if potential drive errors are detected, the system automatically moves data from the affected drive in a RAID group to a spare, before the data on the affected drive is completely corrupted. This reduces system downtime and data loss risks as it avoids RAID rebuilding.

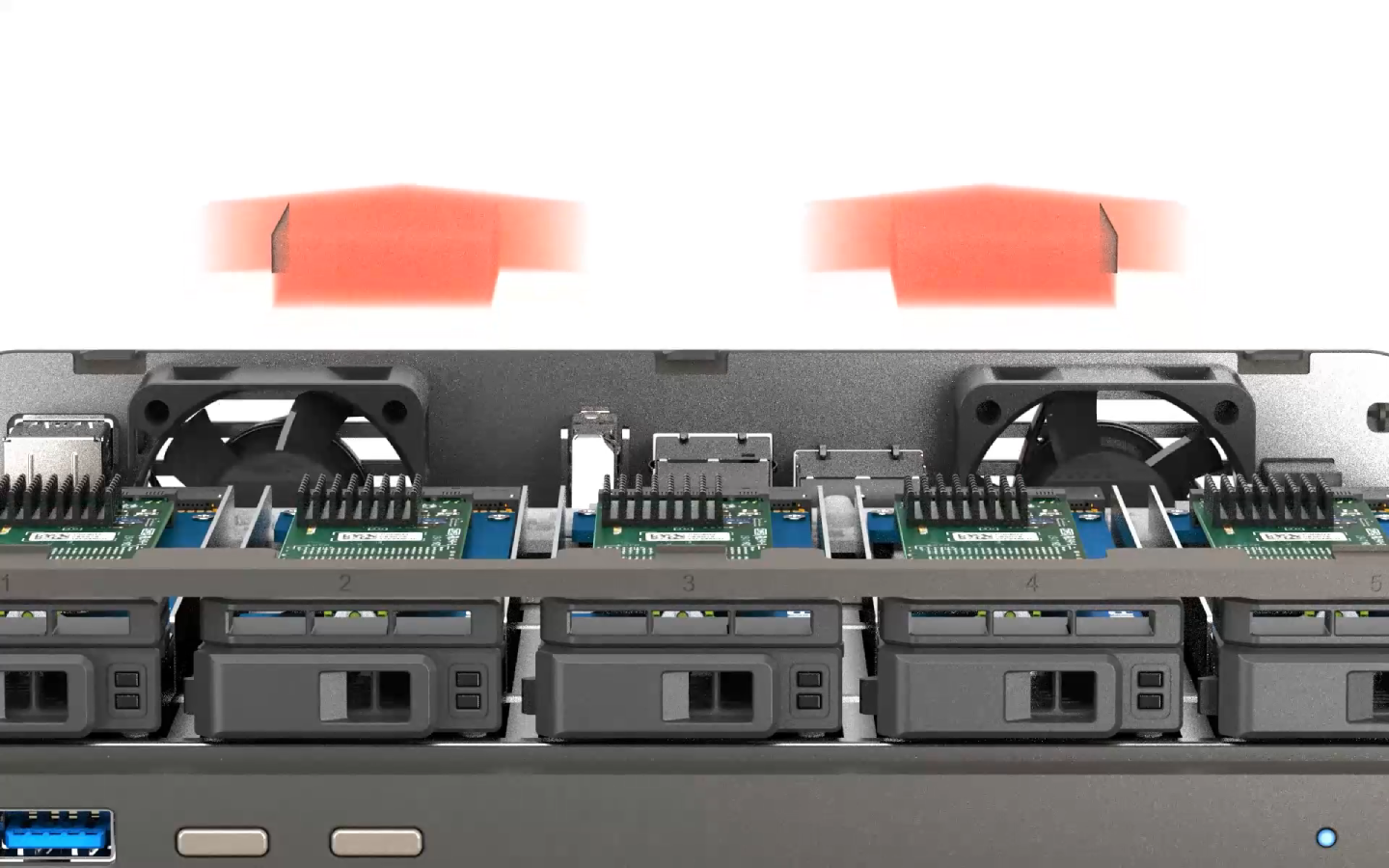

High-performance SSDs. Effective heat dissipation.

Designed with an excellent cooling system, the TBS-h574TX is equipped with dual fans and supports SSD heatsinks (heatsinks sold separately) to effectively enhance heat dissipation during intensive workloads, allowing creators to confidently enjoy the ultimate performance of SSD.

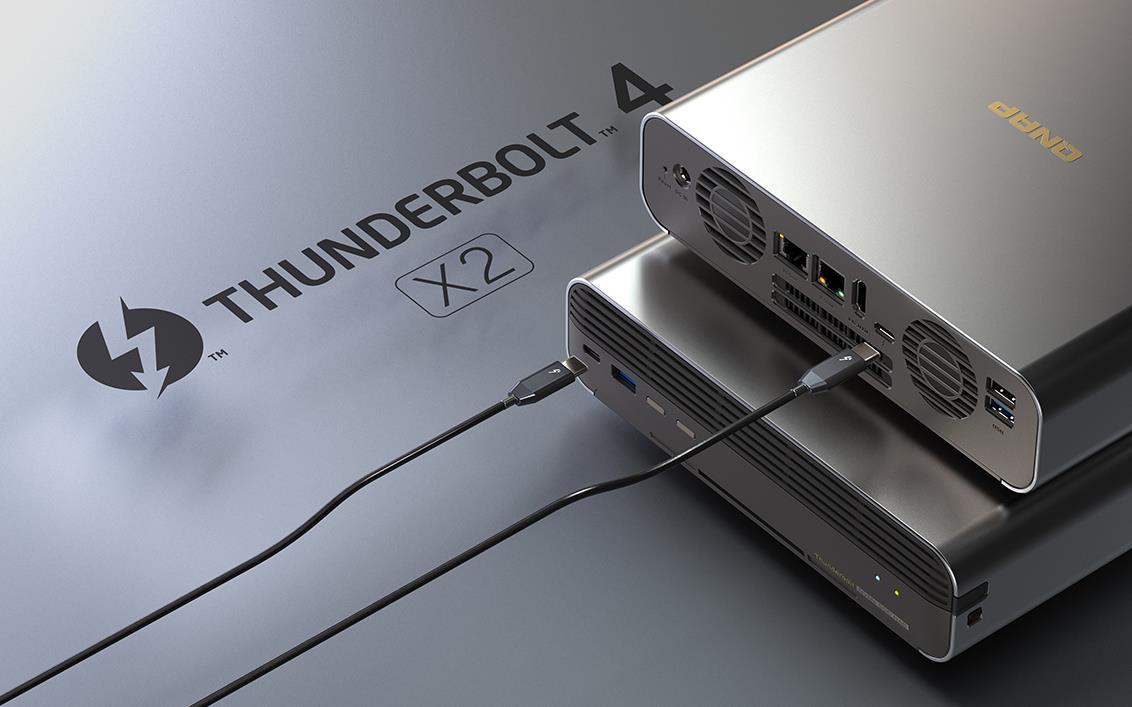

Thunderbolt™ 4 direct connection to workstations for higher productivity

The TBS-h574TX has two Thunderbolt™ 4 ports for high-speed data transfer (up to 20Gbps bandwidth). Mac® (including M1 and M2 chip models) or Windows® workstations can directly connect to the TBS-h574TX for fast and smooth real-time video editing, allowing for the transfer of a 1TB 4K video just in 11 minutes.

Notes:
- QNAP Thunderbolt NAS adopts Thunderbolt Networking for peer-to-peer connection, up to 20Gbps.
- Mac® system requirement: macOS 13.5 (or later)
- Connect the TBS-h574TX to your Mac® or Windows® PC with Thunderbolt™ 4 / Thunderbolt™ 3 cables and your connected devices with the Thunderbolt icon

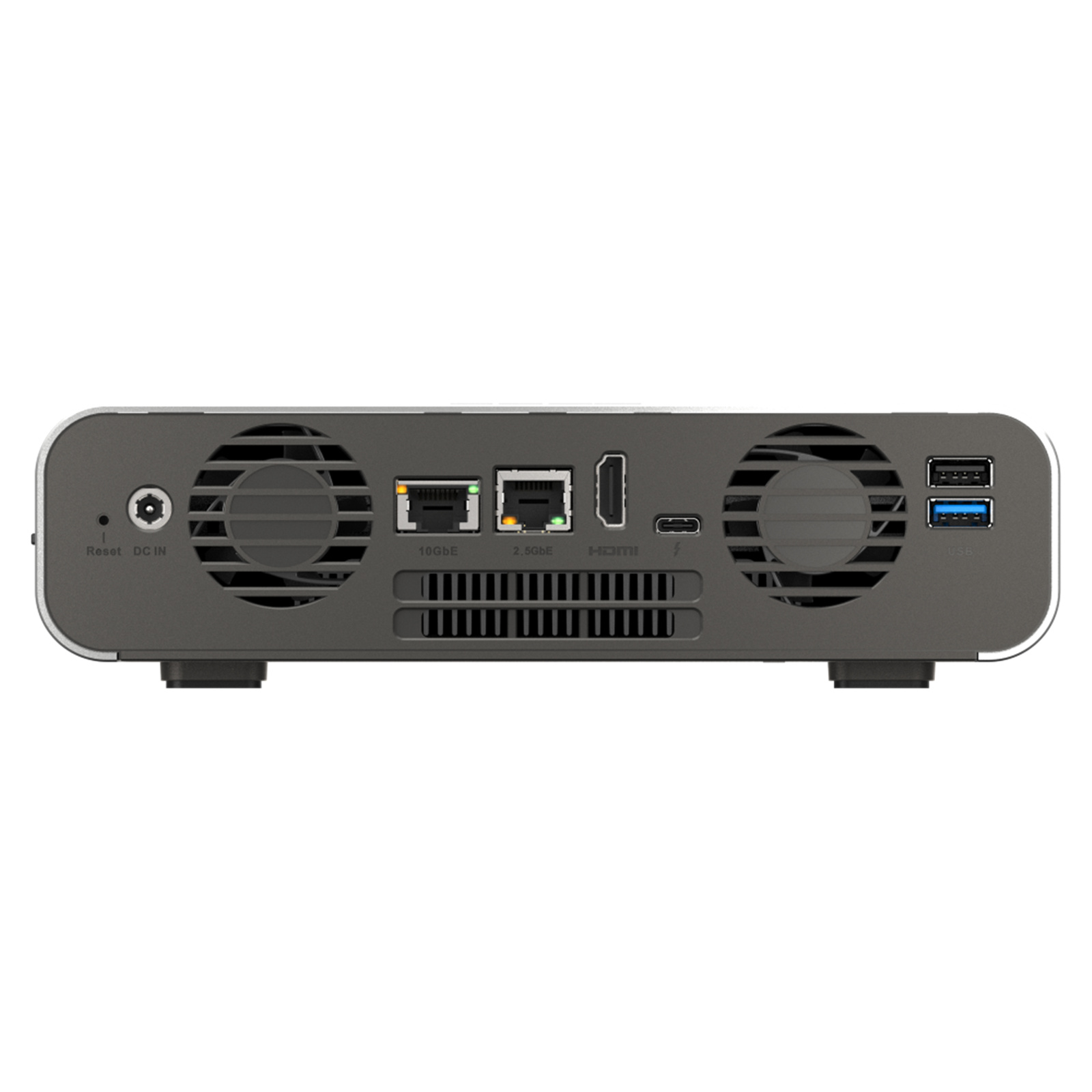

Diverse I/O, greater possibilities.

2.5GbE and 10GbE ports | Productive teamwork
The 2.5GbE and 10GbE ports can be used with a network switch to add more connected devices to the TBS-h574TX for collaboration, significantly reducing file transfer times across devices.

USB 3.2 Gen 2 ports | Faster file import/export
Creators and editors can easily import materials from external storage devices to the TBS-h574TX via two USB 3.2 Gen 2 (10Gbps) ports and one USB 2.0 port during pre-/post-production.

USB ports | Easier storage expansion
The TBS-h574TX capacity is scalable by connecting QNAP USB DAS TR-004 or USB JBOD TL-D800C to archive massive number of video files for ever-growing storage and backup needs.

Compact, aesthetic, yet unmatched performance

The TBS-h574TX provides content creators the perfect combination of stylish design and performance. With its metal-finish case, it delivers optimized cooling performance. The set-top design makes the TBS-h574TX space-saving - smaller than A4 paper and with only 2.54 liters in volume - ideal for small-scale studios or video production teams looking for a portable solution.



Next-gen Intel® Core™ processors with hybrid architecture for multitasking potential

The TBS-h574TX adopts the 13th Gen Intel® Core™ hybrid-architecture?processor with P-core (Performance-core) and E-core (Efficient-core) performance. Multi-core and multi-thread advantages enable higher multitasking performance with lower CPU workloads and resource consumption, empowering creators with higher productivity.

Processor
Intel® Core™ i3-1320PE 8-core (4P+4E) and 12-thread processor, up to 4.5 GHz

Memory
Built-in 16GB DDR4 memory

GPU
Built-in Intel® Iris® Xe Graphics accelerate video processing and graphical computing

Encryption Engine
Features Intel® AES-NI 256 hardware-accelerated encryption to boost system performance while securing sensitive data

Recommended video production scenarios

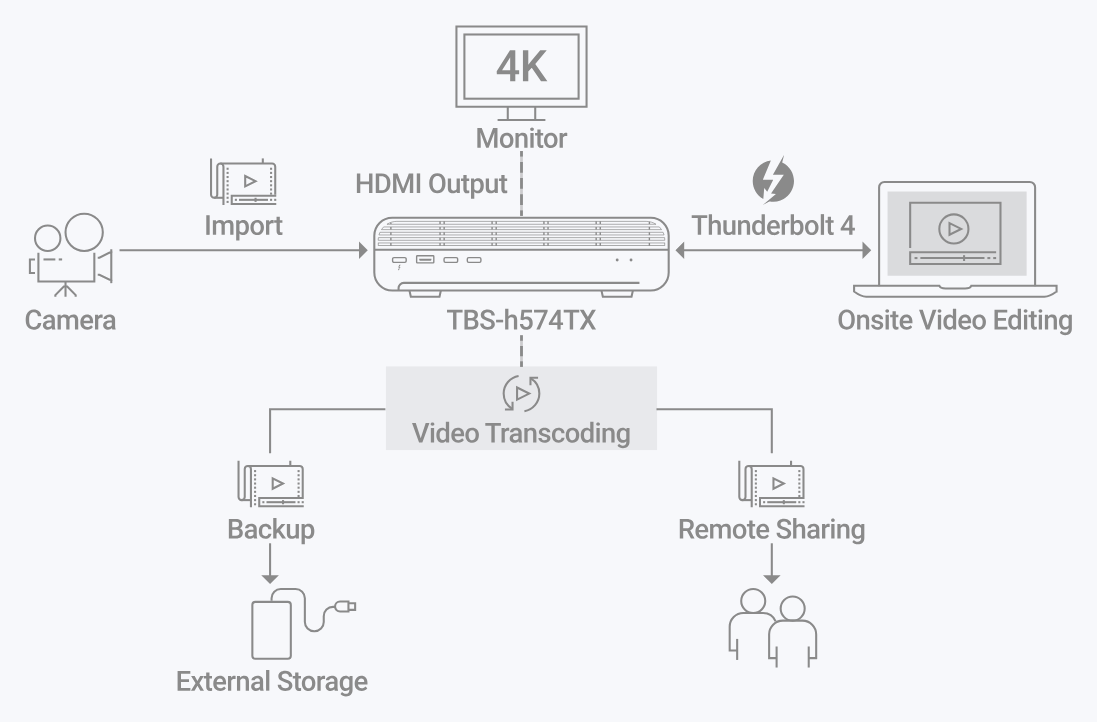

Pre-production: Best video file management solution for DIT - raw footage on-site editing and powerful video transcoding
DIT (Digital Imaging Technician) is the keyman to take responsibility of video file management on shooting site in a frontline video production team.

DIT can quickly import large raw footage from camera SD cards to the TBS-h574TX through USB 3.2 Gen 2 (10Gbps) ports and proceed with video transcoding on the NASbook. In addition to saving RAW files, DIT can easily share small files with remote teams for instant discussion and confirmation, or save files to external hard drives or cloud storage.

The TBS-h574TX comes with a built-in HDMI™ output, allowing on-site personnel to immediately play raw footage from the NASbook on a large screen. The team can also complete the rough cut on-site using Thunderbolt™ 4, significantly reducing the post-production team's workload.

Benefits for a pre-production team:
- Fast file import from SD cards to NASbook
- Store small files to myQNAPcloud Storage
- Remote access and sharing video files
- High-resolution video display using HDMI™ output
- Rough cut on-site using Thunderbolt™ 4

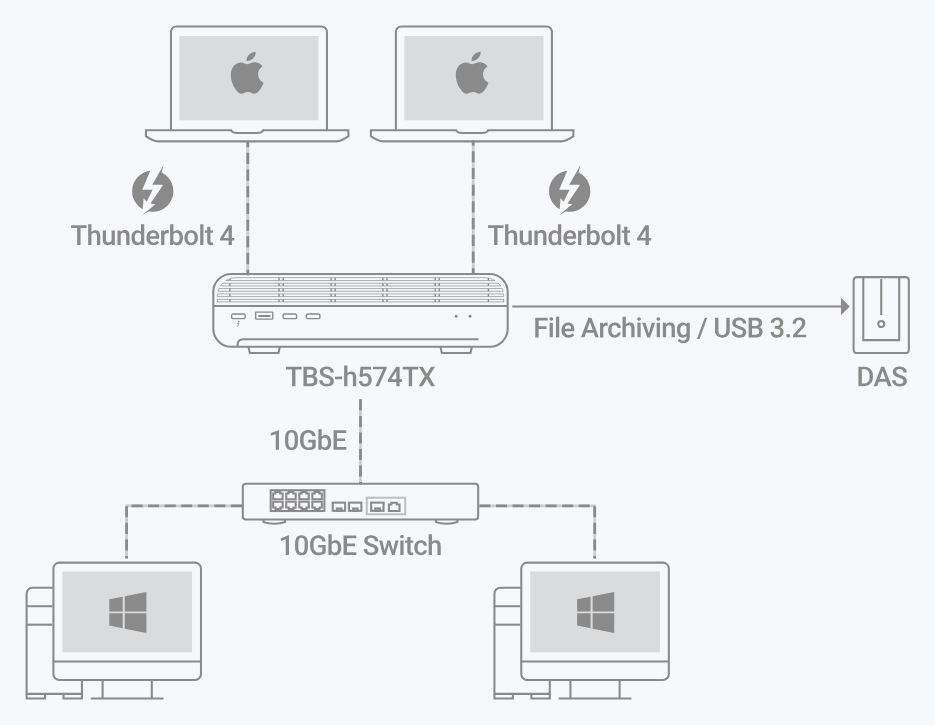

Post-production: Productive team collaboration
NAS is way more collaborative than DAS. The TBS-h574TX provides Thunderbolt™ 4 and 10GbE connectivity that allow the post-production team to edit video files directly from the NASbook, without waiting for files to move from drive to drive, computer to computer.

Once the post-production team finishes current video editing projects on the TBS-h574TX, they can save the final files to a USB DAS (such as TR-004) to free up the NASbook's storage space for the next project!

Benefits for a post-production team:
- Directly connect the NASbook to Mac® via Thunderbolt™ 4
- Directly connect the NASbook to Windows® workstations through 10GbE and 2.5GbE connectivity
- File storage and backup by connecting a DAS through the high-speed UBS 3.2 Gen 2 ports

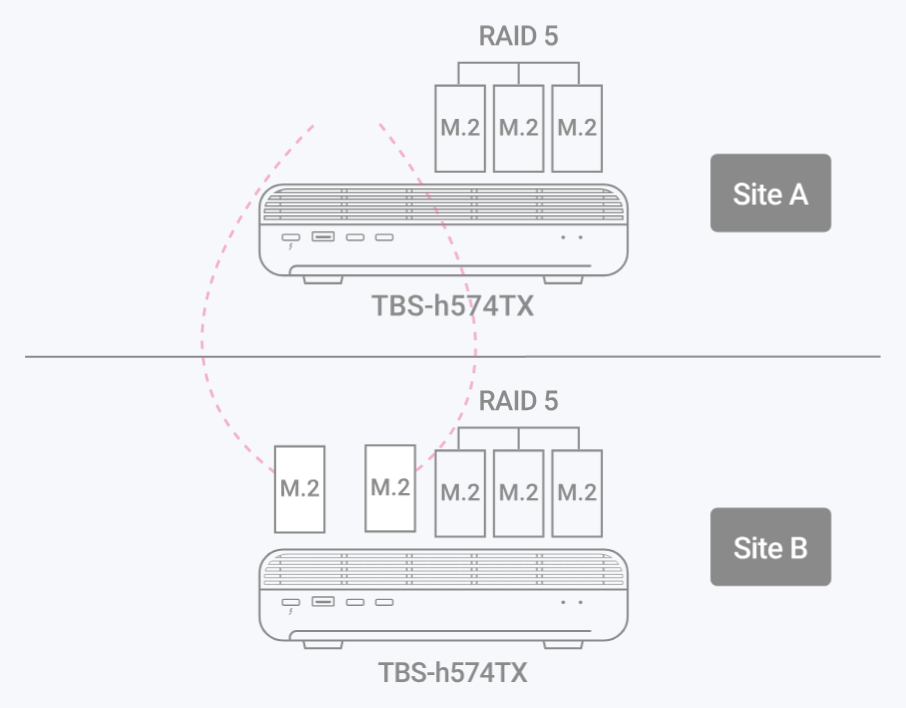

Remote collaboration: Hot-swappable M.2 SSDs facilitate file sharing for collaboration and delivery
Due to the difficulty of sharing large media files over networks, remote teams often resort to physically exchanging files by using external hard drives. Now the TBS-h574TX also offers a portable file exchanging/delivery solution.

You can implement a TBS-h574TX for each of the remote work teams, configuring three M.2 SSDs in RAID 5, and the remaining two M.2 SSDs as single disk. The TBS-h574TX makes M.2 SSDs hot-swappable, allowing you to treat the two M.2 SSDs with single disk mode as portable external hard drives: simply remove SSDs from one NASbook and insert them to another NASbook for fast large-scale file transfer.

Benefits for remote teamwork:
- Hot-swappable feature enables physically transferring large media files



Ultimate visual experience with real-time video transcoding and 4K HDMI™ output

The TBS-h574TX features built-in Intel® Graphics that accelerates video transcoding and graphical computing for converting videos to different formats smoothly. You can also display videos from the TBS-h574TX to a large screen using HDMI™ (4K @30Hz) for capturing details and clearer quality.

The TBS-h574TX provides hardware decoding, encoding and transcoding capabilities. However, playback quality may vary due to factors (including playback software, file formats, system usage, and available bandwidth). H.265 hardware transcoding requires installing CAYIN MediaSign Player with a Plus license.



Manage your video projects flexibly with myQNAPcloud Storage

Elevate your video production with the compact and powerful TBS-h574TX. During pre-production, you can save large RAW files (hot data) and handle video transcoding on the TBS-h574TX. In post-production you can store small files (cold data) to myQNAPcloud Storage for file archiving and backup, making it easier to remotely access, synchronize, and share files with cross-site team members.



QNAP is an official Adobe Partner for video and audio solutions



Build the best music server with Roon

Designed for music lovers, Roon Server identifies your entire music library stored on the TBS-h574TX, and consolidates it into Roon's interconnected digital library. Experiencing smooth music streaming service, you just need to download Roon Server app from QNAP App Center and enable Roon music library on SSD storage devices with simple setting.



ZFS-based QuTS hero operating system unleashes SSD performance, reliability and endurance

Self-healing | Ensure data integrity
ZFS uses end-to-end checksums to detect, correct, and protect against silent data corruption, ensuring the data integrity of media files.

QSAL (QNAP SSD Antiwear Leveling) | Enhance data protection
QNAP's patented QSAL algorithm prevents simultaneous multi-SSD failures in an SSD RAID for greater data protection and system reliability.

SSD Extra Over-provisioning | Unleash SSD performance
Resolves SSD write performance degradation and write amplification. By configuring extra Over-provisioning for an SSD RAID, it improves random write performance and mitigates write amplification, thus extending SSD lifespans.

Power Failure Protection | Bolster data security
The QuTS hero operating system ensures that the TBS-h574TX can continue completing unfinished data writes after power outage followed by a power restoration, preventing data corruption while modifying data and without the need to wait for file system check.

Note: ZFS Inline Data Deduplication is disabled by default in the TBS-h574TX. Due to memory limitations, it is not recommended to enable this feature.

Specifications

Hardware Specs

CPU

Intel® Core™ i3-1320PE 8C(4P+4E)/12T up to 4.50GHz

CPU Architecture

64-bit x86

Graphic Processors

Intel® UHD Graphics for 13th Gen Intel® Processors

Floating Point Unit

Yes

Encryption Engine

Yes

Hardware-accelerated Transcoding

Yes

System Memory

12 GB on board (non-expandable)

Maximum Memory

12 GB on board (non-expandable)

Flash Memory

5GB (Dual boot OS protection)

Drive Bay

5 x E1.S up to 15mm (5x PCIe Gen3 x2)
Pre-install adapter to support M.2 2280 for each slots

Drive Compatibility

E1.S or M.2 2280 PCIe NVMe

Hot-swappable

Yes

SSD Cache Acceleration Support

Yes

2.5 Gigabit Ethernet Port (2.5G/1G/100M)

1

10 Gigabit Ethernet Port

1 x 10GBASE-T (10G/5G/2.5G/1G/100M)

Wake on LAN (WOL)

Yes

Jumbo Frame

Yes

Thunderbolt Port

2 (Thunderbolt™ 4)

USB 2.0 port

1

USB 3.2 Gen 2 (10Gbps) Port

2

HDMI™ Output

1, HDMI™ 1.4b

Form Factor

Set-top design

LED Indicators

Status, USB copy, SSD 1-5

Buttons

Status, USB copy, Reset

Dimensions (HxWxD)

215 × 199 × 60 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)

Weight (Net)

2.24 kg

Operating Temperature

0 - 40 °C (32°F - 104°F)

Storage Temperature

-20 - 70°C (-4°F - 158°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27°C (80.6°F)

Power Supply Unit

120W Adapter (19VDC output, 100-240VAC input)

Power Consumption: Operating Mode, Typical

46 W

Fan

System fan: 2 x 40mm
CPU fan: 1 x 75mm

System Warning

Buzzer

Max. Number of Concurrent Connections (CIFS) - with Max. Memory

1500

Manufacturer Part No:
TBS-h574TX-i3-12G
Brand:
Product Type:
Compac Flash NAS Book,
UPC
885022026876
Product Family:
TBS-h574TX-i3-12G
Shipping Weight:
3.4 kg
PB Part No:
NASQNP8757417
Product Model:
Thunderbolt 5-Bay
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Delivery & Pick-up

Potential courier delays: Please note that due to the high volumes currently within the NZ courier network there is potential for some deliveries to be delayed.

Delivery Estimates

The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.

Next Day Delivery

Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.

Same Day Delivery

Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.

Shipping Costs

Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.

To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.

Shipping Security & Insurance

All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.

1 Hour Store Pick-up / Click & Collect

You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.

Overseas Shipments

PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com

Returns & Warranty

7 day right of exchange

If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.

To exchange a product, goods must be sealed and unopened, with packaging in original condition, accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange. A 20% restocking fee may be applied where goods are not returned in sealed, original packaging condition.

If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase. Items purchased on finance cannot be exchanged for a gift card.



Hassle free warranty service

If your product develops a fault within the manufacturer warranty period, you can either contact the manufacturer directly (some manufacturers provide a high level of warranty service - including free pickup or in some cases onsite repair), or return to one of our services centres / stores. Where the product has been directly imported by PB Tech, you need to contact us directly or present the product at any one of our service centres / stores together with your proof of purchase.

If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.



Returning a product / making a warranty claim

To contact the manufacturer directly to troubleshoot your product or to request a warranty repair, please view the list of manufacturer / brand warranty contacts (for products imported directly by PB Tech please return to us directly by completing our request a return form).

To return a product to PB Tech directly, please complete our request a return form.

Or view our returns policy for more information.

QNAP TBS-h574TX-i3-12G Thunderbolt 5-Bay Compac Flash NAS Book, Intel i3 8 Core/ 12 Threads, 12GB Memory, 5x E.1/ M.2, 1x 2.5GbE, 1x 10GbE, 2x Thunderbolt, 3x USB, 1x HDMI, 3 Years Warranty, Come with 8 Cmaera Licenses

  • Brand: QNAP
  • MPN: TBS-h574TX-i3-12G
  • Part #: NASQNP8757417
  • UPC:885022026876
PB Tech price $2,550.00 Excluding GST PB Tech price $2,932.50 Including GST

Date Created: 20:46, 22-09-2025
Product URL: https://www.pbtech.co.nz/product/NASQNP8757417/QNAP-TBS-h574TX-i3-12G-Business-Mid-End-Thunderbol
Branch New Stock On Display
Auckland - Albany -
Auckland - Glenfield -
Auckland - Queen Street -
Auckland - Auckland Uni -
Auckland - Newmarket -
Auckland - Westgate -
Auckland - Penrose -
Auckland - Henderson (Express) -
Auckland - St Lukes -
Auckland - Manukau -
Hamilton -
Tauranga -
New Plymouth -
Palmerston North -
Petone -
Wellington -
Auckland - Head Office -
Auckland - East Tamaki Warehouse -
Christchurch - Hornby -
Christchurch - Christchurch Central -
Dunedin -

Features

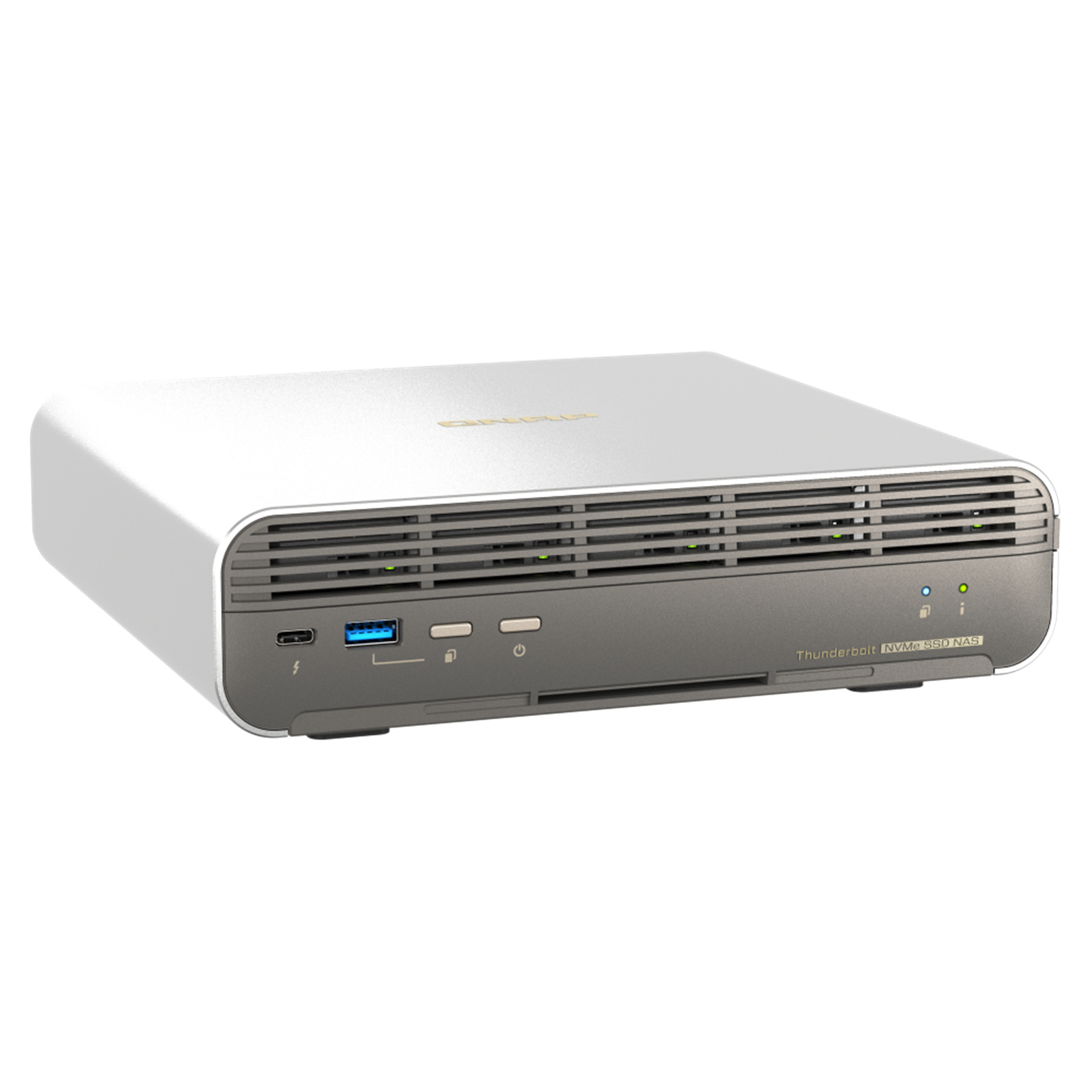

TBS-h574TX

Make your creativity bloom with the lightning-fast Thunderbolt™ 4 All-Flash NASbook

Designed for film sets, small studios, small-scale video production teams and SOHO users, the compact TBS-h574TX Thunderbolt™ 4 all-flash NASbook elevates video production for optimum productivity. It packs high-speed I/O and Intel® Core™ performance required by video production, allowing creators using Mac® or Windows® to enjoy the smoothest experience ever in real-time video editing, large file transfer, video transcoding, and backup. The TBS-h574TX, as the bridge between pre-production and post-production, takes video projects and team collaboration to the next level. The TBS-h574TX runs the ZFS-based QuTS hero operating system that ensures data integrity. You can also switch to QTS operating system based on your needs.

Ultra-fast RAW file editing
With an E1.S to M.2 SSD adapter attached in each slot, you can flexibly install five E1.S or M.2 PCIe NVMe SSDs for lightning-fast multimedia file editing.

Stay agile for ongoing projects
Hot-swappable M.2 SSD and automatic RAID disk replacement enhance system reliability, reduce the risk of data loss, and smoothen ongoing projects.

Thunderbolt™ 4 for faster direct connections
Two Thunderbolt™ 4 ports allow directly connecting Mac®/PC workstations to the TBS-h574TX, delivering up to 20Gbps for 4K video editing.

Hybrid-architecture CPU for multitasking
The 13th Gen Intel® Core™ processors with hybrid-architecture (P-core and E-core) delivers high performance and efficiency.

2.5GbE and 10GbE as standard
2.5GbE and 10GbE networks accelerate large file transfer and allow for more connected devices/workstations by attaching a network switch.

Faster USB transfer
Two USB 3.2 Gen 2 (10Gbps) ports enable fast file import/export from/to external storage devices.



All-flash NASbook supporting E1.S/M.2 NVMe SSDs - a perfect companion for video production

Compared to large rackmount all-flash array storage, the TBS-h574TX all-flash NASbook features a compact, portable design with five SSD slots yet delivers extreme performance. It is the ideal choice to accelerate ongoing creative video projects from pre-production to post-production, and seamlessly works with USB DAS (TR-004) for file backup/archiving. The TBS-h574TX is always ready for your next project! An E1.S to M.2 SSD adapter is attached to each drive bay of the TBS-h574TX, providing great flexibility to choose between M.2 SSDs and E1.S SSDs on demand.

M.2 SSD
- Supports M.2 2280 modules
- Smaller capacity but more available on the market
- More affordable and more vendor options; suited for diverse applications
- Faster than SATA SSDs



E1.S SSD
- Supports heights of 5.9mm / 9.5mm / 15mm
- Larger capacity but less common on the market
- Suited for high-intensity data transfer and is more future-proof
- Compared to M.2 SSDs, E1.S SSDs are hot-swappable and have higher heat dissipation efficiency
- Advanced power-loss protection (PLP) that prevents data loss



Enabling hot-swappable M.2 SSDs!

As a frontline video production team, there is the risk of project interruptions due to unexpected SSD failures in storage devices. The innovative TBS-h574TX makes M.2 SSDs become hot-swappable for easier drive replacement. Along with supporting automatic RAID replacement with spares (supported from QTS 5.1 / QuTS hero h5.1), if potential drive errors are detected, the system automatically moves data from the affected drive in a RAID group to a spare, before the data on the affected drive is completely corrupted. This reduces system downtime and data loss risks as it avoids RAID rebuilding.



High-performance SSDs. Effective heat dissipation.

Designed with an excellent cooling system, the TBS-h574TX is equipped with dual fans and supports SSD heatsinks (heatsinks sold separately) to effectively enhance heat dissipation during intensive workloads, allowing creators to confidently enjoy the ultimate performance of SSD.



Thunderbolt™ 4 direct connection to workstations for higher productivity

The TBS-h574TX has two Thunderbolt™ 4 ports for high-speed data transfer (up to 20Gbps bandwidth). Mac® (including M1 and M2 chip models) or Windows® workstations can directly connect to the TBS-h574TX for fast and smooth real-time video editing, allowing for the transfer of a 1TB 4K video just in 11 minutes.

Notes:
- QNAP Thunderbolt NAS adopts Thunderbolt Networking for peer-to-peer connection, up to 20Gbps.
- Mac® system requirement: macOS 13.5 (or later)
- Connect the TBS-h574TX to your Mac® or Windows® PC with Thunderbolt™ 4 / Thunderbolt™ 3 cables and your connected devices with the Thunderbolt icon



Diverse I/O, greater possibilities.

2.5GbE and 10GbE ports | Productive teamwork
The 2.5GbE and 10GbE ports can be used with a network switch to add more connected devices to the TBS-h574TX for collaboration, significantly reducing file transfer times across devices.

USB 3.2 Gen 2 ports | Faster file import/export
Creators and editors can easily import materials from external storage devices to the TBS-h574TX via two USB 3.2 Gen 2 (10Gbps) ports and one USB 2.0 port during pre-/post-production.

USB ports | Easier storage expansion
The TBS-h574TX capacity is scalable by connecting QNAP USB DAS TR-004 or USB JBOD TL-D800C to archive massive number of video files for ever-growing storage and backup needs.

Compact, aesthetic, yet unmatched performance

The TBS-h574TX provides content creators the perfect combination of stylish design and performance. With its metal-finish case, it delivers optimized cooling performance. The set-top design makes the TBS-h574TX space-saving - smaller than A4 paper and with only 2.54 liters in volume - ideal for small-scale studios or video production teams looking for a portable solution.



Next-gen Intel® Core™ processors with hybrid architecture for multitasking potential

The TBS-h574TX adopts the 13th Gen Intel® Core™ hybrid-architecture?processor with P-core (Performance-core) and E-core (Efficient-core) performance. Multi-core and multi-thread advantages enable higher multitasking performance with lower CPU workloads and resource consumption, empowering creators with higher productivity.

Processor
Intel® Core™ i3-1320PE 8-core (4P+4E) and 12-thread processor, up to 4.5 GHz

Memory
Built-in 16GB DDR4 memory

GPU
Built-in Intel® Iris® Xe Graphics accelerate video processing and graphical computing

Encryption Engine
Features Intel® AES-NI 256 hardware-accelerated encryption to boost system performance while securing sensitive data

Recommended video production scenarios

Pre-production: Best video file management solution for DIT - raw footage on-site editing and powerful video transcoding
DIT (Digital Imaging Technician) is the keyman to take responsibility of video file management on shooting site in a frontline video production team.

DIT can quickly import large raw footage from camera SD cards to the TBS-h574TX through USB 3.2 Gen 2 (10Gbps) ports and proceed with video transcoding on the NASbook. In addition to saving RAW files, DIT can easily share small files with remote teams for instant discussion and confirmation, or save files to external hard drives or cloud storage.

The TBS-h574TX comes with a built-in HDMI™ output, allowing on-site personnel to immediately play raw footage from the NASbook on a large screen. The team can also complete the rough cut on-site using Thunderbolt™ 4, significantly reducing the post-production team's workload.

Benefits for a pre-production team:
- Fast file import from SD cards to NASbook
- Store small files to myQNAPcloud Storage
- Remote access and sharing video files
- High-resolution video display using HDMI™ output
- Rough cut on-site using Thunderbolt™ 4



Post-production: Productive team collaboration
NAS is way more collaborative than DAS. The TBS-h574TX provides Thunderbolt™ 4 and 10GbE connectivity that allow the post-production team to edit video files directly from the NASbook, without waiting for files to move from drive to drive, computer to computer.

Once the post-production team finishes current video editing projects on the TBS-h574TX, they can save the final files to a USB DAS (such as TR-004) to free up the NASbook's storage space for the next project!

Benefits for a post-production team:
- Directly connect the NASbook to Mac® via Thunderbolt™ 4
- Directly connect the NASbook to Windows® workstations through 10GbE and 2.5GbE connectivity
- File storage and backup by connecting a DAS through the high-speed UBS 3.2 Gen 2 ports



Remote collaboration: Hot-swappable M.2 SSDs facilitate file sharing for collaboration and delivery
Due to the difficulty of sharing large media files over networks, remote teams often resort to physically exchanging files by using external hard drives. Now the TBS-h574TX also offers a portable file exchanging/delivery solution.

You can implement a TBS-h574TX for each of the remote work teams, configuring three M.2 SSDs in RAID 5, and the remaining two M.2 SSDs as single disk. The TBS-h574TX makes M.2 SSDs hot-swappable, allowing you to treat the two M.2 SSDs with single disk mode as portable external hard drives: simply remove SSDs from one NASbook and insert them to another NASbook for fast large-scale file transfer.

Benefits for remote teamwork:
- Hot-swappable feature enables physically transferring large media files



Ultimate visual experience with real-time video transcoding and 4K HDMI™ output

The TBS-h574TX features built-in Intel® Graphics that accelerates video transcoding and graphical computing for converting videos to different formats smoothly. You can also display videos from the TBS-h574TX to a large screen using HDMI™ (4K @30Hz) for capturing details and clearer quality.

The TBS-h574TX provides hardware decoding, encoding and transcoding capabilities. However, playback quality may vary due to factors (including playback software, file formats, system usage, and available bandwidth). H.265 hardware transcoding requires installing CAYIN MediaSign Player with a Plus license.



Manage your video projects flexibly with myQNAPcloud Storage

Elevate your video production with the compact and powerful TBS-h574TX. During pre-production, you can save large RAW files (hot data) and handle video transcoding on the TBS-h574TX. In post-production you can store small files (cold data) to myQNAPcloud Storage for file archiving and backup, making it easier to remotely access, synchronize, and share files with cross-site team members.



QNAP is an official Adobe Partner for video and audio solutions



Build the best music server with Roon

Designed for music lovers, Roon Server identifies your entire music library stored on the TBS-h574TX, and consolidates it into Roon's interconnected digital library. Experiencing smooth music streaming service, you just need to download Roon Server app from QNAP App Center and enable Roon music library on SSD storage devices with simple setting.



ZFS-based QuTS hero operating system unleashes SSD performance, reliability and endurance

Self-healing | Ensure data integrity
ZFS uses end-to-end checksums to detect, correct, and protect against silent data corruption, ensuring the data integrity of media files.

QSAL (QNAP SSD Antiwear Leveling) | Enhance data protection
QNAP's patented QSAL algorithm prevents simultaneous multi-SSD failures in an SSD RAID for greater data protection and system reliability.

SSD Extra Over-provisioning | Unleash SSD performance
Resolves SSD write performance degradation and write amplification. By configuring extra Over-provisioning for an SSD RAID, it improves random write performance and mitigates write amplification, thus extending SSD lifespans.

Power Failure Protection | Bolster data security
The QuTS hero operating system ensures that the TBS-h574TX can continue completing unfinished data writes after power outage followed by a power restoration, preventing data corruption while modifying data and without the need to wait for file system check.

Note: ZFS Inline Data Deduplication is disabled by default in the TBS-h574TX. Due to memory limitations, it is not recommended to enable this feature.

Specifications

Hardware Specs

CPU

Intel® Core™ i3-1320PE 8C(4P+4E)/12T up to 4.50GHz

CPU Architecture

64-bit x86

Graphic Processors

Intel® UHD Graphics for 13th Gen Intel® Processors

Floating Point Unit

Yes

Encryption Engine

Yes

Hardware-accelerated Transcoding

Yes

System Memory

12 GB on board (non-expandable)

Maximum Memory

12 GB on board (non-expandable)

Flash Memory

5GB (Dual boot OS protection)

Drive Bay

5 x E1.S up to 15mm (5x PCIe Gen3 x2)
Pre-install adapter to support M.2 2280 for each slots

Drive Compatibility

E1.S or M.2 2280 PCIe NVMe

Hot-swappable

Yes

SSD Cache Acceleration Support

Yes

2.5 Gigabit Ethernet Port (2.5G/1G/100M)

1

10 Gigabit Ethernet Port

1 x 10GBASE-T (10G/5G/2.5G/1G/100M)

Wake on LAN (WOL)

Yes

Jumbo Frame

Yes

Thunderbolt Port

2 (Thunderbolt™ 4)

USB 2.0 port

1

USB 3.2 Gen 2 (10Gbps) Port

2

HDMI™ Output

1, HDMI™ 1.4b

Form Factor

Set-top design

LED Indicators

Status, USB copy, SSD 1-5

Buttons

Status, USB copy, Reset

Dimensions (HxWxD)

215 × 199 × 60 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)

Weight (Net)

2.24 kg

Operating Temperature

0 - 40 °C (32°F - 104°F)

Storage Temperature

-20 - 70°C (-4°F - 158°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27°C (80.6°F)

Power Supply Unit

120W Adapter (19VDC output, 100-240VAC input)

Power Consumption: Operating Mode, Typical

46 W

Fan

System fan: 2 x 40mm
CPU fan: 1 x 75mm

System Warning

Buzzer

Max. Number of Concurrent Connections (CIFS) - with Max. Memory

1500

Date Created: 20:46, 22-09-2025
Product URL: https://www.pbtech.co.nz/product/NASQNP8757417/QNAP-TBS-h574TX-i3-12G-Business-Mid-End-Thunderbol
