Features

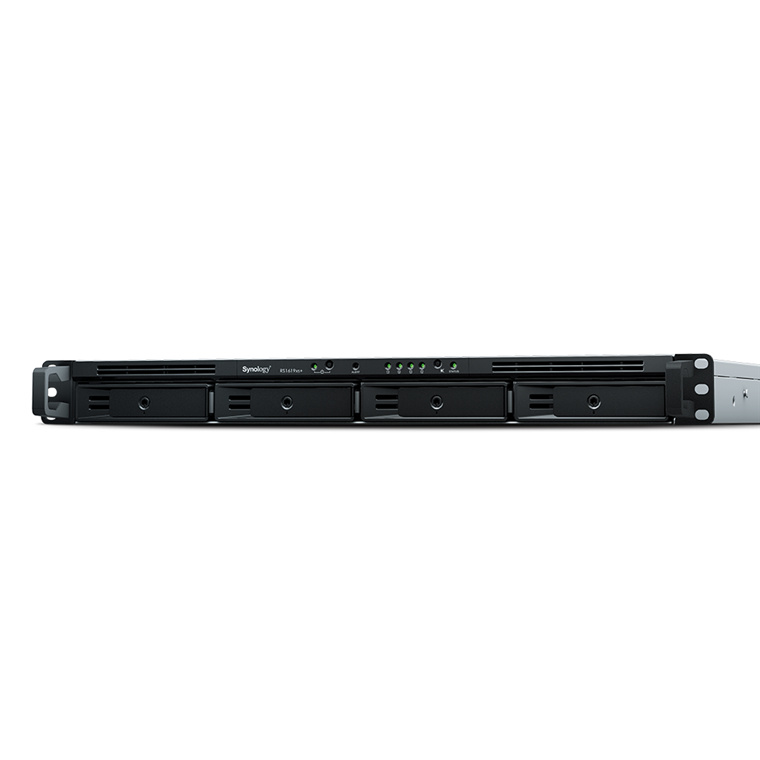

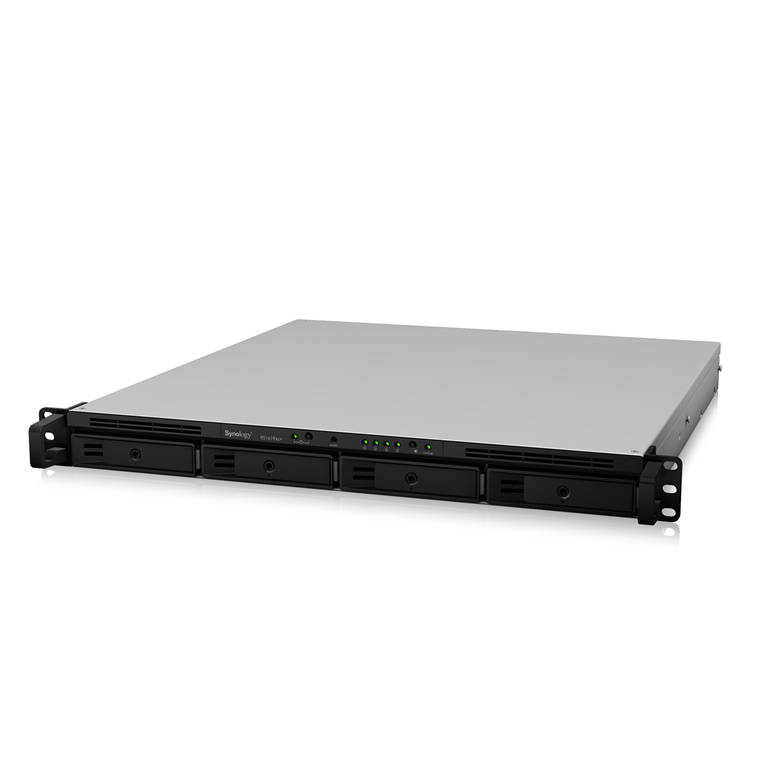

Synology RackStation RS1619xs+
RS1619xs+ is a high-performance and scalable 1U rackmount NAS designed with upgradable memory and M.2 SSD cache configuration to meet the needs of modern businesses that require a flexible, reliable, and efficient storage solution.

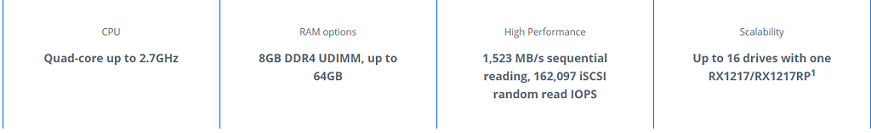

Variable options to boost system computing performance

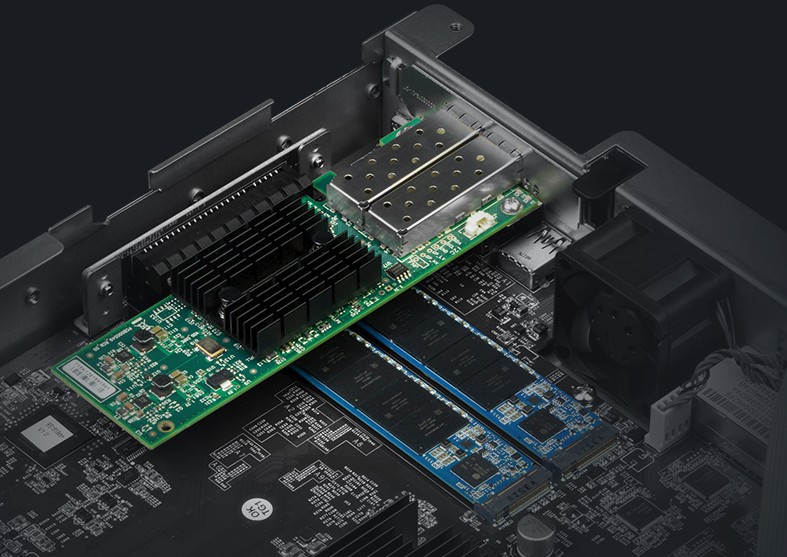

Equipped with a PCIe 3.0 slot, RS1619xs+ supports installing a 10GbE/25GbE NIC for fast data transmission. Built-in M.2 2280 SSD cache slots further benefit IO-intensive tasks, such as virtualization or mail server deployment.
Complete iSCSI and virtualization solutions
Synology iSCSI storage supports most virtualization solutions including VMware vSphere, Microsoft Hyper-V, Citrix Xen Server, and OpenStack Cinder, to enhance work efficiency. Create and manage virtual machines running multiple operating systems such as Windows, Linux, and DSM using Virtual Machine Manager.

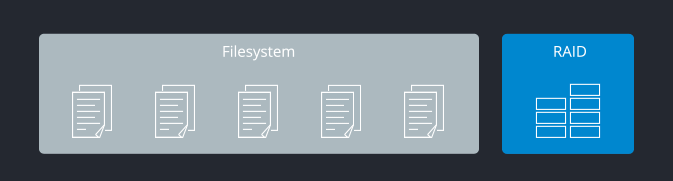

Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.

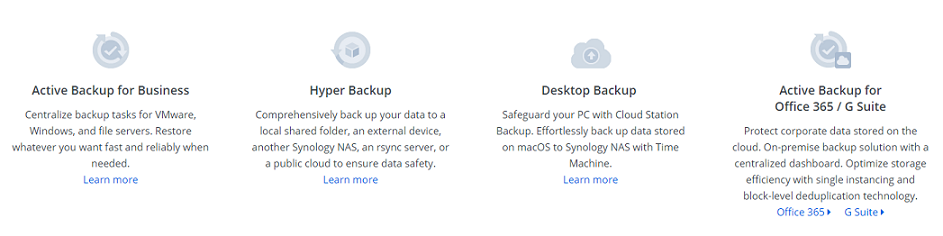

Ultimate Backup Solution
RS1619xs+ integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.
Digital asset protection
Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes.
Specifications
CPU
CPU Model
Intel Xeon D-1527
CPU Architecture
64-bit
CPU Frequency
Quad Core 2.2 (base) / 2.7 (turbo) GHz
Memory
System Memory
8 GB DDR4 ECC UDIMM
Memory Module Pre-installed
8 GB (8 GB x 1)
Total Memory Slots
4
Memory Expandable
up to 64 GB (16 GB x 4)
Storage
Drive Bays
4
Maximum Drive Bays with Expansion Unit
16
M.2 Drive Slots
2 (NVMe & SATA)
Compatible Drive Type
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
M.2 2280 NVMe & SATA SSD
Maximum Internal Raw Capacity
56 TB (14 TB drive x 4) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units
224 TB (56 TB + 14 TB drive x 12) (Capacity may vary by RAID types)
Maximum Single Volume Size
200 TB (32GB RAM required, for RAID 5 or RAID 6 groups only)
108 TB

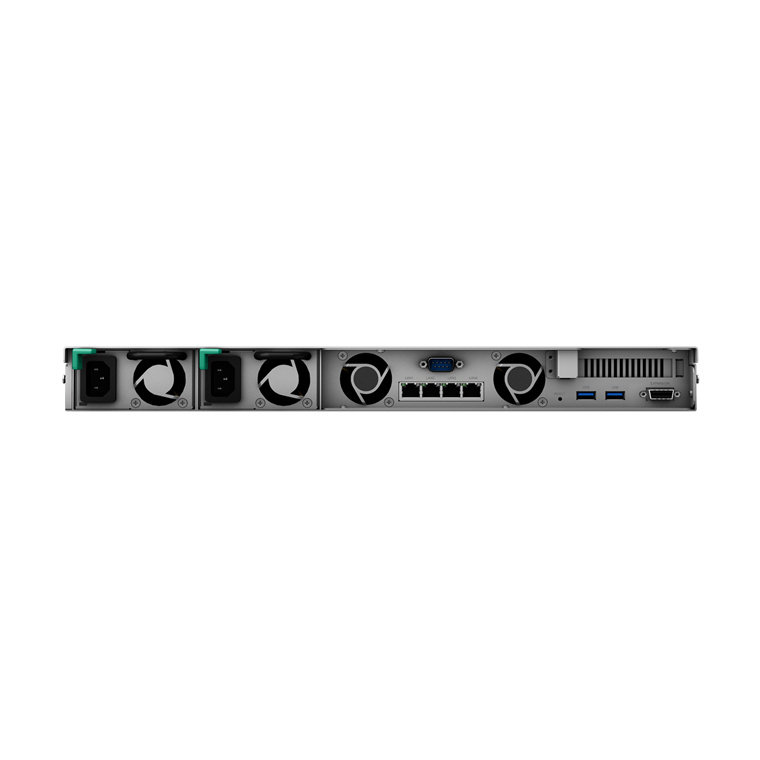

External Ports
RJ-45 1GbE LAN Port
4 (with Link Aggregation / Failover support)
USB 3.0 Port
2
Expansion Port
1
PCIe
PCIe Expansion
1 x Gen3 x8 slot (x8 link)
Add-in-card support
PCIe Network Interface Card
Appearance
Size (Height x Width x Depth)
44 mm x 480 mm x 518.6 mm
Weight
8.16 kg
Rack Installation Support
4-post 19" rack (Synology Rail Kit - RKM114/RKS1317)
*The rail kit is sold separately
Others
Noise Level*
39.3 dB(A)
Power Supply Unit / Adapter
2 X 150W
AC Input Power Voltage
100V to 240V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption*
68.68 W (Access)
34.78 W (HDD Hibernation)
British Thermal Unit
234.35 BTU/hr (Access)
118.67 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature
5°C to 35°C (40°F to 95°F)
Storage Temperature
-20°C to 60°C (-5°F to 140°F)
Relative Humidity
5% to 95% RH
Environment & Packaging
Environment
RoHS Compliant
Packaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Cord X 2
Quick Installation Guide X 1
