Synology DiskStation DS1621+ 6-Bay NAS Server, AMD Ryzen V1500B Quad Core 2.2 GHz, 4GB RAM, 2x M.2 2280 NVMe Slot, 4x GbE, 2x eSATA, 3x USB3.2 Gen1, 1x PCIe Expansion Slot, 3 Years Warranty

PB Tech price
PB Tech price
$ 1,807 .83
 +GST
$ 2,079 .00
 inc GST
$1,807.83  +GST
$2,079.00

Synology DiskStation DS1621+ 6-Bay NAS Server, AMD Ryzen V1500B Quad Core 2.2 GHz, 4GB RAM, 2x M.2 2280 NVMe Slot, 4x GbE, 2x eSATA, 3x USB3.2 Gen1, 1x PCIe Expansion Slot, 3 Years Warranty

Host, store, and multiply your data effortlessly with the quiet and user-friendly DS1621+.
  • Brand: Synology
  • MPN: DS1621+
  • Part #: NASSYN16211
  • UPC: 846504003778
6
PB Tech price
$ 1,807 .83 $ 2,079 .00
 +GST  inc GST
Tax free price $1,916.30*
*Price includes surcharge
Hurry, only 2 units left!


Click & Collect: Available from 2 stores.
Select your store to check availability
Delivery: Order now and it ships on 16 Dec When will I receive it?
$1,807.83  +GST
$2,079.00

Four payments of $524.95 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

Finance from $18.81 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

  • Brand: Synology
  • MPN: DS1621+
  • Part #: NASSYN16211
  • UPC: 846504003778

Number of Bays

6 Bays

Form Factor

Tower

Number of Cores

4

Processor Speed

2200Mhz

Memory Size

4GB

Hard Drives Installed

None Included

1Gb RJ45 Ports

4 Ports

10Gb RJ45 Ports

Optional Upgrade

What PB Tech customers are saying about this product...

See More Reviews

"The DS1621+'s six bays allow one to use RAID6 (or the Synolo ...view more"

TK
By: ThomasK242 09/01/24
Verified Owner

"This is a great product, I really like the SynolgoyDSM and use this to host multiple services as well as a NAS. Very easy to use and setup, though I would get some extra RAM."

GJ
By: GrahamJ16 07/12/23
Verified Owner

"Excellent and well made product. True, you look at the price, and initially you feel you could build a NAS yourself - but this is fast, the software is a delight and I am very plea ...view more"

MH
By: MattH572 28/07/22

Features

1621+

Powerful, scalable, and versatile

Synology DS1621+ is a powerful and compact 6-bay network attached storage solution designed to store and protect critical data assets. Today's growing amount of unstructured data requires smarter and increasingly higher performance methods of storing, accessing, and collaborating. Designed for scalability, DS1621+ enables you to start small, then expand as your data grows.

Turbocharge and expand it

DS1621+'s dual M.2 2280 slots allow NVMe SSD caching to boost performance by 20x or more for commonly accessed data. It also supports an optional 10GbE NIC for faster network environments and more concurrent users.



File sharing and syncing

With comprehensive support for all major file sharing protocols - like CIFS, AFP, NFS, FTP and more - DiskStation lets you centralize files in one place and access them using any device. Take files on the road or easily share them with other people, thanks to Synology's easy file sharing and syncing software.

Bulletproof data backup

Ensure data remains safe by backing up your computers, servers, and virtual machines to DiskStation, and defend yourself from human-error or ransomware with the multi-version backup. Finally, avoid disaster with the ability to easily back up DiskStation to an offsite location or to any major cloud service.

Virtualization ready

With support for VMware, Citrix, and Microsoft Hyper-V, DiskStation serves as a seamless storage solution for virtualization environments. Additionally, Synology's Virtual Machine Manager also lets you set up and run various virtual machines directly on DiskStation, including Windows, Linux, and Virtual DSM.

Smart video surveillance

Make your own video surveillance hub. Surveillance Station helps you protect your home or business by offering the ability to manage multiple network cameras, check live camera feeds from anywhere with the mobile app, catch suspicious incidents quickly with intelligent alerts, and easily find relevant recordings.

Specifications

CPU

CPU Model

AMD Ryzen V1500B

CPU Architecture

64-bit

CPU Frequency

4-core 2.2 GHz

Hardware Encryption Engine (AES-NI)

Yes

Memory

System Memory

4 GB DDR4 ECC SODIMM

Memory Module

Pre-installed 4 GB (4 GB x 1)

Total Memory Slots

2

Maximum Memory Capacity

32 GB (16 GB x 2)

Notes

Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
For more information on the recommended memory configurations, visit here.
Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays

6

Maximum Drive Bays with Expansion Unit

16 (DX517 x 2)

M.2 Drive Slots

2 (NVMe)

Compatible Drive Type* (See all supported drives)

3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
M.2 2280 NVMe SSD

Maximum Single Volume Size*

108 TB

Hot Swappable Drive

Yes

Notes

"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
Each internal volume (may consist of multiple drives) is expandable up to 108TB.

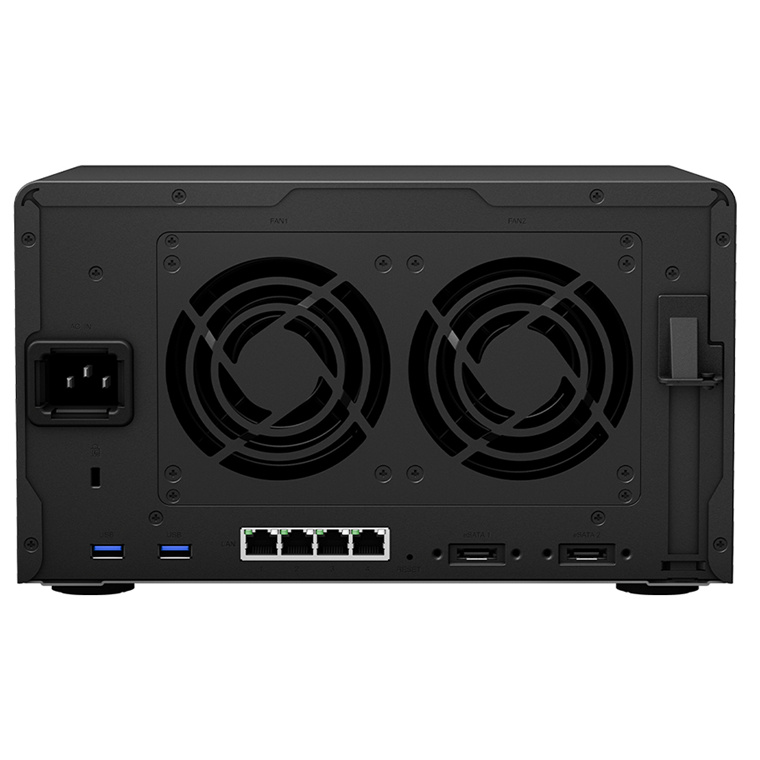

External Ports

RJ-45 1GbE LAN Port

4 (with Link Aggregation / Failover support)

USB 3.0 Port

3

eSATA Port

2

PCIe

PCIe Expansion

1 x Gen3 x8 slot (x4 link)

File System

Internal Drives

Btrfs
EXT4

External Drives

Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFAT*

Notes

exFAT Access is purchased separately in Package Center.

Appearance

Size (Height x Width x Depth)

166 mm x 282 mm x 243 mm

Weight

5.1 kg

Others

System Fan

92 mm x 92 mm x 2 pcs

Fan Speed Mode

Full-Speed Mode
Cool Mode
Quiet Mode

Easy Replacement System Fan

Yes

Brightness Adjustable Front LED Indicators

Yes

Power Recovery

Yes

Noise Level*

25.2 dB(A)

Scheduled Power On / Off

Yes

Wake on LAN / WAN

Yes

Power Supply Unit / Adapter

250 W

AC Input Power Voltage

100 V to 240 V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption*

51.22 W (Access)
25.27 W (HDD Hibernation)

British Thermal Unit

174.77 BTU/hr (Access)
86.22 BTU/hr (HDD Hibernation)

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

Certification

EAC, VCCI, CCC, RCM, KC, FCC, CE, BSMI

Environment

RoHS Compliant

Notes

*Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
*Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%

Packaging Content

Items included

Main Unit X 1
Accessory Pack X 1
AC Power Cord X 1
RJ-45 LAN Cable X 2
Quick Installation Guide X 1

Manufacturer Part No:
DS1621+
Brand:
Product Type:
6-Bay
UPC
846504003778
Product Family:
DiskStation
Shipping Weight:
6.8 kg
PB Part No:
NASSYN16211
Product Model:
DS1621+
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

4.8 out of 5 Stars Based on 6 reviews
5 Stars
5
4 Stars
1
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

2nd NAS owned

When my DS1515+ plus died due to the special intel atom bug, I started looking at replacement NAS. The DS1621+ was a good choice as it comes with 6 bays, only used 4 bays in the previous NAS. This 6 bay NAS allows me now to plan to say get 2x 8tb/10tb then I can copy all the data from the 4 drives to the 2x 8tb/10tb pool decommission the 4 drives and then add more drives to the empty bays and increase storage capacity. I prefer Ryzen processor over Celeron's, time will tell if I made the right choice.

I plugged in my old drives followed the prompts and had my data back. Just note this only works going from one Synology to another Synol...view more

DD
By: DrewD3 07/05/21
Verified Owner
3 out of 3 users found this review helpful
Did you find it helpful?

Stable and great user experience

Excellent and well made product. True, you look at the price, and initially you feel you could build a NAS yourself - but this is fast, the software is a delight and I am very pleased. Have added more disks, used the cache (2x needed for RAID requirement for R/W cache), and installed a cheap 10G card. The main advantage of the 1621+ over the 1522 is the availability of the slot, and ability to upgrade the networking to 2x10G inexpensively. Very pleased.

MH
By: MattH572 28/07/22
1 out of 1 user found this review helpful
Did you find it helpful?

Expensive But Worth It.

I paid a bit more than I wanted to for this Synology NAS but I'm glad I did. It is so easy to set up. You plug it in, install your hard drives by just sliding them into the unit, connect it to your router and switch it on. Once you have installed the GUI your all set. I use it for PLEX, my digital music files and backing up my business files. I just works and is so versatile. If you need help to get it up and running there are literally hundreds of You Tube videos showing you how to get it to do anyting and everything you could possibly want your NAS to do. Excellent product.

G
By: Guest 13/01/22
1 out of 1 user found this review helpful
Did you find it helpful?

Great storage solution, not recommended as a media centre

The DS1621+'s six bays allow one to use RAID6 (or the Synology equivalent of that) which supports losing two of the six disks without losing any data, while still supporting the same amount of storage that a 4-bay NAS would offer without any redundancy.

Unlike the fans on my DS420+, the fans of the DS1621+ are very quiet (it is not a matter of fan speed, they just don't have that annoying ticking sound) and I can recommend the DS1621+ as a storage solution due to the very user-friendly software. Just note that all four network ports only support 1Gbs, i.e., are not even 2.5Gbs ports. However, with the recent SMB3 multichannel support one ...view more

TK
By: ThomasK242 09/01/24
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Awesome product.

This is a great product, I really like the SynolgoyDSM and use this to host multiple services as well as a NAS. Very easy to use and setup, though I would get some extra RAM.

GJ
By: GrahamJ16 07/12/23
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

A great product

Upgraded from a DS718+ and got this!. You'll probably need more to purchase more RAM, so look out for bundle deals!

G
By: Guest 13/10/21
0 out of 0 users found this review helpful
Did you find it helpful?
