Synology DiskStation DS2422+ 12-Bay NAS Server, AMD Ryzen V1500B Quad- Core 2.2 GHz, 4GB DDR4 ECC SODIMM (Upto 32GB), 2x USB 3.2, 1x Expansion Port, 4X 1GbE RJ-45. 3 Years Warranty

PB Tech price: PB Tech price:
$3,434 78  +GST $3,950 00  inc GST
$3,434.78  +GST
$3,950.00  inc GST

Synology DiskStation DS2422+ 12-Bay NAS Server, AMD Ryzen V1500B Quad- Core 2.2 GHz, 4GB DDR4 ECC SODIMM (Upto 32GB), 2x USB 3.2, 1x Expansion Port, 4X 1GbE RJ-45. 3 Years Warranty

Part #: NASSYN24220
PB Tech price: PB Tech price:
$3,434 78 $3,950 00
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 09/11/2022 When will I receive it?
$3,434.78  +GST
$3,950.00  inc GST

Pay only $838.44 and then eighteen easy payments of $183.13 per fortnight*

humm lets you spread the cost of your purchase over 18 interest free fortnightly payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Finance from $34.57 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

No payments or interest for 12 months available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*An Establishment fee of $55 applies to your first LTF transaction, a $35 Advance Fee applies to all subsequent LTF transactions. Standard Interest Rate, currently 25.99% p.a. applies to any outstanding balance at end of the interest free period. Lending criteria, $50 annual account fee, fees, terms and conditions apply.
Learn more about Q Card

  • Brand: Synology
  • MPN: DS2422+
  • Part #: NASSYN24220
  • UPC:
  • Number of Bays: 12 Bays
  • Hard Drives Installed: Not Specified
  • Form Factor: Not Specified
  • Number of Cores: 4
  • Processor Speed: Not Specified
  • Memory Size: 32GB
  • 1Gb RJ45 Ports: 4 Ports
  • 10Gb RJ45 Ports: None
  • View more

Features

Built for high-performance mass storage

The 12-bay Synology DiskStation DS2422+ is a capable choice for small and medium businesses with large storage, file sharing, and data protection requirements in a multi-user environment. It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video and as VM storage.

CPU

AMD Ryzen™ Quad-core 2.2 GHz

Throughput

2,201/1,383 MB/s sequential read read/write throughput

Expandability

Easily add 10/25GbE and NVMe SSD cache

Scalability

Expand to 24 bays with one DX1222 expansion unit

Faster performance

Comfortably run demanding applications and processes with multiple users on the DS2422+ while still enjoying a smooth and fast experience. See the improvements that help make your business productive.

Sequential throughput

Random 4K IOPS



*compared to predecessor DS2419+



Rise to the challenge

Prepare your DS2422+ for heavy workloads or upgrade flexibly as your business continues to grow. Use add-in cards to add bandwidth, fast SSD cache, or both.2

Maximize bandwidth

Handle heavier input/output and serve more users with dual-port Synology 10 or 25GbE network interface cards.

Boost storage performance

Accelerate HDD arrays with an M.2 NVMe SSD adapter card and SNV3000 series SSDs, or install SAT5200 SATA SSDs in drive bays to increase performance with SSD cache.3

Do both with one card

Add both 10GbE connectivity and M.2 NVMe SSD slots for SSD cache with a single combination NIC and adapter card.

Out-of-the-box data protection

Consolidate backups to your NAS

Active Backup Suite

Securely back up Windows clients and servers, Microsoft 365 and Google Workspace accounts, file servers, and VMware® and Hyper-V® virtual machines with the Active Backup Suite.

Leverage built-in deduplication technology to reduce backup sizes and multi-versioning to allow flexible restoration. Learn more

Implement a 3-2-1 backup strategy

Combine local and remote backup strategies to achieve fully redundant protection of your IT infrastructure using Synology and third-party solutions.

Back up your NAS to other devices

Hyper Backup

Back up files, iSCSI LUNs, installed applications, and system configurations to destinations including Synology C2 Storage, public cloud platforms, USB devices, file servers, local folders, or other Synology NAS.

Set and forget backup tasks with regular schedules, enhance security with fine-grained user permissions and encryption, keep backup sizes small with built-in deduplication,4 and restore data flexibly with multi-versioning. Learn more

Snapshot Replication

Snapshot Replication enables flexible point-in-time snapshots of shared folders and virtual machines with an RPO as low as 5 minutes and recovery within seconds. Learn more

Ready for remote work

Empower your workforce to collaborate, share files, and communicate from anywhere. Learn more about Productivity Solutions

Synology Drive

Access and collaborate on team documents via web portal, desktop clients, and mobile apps with powerful cross-site sync and file management.

Synology Office

Collaborate in real time on documents, spreadsheets, and slides for greater synergy and productivity.

Synology Chat

Instantly message colleagues and organize conversations to achieve clear and cohesive communication.

Certified virtual machine storage

DSM streamlines provisioning for and management of virtual machines with full certification for VMware® vSphere™, Microsoft® Hyper-V®, Citrix® XenServer™, and OpenStack virtualization environments.

Synology Storage Console for VMware® or Windows platforms lets you manage storage directly from your hypervisor. VMware® VAAI integration and Windows ODX help offload storage operations and speed up data transfer, and a Kubernetes CSI driver lets you provision and manage volumes directly from the K8s CLI.

Works best with Synology drives

SATA

3.5" HDD HAT5300
2.5" SSD SAT5200

NVMe

M.2 SSD SNV3400/3500

Powered by Synology DiskStation Manager

Data Protection

Keep your business safe from data loss and minimize service downtime.

User Management

Manage user accounts and devices throughout your business with powerful directory services.

Security

Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.

File Management

Manage, sync, and share files from multiple devices through a centralized platform.

System Administration

Manage the health of your deployments and centrally administer updates with ease.

Security

Secure data with comprehensive built-in security tools to protect your devices against evolving threats.

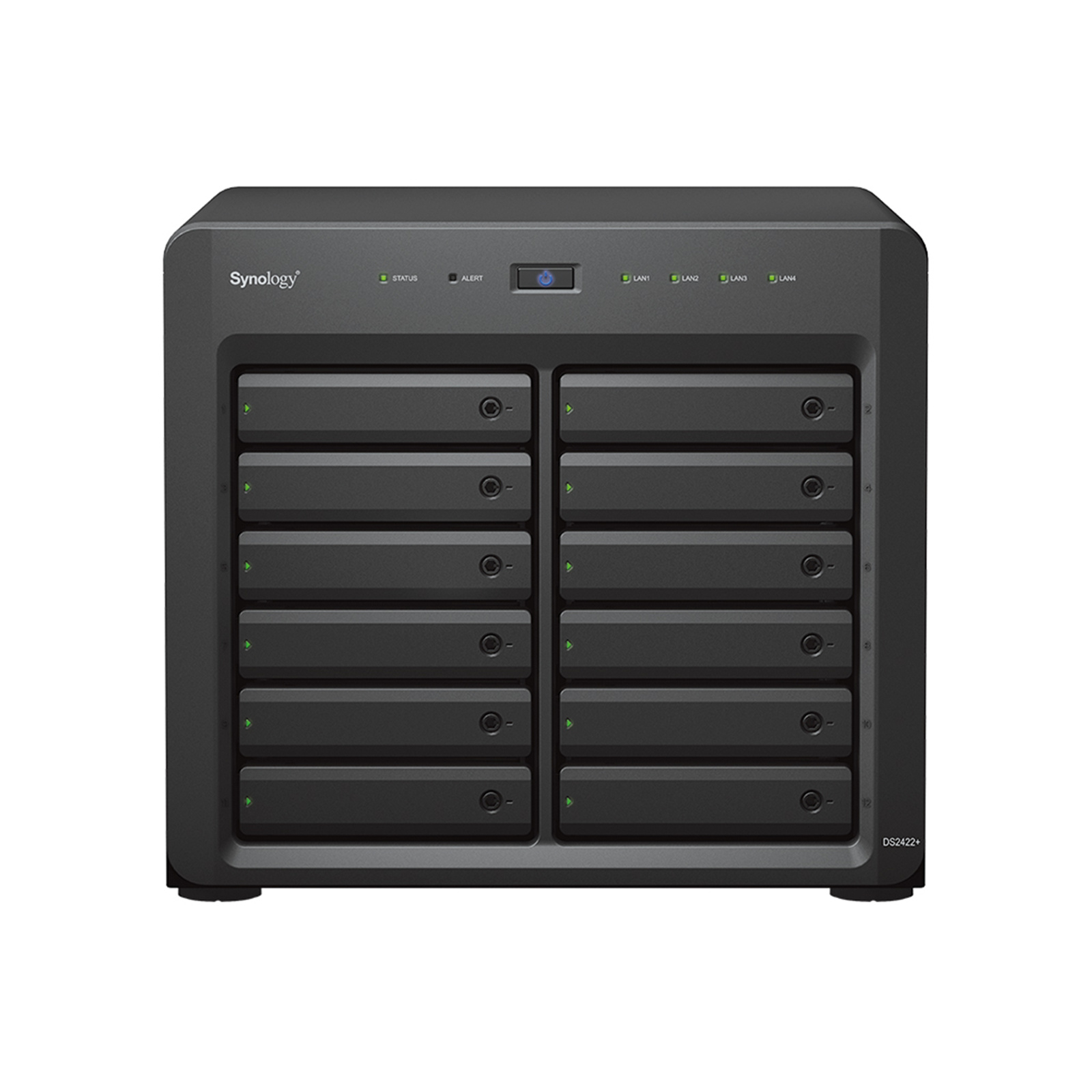

DiskStation DS2422+

1) Status Indicator
2) Alert Indicator
3) Power Button
4) LAN Indicators
5) Drive Status Indicators
6) Drive Trays
7) Drive Tray Locks
8) Power Port
9) Fans
10) PCIe Expansion Slot
11) Reset Button
12) USB 3.2 Ports
13) Console Port
14) Expansion Port
15) 1GbE RJ-45 Ports

Specifications

CPU

CPU Model

AMD Ryzen V1500B

CPU Quantity

1

CPU Architecture

64-bit

CPU Frequency

4-core 2.2 GHz

Hardware Encryption Engine (AES-NI)

Yes

Memory

System Memory

4 GB DDR4 ECC SODIMM

Memory Module Pre-installed

4 GB (4 GB x 1)

Total Memory Slots

2

Maximum Memory Capacity

32 GB (16 GB x 2)

Notes

Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays

12

Maximum Drive Bays with Expansion Unit

24 (DX1222 x 1)

Compatible Drive Type* (See all supported drives)

3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD

Hot Swappable Drive

Yes

Notes

Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

External Ports

RJ-45 1GbE LAN Port*

4 (with Link Aggregation / Failover support)

Max. number of LAN ports

8

USB 3.2 Gen 1 Port*

2

Expansion Port

1

Notes

This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe

PCIe Expansion

1 x Gen3 x8 slot (x4 link)

File System

Internal Drives

Btrfs
EXT4

External Drives

Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFAT

Notes

exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.

Appearance

Size (Height x Width x Depth)

270 mm x 300 mm x 340 mm

Weight

9.5 kg

Others

System Fan

120 mm x 120 mm x 2 pcs

Fan Speed Mode

Full-Speed Mode
Cool Mode
Quiet Mode

Easy Replacement System Fan

Yes

Power Recovery

Yes

Noise Level*

25 dB(A)

Scheduled Power On / Off

Yes

Wake on LAN / WAN

Yes

Power Supply Unit / Adapter

550 W

AC Input Power Voltage

100V to 240V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption*

73.11 W (Access)
32.12 W (HDD Hibernation)

British Thermal Unit

249.63 BTU/hr (Access)
109.67 BTU/hr (HDD Hibernation)

Notes

Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%

Temperature

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

Certification

Certification

FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
UL

Environment

Environment

RoHS Compliant

Packaging Content

What's in the Box

Main Unit X 1
Accessory Pack X 1
AC Power Cord X 1
RJ-45 LAN Cable X 2
Quick Installation Guide X 1

Optional Accessories

Optional accessories

DDR4 ECC SODIMM: D4ES02-4G/D4ES02-8G/D4ES01-16G
Expansion Units: DX1222
3.5" SATA HDD: HAT5300
2.5" SATA SSD: SAT5210
M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1
M.2 SSD Adapter Card: M2D20
25GbE Network Interface Card: E25G21-F2
10GbE Network Interface Card: E10G21-F2/E10G18-T2/E10G18-T1
VisualStation: VS360HD
Surveillance Device License Pack

Notes

All memory modules will operate at the maximum frequency specified by the CPU manufacturer.

DSM Specifications - Storage Management

Maximum Single Volume Size*

108 TB

Maximum Internal Volume Number

64

SSD Read / Write Cache (White Paper)

Yes

SSD TRIM

Yes

Supported RAID Type

Synology Hybrid RAID
Basic
JBOD
RAID 0
RAID 1
RAID 5
RAID 6
RAID 10

RAID Migration

Basic to RAID 1
Basic to RAID 5
RAID 1 to RAID 5
RAID 5 to RAID 6

Volume Expansion with Larger HDDs

Synology Hybrid RAID
RAID 1
RAID 5
RAID 6
RAID 10

Volume Expansion by Adding a HDD

Synology Hybrid RAID
JBOD
RAID 5
RAID 6

Global Hot Spare Supported RAID Type

Synology Hybrid RAID
RAID 1
RAID 5
RAID 6
RAID 10

Notes

Each internal volume (may consist of multiple drives) is expandable up to 108TB.
Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.

File Services

File Protocol

SMB/AFP/NFS/FTP/WebDAV

Maximum Concurrent SMB/AFP/FTP Connections

1,000

Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)

2,000

Windows Access Control List (ACL) Integration

Yes

NFS Kerberos Authentication

Yes

Notes

Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM.
During testing, the maximum number of SSDs supported by this model is installed in a RAID 5 configuration.
The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.

Account & Shared Folder

Maximum Local User Accounts

2,048

Maximum Local Groups

256

Maximum Shared Folder

512

Maximum Shared Folder Sync Tasks

16

Hybrid Share

Maximum Hybrid Share Folders

10

Notes

For more details about the maximum number of Hybrid Share folders, check this article.

High Availability

Synology High Availability

Yes

Log Center

Syslog Events per Second

1,000

Virtualization

VMware vSphere with VAAI

Yes

Windows Server 2016

Yes

Windows Server 2019

Yes

Citrix Ready

Yes

OpenStack

Yes

General Specifications

Networking Protocols

SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

Supported Browsers

Google Chrome
Firefox
Microsoft Edge
Safari

Supported Language

English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, ???????, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Ceský, ???????, ???, ???, ????, ????

Notes

For an updated list of supported browser versions, check the DSM Technical Specifications.

Add-on Packages

Antivirus by McAfee (Trial)

Yes

Central Management System

Yes

Synology Chat

Maximum Users

1,500

Maximum Number of Concurrent Users

150

Notes

When applicable, systems are tested configured with maximum memory and set to allow the maximum number of connections.

Document Viewer

Document viewer

Yes

Download Station

Maximum Concurrent Download Tasks

80

SAN Manager

Maximum iSCSI Target Number

128

Maximum LUN

256

LUN Clone/Snapshot, Windows ODX

Yes

Synology MailPlus / MailPlus Server

Free Email Accounts

5 (Licenses required for additional accounts)

Maximum Number of Concurrent Users

150

Maximum Server Performance

1,484,000 emails per day, approx. 45 GB

Notes

Models with more than 4 bays were installed with two SSDs for SSD cache.
For tested models with expandable memory, the maximum amount of RAM was installed.
The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.
Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).

Media Server

DLNA Compliance

Yes

Synology Photos

Facial Recognition

Yes

Snapshot Replication

Maximum Snapshots per Shared Folder

1,024

Maximum of System Snapshots

65,536

Surveillance Station

Maximum IP cam (Licenses required)

40 (including 2 Free License) (see all supported IP cameras)

Total FPS (H.264)

1200 FPS @ 720p (1280x720)
1050 FPS @ 1080p (1920x1080)
600 FPS @ 3M (2048x1536)
440 FPS @ 5M (2591x1944)
320 FPS @ 4K (3840x2160)

Total FPS (H.265)

1200 FPS @ 720p (1280x720)
1200 FPS @ 1080p (1920x1080)
1120 FPS @ 3M (2048x1536)
600 FPS @ 5M (2591x1944)
480 FPS @ 4K (3840x2160)

Notes

Maximum IP cameras and FPS figures are tested with the device fully populated with drives and under a continuous recording setup.
Actual system capabilities may differ depending on system configuration, drive performance, number of features enabled, and if additional workloads are present.

Synology Drive

Recommended Number of Concurrent Sync Clients

550 (the number of connections that can be maintained when the recommended number of hosted files was reached)

Recommended Number of Hosted Files

50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)

Notes

Exceeding the recommended numbers above will not block application operations, but may result in longer response time.
Utilizing SSD cache can significantly improve performance.
For tested models with expandable memory, the maximum amount of RAM was installed.
Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.

Synology Office

Maximum Users

1,800

Notes

Multiple files were opened for testing and each file was edited by 30 users simultaneously.
For tested models with expandable memory, the maximum amount of RAM was installed.
Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM

Video Station

Video station

Yes

Virtual Machine Manager

Recommended Virtual Machine Instances

8 (Learn more)

Recommended Virtual DSM Number (Licenses required)

8 (including 1 Free License)

Notes

The specifications vary depending on system configuration and memory size.

VPN Server

Maximum Connections

40

Manufacturer Part No:
DS2422+
Brand:
Product Type:
-
UPC
-
Product Family:
DiskStation
Shipping Weight:
5 kg
PB Part No:
NASSYN24220
Product Model:
DS2422+
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product

Filter Results

Do you own this product?

Write a review and go into the draw Win great prizes each month!

Delivery & Pick-up

Potential courier delays: Please note that due to the high volumes currently within the NZ courier network there is potential for some deliveries to be delayed.

Delivery Estimates

The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 2 working days for North Island deliveries and 3 working days for South Island deliveries. Rural deliveries may take an extra working day, and bulk deliveries may take an extra 2-4 working days.

Next Day Delivery

Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.

Same Day Delivery

Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.

Shipping Costs

Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.

To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.

Shipping Security & Insurance

All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.

1 Hour Store Pick-up / Click & Collect

You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.

Overseas Shipments

PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com

Returns & Warranty

7 day right of exchange

If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.

To exchange a product, goods must be sealed / unopened, with packaging in original condition, and accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange.

If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase.

Please note, items purchased on finance cannot be exchanged for a gift card.

Hassle free warranty service

If your product develops a fault within the manufacturer warranty period, you can either contact the manufacturer directly (some manufacturers provide a high level of warranty service - including free pickup or in some cases onsite repair), or return to one of our services centres / stores. Where the product has been directly imported by PB Tech, you need to contact us directly or present the product at any one of our service centres / stores together with your proof of purchase.

If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.

Returning a product / making a warranty claim

To contact the manufacturer directly to troubleshoot your product or to request a warranty repair, please view the list of manufacturer / brand warranty contacts (for products imported directly by PB Tech please return to us directly by completing our request a return form).

To return a product to PB Tech directly, please complete our request a return form.

Or view our returns policy for more information.

Synology DiskStation DS2422+ 12-Bay NAS Server, AMD Ryzen V1500B Quad- Core 2.2 GHz, 4GB DDR4 ECC SODIMM (Upto 32GB), 2x USB 3.2, 1x Expansion Port, 4X 1GbE RJ-45. 3 Years Warranty

  • Brand: Synology
  • MPN: DS2422+
  • Part #: NASSYN24220
PB Tech price: $3,434.78 Excluding GST PB Tech price: $3,950.00 Including GST

Date Created: 11:03, 16-08-2022
Product URL: https://www.pbtech.co.nz/product/NASSYN24220/Synology-DiskStation-DS2422-12-Bay-NAS-Server-AMD
Branch New Stock On Display
Albany 0
Glenfield 0
Queen Street 0
Auckland Uni 0
Penrose 0
Henderson (Express) 0
St Lukes 0
Manukau 0
Hamilton 0
Tauranga 0
New Plymouth 0
Palmerston North 0
Petone 0
Wellington 0
Head Office 0
Hornby 0
Christchurch Central 0

Features

Built for high-performance mass storage

The 12-bay Synology DiskStation DS2422+ is a capable choice for small and medium businesses with large storage, file sharing, and data protection requirements in a multi-user environment. It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video and as VM storage.

CPU

AMD Ryzen™ Quad-core 2.2 GHz

Throughput

2,201/1,383 MB/s sequential read read/write throughput

Expandability

Easily add 10/25GbE and NVMe SSD cache

Scalability

Expand to 24 bays with one DX1222 expansion unit

Faster performance

Comfortably run demanding applications and processes with multiple users on the DS2422+ while still enjoying a smooth and fast experience. See the improvements that help make your business productive.

Sequential throughput

Random 4K IOPS



*compared to predecessor DS2419+



Rise to the challenge

Prepare your DS2422+ for heavy workloads or upgrade flexibly as your business continues to grow. Use add-in cards to add bandwidth, fast SSD cache, or both.2

Maximize bandwidth

Handle heavier input/output and serve more users with dual-port Synology 10 or 25GbE network interface cards.

Boost storage performance

Accelerate HDD arrays with an M.2 NVMe SSD adapter card and SNV3000 series SSDs, or install SAT5200 SATA SSDs in drive bays to increase performance with SSD cache.3

Do both with one card

Add both 10GbE connectivity and M.2 NVMe SSD slots for SSD cache with a single combination NIC and adapter card.

Out-of-the-box data protection

Consolidate backups to your NAS

Active Backup Suite

Securely back up Windows clients and servers, Microsoft 365 and Google Workspace accounts, file servers, and VMware® and Hyper-V® virtual machines with the Active Backup Suite.

Leverage built-in deduplication technology to reduce backup sizes and multi-versioning to allow flexible restoration. Learn more

Implement a 3-2-1 backup strategy

Combine local and remote backup strategies to achieve fully redundant protection of your IT infrastructure using Synology and third-party solutions.

Back up your NAS to other devices

Hyper Backup

Back up files, iSCSI LUNs, installed applications, and system configurations to destinations including Synology C2 Storage, public cloud platforms, USB devices, file servers, local folders, or other Synology NAS.

Set and forget backup tasks with regular schedules, enhance security with fine-grained user permissions and encryption, keep backup sizes small with built-in deduplication,4 and restore data flexibly with multi-versioning. Learn more

Snapshot Replication

Snapshot Replication enables flexible point-in-time snapshots of shared folders and virtual machines with an RPO as low as 5 minutes and recovery within seconds. Learn more

Ready for remote work

Empower your workforce to collaborate, share files, and communicate from anywhere. Learn more about Productivity Solutions

Synology Drive

Access and collaborate on team documents via web portal, desktop clients, and mobile apps with powerful cross-site sync and file management.

Synology Office

Collaborate in real time on documents, spreadsheets, and slides for greater synergy and productivity.

Synology Chat

Instantly message colleagues and organize conversations to achieve clear and cohesive communication.

Certified virtual machine storage

DSM streamlines provisioning for and management of virtual machines with full certification for VMware® vSphere™, Microsoft® Hyper-V®, Citrix® XenServer™, and OpenStack virtualization environments.

Synology Storage Console for VMware® or Windows platforms lets you manage storage directly from your hypervisor. VMware® VAAI integration and Windows ODX help offload storage operations and speed up data transfer, and a Kubernetes CSI driver lets you provision and manage volumes directly from the K8s CLI.

Works best with Synology drives

SATA

3.5" HDD HAT5300
2.5" SSD SAT5200

NVMe

M.2 SSD SNV3400/3500

Powered by Synology DiskStation Manager

Data Protection

Keep your business safe from data loss and minimize service downtime.

User Management

Manage user accounts and devices throughout your business with powerful directory services.

Security

Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.

File Management

Manage, sync, and share files from multiple devices through a centralized platform.

System Administration

Manage the health of your deployments and centrally administer updates with ease.

Security

Secure data with comprehensive built-in security tools to protect your devices against evolving threats.

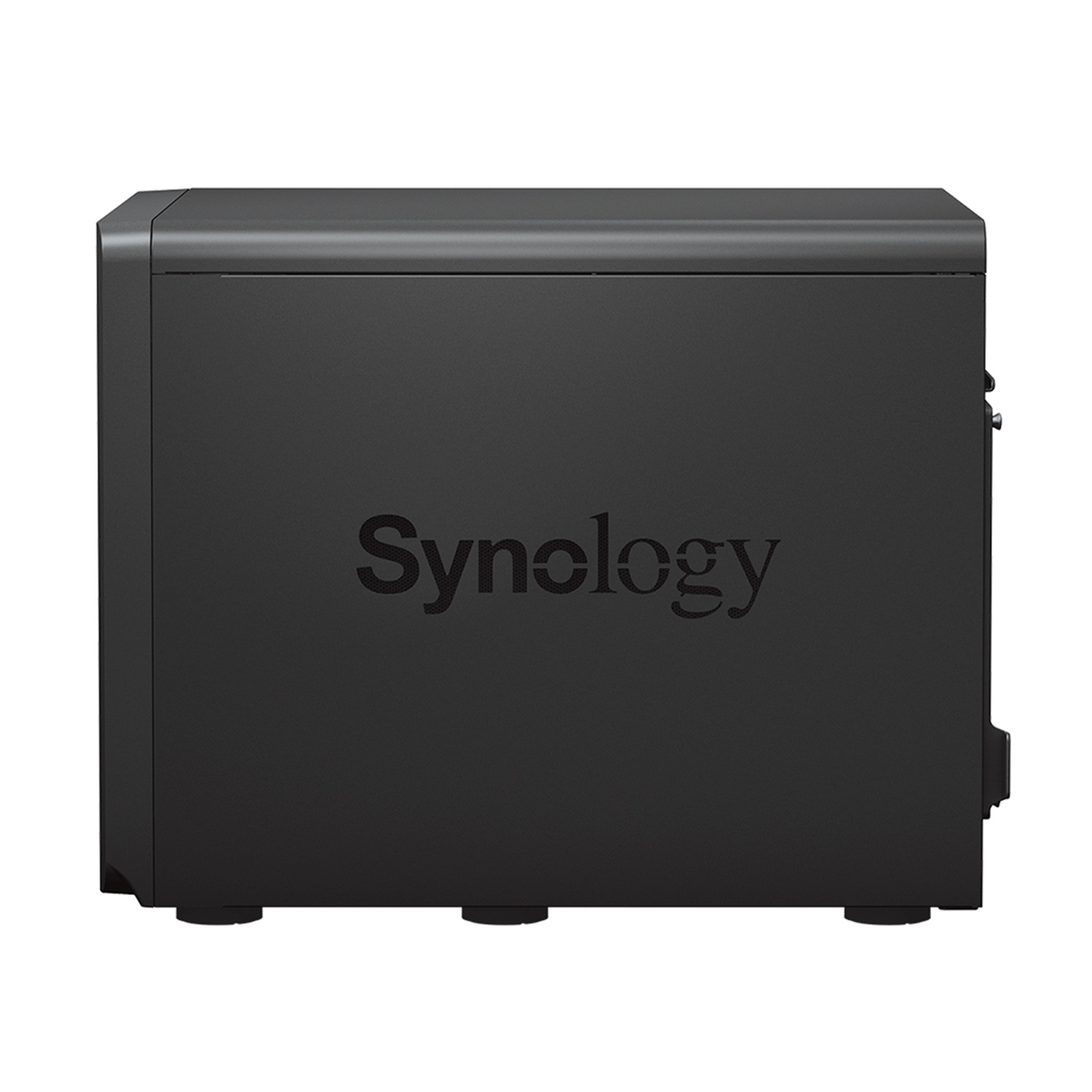

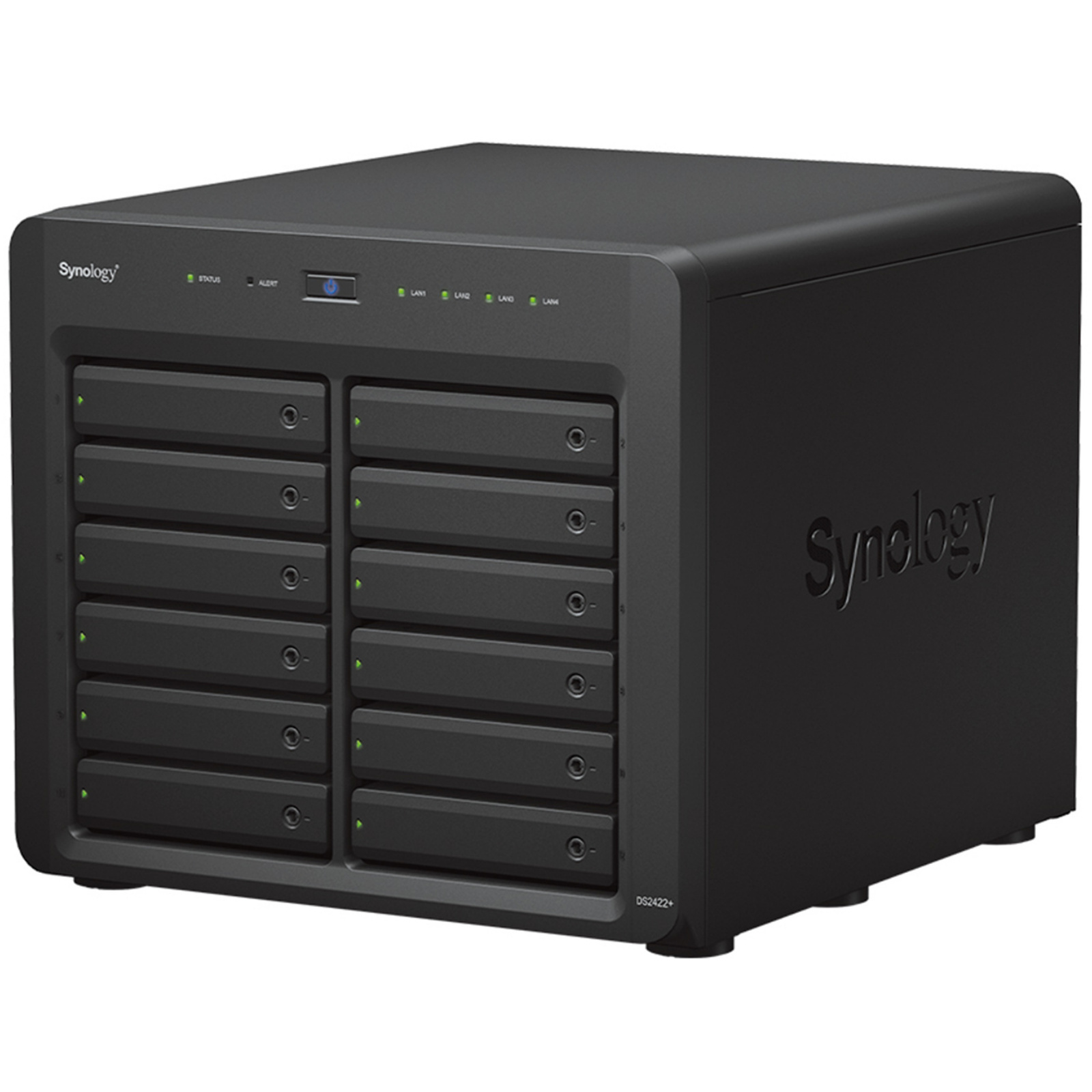

DiskStation DS2422+

1) Status Indicator
2) Alert Indicator
3) Power Button
4) LAN Indicators
5) Drive Status Indicators
6) Drive Trays
7) Drive Tray Locks
8) Power Port
9) Fans
10) PCIe Expansion Slot
11) Reset Button
12) USB 3.2 Ports
13) Console Port
14) Expansion Port
15) 1GbE RJ-45 Ports

Specifications

CPU

CPU Model

AMD Ryzen V1500B

CPU Quantity

1

CPU Architecture

64-bit

CPU Frequency

4-core 2.2 GHz

Hardware Encryption Engine (AES-NI)

Yes

Memory

System Memory

4 GB DDR4 ECC SODIMM

Memory Module Pre-installed

4 GB (4 GB x 1)

Total Memory Slots

2

Maximum Memory Capacity

32 GB (16 GB x 2)

Notes

Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays

12

Maximum Drive Bays with Expansion Unit

24 (DX1222 x 1)

Compatible Drive Type* (See all supported drives)

3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD

Hot Swappable Drive

Yes

Notes

Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

External Ports

RJ-45 1GbE LAN Port*

4 (with Link Aggregation / Failover support)

Max. number of LAN ports

8

USB 3.2 Gen 1 Port*

2

Expansion Port

1

Notes

This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe

PCIe Expansion

1 x Gen3 x8 slot (x4 link)

File System

Internal Drives

Btrfs
EXT4

External Drives

Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFAT

Notes

exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.

Appearance

Size (Height x Width x Depth)

270 mm x 300 mm x 340 mm

Weight

9.5 kg

Others

System Fan

120 mm x 120 mm x 2 pcs

Fan Speed Mode

Full-Speed Mode
Cool Mode
Quiet Mode

Easy Replacement System Fan

Yes

Power Recovery

Yes

Noise Level*

25 dB(A)

Scheduled Power On / Off

Yes

Wake on LAN / WAN

Yes

Power Supply Unit / Adapter

550 W

AC Input Power Voltage

100V to 240V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption*

73.11 W (Access)
32.12 W (HDD Hibernation)

British Thermal Unit

249.63 BTU/hr (Access)
109.67 BTU/hr (HDD Hibernation)

Notes

Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%

Temperature

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

Certification

Certification

FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
UL

Environment

Environment

RoHS Compliant

Packaging Content

What's in the Box

Main Unit X 1
Accessory Pack X 1
AC Power Cord X 1
RJ-45 LAN Cable X 2
Quick Installation Guide X 1

Optional Accessories

Optional accessories

DDR4 ECC SODIMM: D4ES02-4G/D4ES02-8G/D4ES01-16G
Expansion Units: DX1222
3.5" SATA HDD: HAT5300
2.5" SATA SSD: SAT5210
M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1
M.2 SSD Adapter Card: M2D20
25GbE Network Interface Card: E25G21-F2
10GbE Network Interface Card: E10G21-F2/E10G18-T2/E10G18-T1
VisualStation: VS360HD
Surveillance Device License Pack

Notes

All memory modules will operate at the maximum frequency specified by the CPU manufacturer.

DSM Specifications - Storage Management

Maximum Single Volume Size*

108 TB

Maximum Internal Volume Number

64

SSD Read / Write Cache (White Paper)

Yes

SSD TRIM

Yes

Supported RAID Type

Synology Hybrid RAID
Basic
JBOD
RAID 0
RAID 1
RAID 5
RAID 6
RAID 10

RAID Migration

Basic to RAID 1
Basic to RAID 5
RAID 1 to RAID 5
RAID 5 to RAID 6

Volume Expansion with Larger HDDs

Synology Hybrid RAID
RAID 1
RAID 5
RAID 6
RAID 10

Volume Expansion by Adding a HDD

Synology Hybrid RAID
JBOD
RAID 5
RAID 6

Global Hot Spare Supported RAID Type

Synology Hybrid RAID
RAID 1
RAID 5
RAID 6
RAID 10

Notes

Each internal volume (may consist of multiple drives) is expandable up to 108TB.
Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.

File Services

File Protocol

SMB/AFP/NFS/FTP/WebDAV

Maximum Concurrent SMB/AFP/FTP Connections

1,000

Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)

2,000

Windows Access Control List (ACL) Integration

Yes

NFS Kerberos Authentication

Yes

Notes

Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM.
During testing, the maximum number of SSDs supported by this model is installed in a RAID 5 configuration.
The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.

Account & Shared Folder

Maximum Local User Accounts

2,048

Maximum Local Groups

256

Maximum Shared Folder

512

Maximum Shared Folder Sync Tasks

16

Hybrid Share

Maximum Hybrid Share Folders

10

Notes

For more details about the maximum number of Hybrid Share folders, check this article.

High Availability

Synology High Availability

Yes

Log Center

Syslog Events per Second

1,000

Virtualization

VMware vSphere with VAAI

Yes

Windows Server 2016

Yes

Windows Server 2019

Yes

Citrix Ready

Yes

OpenStack

Yes

General Specifications

Networking Protocols

SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

Supported Browsers

Google Chrome
Firefox
Microsoft Edge
Safari

Supported Language

English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, ???????, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Ceský, ???????, ???, ???, ????, ????

Notes

For an updated list of supported browser versions, check the DSM Technical Specifications.

Add-on Packages

Antivirus by McAfee (Trial)

Yes

Central Management System

Yes

Synology Chat

Maximum Users

1,500

Maximum Number of Concurrent Users

150

Notes

When applicable, systems are tested configured with maximum memory and set to allow the maximum number of connections.

Document Viewer

Document viewer

Yes

Download Station

Maximum Concurrent Download Tasks

80

SAN Manager

Maximum iSCSI Target Number

128

Maximum LUN

256

LUN Clone/Snapshot, Windows ODX

Yes

Synology MailPlus / MailPlus Server

Free Email Accounts

5 (Licenses required for additional accounts)

Maximum Number of Concurrent Users

150

Maximum Server Performance

1,484,000 emails per day, approx. 45 GB

Notes

Models with more than 4 bays were installed with two SSDs for SSD cache.
For tested models with expandable memory, the maximum amount of RAM was installed.
The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.
Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).

Media Server

DLNA Compliance

Yes

Synology Photos

Facial Recognition

Yes

Snapshot Replication

Maximum Snapshots per Shared Folder

1,024

Maximum of System Snapshots

65,536

Surveillance Station

Maximum IP cam (Licenses required)

40 (including 2 Free License) (see all supported IP cameras)

Total FPS (H.264)

1200 FPS @ 720p (1280x720)
1050 FPS @ 1080p (1920x1080)
600 FPS @ 3M (2048x1536)
440 FPS @ 5M (2591x1944)
320 FPS @ 4K (3840x2160)

Total FPS (H.265)

1200 FPS @ 720p (1280x720)
1200 FPS @ 1080p (1920x1080)
1120 FPS @ 3M (2048x1536)
600 FPS @ 5M (2591x1944)
480 FPS @ 4K (3840x2160)

Notes

Maximum IP cameras and FPS figures are tested with the device fully populated with drives and under a continuous recording setup.
Actual system capabilities may differ depending on system configuration, drive performance, number of features enabled, and if additional workloads are present.

Synology Drive

Recommended Number of Concurrent Sync Clients

550 (the number of connections that can be maintained when the recommended number of hosted files was reached)

Recommended Number of Hosted Files

50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)

Notes

Exceeding the recommended numbers above will not block application operations, but may result in longer response time.
Utilizing SSD cache can significantly improve performance.
For tested models with expandable memory, the maximum amount of RAM was installed.
Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.

Synology Office

Maximum Users

1,800

Notes

Multiple files were opened for testing and each file was edited by 30 users simultaneously.
For tested models with expandable memory, the maximum amount of RAM was installed.
Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM

Video Station

Video station

Yes

Virtual Machine Manager

Recommended Virtual Machine Instances

8 (Learn more)

Recommended Virtual DSM Number (Licenses required)

8 (including 1 Free License)

Notes

The specifications vary depending on system configuration and memory size.

VPN Server

Maximum Connections

40

Date Created: 11:03, 16-08-2022
Product URL: https://www.pbtech.co.nz/product/NASSYN24220/Synology-DiskStation-DS2422-12-Bay-NAS-Server-AMD
