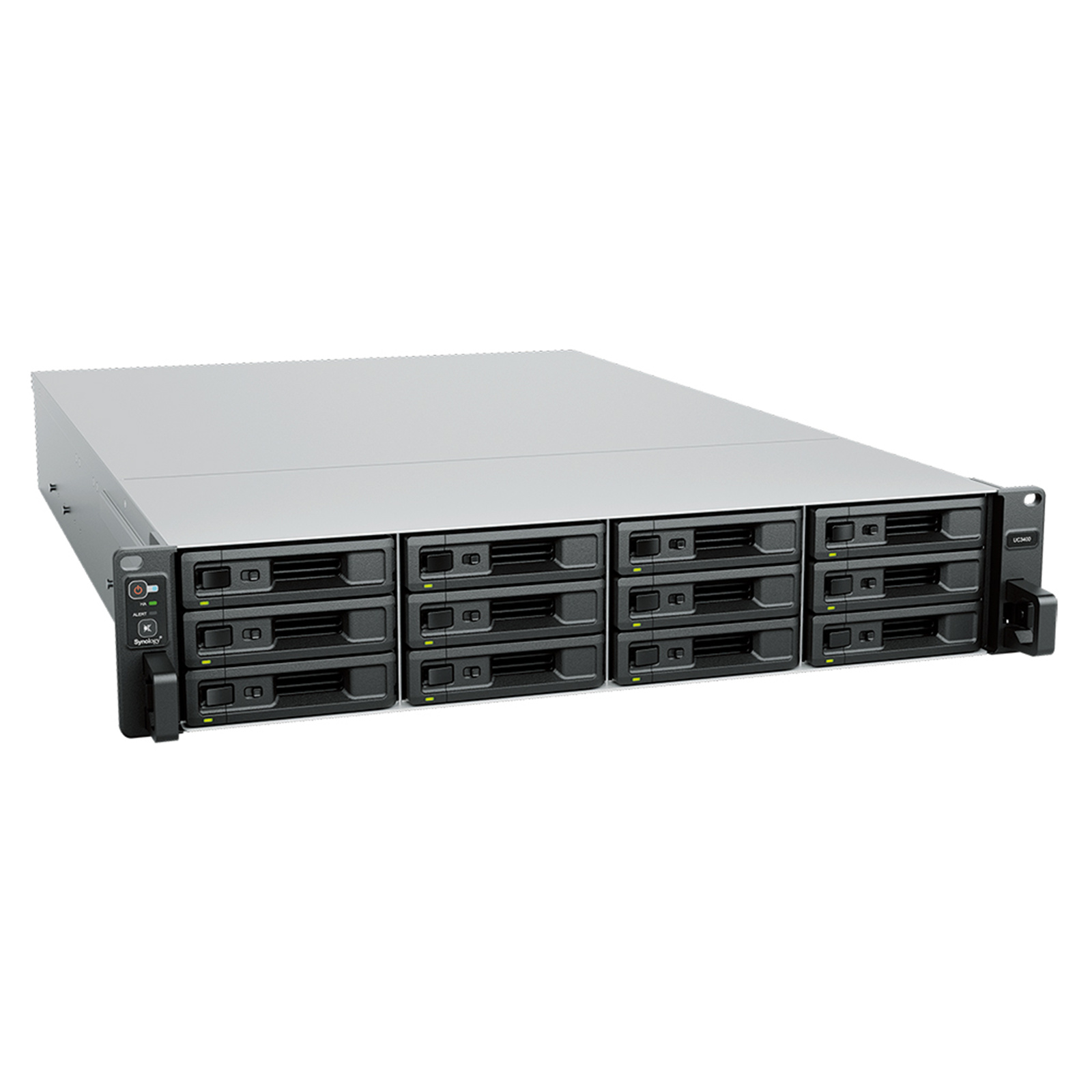

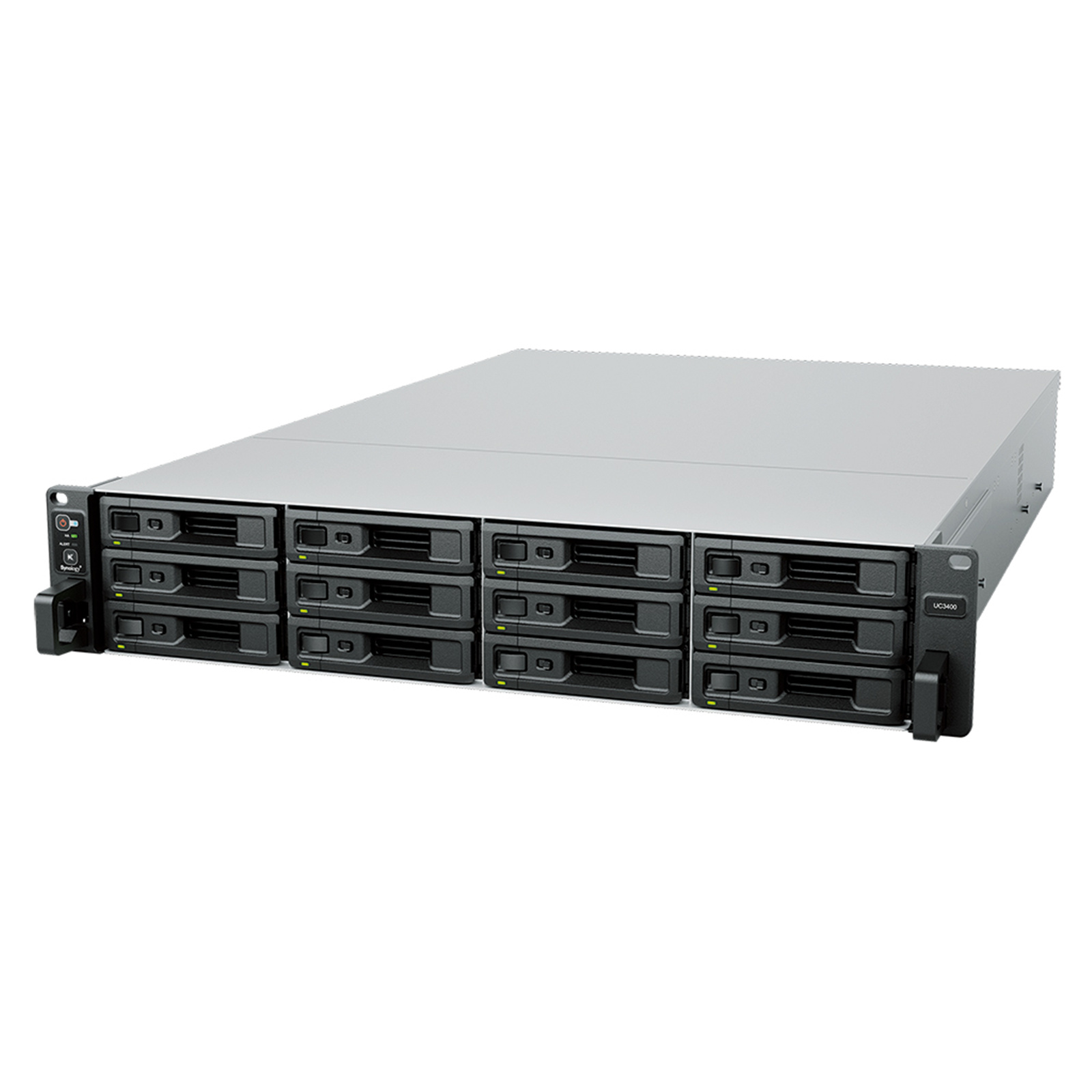

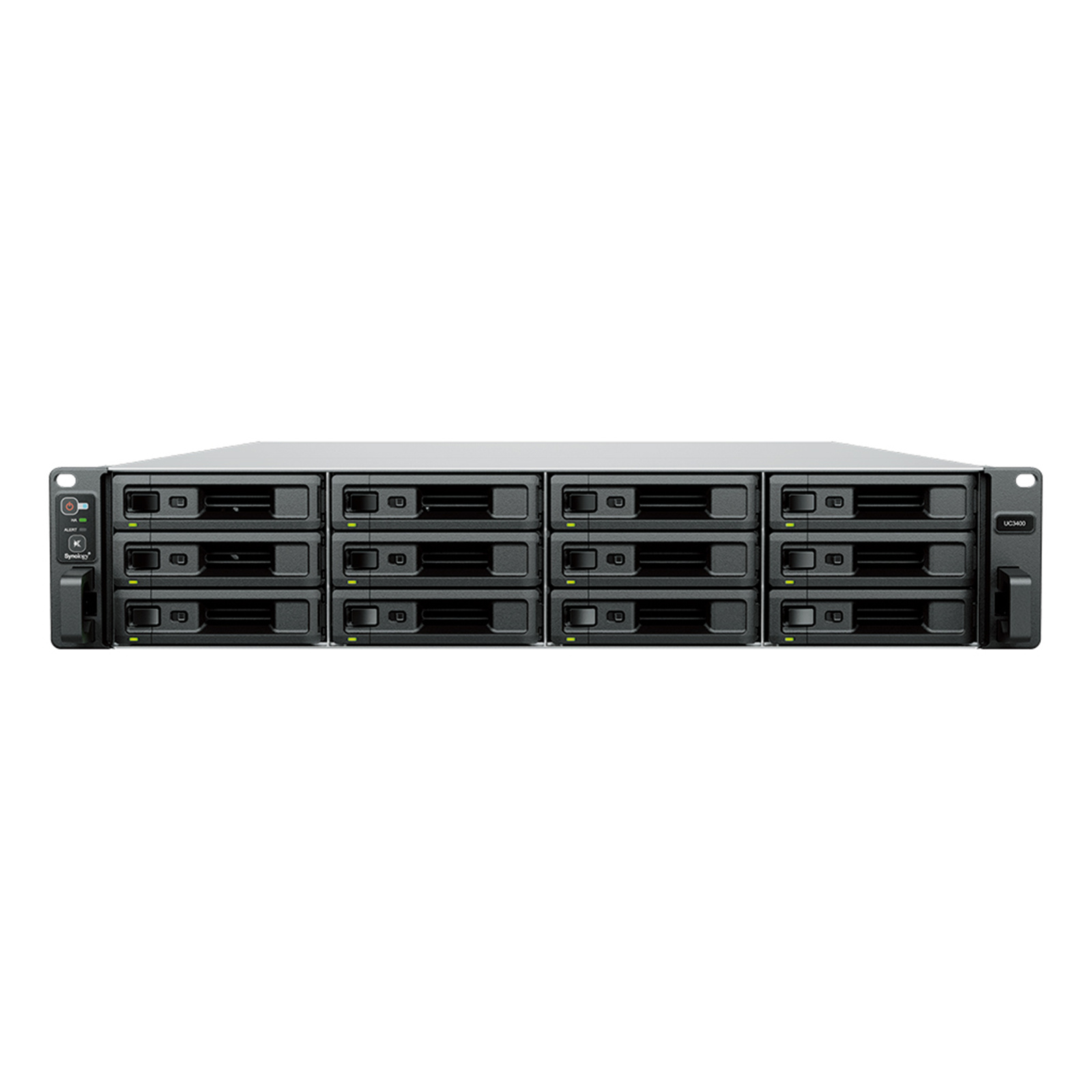

Synology RackStation UC3400 12-Bay SAS NAS Server Hot-Swap Dual Controller, Intel Xeon D-1541 8-Core Upto 2.7 GHz, 8GB ECC DDR4 (64GB Max), 1x 10GbE, 2x 1GbE, 1x Expansion Port, 5 Years Warranty
Synology RackStation UC3400 12-Bay SAS NAS Server Hot-Swap Dual Controller, Intel Xeon D-1541 8-Core Upto 2.7 GHz, 8GB ECC DDR4 (64GB Max), 1x 10GbE, 2x 1GbE, 1x Expansion Port, 5 Years Warranty
- Brand: Synology
- MPN: UC3400
- Part #: NASSYN3402
- UPC: 846504005208
- Brand: Synology
- MPN: UC3400
- Part #: NASSYN3402
- UPC: 846504005208
Features
UC3400
Active-active SAN for mission-critical environments
Non-disruptive block storage services

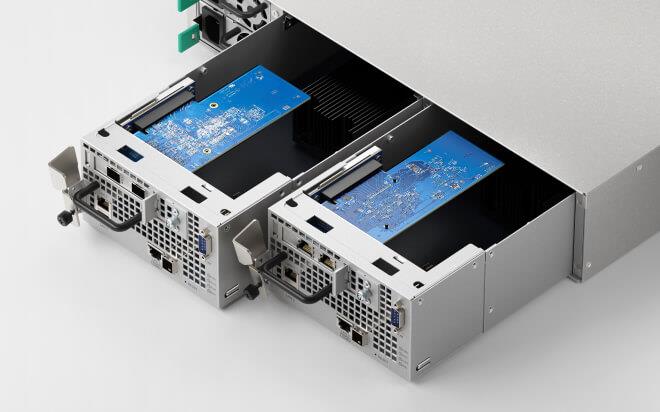

Dual Controller Module
Ensure interruption-free iSCSI and FC services
High Performance
Over 180,000 4K Random Write IOPS, and up to 576 TB of storage
Virtualization-ready
Full support for mainstream virtualization systems
Reliability and High Availability
Active-active dual controllers work simultaneously to ensure zero downtime in the event of a controller failure while the non-transparent bridge (NTB) enables inter-domain communication to maximize the protection of in-flight data.
Active-Active SAN with enterprise-class performance
Designed for mission-critical environments, UC3400 is a high-availability SAN solution supporting Fibre Channel (FC) and iSCSI protocols. With over 180,000 4K random write IOPS,1 it supports a wide range of demanding workloads.
Virtualization-ready
Full certification for VMware, vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack environments
Support for Windows Offloaded Data Transfer (ODX), VMware vSphere Storage APIs Array Integration (VAAI), and ALUA ensure optimized and efficient storage operations
OpenStack® Cinder support enables UC3400 to become a block-based storage component
Flexible network options
Boost network from 10GbE and dual 1GbE RJ-45 ports to 10/25 Gb Ethernet cards or 16 Gb Fibre channel host bus adapters on each controller.2\
Built-in data protection and security
Maximize service uptime for critical services and enhance data security with snapshot protection and self-encrypting drive support in UC3400.

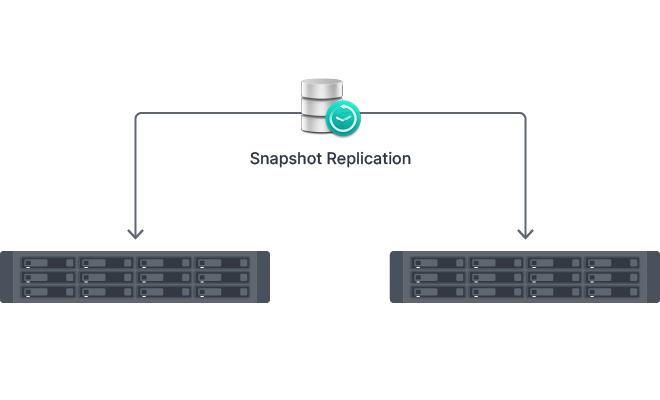

Snapshot Replication
Built-in software offers application-aware snapshot protection and instant recovery of virtual machines in iSCSI LUNs in the event of a disaster.
Self-encrypting drive support
Native support for self-encrypting drives (SEDs) provide hardware-level encryption for mission-critical and sensitive data at rest.
Storage expansion

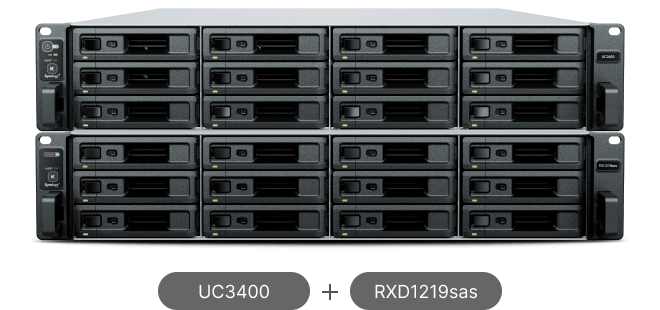

Simple capacity expansion of up to 576 TB of raw storage is available with two Synology RXD1219sas Expansion Units.3
Performance backed by Synology drives

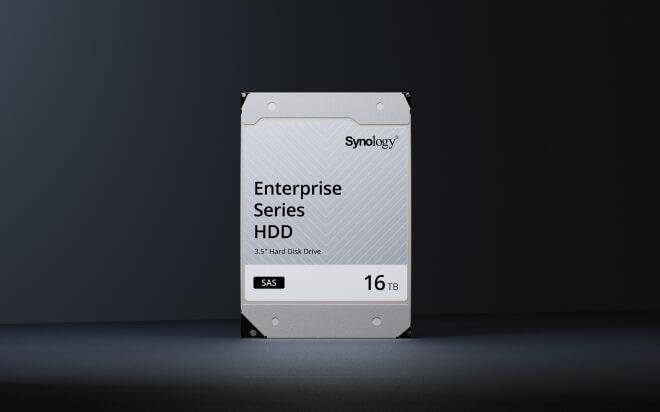

Leverage high sustained performance and reliability with enterprise-grade drives with built-in protection designed for Synology systems.4
Specifications
Reviews
Accessories
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular NAS Devices
Synology DiskStation DS223j 2-Bay NAS Server, Realtek Quad Core ,...
Synology DiskStation DS925+ 4-Bay NAS Server, AMD Ryzen V1500B...
Asustor Drivestor 2 Lite AS1102TL 2-Bay NAS, Quad Core 1.7 GHz,...
Ubiquiti UNAS-Pro 2U 10Gbps Rack-Mount NAS with (7) 2.5/3.5"...
Synology DiskStation DS223 2-Bay NAS Server, Realtek Quad Core,...
Synology RackStation UC3400 12-Bay SAS NAS Server Hot-Swap Dual Controller, Intel Xeon D-1541 8-Core Upto 2.7 GHz, 8GB ECC DDR4 (64GB Max), 1x 10GbE, 2x 1GbE, 1x Expansion Port, 5 Years Warranty
- Brand: Synology
- MPN: UC3400
- Part #: NASSYN3402
- UPC:846504005208
Product URL: https://www.pbtech.co.nz/product/NASSYN3402/Synology-RackStation-UC3400-12-Bay-SAS-NAS-Server
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Newmarket | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
UC3400
Active-active SAN for mission-critical environments
Non-disruptive block storage services
Dual Controller Module
Ensure interruption-free iSCSI and FC services
High Performance
Over 180,000 4K Random Write IOPS, and up to 576 TB of storage
Virtualization-ready
Full support for mainstream virtualization systems
Reliability and High Availability
Active-active dual controllers work simultaneously to ensure zero downtime in the event of a controller failure while the non-transparent bridge (NTB) enables inter-domain communication to maximize the protection of in-flight data.
Active-Active SAN with enterprise-class performance
Designed for mission-critical environments, UC3400 is a high-availability SAN solution supporting Fibre Channel (FC) and iSCSI protocols. With over 180,000 4K random write IOPS,1 it supports a wide range of demanding workloads.
Virtualization-ready
Full certification for VMware, vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack environments
Support for Windows Offloaded Data Transfer (ODX), VMware vSphere Storage APIs Array Integration (VAAI), and ALUA ensure optimized and efficient storage operations
OpenStack® Cinder support enables UC3400 to become a block-based storage component
Flexible network options
Boost network from 10GbE and dual 1GbE RJ-45 ports to 10/25 Gb Ethernet cards or 16 Gb Fibre channel host bus adapters on each controller.2\
Built-in data protection and security
Maximize service uptime for critical services and enhance data security with snapshot protection and self-encrypting drive support in UC3400.
Snapshot Replication
Built-in software offers application-aware snapshot protection and instant recovery of virtual machines in iSCSI LUNs in the event of a disaster.
Self-encrypting drive support
Native support for self-encrypting drives (SEDs) provide hardware-level encryption for mission-critical and sensitive data at rest.
Storage expansion
Simple capacity expansion of up to 576 TB of raw storage is available with two Synology RXD1219sas Expansion Units.3
Performance backed by Synology drives
Leverage high sustained performance and reliability with enterprise-grade drives with built-in protection designed for Synology systems.4
Specifications
Hardware
Number of Controller Module
2
CPU Model
Intel Xeon D-1541
CPU Quantity
1 (per controller)
CPU Architecture
64-bit
CPU Frequency
8-core 2.1 (base) / 2.7 (turbo) GHz
System Memory
8 GB DDR4 ECC UDIMM (per controller)
Memory Module Pre-installed
8 GB (8 GB x 1) (per controller)
Total Memory Slots
4 (per controller)
Maximum Memory Capacity
64 GB (16 GB x 4) (per controller)
Drive Bays
12
Maximum Drive Bays with Expansion Unit
36 (RXD1219sas x 2)
Compatible Drive Type* (See all supported drives)
2.5" dual-port SAS SSD
3.5" dual-port SAS HDD
Maximum Single Volume Size*
108 TB
RJ-45 1GbE LAN Port
2 (with Link Aggregation / Failover support) (per controller)
RJ-45 10GbE LAN Port
1 (per controller)
PCIe Expansion
1 x Gen3 x8 slot (x8 link) (per controller)
Internal Drives
Btrfs
Size (Height x Width x Depth)
88 mm x 430.5 mm x 692 mm
Size (Height x Width x Depth) (with server ears)
88 mm x 482 mm x 724 mm
Weight
19.7 kg
Rack Installation Support*
4-post 19" rack (Synology Rail Kit - RKS-02)
System Fan
60 mm x 60 mm x 2 (per controller)
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Noise Level*
51.3 dB(A)
Power Supply Unit / Adapter
500W
AC Input Power Voltage
100 V to 240 V AC
Power Frequency
50/60Hz, Single Phase
Power Consumption
239.25 W (Access)
British Thermal Unit
816.35 BTU/hr (Access)
Operating Temperature
0°C to 35°C (32°F to 95°F)
Storage Temperature
-20°C to 60°C (-5°F to 140°F)
Relative Humidity
5% to 95% RH
Certification
CE
FCC
BSMI
VCCI
RCM
UKCA
KC
Environment
RoHS Compliant
Packaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Cord X 2
Quick Installation Guide X 1
EAC
Software
Maximum Internal Volume Number
32
Maximum iSCSI Target Number
128
Maximum LUN
128
Maximum Number of Snapshots per Advanced LUN
256
Supported RAID Type
RAID F1
Basic
JBOD
RAID 0
RAID 1
RAID 5
RAID 6
RAID 10
RAID Migration
Basic to RAID 1
Basic to RAID 5
RAID 1 to RAID 5
Volume Expansion with Larger HDDs
RAID F1
RAID 1
RAID 5
RAID 6
RAID 10
Volume Expansion by Adding a HDD
JBOD
RAID F1
RAID 5
RAID 6
Global Hot Spare Supported RAID Type
RAID F1
RAID 1
RAID 5
RAID 6
RAID 10
Maximum Local User Accounts
65
Maximum Number of Replication
64
Maximum of System Snapshots
4,096
Networking Protocols
iSCSI
Telnet
SSH
SNMP
Fibre Channel
Supported Language
English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, ???????, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Ceský, ???????, ???, ???, ????, ????
