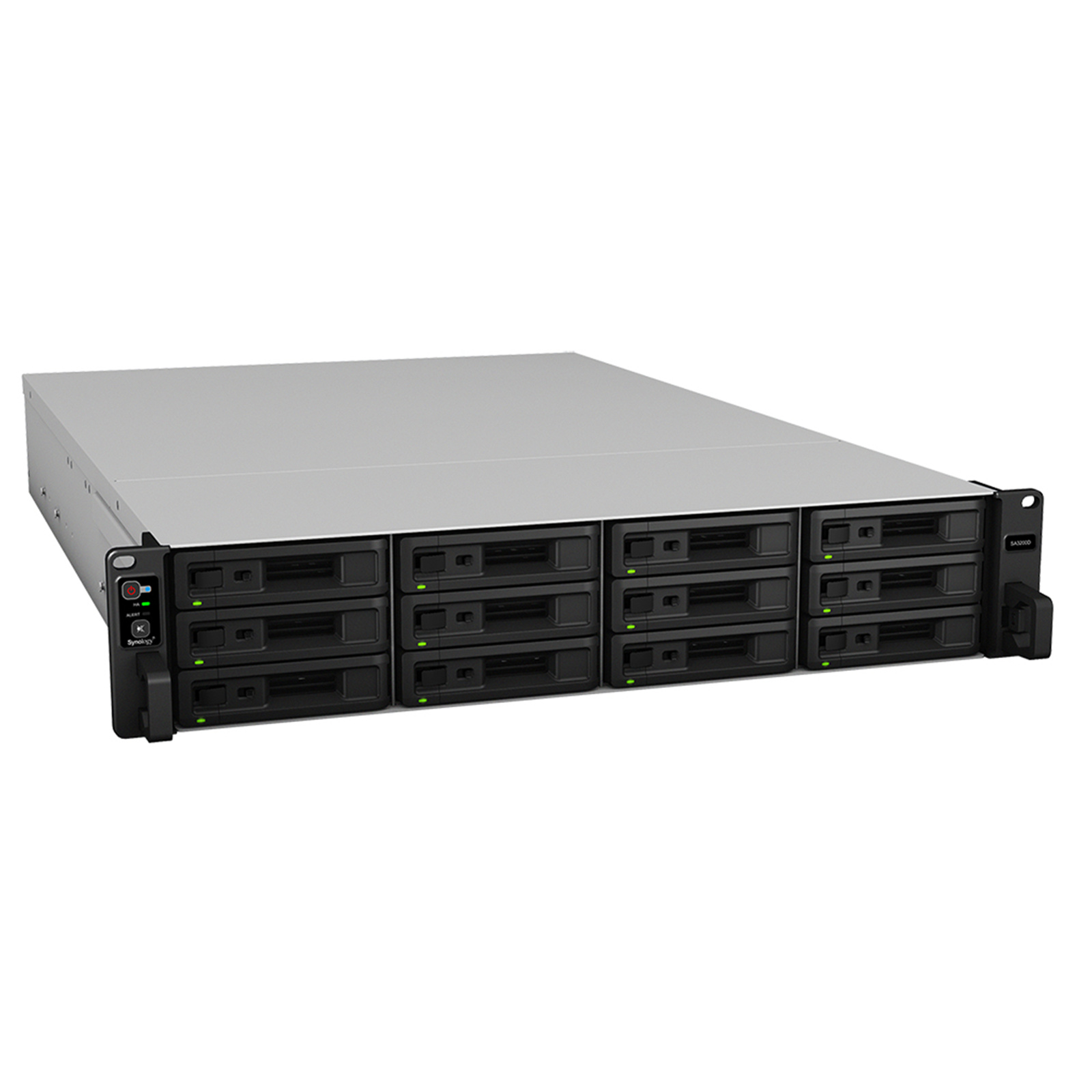

Synology RackStation SA3200D 12-Bay 2U Dual Controller NAS Server, active-passive controllers, each with Xeon D-1521 4C/8T Upto 2.7 GHz, 8GB RAM (64GB Max), 1x 10G RJ-45, 2x 1G RJ-45, 1x Expansion Port, Dual Redundant Power Supplies, 5 Year
Synology RackStation SA3200D 12-Bay 2U Dual Controller NAS Server, active-passive controllers, each with Xeon D-1521 4C/8T Upto 2.7 GHz, 8GB RAM (64GB Max), 1x 10G RJ-45, 2x 1G RJ-45, 1x Expansion Port, Dual Redundant Power Supplies, 5 Year
- Brand: Synology
- MPN: SA3200D
- Part #: NASSYN36002
- UPC: 846504003716
- Brand: Synology
- MPN: SA3200D
- Part #: NASSYN36002
- UPC: 846504003716
Features
SA3200D
Give your business the data protection and service availability it needs
Maximizing availability has never been this easy
Simplify and centralize your data management infrastructure with Synology SA3200D. Storage controller redundancy powered by Synology High Availability automatically minimizes downtime to under a minute1, delivering outstanding cost effectiveness in just a 2U footprint.
Redundant power supply
Modularized and swappable 500W power supply prevents service downtime in the event of a power supply failure.
Active-passive controller modules
Automatic system failover to the secondary controller, maximizing service uptime.
PCIe 3.0 slot
Supports 10GbE/25GbE network interface cards for higher throughput.
2 x 1GbE & 1 x 10GbE
Cost-effective RJ45 networking interface options built-in.
Mini-SAS HD port
Connect up to 2 x RXD1219sas for flexible plug-and-play volume expansion.
Processor
The Intel® Xeon® D-1521 processor on each controller provides enterprise-class reliability, availability, and serviceability.
4 x DDR4 memory slots
8 GB ECC UDIMM, expandable up to 64 GB for more demanding workloads.
Modularized cooling
Dual fan modules per controller allow for easy maintenance and replacement.
SATA DOM
Operating system files are isolated from the stored data, providing higher throughput and stability.
Non-Transparent Bridge (NTB)
Faster and lower-latency connectivity between controllers.
Ultimate Backup Solution
SA3200D integrates various backup applications into an intuitive user interface, offering durable storage technologies to safeguard your valuable data on any device.
Active Backup for Business
Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed.
Hyper Backup
Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
Synology Drive
Safeguard your computer with Synology Drive Client. Effortlessly perform real-time data backups and point-in-time file recovery.
Active Backup for Office 365 / G Suite
Protect corporate data stored on the cloud. On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Virtual Machine Manager
Virtual Machine Manager enables you to test new software in sandboxes, isolate your customers' machines, and increase the flexibility of your server. You can easily run Windows, Linux, and Virtual DSM on your Synology NAS by just a few steps.
Snapshots for virtual machines
Perfectly clone and restore a virtual machine within seconds.
Multi-tenant environment
Create multiple isolated virtual machines for subsidiary business units or departments.
Synology High Availability
Real-time system-level protection with automatic failover mechanism to maximize service availability.
Snapshot Replication
Schedulable and instantaneous data protection of shared folders and iSCSI LUNs for disaster prevention.
Central Management System
Manage multiple Synology NAS servers simultaneously on a centralized interface to increase business efficiency.
Hyper Backup
Store multiple backup versions with block-level incremental data backup and cross-version deduplication.
Active Backup Suite
Integrated, modern, and license-free backup & instant recovery solution for VMware, Windows, Office 365, and G Suite.
Virtual Machine Manager
Run various operating systems in isolated sandboxes. Seamlessly clone and restore virtual machines.
Specifications
Reviews
Accessories
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular NAS Devices
Synology DiskStation DS223j 2-Bay NAS Server, Realtek Quad Core ,...
Synology DiskStation DS925+ 4-Bay NAS Server, AMD Ryzen V1500B...
Asustor Drivestor 2 Lite AS1102TL 2-Bay NAS, Quad Core 1.7 GHz,...
Ubiquiti UNAS-Pro 2U 10Gbps Rack-Mount NAS with (7) 2.5/3.5"...
Synology DiskStation DS223 2-Bay NAS Server, Realtek Quad Core,...
_20250910222933.webp)
Synology RackStation SA3200D 12-Bay 2U Dual Controller NAS Server, active-passive controllers, each with Xeon D-1521 4C/8T Upto 2.7 GHz, 8GB RAM (64GB Max), 1x 10G RJ-45, 2x 1G RJ-45, 1x Expansion Port, Dual Redundant Power Supplies, 5 Year
- Brand: Synology
- MPN: SA3200D
- Part #: NASSYN36002
- UPC:846504003716
Product URL: https://www.pbtech.co.nz/product/NASSYN36002/Synology-RackStation-SA3200D-12-Bay-2U-Dual-Contro
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Newmarket | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
SA3200D
Give your business the data protection and service availability it needs
Maximizing availability has never been this easy
Simplify and centralize your data management infrastructure with Synology SA3200D. Storage controller redundancy powered by Synology High Availability automatically minimizes downtime to under a minute1, delivering outstanding cost effectiveness in just a 2U footprint.
Redundant power supply
Modularized and swappable 500W power supply prevents service downtime in the event of a power supply failure.
Active-passive controller modules
Automatic system failover to the secondary controller, maximizing service uptime.
PCIe 3.0 slot
Supports 10GbE/25GbE network interface cards for higher throughput.
2 x 1GbE & 1 x 10GbE
Cost-effective RJ45 networking interface options built-in.
Mini-SAS HD port
Connect up to 2 x RXD1219sas for flexible plug-and-play volume expansion.
Processor
The Intel® Xeon® D-1521 processor on each controller provides enterprise-class reliability, availability, and serviceability.
4 x DDR4 memory slots
8 GB ECC UDIMM, expandable up to 64 GB for more demanding workloads.
Modularized cooling
Dual fan modules per controller allow for easy maintenance and replacement.
SATA DOM
Operating system files are isolated from the stored data, providing higher throughput and stability.
Non-Transparent Bridge (NTB)
Faster and lower-latency connectivity between controllers.
Ultimate Backup Solution
SA3200D integrates various backup applications into an intuitive user interface, offering durable storage technologies to safeguard your valuable data on any device.
Active Backup for Business
Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed.
Hyper Backup
Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
Synology Drive
Safeguard your computer with Synology Drive Client. Effortlessly perform real-time data backups and point-in-time file recovery.
Active Backup for Office 365 / G Suite
Protect corporate data stored on the cloud. On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Virtual Machine Manager
Virtual Machine Manager enables you to test new software in sandboxes, isolate your customers' machines, and increase the flexibility of your server. You can easily run Windows, Linux, and Virtual DSM on your Synology NAS by just a few steps.
Snapshots for virtual machines
Perfectly clone and restore a virtual machine within seconds.
Multi-tenant environment
Create multiple isolated virtual machines for subsidiary business units or departments.
Synology High Availability
Real-time system-level protection with automatic failover mechanism to maximize service availability.
Snapshot Replication
Schedulable and instantaneous data protection of shared folders and iSCSI LUNs for disaster prevention.
Central Management System
Manage multiple Synology NAS servers simultaneously on a centralized interface to increase business efficiency.
Hyper Backup
Store multiple backup versions with block-level incremental data backup and cross-version deduplication.
Active Backup Suite
Integrated, modern, and license-free backup & instant recovery solution for VMware, Windows, Office 365, and G Suite.
Virtual Machine Manager
Run various operating systems in isolated sandboxes. Seamlessly clone and restore virtual machines.
Specifications
Controller
Number of Controller Module
2
CPU
CPU Model
Intel Xeon D-1521
CPU Quantity (per controller)
1
CPU Architecture
64-bit
CPU Frequency
Quad Core 2.4 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Yes
Memory
System Memory (per controller)
8 GB DDR4 ECC UDIMM
Pre-installed Memory Module (per controller)
8 GB (8 GB x 1)
Total Memory Slots (per controller)
4
Expandable Memory (per controller)
64 GB (16 GB x 4)
Notes
Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Storage
Drive Bays
12
Maximum Drive Bays with Expansion Unit
36 (RXD1219sas)
Compatible Drive Type* (See all supported drives)
3.5" SAS HDD
2.5" SAS HDD
2.5" SAS SSD
Maximum Internal Raw Capacity
192 TB (16 TB drive x 12) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units
576 TB (192 TB + 16 TB drive x 24) (Capacity may vary by RAID types)
Maximum Single Volume Size*
200 TB (32 GB RAM required, for RAID 5 or RAID 6 groups only)
108 TB
Hot Swappable Drive
Yes
Notes
"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit. (Learn more)
Each internal volume (may consist of multiple drives) is expandble up to 108TB (with memory less than 32GB) or 200TB (with memory equal to or greater than 32GB).
External Ports
RJ-45 1GbE LAN Port (per controller)
2 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port (per controller)
1
Expansion Port
1
PCIe
PCIe Expansion (per controller)
1 x Gen3 x8 slot (x8 link)
Add-In-Card Support
PCIe Network Interface Card
File System
Internal Drives
Btrfs
EXT4
Appearance
Form Factor (RU)
2U
Size (Height x Width x Depth)
88 mm x 430.5 mm x 692 mm
Size (Height x Width x Depth) (with server ears)
88 mm x 482 mm x 724 mm
Weight
19.7 kg
Rack Installation Support*
4-post 19" rack (Synology Rail Kit - RKS1317)
Notes
The rail kit is sold separately
Others
System Fan
60 mm x 60 mm x 2 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Easy Replacement System Fan
Yes
Power Recovery
Yes
Noise Level*
51.3 dB(A)
Power Supply Unit / Adapter
500 W
Redundant Power Supply
Yes
AC Input Power Voltage
100 V to 240 V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption*
417.48 W (Access)
274.38 W (HDD Hibernation)
British Thermal Unit
1425.45 BTU/hr (Access)
936.85 BTU/hr (HDD Hibernation)
Notes
Noise Level Testing Environment: Fully loaded with Seagate ST8000NM0075 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology server at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%.
Power consumption is measured when it is fully loaded with Seagate ST3600057SS hard drive(s).
Temperature
Operating Temperature
0°C to 35°C (32°F to 95°F)
Storage Temperature
-20°C to 60°C (-5°F to 140°F)
Relative Humidity
5% to 95% RH
Certification
EAC
VCCI
CCC
RCM
FCC
CE
BSMI
Environment
RoHS Compliant
Packaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Cord X 2
Quick Installation Guide X 1
