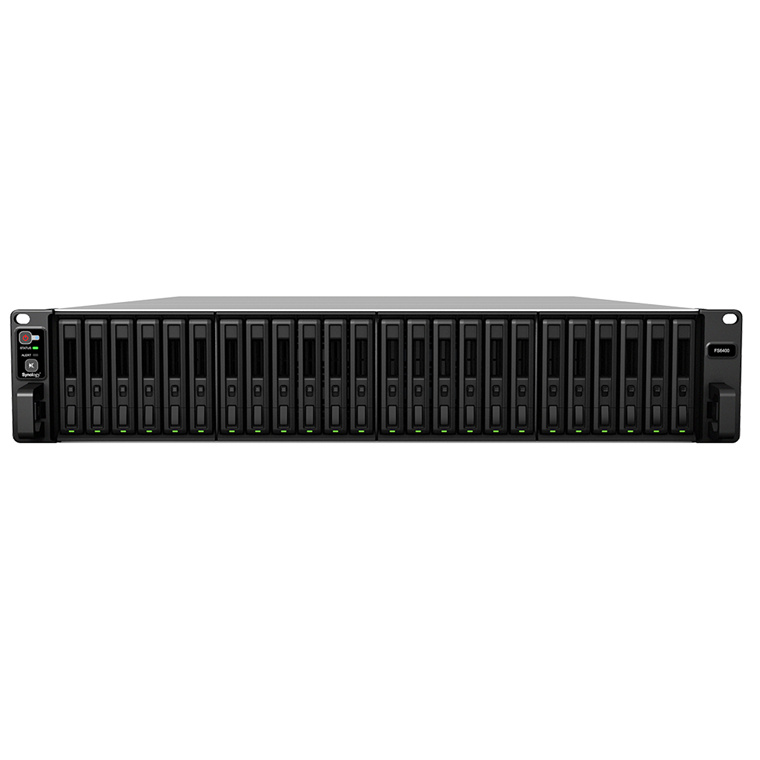

Synology FlashStation FS6400 24x 2.5" Bay 2U Ultra-High Performance NAS Server, 2x Xeon 4110 8Core Upto 3.0 GHz, 32GB DDR4 (512GB Max) ECC RDIMM, 2x 10GbE RJ-45, 2x 1G RJ-45, 1x Expansion Port, Dual Redundant Power Supplies, 5 Years Warran
Synology FlashStation FS6400 24x 2.5" Bay 2U Ultra-High Performance NAS Server, 2x Xeon 4110 8Core Upto 3.0 GHz, 32GB DDR4 (512GB Max) ECC RDIMM, 2x 10GbE RJ-45, 2x 1G RJ-45, 1x Expansion Port, Dual Redundant Power Supplies, 5 Years Warran
- Brand: Synology
- MPN: FS6400
- Part #: NASSYN64004
- UPC:
- Brand: Synology
- MPN: FS6400
- Part #: NASSYN64004
- UPC:
Features
Uncompromising performance
Synology FlashStation FS6400 is a 2U rackmount server designed for I/O-intensive and latency-sensitive tasks, ideal for multimedia post-production, virtual machines, online transaction processing, or database applications.
- CPU: Dual Intel® Xeon® Silver 8-core with NUMA
- Memory: DDR4 ECC RDIMM, up to 512GB
- High Performance: Over 240,000 iSCSI 4K random write IOPS
- Scalability: Up to 72 drives with FX2421
Fast and reliable networking
With multi-LAN design, FS6400 is capable of performing Link Aggregation and failover. For environments requiring a higher speed, two optional Ethernet add-in cards can be installed on PCIe 3.0 slots to provide fast data transmission.
Complete iSCSI and virtualization solutions
Synology iSCSI storage supports most virtualization solutions such as VMware vSphere, Microsoft Hyper-V, Citrix Xen Server, and OpenStack Cinder to enhance work efficiency. You can run and manage multiple virtual machines on Windows, Linux, or DSM using Virtual Machine Manager.
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overheads. It offers flexible, efficient data protection and recovery tools while ensuring high-level data integrity.
- Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
- Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
- File- or folder-level data restoration accelerates data recovery and provides more flexibility for businesses
- Automatic file self-healing detects and recovers corrupted files without user intervention
RAID F1
Due to the peculiarities of SSD and RAID technology, a common challenge lies in how to prevent all of the drives from failing at the same time because of the evenly distributed workload. RAID F1 alleviates this problem with a specially designed algorithm to unevenly distribute workload to drives, enhancing the resilience of the storage pool and ensuring your data remains safe.
Flash volume deduplication
Remove duplicate data on all-flash arrays with volume-wide deduplication to greatly increase storage efficiency. Eliminate redundant data to save up to 65% in storage space use in applications like virtual desktop infrastructure, and virtual machine.
Digital asset protection
Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes.
Security Advisor
Analyze system settings, password strength and network preferences, and remove any possible malware.
AppArmor
A kernel-level enhancement that blocks malicious programs from accessing unauthorized system resources.
AES 256-bit encryption
Encrypt shared folders and network data transmission to avoid unauthorized data access.
2-step verification
Prevent others from logging in to your DSM by generating a six-digit one-time password (OTP) on your mobile device.
Specifications
Reviews
Accessories
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular NAS Devices
Synology DiskStation DS223j 2-Bay NAS Server, Realtek Quad Core ,...
Synology DiskStation DS925+ 4-Bay NAS Server, AMD Ryzen V1500B...
Asustor Drivestor 2 Lite AS1102TL 2-Bay NAS, Quad Core 1.7 GHz,...
Ubiquiti UNAS-Pro 2U 10Gbps Rack-Mount NAS with (7) 2.5/3.5"...
Synology DiskStation DS223 2-Bay NAS Server, Realtek Quad Core,...
Synology FlashStation FS6400 24x 2.5" Bay 2U Ultra-High Performance NAS Server, 2x Xeon 4110 8Core Upto 3.0 GHz, 32GB DDR4 (512GB Max) ECC RDIMM, 2x 10GbE RJ-45, 2x 1G RJ-45, 1x Expansion Port, Dual Redundant Power Supplies, 5 Years Warran
- Brand: Synology
- MPN: FS6400
- Part #: NASSYN64004
Product URL: https://www.pbtech.co.nz/product/NASSYN64004/Synology-FlashStation-FS6400-24x-25-Bay-2U-Ultra-H
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Newmarket | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
Uncompromising performance
Synology FlashStation FS6400 is a 2U rackmount server designed for I/O-intensive and latency-sensitive tasks, ideal for multimedia post-production, virtual machines, online transaction processing, or database applications.
- CPU: Dual Intel® Xeon® Silver 8-core with NUMA
- Memory: DDR4 ECC RDIMM, up to 512GB
- High Performance: Over 240,000 iSCSI 4K random write IOPS
- Scalability: Up to 72 drives with FX2421
Fast and reliable networking
With multi-LAN design, FS6400 is capable of performing Link Aggregation and failover. For environments requiring a higher speed, two optional Ethernet add-in cards can be installed on PCIe 3.0 slots to provide fast data transmission.
Complete iSCSI and virtualization solutions
Synology iSCSI storage supports most virtualization solutions such as VMware vSphere, Microsoft Hyper-V, Citrix Xen Server, and OpenStack Cinder to enhance work efficiency. You can run and manage multiple virtual machines on Windows, Linux, or DSM using Virtual Machine Manager.
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overheads. It offers flexible, efficient data protection and recovery tools while ensuring high-level data integrity.
- Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
- Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
- File- or folder-level data restoration accelerates data recovery and provides more flexibility for businesses
- Automatic file self-healing detects and recovers corrupted files without user intervention
RAID F1
Due to the peculiarities of SSD and RAID technology, a common challenge lies in how to prevent all of the drives from failing at the same time because of the evenly distributed workload. RAID F1 alleviates this problem with a specially designed algorithm to unevenly distribute workload to drives, enhancing the resilience of the storage pool and ensuring your data remains safe.
Flash volume deduplication
Remove duplicate data on all-flash arrays with volume-wide deduplication to greatly increase storage efficiency. Eliminate redundant data to save up to 65% in storage space use in applications like virtual desktop infrastructure, and virtual machine.
Digital asset protection
Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes.
Security Advisor
Analyze system settings, password strength and network preferences, and remove any possible malware.
AppArmor
A kernel-level enhancement that blocks malicious programs from accessing unauthorized system resources.
AES 256-bit encryption
Encrypt shared folders and network data transmission to avoid unauthorized data access.
2-step verification
Prevent others from logging in to your DSM by generating a six-digit one-time password (OTP) on your mobile device.
Specifications
CPU
CPU Model
Intel Xeon Silver 4110
CPU Quantity
2
CPU Core
8
CPU Architecture
64-bit
CPU Frequency
2.1 (base) / 3.0 (turbo) GHz
Hardware Encryption Engine
Yes
Memory
System Memory
32 GB DDR4 ECC RDIMM
Memory Module Pre-installed
32 GB (16 GB x 2)
Total Memory Slots
16
Maximum Memory Capacity
512 GB (32 GB x 16)
Storage
Drive Bays
24
Maximum Drive Bays with Expansion Unit
72 (FX2421 x 2)
Compatible Drive Type* (See all supported drives)
2.5" SAS HDD
2.5" SAS SSD
2.5" SATA SSD
Hot Swappable Drive*
Yes
Notes
"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
RJ-45 1GbE LAN Port
2
RJ-45 10GbE LAN Port
2
USB 3.2 Gen 1 Port*
2
Expansion Port
1
Expansion Port Type
Mini-SAS HD
Notes
The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCle
PCIe Expansion
2 x Gen3 x8 slots (x8 link)
Appearance
Form Factor (RU)
2U
Size (Height x Width x Depth)
88 mm x 482 mm x 724 mm
Weight
17.26 kg
Rack Installation Support*
4-post 19" rack (Synology Rail Kit - RKS-02)
Notes
The rail kit is sold separately
Others
System Fan
80 mm x 80 mm x 4 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Easy Replacement System Fan
Yes
Power Recovery
Yes
Noise Level*
53.7 dB(A)
Scheduled Power On / Off
Yes
Wake on LAN / WAN
Yes
Power Supply Unit / Adapter
800 watts
Redundant Power Supply
Yes
AC Input Power Voltage
100V to 240V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
288.49 watts (Access)
145.8 watts (HDD Hibernation)
British Thermal Unit
984.37 BTU/hr (Access)
497.49 BTU/hr (HDD Hibernation)
Notes
Power consumption is measured when it is fully loaded with HGST 1.8TB HUC101818CS4204 hard drive(s).
Noise Level Testing Environment: Fully loaded with Toshiba 600GB AL14SEB060N hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%
Temperature
Operating Temperature
0°C to 35°C (32°F to 95°F)
Storage Temperature
-20°C to 60°C (-5°F to 140°F)
Relative Humidity
5% to 95% RH
Certification
FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
Packaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Cord X 2
Quick Installation Guide X 1
Storage Management
Maximum Single Volume Size
1 PB (64 GB memory required, for RAID 6 groups only)
200 TB
108 TB
Maximum Internal Volume Number
256
SSD Read/Write Cache (Determining cache size)
Yes
SSD TRIM
Yes
RAID Group
Yes
Supported RAID Type
RAID F1
Basic
JBOD
RAID 0
RAID 1
RAID 5
RAID 6
RAID 10
RAID Migration
Basic to RAID 1
Basic to RAID 5
RAID 1 to RAID 5
RAID 5 to RAID 6
Volume Expansion with Larger HDDs
RAID F1
RAID 1
RAID 5
RAID 6
RAID 10
Volume Expansion by Adding a HDD
RAID F1
JBOD
RAID 5
RAID 6
Global Hot Spare Supported RAID Type
RAID F1
RAID 1
RAID 5
RAID 6
RAID 10
Notes
Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
When Peta Volume is enabled, validated services and packages are required.
Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration.
File System
Internal Drives
Btrfs
ext4
External Drives
Btrfs
ext4
ext3
FAT
NTFS
HFS+
exFAT
Notes
exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
File Services
File Protocol
SMB
AFP
NFS
FTP
WebDAV
Rsync
Maximum Concurrent SMB/AFP/FTP Connections
8,000
Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)
10,000
Windows Access Control List (ACL) Integration
Yes
NFS Kerberos Authentication
Yes
Notes
Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM.
During testing, the maximum number of SSDs supported by this model is installed in a RAID 5 configuration.
The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared Folder
Maximum Local User Accounts
16,000
Maximum Local Groups
512
Maximum Shared Folder
512
Maximum Shared Folder Sync Tasks
32
Hybrid Share
Maximum Hybrid Share Folders
30
Hyper Backup
Folder and Package Backup
Yes
Entire System Backup
Yes
Notes
Full-system backup requires DSM 7.2 or later.
High Availability
Synology High Availability
Yes
Log Center
Syslog Events per Second
3,000
Virtualization
VMware ESXi 6.5 and VAAI
Yes
Windows Server 2016
Yes
Windows Server 2019
Yes
Windows Server 2022
Yes
Citrix Ready
Yes
OpenStack
Yes
General Specifications
Supported Protocols
SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers
Chrome
Firefox
Edge
Safari
Supported Language
English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, ???????, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Ceský, ???????, ???, ???, ????, ????
Add-on Packages
Antivirus by McAfee (Trial)
Yes
Central Management System
Yes
Synology Chat
Suggested Maximum Users
6,000
Suggested Concurrent Users
1,500
Notes
For tested models with expandable memory, the maximum amount of RAM was installed.
SAN Manager
Maximum iSCSI Target Number
256
Maximum LUN
512
LUN Clone/Snapshot, Windows ODX
Yes
Notes
iSCSI Manager has been renamed to SAN Manager in DSM 7.0.
Synology MailPlus / MailPlus Server
Free Email Accounts
5 (Additional accounts require purchase of licenses)
Suggested Maximum Users
17,500
Suggested Concurrent Users
3,500
Maximum Server Performance
5,721,000 emails per day, approx. 174GB
Notes
FS series were installed with 12 SSDs in RAID F1 configuration.
For tested models with expandable memory, the maximum amount of RAM was installed.
The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.
Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Surveillance Station
Default Licenses
2 (Additional cameras require purchase of licenses)
Suggested Maximum IP Cameras and Total FPS (H.264)
720p: 520 channels, 15600 FPS
1080p: 485 channels, 4850 FPS
3M: 450 channels, 4500 FPS
5M: 380 channels, 3800 FPS
4K: 220 channels, 2200 FPS
Suggested Maximum IP Cameras and Total FPS (H.265)
720p: 550 channels, 16500 FPS
1080p: 520 channels, 15600 FPS
3M: 485 channels, 4850 FPS
5M: 450 channels, 4500 FPS
4K: 380 channels, 3800 FPS
Notes
Surveillance Station 9.1.3 or above is required to support the maximum IP cameras and FPS figures listed.
Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads.
Use NVR Selector to quickly find a suitable model based on your requirements.
The maximum number of camera stream outputs is 2 times the suggested maximum number of IP cameras.
Synology Drive
Recommended Number of Concurrent Sync Clients
2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Recommended Number of Hosted Files
100,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Notes
Exceeding the recommended numbers above will not block application operations, but may result in longer response time.
Utilizing SSD cache can significantly improve performance.
For tested models with expandable memory, the maximum amount of RAM was installed.
Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office
Suggested Maximum Users
16,250
Suggested Concurrent Users
6,500
Notes
Multiple files were opened for testing and each file was edited by 30 users simultaneously.
For tested models with expandable memory, the maximum amount of RAM was installed.
Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Virtual Machine Manager
Recommended Virtual Machine Instances
32
Recommended Virtual DSM Number (Licenses required)
32 (including 1 Free License)
Notes
The specifications vary depending on system configuration and memory size.
VPN Server
Maximum Connections
60
