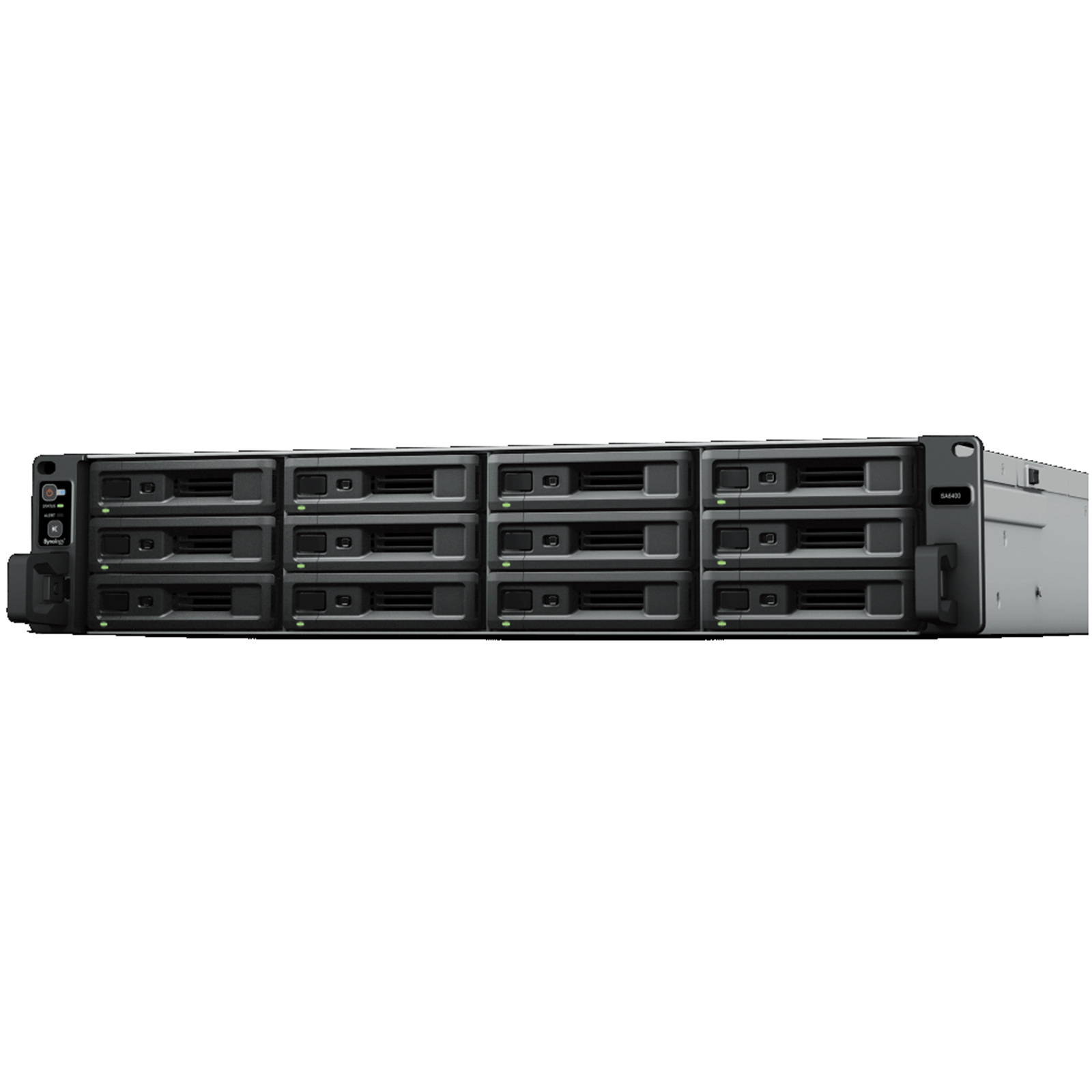

Synology RackStation SA6400 12-Bay 2U NAS Server, AMD EPYC 12-Core Upto 3.2 GHz 32GB DDR4 ECC (1024GB Max), 8x Expansion Ports (8x RX1233RP Supported), 4xGbE, 2x10GbE, 1xManagement Port, 2x USB 3.2, 5 Year Warranty
Synology RackStation SA6400 12-Bay 2U NAS Server, AMD EPYC 12-Core Upto 3.2 GHz 32GB DDR4 ECC (1024GB Max), 8x Expansion Ports (8x RX1233RP Supported), 4xGbE, 2x10GbE, 1xManagement Port, 2x USB 3.2, 5 Year Warranty
- Brand: Synology
- MPN: SA6400
- Part #: NASSYN64005
- UPC:
- Brand: Synology
- MPN: SA6400
- Part #: NASSYN64005
- UPC:
Features
Highly scalable storage for enterprise and studios
The 12-bay Synology SA6400 is designed for rapid data scaling. With support for up to 108 drives after expansion, this unit is ideal for enterprise data centers, large production studios, and growing businesses in the retail and hospitality sectors looking to tackle data-intensive projects while leaving room for future expansion.
On-demand storage expansion
The SA6400 scales up flexibly whenever you data demands do. Accommodate up to 9 times the original capacity by adding 12-bay RX1223RP expansion units as your deployment grows.
Built for high reliability
The SA6400 is designed with built-in redundancies to keep mission-critical services running, even when disaster strikes.
Out-of-band (OOB) management
Remotely power on/off, force restart, and reset your server, or view real-time and historical DSM system logs, even while the device is powered off or the primary network is down, using the dedicated out-of-band management console.
Redundant power supply
Reduce the possibility of power disruptions on a single distribution channel or power distribution unit adversely impacting data and service availability with redundant PSUs.
Failover cluster
Combine two SA6400 units into a high-availability cluster with Synology High Availability to achieve full hardware and data redundancy. Minute-level failover minimizes data loss and downtime in the event of server failure, or while performing system updates or upgrades.
Advanced networking options
The SA6400 has the flexibility to accommodate different operating environments.
Built-in fast connectivity
Two 10GbE RJ-45 ports provide rapid transfer speeds right out of the box.
Configurable networking options
Add up to 2 extra 10GbE SFP+/RJ-45, 25GbE SFP28, or Fibre Channel ports in varying configurations.
Failover and network balancing
Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.
Flexible file server
Take advantage of the SA6400's high storage capacity and expansion capability to host large amounts of data on a central repository. Provide user-friendly access to business data and set up powerful cross-site syncing to empower remote and multi-site collaboration.
A private cloud suite for file sharing
Empower your entire organization with a streamlined ability to access, share, and sync data from anywhere. Provide employees with access to corporate files through mobile apps, desktop clients, and a browser-based interface. Set granular file and folder access and sharing permissions. Maintain a full overview of file activities and track file share settings changes with detailed records in the Synology Drive Admin Console.
SMB/NFS implementation at scale
Leverage SMB or NFS protocols to provide efficient access to company files over the local network or VPN. Manage data access privileges with access control lists (ACL) through Active Directory/LDAP integration and protect files against tampering, loss, or removal with built-in snapshot technology.
Secure site-to site file and folder syncing
Make sure branches always have up-to-date copies of crucial documents and data available locally by syncing Synology systems one or two-way using Synology Drive ShareSync. Have files updated across locations each time there is a change to efficiently keep all stakeholders on the same page.
Efficient cross-site syncing through the cloud
Boost syncing speeds, cut bandwidth use, and reduce your storage footprint by leveraging the powerful connectivity of our data centers. Synology Hybrid Share intelligently synchronizes data to Synology devices.3 Large or less frequently accessed files are stored on the cloud to reduce local storage requirements, while frequently used files are stored on local devices to provide users access at LAN speeds.
Specifications
Reviews
Accessories
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular NAS Devices
Synology DiskStation DS223j 2-Bay NAS Server, Realtek Quad Core ,...
Synology DiskStation DS925+ 4-Bay NAS Server, AMD Ryzen V1500B...
Asustor Drivestor 2 Lite AS1102TL 2-Bay NAS, Quad Core 1.7 GHz,...
Ubiquiti UNAS-Pro 2U 10Gbps Rack-Mount NAS with (7) 2.5/3.5"...
Synology DiskStation DS223 2-Bay NAS Server, Realtek Quad Core,...
Synology RackStation SA6400 12-Bay 2U NAS Server, AMD EPYC 12-Core Upto 3.2 GHz 32GB DDR4 ECC (1024GB Max), 8x Expansion Ports (8x RX1233RP Supported), 4xGbE, 2x10GbE, 1xManagement Port, 2x USB 3.2, 5 Year Warranty
- Brand: Synology
- MPN: SA6400
- Part #: NASSYN64005
Product URL: https://www.pbtech.co.nz/product/NASSYN64005/Synology-RackStation-SA6400-12-Bay-2U-NAS-Server-A
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Newmarket | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
Highly scalable storage for enterprise and studios
The 12-bay Synology SA6400 is designed for rapid data scaling. With support for up to 108 drives after expansion, this unit is ideal for enterprise data centers, large production studios, and growing businesses in the retail and hospitality sectors looking to tackle data-intensive projects while leaving room for future expansion.
On-demand storage expansion
The SA6400 scales up flexibly whenever you data demands do. Accommodate up to 9 times the original capacity by adding 12-bay RX1223RP expansion units as your deployment grows.
Built for high reliability
The SA6400 is designed with built-in redundancies to keep mission-critical services running, even when disaster strikes.
Out-of-band (OOB) management
Remotely power on/off, force restart, and reset your server, or view real-time and historical DSM system logs, even while the device is powered off or the primary network is down, using the dedicated out-of-band management console.
Redundant power supply
Reduce the possibility of power disruptions on a single distribution channel or power distribution unit adversely impacting data and service availability with redundant PSUs.
Failover cluster
Combine two SA6400 units into a high-availability cluster with Synology High Availability to achieve full hardware and data redundancy. Minute-level failover minimizes data loss and downtime in the event of server failure, or while performing system updates or upgrades.
Advanced networking options
The SA6400 has the flexibility to accommodate different operating environments.
Built-in fast connectivity
Two 10GbE RJ-45 ports provide rapid transfer speeds right out of the box.
Configurable networking options
Add up to 2 extra 10GbE SFP+/RJ-45, 25GbE SFP28, or Fibre Channel ports in varying configurations.
Failover and network balancing
Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.
Flexible file server
Take advantage of the SA6400's high storage capacity and expansion capability to host large amounts of data on a central repository. Provide user-friendly access to business data and set up powerful cross-site syncing to empower remote and multi-site collaboration.
A private cloud suite for file sharing
Empower your entire organization with a streamlined ability to access, share, and sync data from anywhere. Provide employees with access to corporate files through mobile apps, desktop clients, and a browser-based interface. Set granular file and folder access and sharing permissions. Maintain a full overview of file activities and track file share settings changes with detailed records in the Synology Drive Admin Console.
SMB/NFS implementation at scale
Leverage SMB or NFS protocols to provide efficient access to company files over the local network or VPN. Manage data access privileges with access control lists (ACL) through Active Directory/LDAP integration and protect files against tampering, loss, or removal with built-in snapshot technology.
Secure site-to site file and folder syncing
Make sure branches always have up-to-date copies of crucial documents and data available locally by syncing Synology systems one or two-way using Synology Drive ShareSync. Have files updated across locations each time there is a change to efficiently keep all stakeholders on the same page.
Efficient cross-site syncing through the cloud
Boost syncing speeds, cut bandwidth use, and reduce your storage footprint by leveraging the powerful connectivity of our data centers. Synology Hybrid Share intelligently synchronizes data to Synology devices.3 Large or less frequently accessed files are stored on the cloud to reduce local storage requirements, while frequently used files are stored on local devices to provide users access at LAN speeds.
Specifications
CPU
CPU Model
AMD EPYC 7272
CPU Quantity
1
CPU Architecture
64-bit
CPU Frequency
12-core 2.9 (base) / 3.2 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Yes
Memory
System Memory
32 GB DDR4 ECC RDIMM
Memory Module Pre-installed
32 GB (32 GB x 1)
Total Memory Slots
16
Maximum Memory Capacity
1024 GB (64 GB x 16)
Storage
Drive Bays
12
Maximum Drive Bays with Expansion Unit
108 (RX1223RP x 8)
Compatible Drive Type
3.5" SATA HDD
2.5" SATA SSD
External Ports
RJ-45 1GbE LAN Port
4 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port
2 (with Link Aggregation / Failover support)
Management LAN Port
1
Max. number of LAN ports
15
USB 3.2 Gen 1 Port*
2
Expansion Port
8
PCIe
PCIe Expansion
2 x Gen3 x8 slots (x8 link)
Appearance
Form Factor (RU)
2U
Size (Height x Width x Depth)
88 mm x 482 mm x 724 mm
Weight
16.5 kg
Rack Installation Support*
4-post 19" rack
Others
System Fan
80 mm x 80 mm x 4 pcs
Noise Level*
55.5 dB(A)
AC Input Power Voltage
100V to 240V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
180.5 W (Access)
88.56 W (HDD Hibernation)
