Synology RackStation HD6500 60-Bay 4U SAS NAS Server Dual Intel Xeon 4210R 10-Core Upto 3.2 GHz 64GB ECC DDR4 (512GB Max), Expandable up to 300 bays with 4 x RX6022sas, 2x GbE, 2x 10GbE, 1x Managed Lan Port, 2x USB 3.2, 2x Expansion Port,

High Density HD6500 - Scalable high-density storage server for multi-petabyte applications

- CPU: 2 x 10-core Intel Xeon Silver
- Throughput: Over 6,688/6,662MB/s sequential read/write
- Memory: 64 GB DDR4 ECC, expandable to 512 GB
- Scalability: Expand to 300 drives with four RX6022sas expansion units

All the space you will ever need

With 60 bays in a 4U rackmount enclosure and support for up to 300 drives after expansion, the Synology HD6500 is the ideal high-density storage solution for large-scale warm and cold storage applications such as full system backups, video post-production, and large surveillance deployments.

Consistent performance at five times the size

The HD6500 is designed to scale up to 5 times in capacity with four additional RX6022sas expansion units. SAS multipath-enabled connectivity provides up to double the typical performance together and increased redundancy.

Built for high reliability

The HD6500 is built to keep mission-critical data and services accessible, so that businesses can continue to perform even when disaster strikes.

Out-of-band (OOB) management

Simplify troubleshooting by managing powered-down devices remotely and accessing critical logs through a dedicated interface.

Dual power supply

Reduce the possibility of power disruptions on a single distribution channel or PDU adversely impacting data and service availability with redundant PSUs.

High-reliability expansion architecture

Redundant SAS links prevent single points of failure from affecting other expansion units, ensuring higher data and service availability.

Powerful networking options

The HD6500 supports a large variety of networking interfaces, protocols, and configurations, whether you need fast sequential transfer, support for simultaneous connections, or high network redundancy.

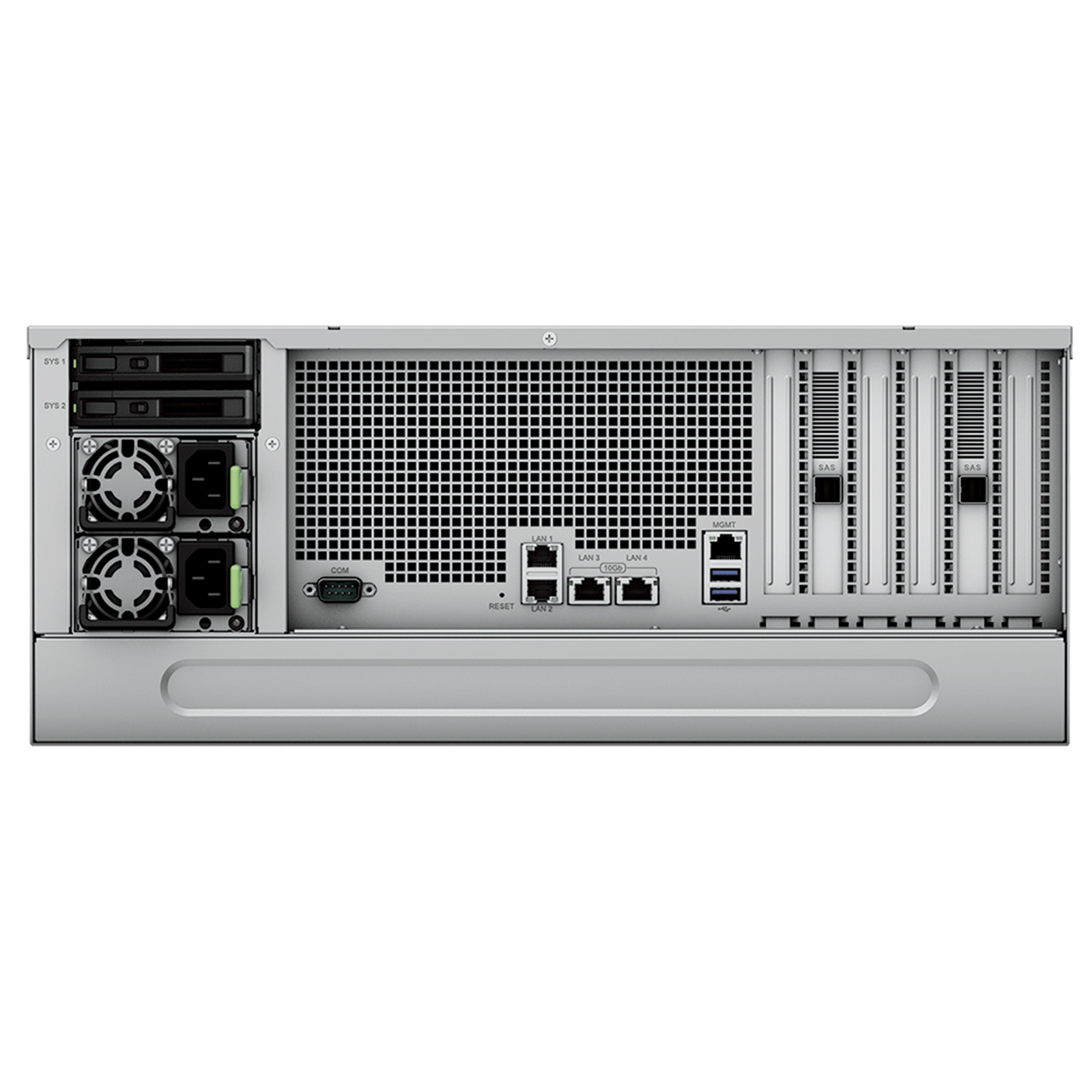

Built-in fast connectivity

Three Gigabit Ethernet and two 10GbE RJ-45 ports allow for rapid transfer speeds right out of the box.

Mix and match network ports

Add extra 10GbE SFP+/RJ-45, 25GbE SFP28, or Fibre Channel ports in varying configurations by leveraging the four expansion slots.

Failover and network balancing

Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.

Consolidate your data storage

Back up your backup solutions, bring all your files together in one place, or bring distributed surveillance deployments under central control.

Massive file server

Host and retrieve massive files from extensive archives whenever needed. Provide user friendly access and set up powerful cross-site syncing.

A private cloud suite for file sharing

Synology Drive is a private cloud management and access solution that enables remote data access, synchronization, on-demand file restoration, and backup via desktop and mobile applications. Sync data between different platforms and devices, and access your organization's files through mobile apps, desktop clients, and a browser-based interface. Set granular file and folder access and sharing permissions. Maintain a full overview of file activities and track file share settings changes with detailed records in the advanced Synology Drive Admin Console.

Cross-site syncing

Leverage SMB or NFS shares to provide efficient access to company files over the local network or VPN. Manage data access privileges with access control lists (ACL) though Active Directory/LDAP integration and protect files against tampering or removal with built-in snapshot technology.

Central backup server

Protect large numbers of PCs, servers, Synology systems, and hypervisors, or back up your backup servers with a central storage solution.

Back up Synology storage systems

Backup destination for shares and LUNs

Use Hyper Backup to back up files, LUNs, installed applications, and system configurations from tens or hundreds of Synology servers to your HD6500. Set and forget backup tasks with regular schedules, enhance security with fine-grained user permissions and encryption, reduce backup sizes with built-in deduplication, and restore data flexibly with multi-versioning.
Snapshot Replication enables configurable point-in-time snapshots of shared folders and LUNs with an RPO as low as 5 minutes and recovery within seconds.

Bare-metal backup for Synology NAS

Centrally manage bare-metal backups of all your Synology servers from a single centralized console on your HD6500. Leverage built-in deduplication technology to reduce backup sizes and multi-versioning to allow flexible restoration.

Back up Windows and Linux endpoints

Bare-metal PC, server, and VM backup

Securely back up Windows clients and servers, Linux endpoints, Synology servers, and VMware® and Hyper-V® virtual machines to the HD6500 with Active Backup for Business. Coordinate all data protection from the centralized management console and choose between bare-metal or file-level restoration, while leveraging built-in deduplication technology to reduce backup sizes.

SaaS protection with local backups

Protect full Microsoft 365 and Google Workspace accounts by maintaining complete offline copies of your crucial information and configurations with Active Backup for Microsoft 365 and Active Backup for Google Workspace.

Main surveillance storage

Manage distributed deployments of hundreds of local recording servers and thousands of IP cameras centrally.

Centralized, secure, and scalable surveillance

Flexible scaling and expansion
Connect up to 650 IP cameras4 from a selection of over 8,300 validated models to the HD6500 itself, or connect hundreds more by adding recording servers at the edge. Easily add storage as deployments grow.

Central management and recording
Manage up hundreds of Synology NAS or NVR recording servers from one host, store copies of all or some recordings centrally, and monitor all streams from one interface with Surveillance Station Centralized Management System.

Secure and private video storage
Admins can set detailed rules for who can check live streams or review recordings and footage can be protected against unauthorized access with industry-standard AES-256 encryption.

Anywhere access with multiple clients
Watch and analyze live streams or recordings from web browsers, desktop clients, or mobile apps.

Advanced deployment and analysis options

Batch and automated camera deployment
Automatically locate cameras within a set IP range or configure units in batch by importing spreadsheets and conveniently replicate settings to new cameras.

Instant event streaming on multi-location maps
Preview footage directly on multi-floor, multi-location maps when events are detected to stay on top of your deployment, with Google Maps and OpenStreetMap integration to make geographically spread-out deployments easier to monitor.

Dual recording, locally and to the cloud
Record each camera's footage to two Synology servers simultaneously for added redundancy and instant access - for instance, to a smaller device at the edge and a larger central management server. Stream feeds directly to the cloud with C2 Backup for Surveillance for fast access and convenient sharing whenever you need evidence.3

Event detection and smart analytics options
Add support for deep learning-powered algorithms and detection profiles such as intrusion detection, license plate recognition, congestion alerts, and face recognition by joining Deep Learning NVR servers to your deployment.
