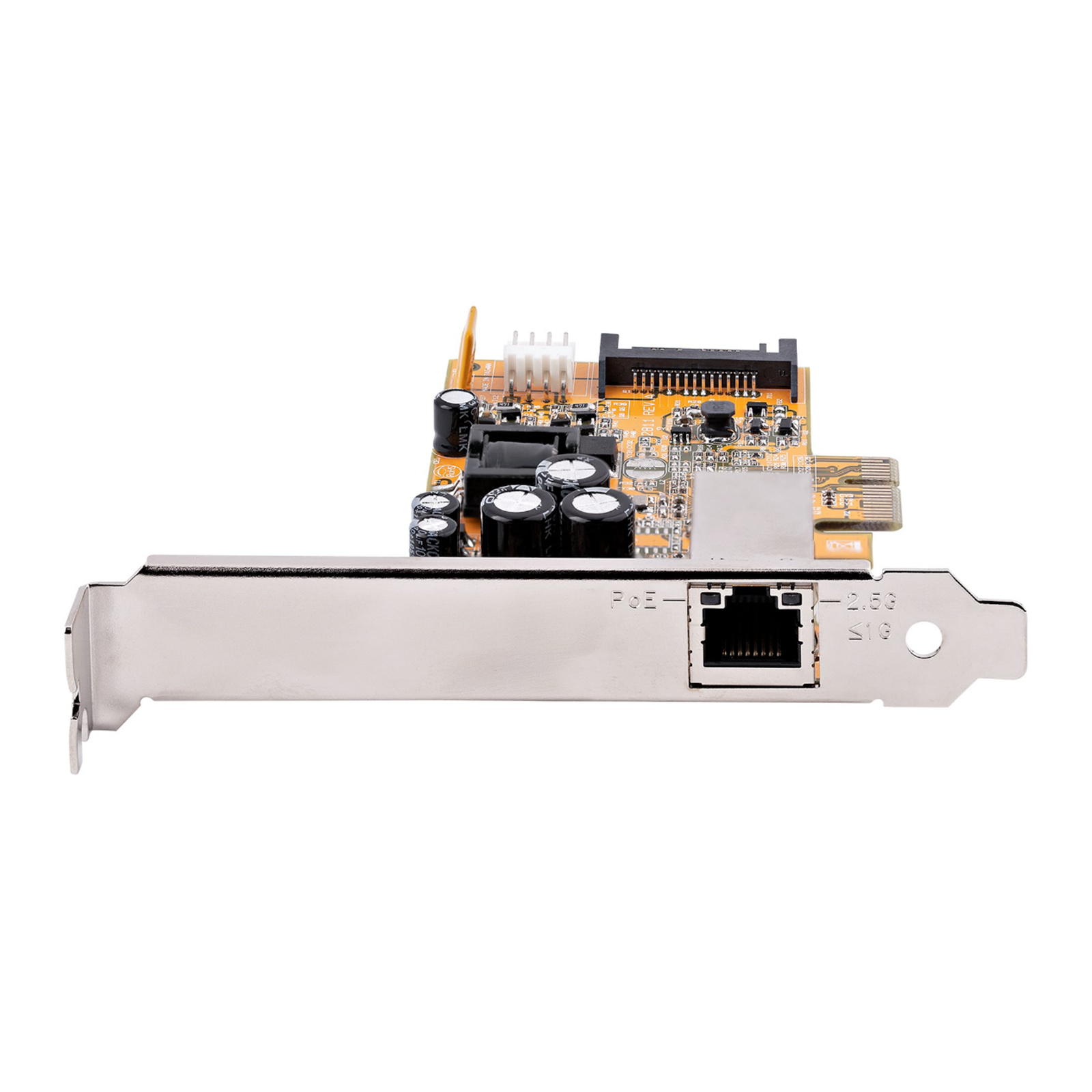

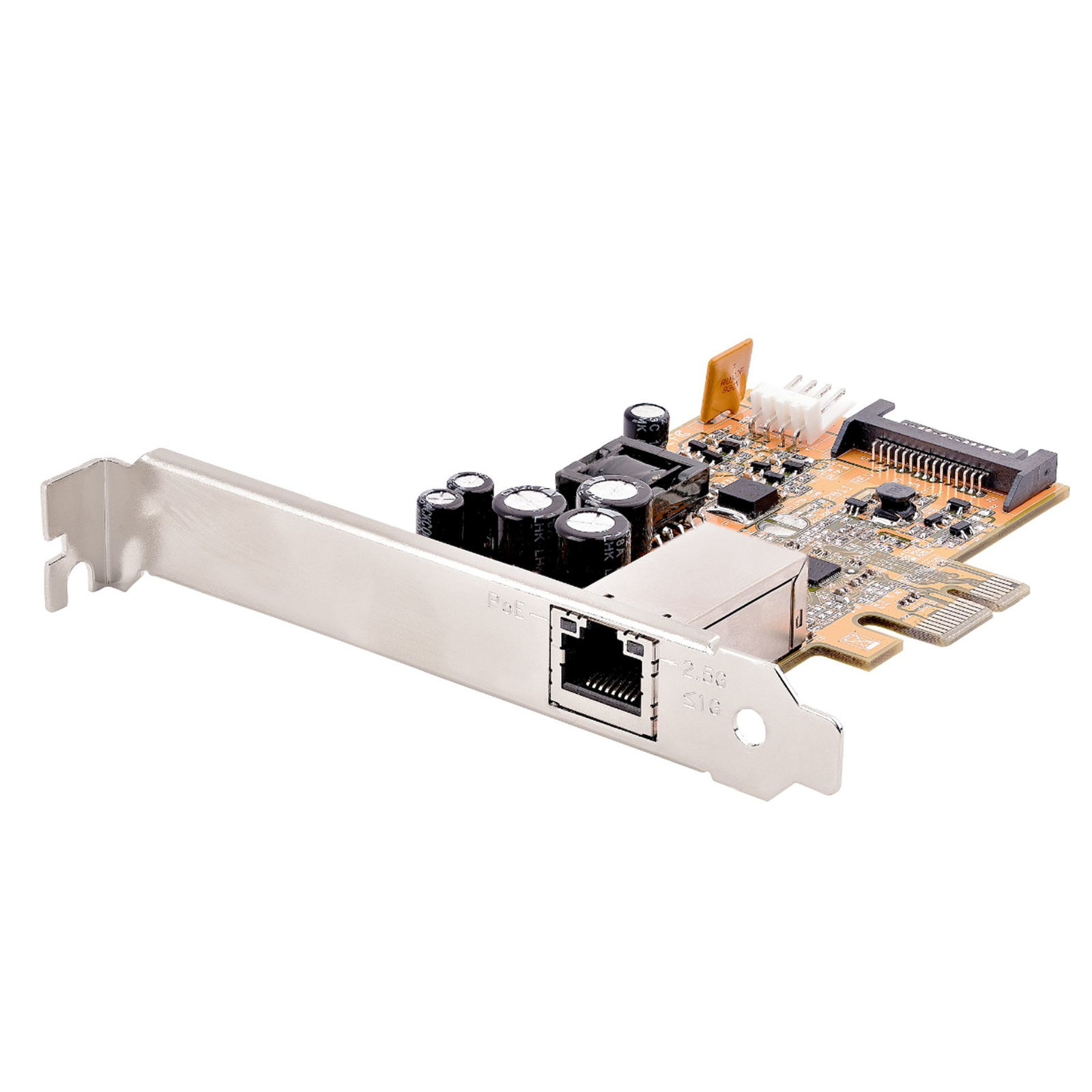

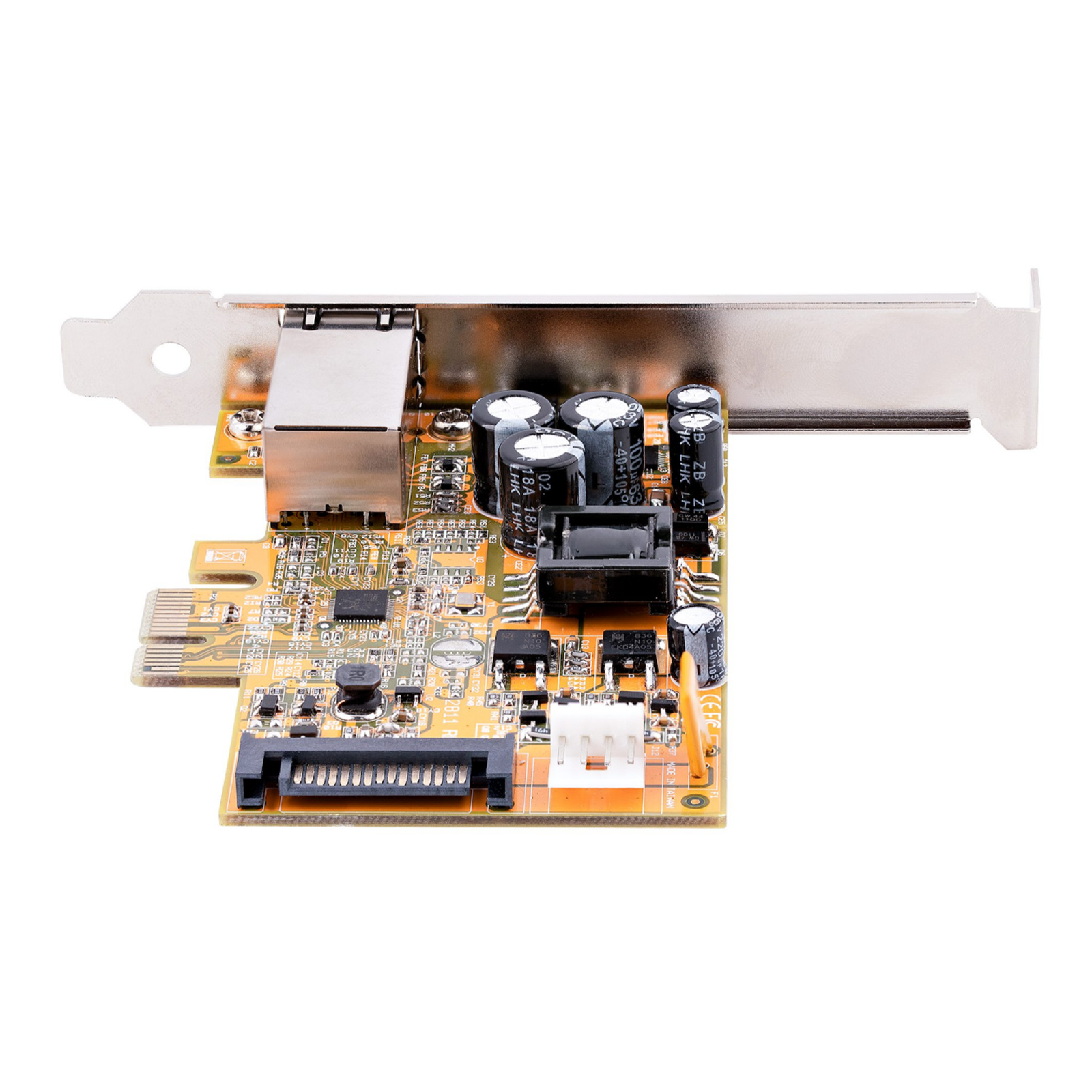

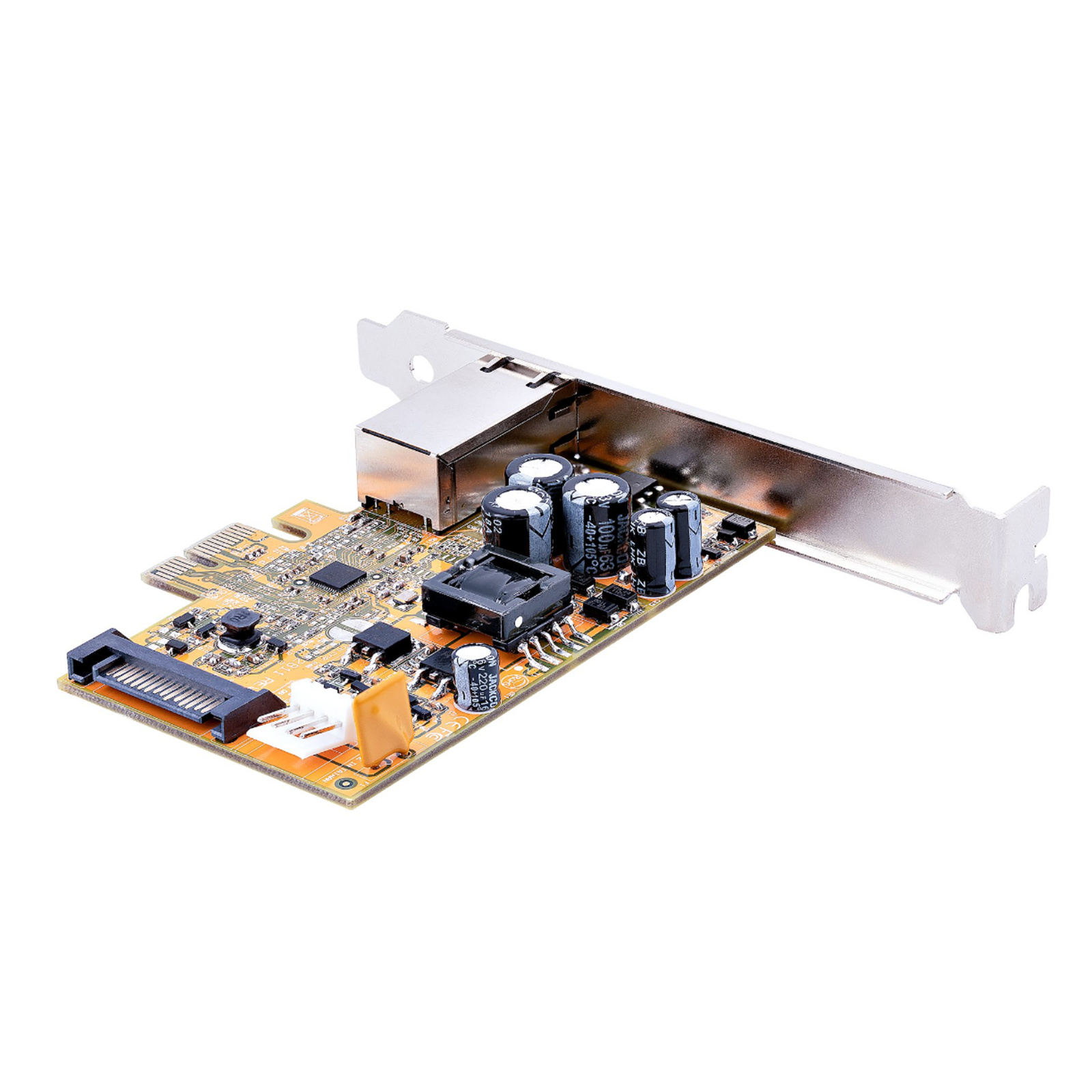

StarTech.com ST1000PEXPSE 1 Port 2.5Gbps PoE Network Card PCIe Ethernet Card w/RJ45 30W802.3at PoENICfor Desktops/Servers Network PoE LAN Adapter w/Low-Profile Bracket NBaseT Windows/Linux

PB Tech price
PB Tech price
$ 190 .43
 +GST
$ 218 .99
 inc GST

Out of stock

StarTech.com ST1000PEXPSE 1 Port 2.5Gbps PoE Network Card PCIe Ethernet Card w/RJ45 30W802.3at PoENICfor Desktops/Servers Network PoE LAN Adapter w/Low-Profile Bracket NBaseT Windows/Linux

FREE SHIPPING
PB Tech price
$ 190 .43 $ 218 .99
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Features

The Power over Ethernet PCIe network card enables multigigabit speeds of 2.5/1Gbps and 100/10Mbps. This PoE LAN adapter can provide up to 25.5 W of power to a connected device. It combines a network data connection and power over a single Cat5e (or better) Ethernet cable. This PoE NIC is the ideal solution to provide both power and network communication to a remote installation.

Versatile Network PoE Card

The PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48 V DC and 25.5 W of power to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points.

Enhance Existing Hardware

The network interface card connects to an available x1 PCIe 2.1 (or higher) expansion slot. The card is shipped with a standard-profile bracket. It includes a low-profile bracket for installation in various computer chassis. Access up to 2.5 Gbps (NBASE-T) speeds using Cat5e cabling to utilize existing networks and equipment.

Take advantage of advanced features such as Audio-Video Bridging (AVB) for transmitting real-time content over Ethernet, VLAN tagging, 16K jumbo frame, full-duplex, and PXE.

- 2.5G NETWORK CARD WITH POE: This PCI Express x1 Network Card enables 2.5Gbps network speeds and supplies (PSE) 30W PoE over a single CAT5e (or later) cable - Leverage existing copper cabling without the use of a Power over Ethernet (PoE) injector

- POE+ COMPLIANT: Card provides up to 30W PSE and 25.5W PD at 48V DC to a connected device - Supports IEEE 802.3af (PoE) and 802.3at (PoE+) to power remote devices such as access points, RFID readers, and IP cameras

- MULTI-GIGABIT CONNECTIVITY: The Network PoE Card features 2.5GBASE-T (802.3bz) and will auto negotiate to the connected device's highest possible speed - The PCIe Network Card supports Wake-on-LAN and RealWoW for remote wake up of the host computer

- TECH SPECS: 2.5Gbps/1Gbps/100Mbps/10Mbps - NBASE-T - 1x RJ45 Port - Realtek RTL8125B - IEEE 802.3af/at - 802.3az EEE - PCIe 2.1 x1 - SATA & SP4 Power Connectors - Link/PoE LED Indicators - 16K Jumbo Frame - VLAN - PXE Boot - Full and Low-Profile Brackets

- VERSATILE POE NETWORK CARD: The PCIe Ethernet Adapter supports Windows and Linux - Variable speed options and includes a low-profile bracket for Small Form Factor (SFF) systems ensures compatibility of the PoE NIC with current and legacy devices

Specifications

Connector(s)

Connector Type(s)

1 - PCI Express x1

Connector A

1 - RJ-45 (PoE+)

Internal Ports

1 - SATA Power (15 pin)
1 - 4 pin Small Power (SP4, Floppy) Male

Environmental

Operating Temperature

0°C to 55°C (32°F to 131°F)

Storage Temperature

-40°C to 70°C (-40°F to 158°F)

Humidity

5% ~ 95% RH

Hardware

Ports

1

Interface

RJ45 (Gigabit Ethernet)

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Port Style

Integrated on Card

Industry Standards

IEEE802.3at Power over Ethernet (25 W)
IEEE802.3af Power over Ethernet (15 W)
IEEE 802.3bz (2.5GBASE-T)
IEEE 802.3ab (1000BASE-T )
IEEE 802.3u (100BASE-TX )
IEEE 802.3i (10BASE-T)
IEEE P802.3az Energy Efficient Ethernet (EEE)
IEEE802.1Q (VLAN tagging)
Wake-on-LAN (WOL)
PCI Express Version 2.1

Chipset ID

Realtek - RTL8125B

Indicators

LED Indicators

1 - PoE LED: Green when supplying power
1 - 2.5G <1G LED:
2.5 Gbps Amber
1 Gbps /100 Mbps/10 Mbps Green

Packaging Information

Package Length

5.7 in [14.4 cm]

Package Width

8.1 in [20.7 cm]

Package Height

1.5 in [3.8 cm]

Shipping (Package) Weight

7.8 oz [220.0 g]

Package Quantity

1

Performance

Maximum Data Transfer Rate

2500 Mbps

Maximum Cable Length

328.0 ft [100 m]

Flow Control

Yes

Compatible Networks

2.5G/1G/100Mbps/10Mbps

Auto MDIX

Yes

PXE

Yes

Full Duplex Support

Yes

Jumbo Frame Support

16K max.

Physical Characteristics

Product Length

3.7 in [9.5 cm]

Product Width

2.5 in [6.3 cm]

Product Height

0.6 in [1.5 cm]

Weight of Product

7.8 oz [220.0 g]

Power

Output Voltage

48 DC

Software

OS Compatibility

Windows 11
Windows 10
Windows 8.1
Windows 7
Windows Server 2022
Windows Server 2019
Windows Server 2012 R2
Windows Server 2008 R2
Linux Kernel 2.4.20 and up - LTS Versions only

What's in the Box

Included in Package

1 - Network Card
1 - Low-profile Bracket
1 - Quick-start Guide

Manufacturer Part No:
ST1000PEXPSE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1.01 kg
PB Part No:
NBASTT5627649
Product Model:
ST1000PEXPSE
Warranty: 12 months *
