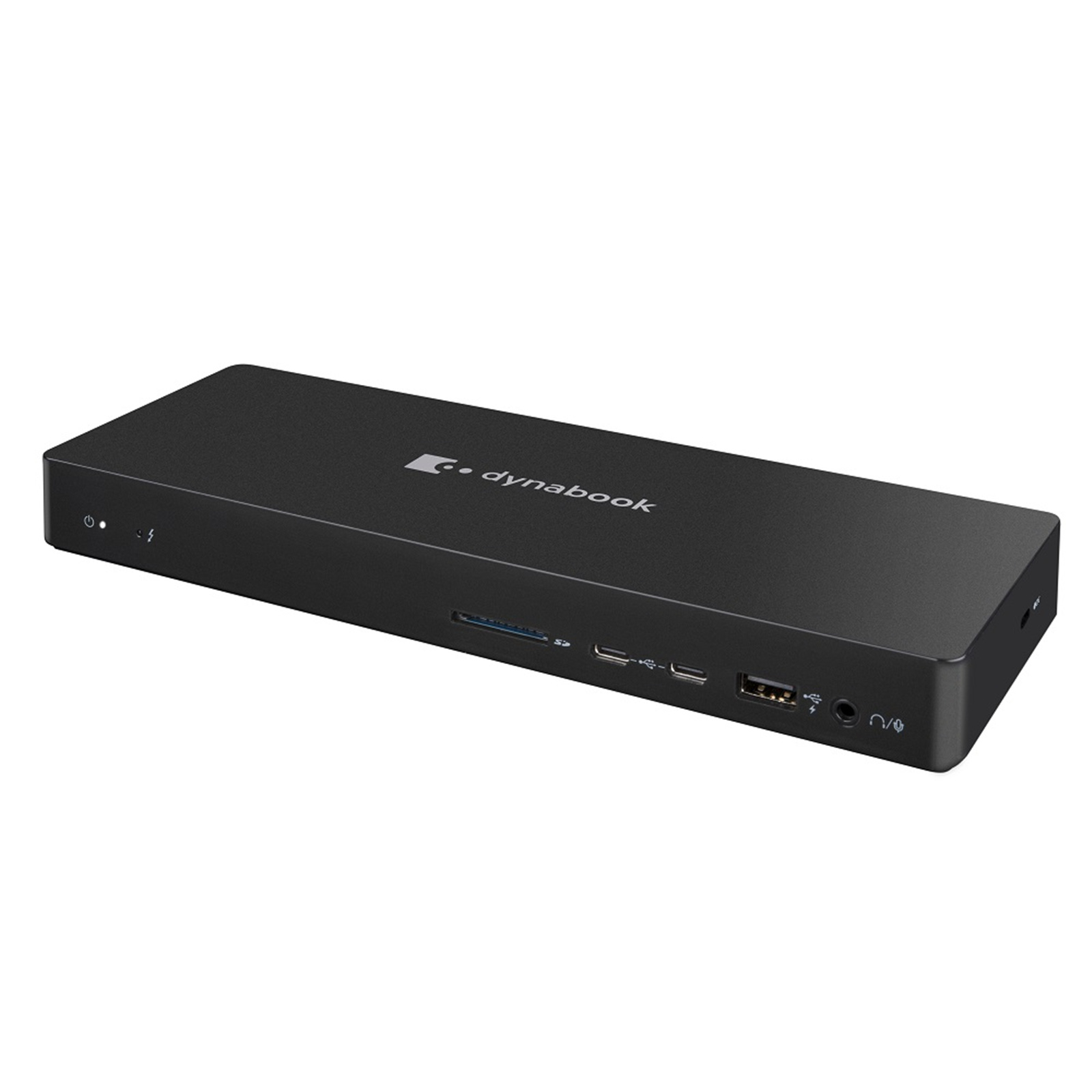

Dynabook Thunderbolt 4 Quad 4K Docking Station with 90W Power Delivery
2x DP - 2x HDMI - 2x USB-C - 4x USB 3.2 - 2x Thunderbolt 4 - 1x RJ45 - 1x 3.5mm Audio Jack - Support Microsoft Windows - 1Y Warranty
Out of stock
Dynabook Thunderbolt 4 Quad 4K Docking Station with 90W Power Delivery
2x DP - 2x HDMI - 2x USB-C - 4x USB 3.2 - 2x Thunderbolt 4 - 1x RJ45 - 1x 3.5mm Audio Jack - Support Microsoft Windows - 1Y Warranty
- Brand: Dynabook
- MPN: PS0120AA1PRP
- Part #: NBDDYB5507780
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
What PB Tech customers are saying about this product...
See More Reviews"Was very pleasantly surprised - I just unwrapped it, plugged it in to my lenovo laptop and it worked. Added dual monitors - it worked. Added printer - it worked. No problems, no me ...view more"
"i found this item very easy to set up, very portable and reliable i would highly recommend this to a future purchaser"
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Thunderbolt 4 Docking Stations
Dynabook Thunderbolt 4 Quad 4K Docking Station with 90W Power Delivery 2x DP - 2x HDMI - 2x USB-C - 4x USB 3.2 - 2x Thunderbolt 4 - 1x RJ45 - 1x 3.5mm Audio Jack - Support Microsoft Windows - 1Y Warranty
- Brand: Dynabook
- MPN: PS0120AA1PRP
- Part #: NBDDYB5507780
Product URL: https://www.pbtech.co.nz/product/NBDDYB5507780/Dynabook-Thunderbolt-4-Quad-4K-Docking-Station-wit?is-review=1
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
One cable. A world of possibilities.
Unleash extensive possibilities with Thunderbolt™ 4 dock - for comprehensive, flexible connectivity for the devices you need most.
Benefit from the combination of a full set of ports and Thunderbolt™ 4 connectivity, output from up to four 4K displays via 2x HDMI® and 2x DisplayPort™ outputs, transfer at high speeds of up to 40 Gbps (eight times faster than USB 3.0), and turn your desk into the ultimate, clutter-free workstation.
The dock even comes equipped for security with a slim lock slot.
- One cable connection
- Connect up to 4 displays simultaneously
- Up to 8K single video resolution
- Dual HDMI™ and DisplayPort™ video output
- Charges your laptop up to 90W
- Additional Thunderbolt™ 4 USB-C DFP port
- Supports PXE Boot and MAPT for compatible Dynabook laptops
Specifications
PC connection
Thunderbolt™ 4/USB Type-C™

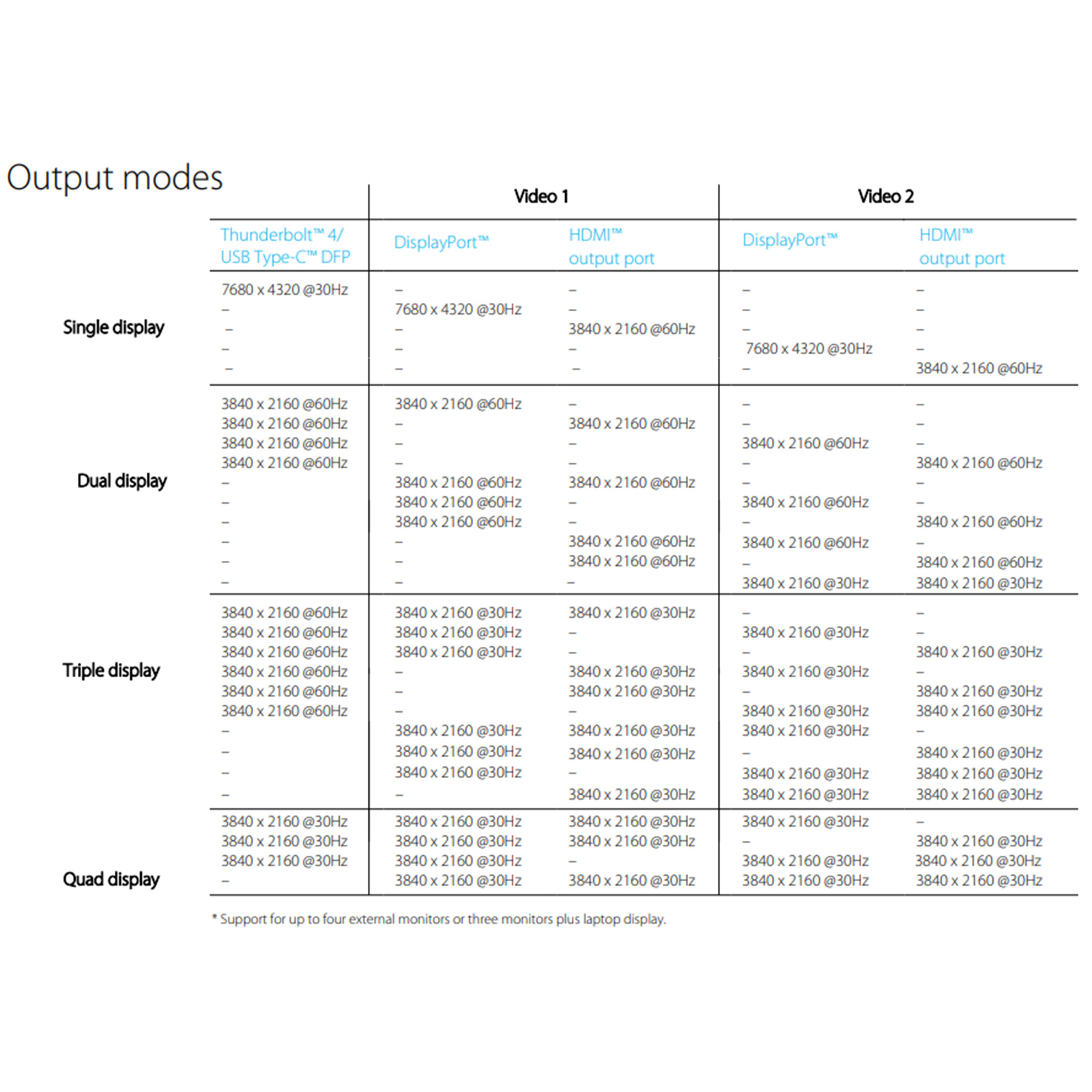

Resolution
Single output: up to 8K @30Hz via Thunderbolt™ 4/USB-C monitor or DisplayPort™
Dual output: up to 4K @60Hz
Triple output: up to 4K
Quad output: up to 4K @30Hz
Supported video mode
PC screen only, duplicate, extend, second screen only
Video interface
2x HDMI™, 2x DisplayPort™
Audio interface
1x headphone/microphone combo jack

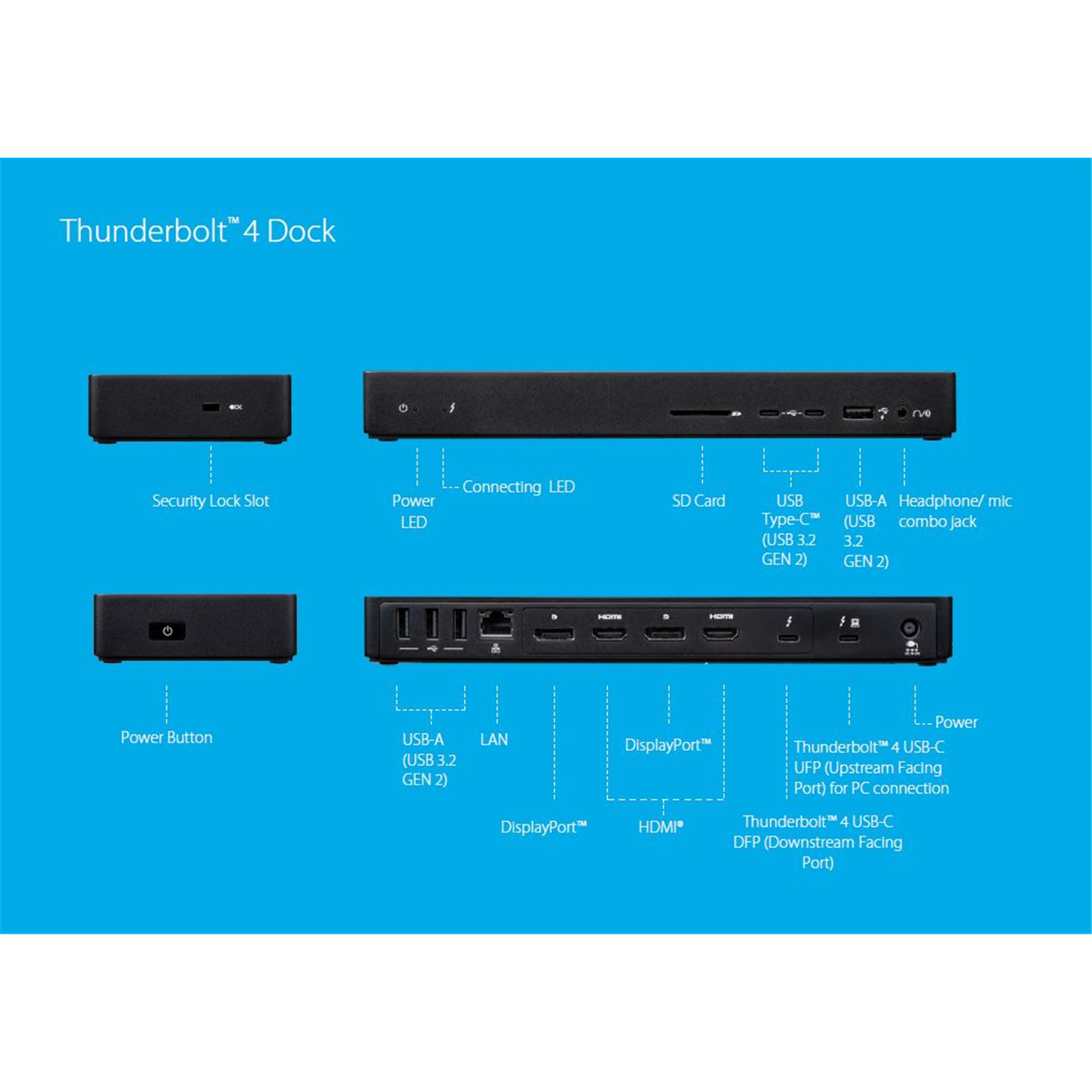

Other interface

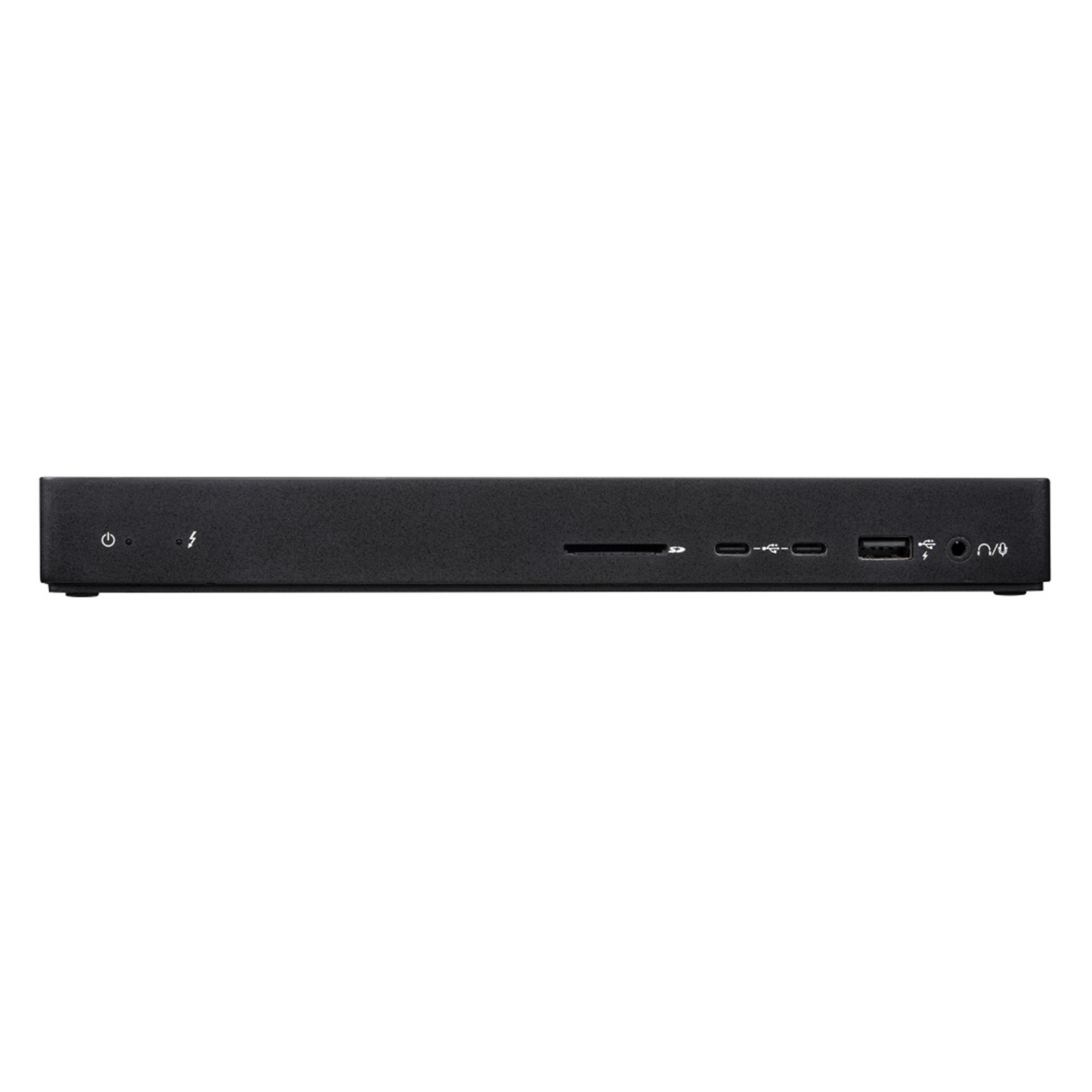

Front:1x USB-A (USB Sleep and Charge function), 2x USB-C

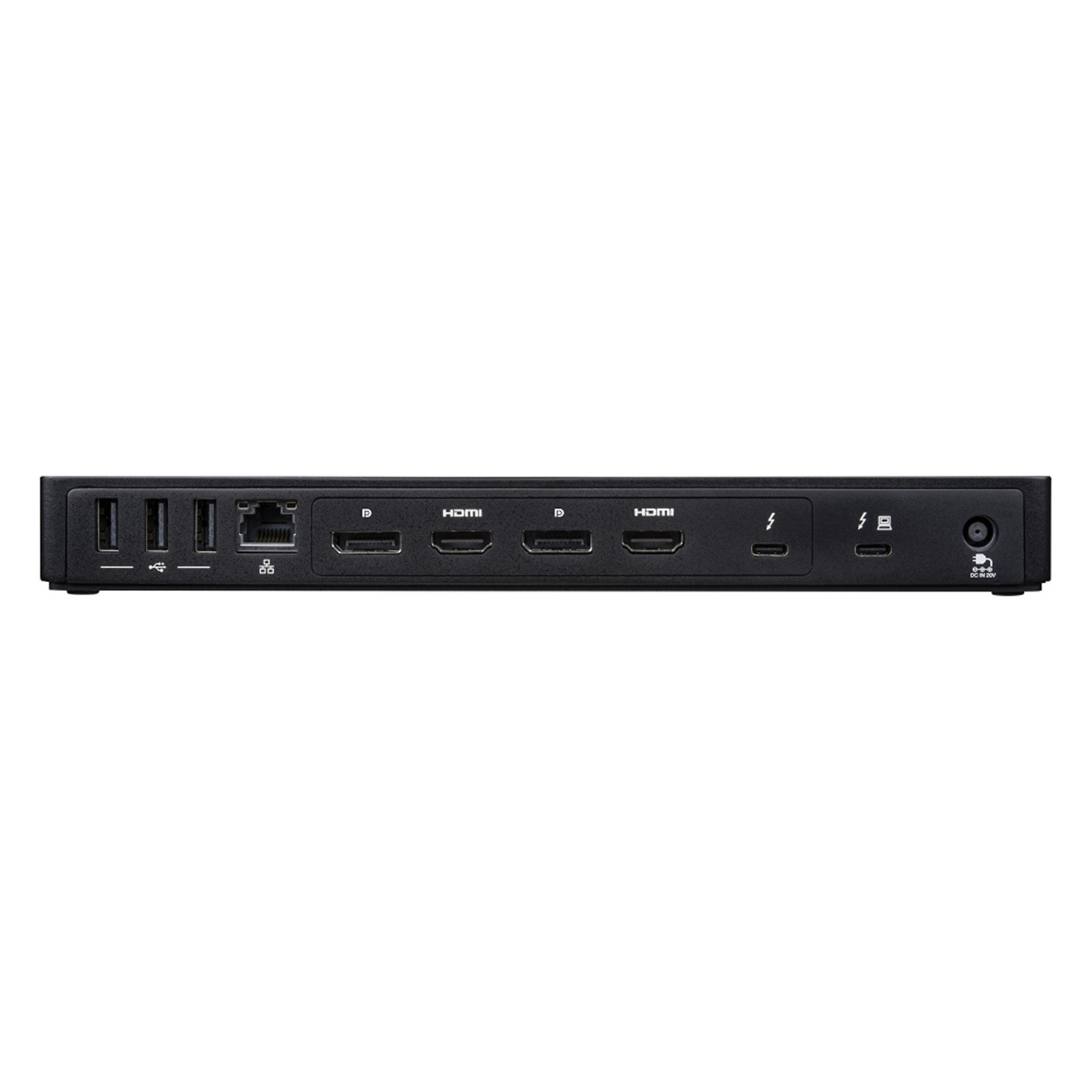

Rear: 1x Thunderbolt™ 4 USB-C DFP, 3x USB-A, DC-in jack
LAN
Gigabit LAN
SD card reader
yes
Additional features

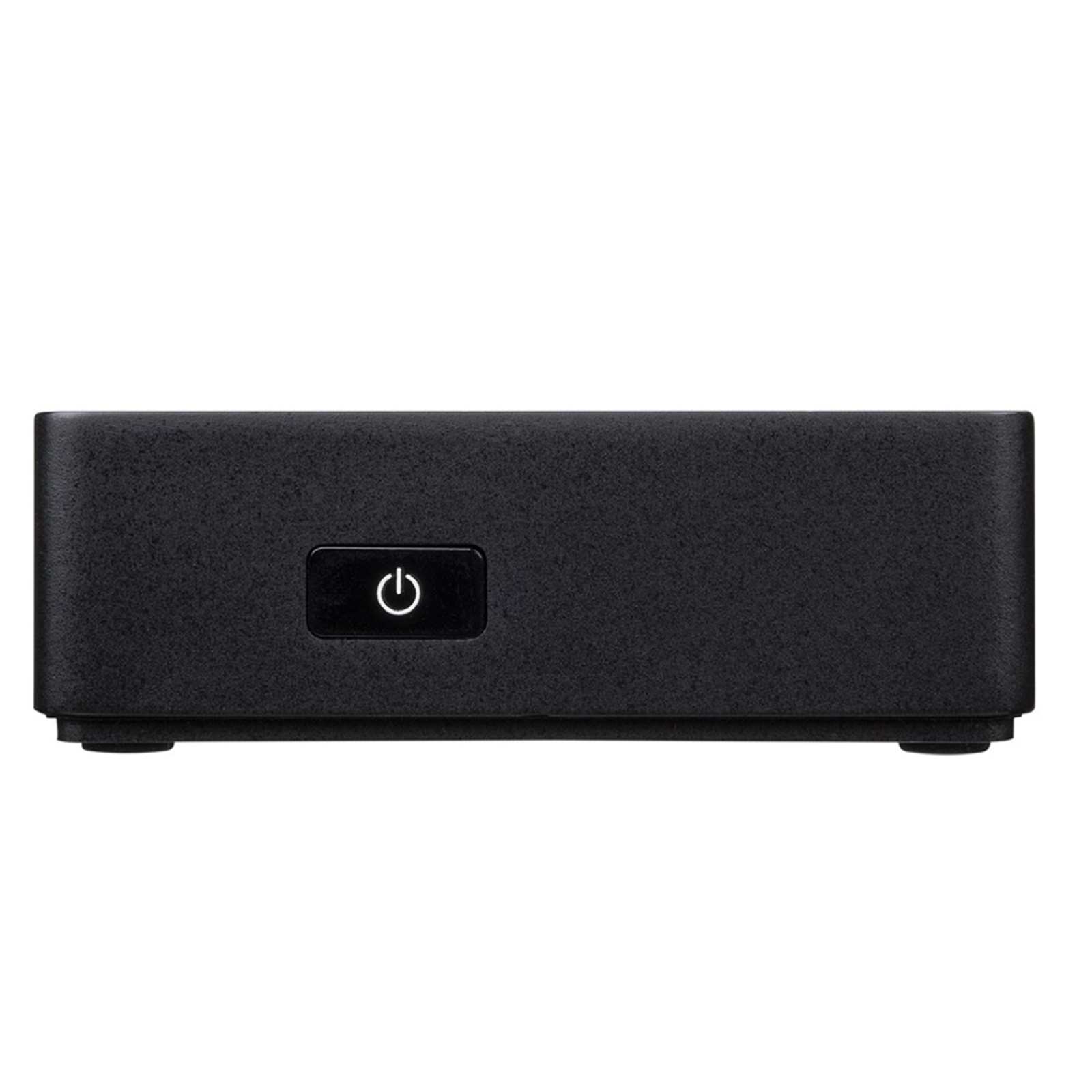

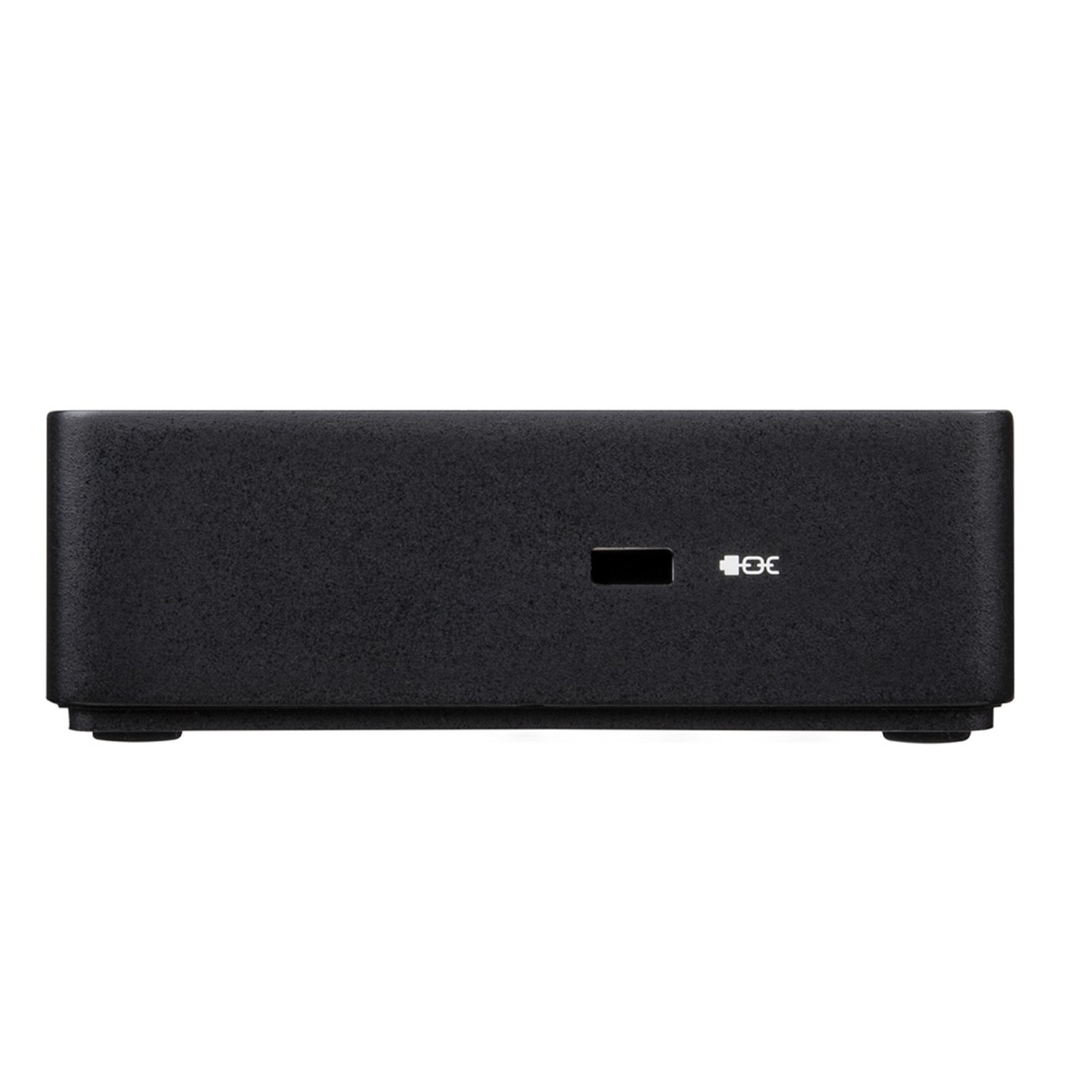

Security lock slot, power button, LED indicators (power and Thunderbolt™ 4 connection)
Thunderbolt™ 4 cable length
80 cm
Power supply
20V DC, 6.75A, 135W
Power cord
3 pin
System requirements
A Dynabook computer with a Thunderbolt™ 4/USB Type-C™ port which supports video output and power delivery, Microsoft Windows 10 or 11

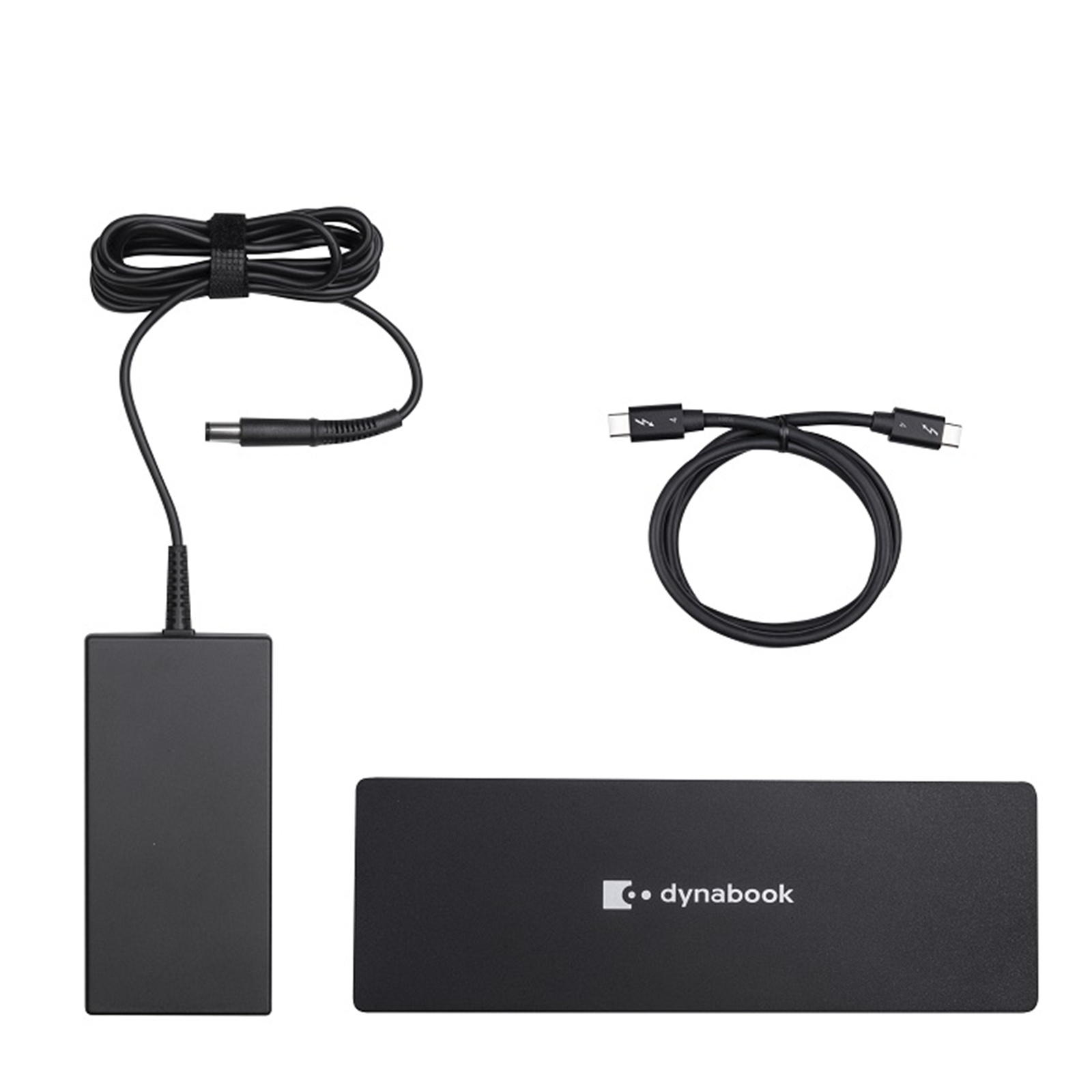

Box content
Dynabook Thunderbolt™ 4 Dock
Thunderbolt™ 4/USB Type-C™ cable (80 cm)
AC adaptor and power cord
Quick Start Guide
Warranty Leaflet
Dimensions (mm)
About 84 (w) x 245 (d) x 27 (h) mm
Weight (g)
~440g
Colour
black
