Lenovo 170W Thunderbolt 3 Workstation Docking Gen2,5 x USB Ports - Network (RJ-45) - 2 x Displayports - 2 x HDMI port -1 x Thunderbolt 3 3x 4k30hz or 4 External Displays, 650w+ 230W Power adapter

Lenovo 170W Thunderbolt 3 Workstation Docking Gen2,5 x USB Ports - Network (RJ-45) - 2 x Displayports - 2 x HDMI port -1 x Thunderbolt 3 3x 4k30hz or 4 External Displays, 650w+ 230W Power adapter
PB Tech price: PB Tech price:
$530 43  +GST $609 99  inc GST

Generating Print Page

Lenovo 170W Thunderbolt 3 Workstation Docking Gen2,5 x USB Ports - Network (RJ-45) - 2 x Displayports - 2 x HDMI port -1 x Thunderbolt 3 3x 4k30hz or 4 External Displays, 650w+ 230W Power adapter

Support Thinkpad Mobile Workstation
Part #: NBDLEN4708089
PB Tech price: PB Tech price:
$530 43 $609 99
 +GST  inc GST


Click & Collect: Click & Collect unavailable
  • Brand: Lenovo
  • MPN: 40ANY230AU
  • Part #: NBDLEN4708089
  • UPC: 193638285908
  • 4K Support: Yes
  • Display Ports: 2
  • HDMI Ports: 2
  • View more

Similar in-stock products available at PB Tech right now

Features

Lenovo 135W Thunderbolt 3 Workstation Docking Gen2

Unlock more ways to be productive with the new generation of workstation dock. The ThinkPad Thunderbolt 3 Workstation Dock Gen 2 turns your ThinkPad Mobile Workstation into a productivity powerhouse, adding support for multi 4K displays, optimised one cable charging, a slew of expansion ports, and advanced network manageability features.

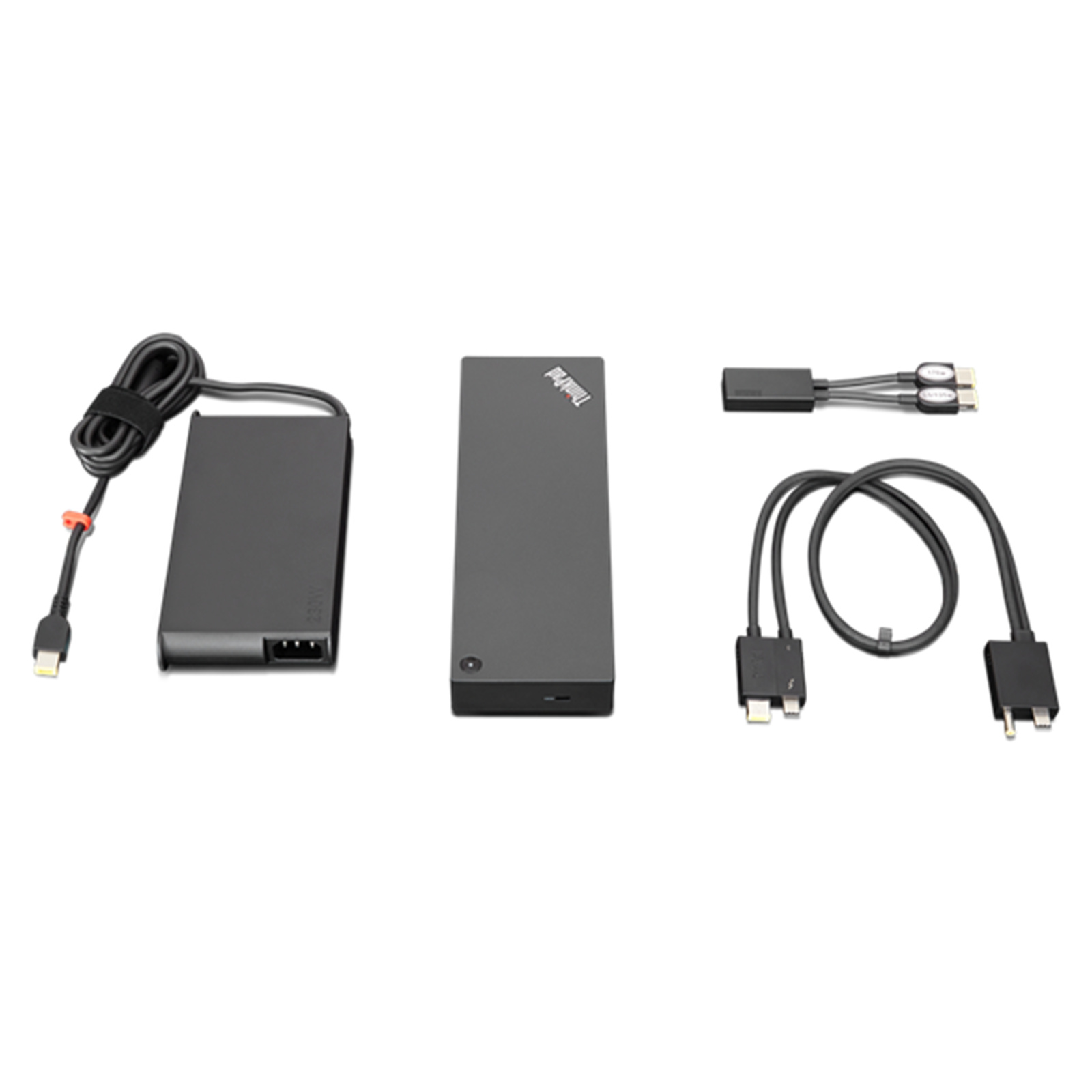

Included Accessory 230W Slim type adapter, power cord, Thunderbolt 3 Workstation dock slim tip Y cable and Thunderbolt 3 workstation dock Split cable, warranty and setup poster.

Specifications

Hardware

Max Number of External Monitors

3 including TBT monitor

Refresh Rate

4K @ 60Hz

Hardware Requirements

ThinkPad

Other Operating Environment

CRU

Agency Approvals

RCM, CB

Audio Ports

Yes

Thunderbolt Port

1

USB Ports

5

Video Ports

2 Display Port
2 HDMI
1 Thunderbolt

Ethernet

Yes

Integrated Graphics card

No

Physical Security Feature

Kensinton key lock

Physical Characteristics

Color

Black

Dimensions

Height 30mm
Length 220mm
Width  80mm

Weight

525g

Enviromental

Maximum Operating Temperature

40 Celsius

Minimum Operating Temperature

0 Celsius

Maximum Relative Humidity (%)

95

Minimum Relative Humidity (%)

5

Power

Power Button

Yes

Input Power

230W

Power Delivery

170W to MWS or 65W to Laptop

AC Plug

Slim tip

Charging Port

Slim tip or TBT Port

Output Power

Yes

Software

OS Requirements

Win10

Driver Needed

Yes, ready at Preload

Manufacturer Part No:
40ANY230AU
Brand:
Product Type:
Workstation Docking
UPC
193638285908
Product Family:
170W
Shipping Weight:
1.34 kg
PB Part No:
NBDLEN4708089
Product Model:
Thunderbolt 3
Warranty: 12 months *
