StarTech.com DKM30CHDPD USB-C Dock - DisplayPort 4K 30Hz or VGA - 65W Power Delivery Pass-Through Charging - 4-Port USB 3.1 Gen 1 Hub - Universal Laptop Docking Station with Ethernet
StarTech.com DKM30CHDPD USB-C Dock - DisplayPort 4K 30Hz or VGA - 65W Power Delivery Pass-Through Charging - 4-Port USB 3.1 Gen 1 Hub - Universal Laptop Docking Station with Ethernet
- Brand: StarTech.com
- MPN: DKM30CHDPD
- Part #: NBDSTT5476559
- UPC: 065030887038
- Brand: StarTech.com
- MPN: DKM30CHDPD
- Part #: NBDSTT5476559
- UPC: 065030887038
COMBO DEALS: Buy Together and SAVE!






Cruxtec 2m HDMI 2.0 Cable -- 18Gbps, 4K/60Hz
$7.60 +GST
$8.74


Logitech MK235 Wireless Desktop Keyboard & Mouse Combo
$50.93 +GST
$58.57


Loctek Eco Mount 10"-30" Dual Monitor Stand - Steel Tube - Black - VESA 75 & 100mm - Max Load 10KG -...
$68.69 +GST
$78.99
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular USB 3.0 Docking Stations





StarTech.com DKM30CHDPD USB-C Dock - DisplayPort 4K 30Hz or VGA - 65W Power Delivery Pass-Through Charging - 4-Port USB 3.1 Gen 1 Hub - Universal Laptop Docking Station with Ethernet
- Brand: StarTech.com
- MPN: DKM30CHDPD
- Part #: NBDSTT5476559
- UPC:065030887038

Product URL: https://www.pbtech.co.nz/product/NBDSTT5476559/StarTechcom-DKM30CHDPD-USB-C-Dock---DisplayPort-4K
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 0 | |
Penrose | 0 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Head Office | 1 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features

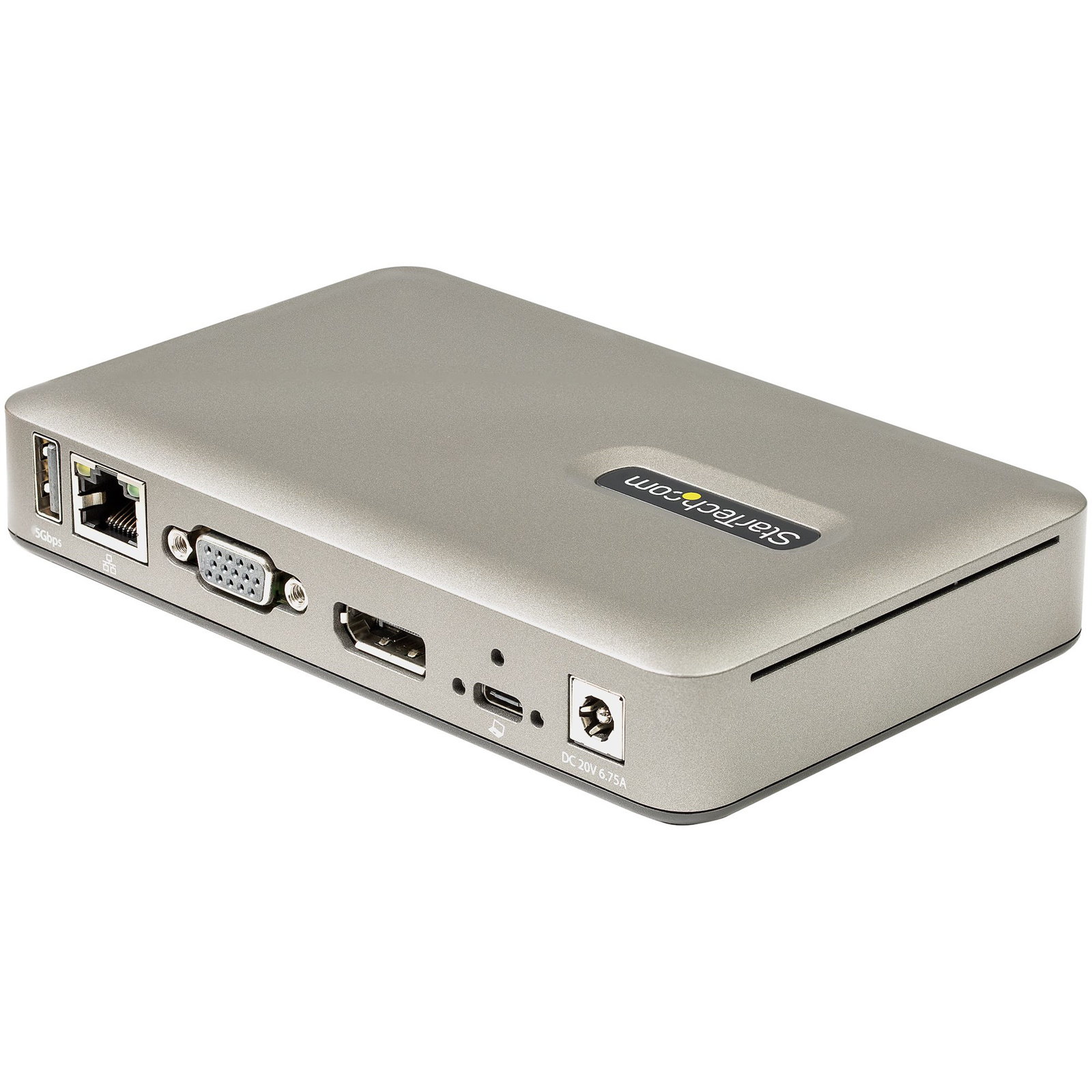

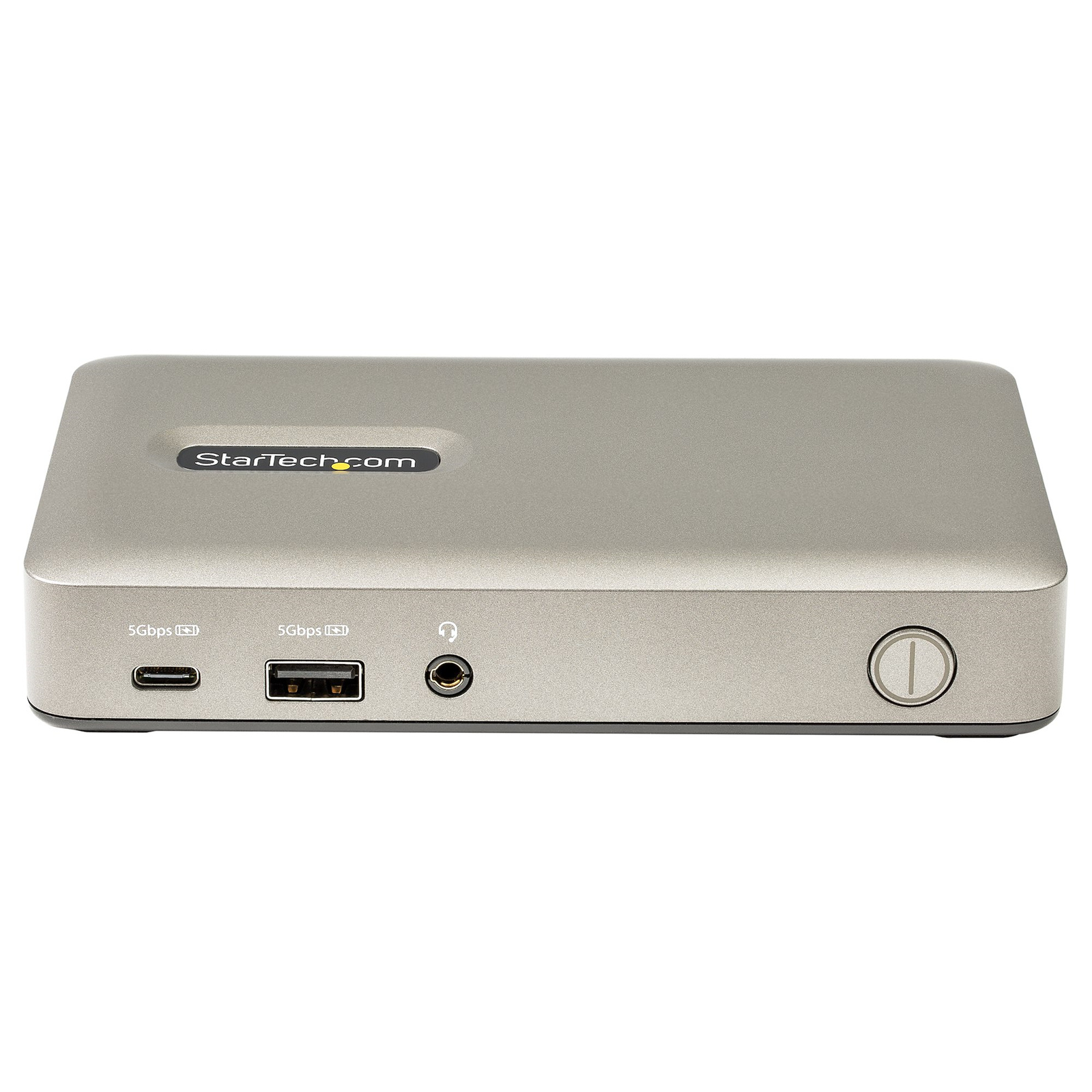

This USB-C docking station lets you use a single USB Type-C port on your laptop or tablet to add essential connectivity while charging your device via 65W USB Power Delivery 3.0. The dock enables you to connect your device to a single monitor of your choice between DisplayPort (4K 30Hz) or VGA (1080p 60Hz) video output. For peripheral connectivity the dock features three USB 3.1 Gen 1 (5Gbps) Type-A ports including a BC 1.2 port to power and charge your USB devices, a USB 3.1 Gen (5Gbps) Type-C port, a 3.5mm headset audio port, and Gigabit Ethernet.
Versatile Display Connectivity
The docking station features single video output with DisplayPort or VGA connectivity so you connect to different monitor depending upon your workstation -- ideal for home office IT deployment, where different monitors may be used by different users. The DisplayPort connection offers resolutions up to 4096x2160 (4K) 30Hz, while the VGA connection offers resolutions up to 1920x1200/1080p 60Hz.
Essential Port Connectivity
The docking station utilizes the versatile USB-C port on your computer port to provide a wide range of port connectivity to suit a variety of applications.
The dock features:
- 3x USB 3.1 Gen 1 (5Gbps) Type-A ports to connect USB peripheral devices, including a single port that supports BC 1.2 with 7.5W (1.5A) for charging tablets & smartphones, and a physically isolated HID USB port (side) that prevents electromagnetic interference (EMI) on your wireless keyboard/mouse adapters.
- 1x USB 3.1 Gen 1 (5Gbps) Type-C port to connect USB peripheral devices.
- 1x Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN).
- 1x 3.5mm 4-position CTIA/OMTP TRRS Audio Jack to connect a 3.5mm headset.
65W USB Power Delivery
The docking station includes a 119.9W power adapter and supports 65W USB power delivery. This enables the dock to charge your connected laptop or tablet. Plus, the added power enables one of the USB-A ports to support BC 1.2, for charging tablets and smartphones.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories.
The software suite includes:
Advanced Windows Layout Utility: To setup and save custom windows layouts.
Mac Address Pass-Through Utility: To improve network security.
USB Event Monitoring Utility: To track and log connected USB devices
Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
Specifications
Connector(s)
External Ports
1 - USB 3.2 Gen 1 USB Type-A (9 pin, 5 Gbps)
3 - USB 3.2 Gen 1 USB Type-A (9 pin, 5 Gbps)
1 - RJ-45
1 - DisplayPort (20 pin)
1 - VGA (15 pin, High Density D-Sub)
1 - 3.5mm Audio (4-Position, Speakers + Mic, CTIA)
Host Connectors
1 - USB 3.1 Gen 1 Type-C (24 pin, 5Gbps)
Environmental
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity
0~85% RH
Hardware
4K Support
Yes
Fast-Charge Port(s)
Yes
Displays Supported
1
Audio
Yes
Interface
USB 3.1 Gen 1
Bus Type
USB 3.1 Gen 1
Compatible Lock Slot
Kensington Standard Slot (K-Slot)
Kensington Nano Slot
Chipset ID
Genesys Logic - GL3523-S
Cmedia - CM6533
Realtek - RTL8153B
Etron - EJ279S
Parade - PS8338B
ITE - IT6516BFN
Indicators
LED Indicators
1 - Power LED (White)
Packaging Information
Shipping (Package) Weight
2.9 lb [1.3 kg]
Package Height
3.7 in [9.3 cm]
Package Length
6.6 in [16.8 cm]
Package Width
9.7 in [24.7 cm]
Performance
Maximum Digital Resolutions
DisplayPort: 4096x2160 30Hz
VGA: 1920x1200 60Hz
Type and Rate
USB 3.2 Gen 1 - 5 Gbit/s
UASP Support
Yes
Supported Charging Outputs
BC 1.2 (1.5A)
Compatible Networks
10/100/1000 Mbps
PXE
Yes
Full Duplex Support
Yes
Physical Characteristics
Color
Space Gra
Product Height
1.1 in [2.7 cm]
Weight of Product
11.0 oz [313.0 g]
Product Length
3.6 in [9.1 cm]
Product Width
5.7 in [14.5 cm]
Material
Plastic
Power
Power Source
AC Adapter Included
Power Delivery
65W
Input Voltage
110 ~ 120 AC
Input Current
1.8 A
Output Voltage
19.5V DC
Output Current
6.15 A
Center Tip Polarity
Positive
Plug Type
M
Power Consumption (In Watts)
119.9
Software
OS Compatibility
macOS High Sierra (10.13)
macOS Mojave (10.14)
macOS Catalina (10.15)
macOS Big Sur (11.0)
macOS Monterey (12.0)
Windows 8
Windows 10
Windows 11
Chrome OS
iPadOS
Android (9, 10, 11)
Linux 3.5.x to 5.15 LTS Versions only
Special Notes / Requirements
System and Cable Requirements
A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery and DP alt mode).
Note
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery and DP alt mode

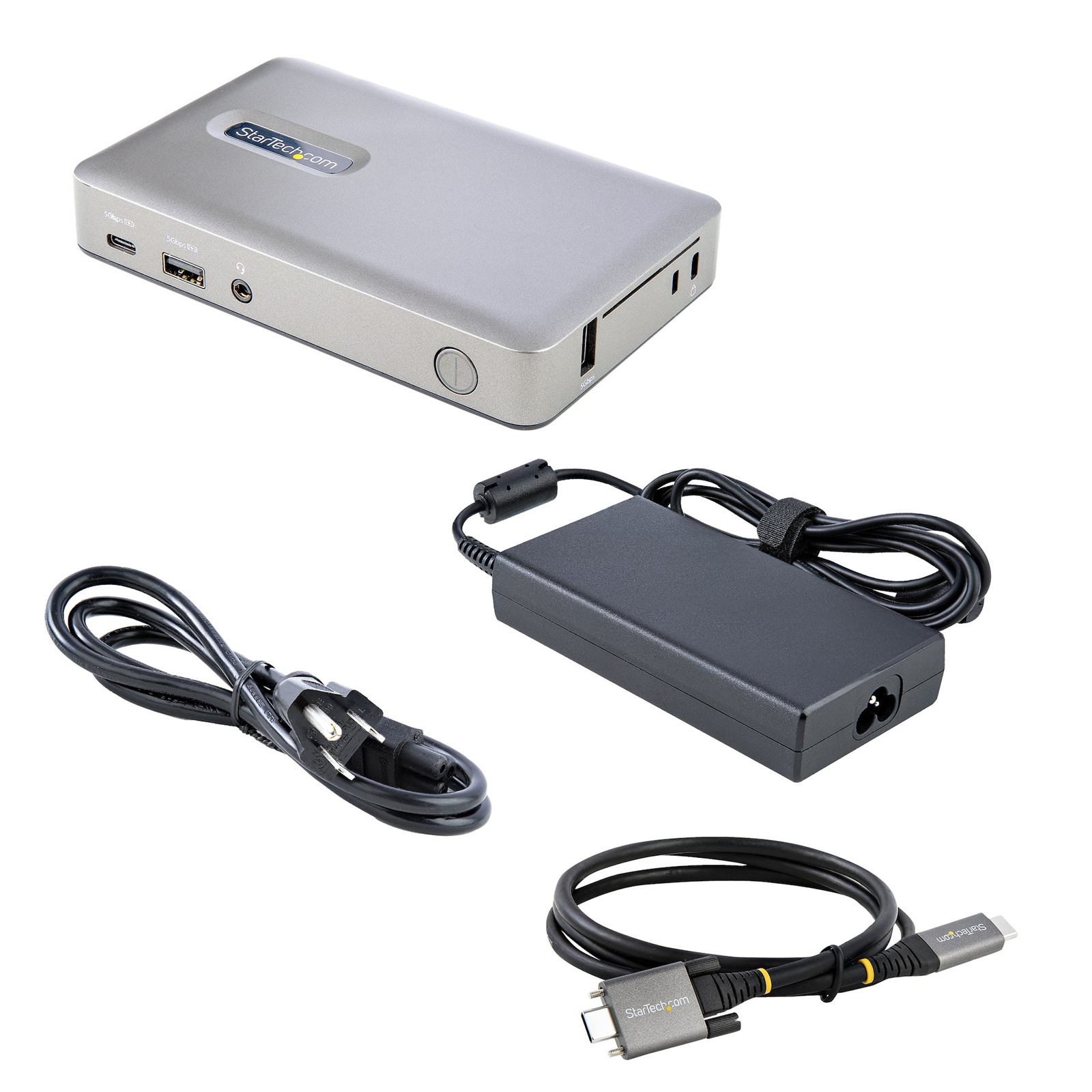

What's in the Box
Included in Package
1 - USB-C Dock
1 - 3.3 ft [1 m] Locking USB-C Host Cable
1 - Universal Power Adapter (NA/JP, ANZ)
1 - Quick-Start Guide
