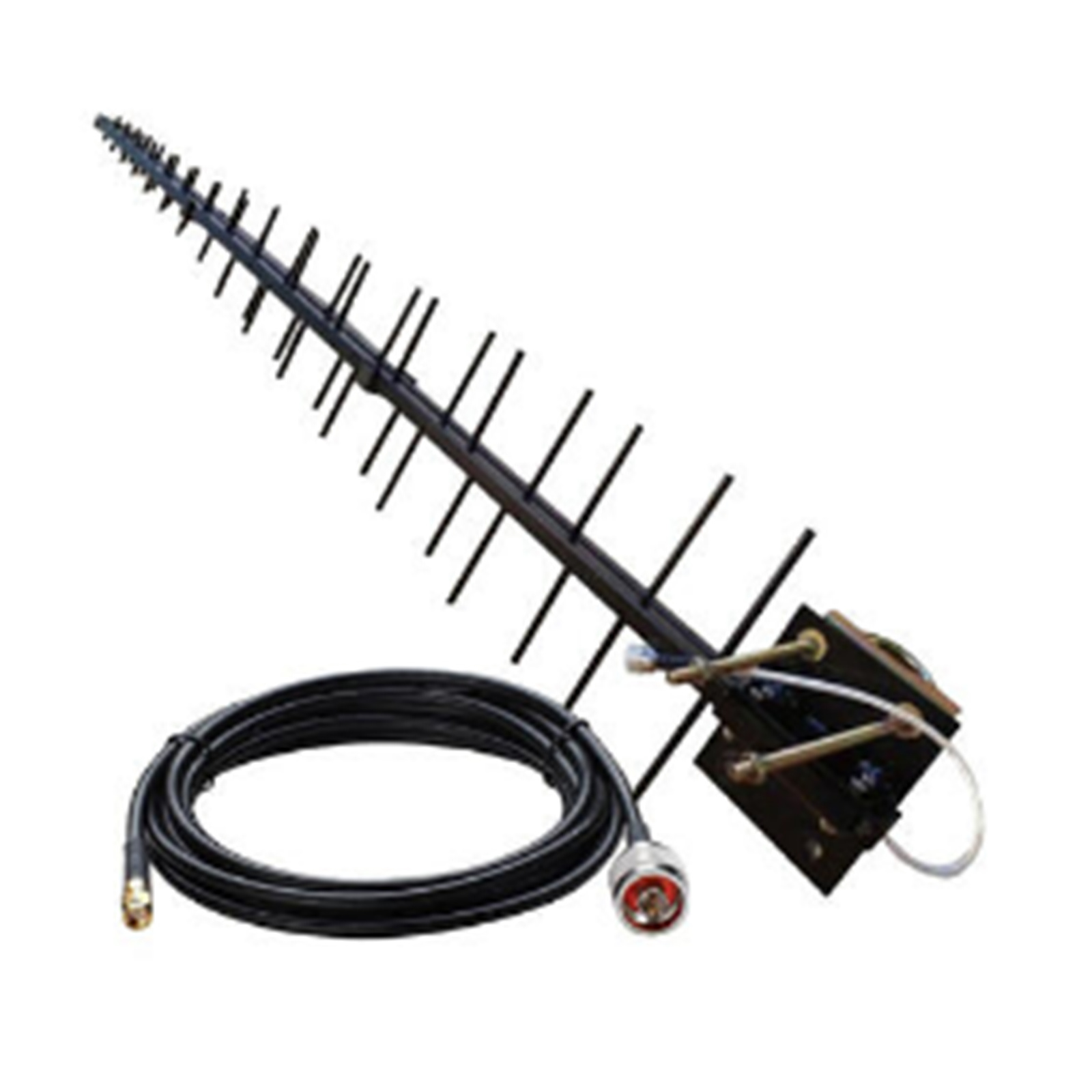

Blackhawk ANT-BH-YG-LOG-LPDA-10 LPDA Antenna 698-4000 MHz 12/14 dBi with 10m cable
Blackhawk ANT-BH-YG-LOG-LPDA-10 LPDA Antenna 698-4000 MHz 12/14 dBi with 10m cable
- Brand: Blackhawk
- MPN: ANT-BH-YG-LOG-LPDA-10
- Part #: NETBHK1006
- UPC:
- Brand: Blackhawk
- MPN: ANT-BH-YG-LOG-LPDA-10
- Part #: NETBHK1006
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Antennas





Blackhawk ANT-BH-YG-LOG-LPDA-10 LPDA Antenna 698-4000 MHz 12/14 dBi with 10m cable
- Brand: Blackhawk
- MPN: ANT-BH-YG-LOG-LPDA-10
- Part #: NETBHK1006

Product URL: https://www.pbtech.co.nz/product/NETBHK1006/Blackhawk-ANT-BH-YG-LOG-LPDA-10-LPDA-Antenna-698-4
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Operating on all 3G, 4G and 5G frequencies in New Zealand, this high-grade antenna can be used in a range of residential, commercial, and industrial mobile broadband applications on any mobile network.
This is the ideal external antenna for Cel-Fi repeater systems.
The Blackhawk LPDA Antenna provides an ideal solution for3G/ 4G voice and data applications.
With the rollout of new 4G and even 5G frequencies, traditional Yagi antennas just haven't been able to keep up.
LPDA antennas allow a single antenna to cover all frequencies with the high gain of a Yagi antenna that rural and remote areas demand.
This one antenna can be used on any mobile phone network in New Zealand, in any area without worrying about compatibility.
A Log Periodic Dipole Antenna, or LPDA for short, is a clever antenna design that provides exceptional wide-band performance by phasing a series of elements together, much like an ordinary Yagi but with each successive element of a smaller (or larger) length.
The result of this clever engineering is an antenna that holds high gain, with good tuning, across the entire cellular frequency range.
Features
12 dBi gain across lower bands 698-960 MHz
14 dBi gain across bands 1710-2700 MHz
12 dBi gain across upper bands 3300-4000 MHz
Ruggedised construction for New Zealand conditions
Fully welded, powder coat aluminium design
Stainless steel mounting clamp included
30 cm tail with pre-terminated N Female connector
Ideal for high-speed 3G and 4G LTE applications.
Specifications
Frequency Range (MHz)
698-960 / 1710-2700/ 3300-4000
Input Impedance
50 O
Peak Gain
12 / 14 dBi
VSWR
=2.5:1 /=1.8:1
Polarisation
Vertical, linear
Horizontal Beam-width
55 / 42°
Vertical Beam-width
46 / 34°
Maximum Input Power
50 W
Input Connector
N Female
Cable
30 cm cable tail
Lightning Protection
DC Ground
Radiator Material
Fully welded aluminium, black powder coat
Mounting
Stainless Steel, pole mountØ30-50 mm
Dimensions
1240 x 200 x 60 mm
Packing Dimensions
1290 x 210 x 90 mm
Weight
2.2 kg
Rated Wind Velocity
192 km/h
Operating Temperature
-40 to +65°C
