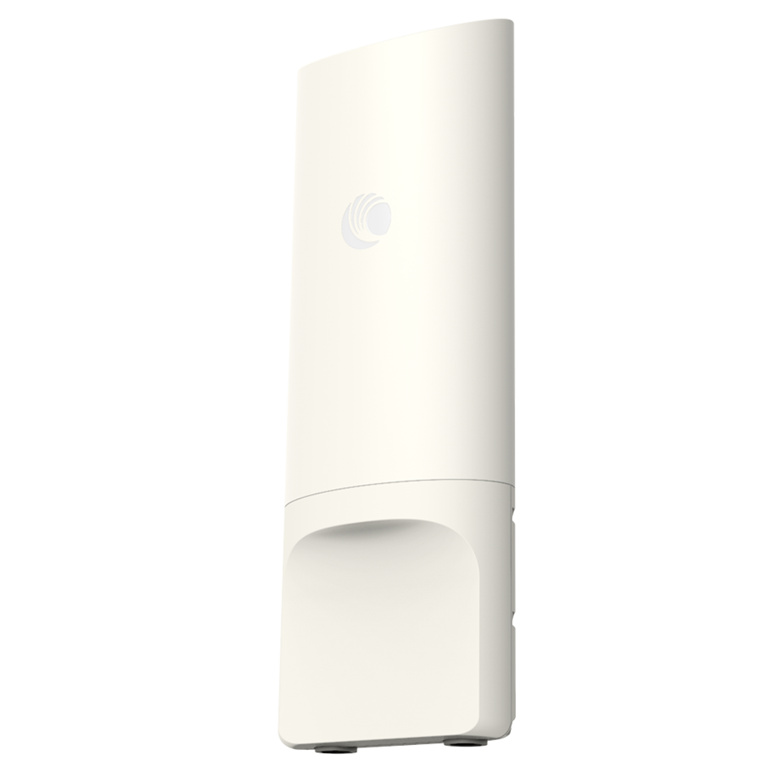

Cambium Networks Cambium Outdoor Dual radio Wi-Fi 6 AP Omni 2x2, 2.5GbE, 30V/48V out, BLE. ROW
Cambium Networks Cambium Outdoor Dual radio Wi-Fi 6 AP Omni 2x2, 2.5GbE, 30V/48V out, BLE. ROW
- Brand: Cambium Networks
- MPN: XV2-2T0
- Part #: NETCBN010155
- UPC:
- Brand: Cambium Networks
- MPN: XV2-2T0
- Part #: NETCBN010155
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Outdoor Access Points





Cambium Networks Cambium Outdoor Dual radio Wi-Fi 6 AP Omni 2x2, 2.5GbE, 30V/48V out, BLE. ROW
- Brand: Cambium Networks
- MPN: XV2-2T0
- Part #: NETCBN010155

Product URL: https://www.pbtech.co.nz/product/NETCBN010155/Cambium-Networks-Cambium-Outdoor-Dual-radio-Wi-Fi
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The XV2-2T0 is a dual radio Wi-Fi 6 access point (AP) designed for outdoor deployments in Wi-Fi hotspots, outdoor enterprise networks, hospitality, and education markets. The XV2 2T features surge suppression up to 4kV and an LTE co-existence filter.
The XV2-2T0 delivers Cambium 30VDC power out, or 48VDC for PoE devices connected to the second gigabit Ethernet port. Ideal for connecting the XV2-2T0 to a Cambium subscriber module (SM), Terragraph CN (connection node), or any IP and Ethernet device such as a security IP camera, or another Wi-Fi access point.
The new IEEE 802.11ax standard delivers higher network speeds and enables more connected devices at higher packet quality. In outdoor deployments, the IEEE 802.11ax standard delivers greater range by boosting the RF frame preamble by 3dB and improved signal quality with increased guard interval vs previous Wi-Fi technology. The XV2-2T0 is fully backward compatible with existing Wi-Fi technology and prepares a network for higher growth and greater density of Wi-Fi connected devices.
- Dual radio 802.11ax
- 2.5 GbE Uplink Ethernet
- 1 GbE with power out
- Outdoor IP67 rated, -40°C to 65°C
Unique Antenna Design
The XV2-2T0's high-efficiency antennas deliver a maximum of 9 dBi and an average of 7 dBi gain over 360 degrees in 5 GHz, delivering maximum gain and minimum nulls. The XV2-2T1 delivers a maximum of 13.5 dBi gain over a 120 degree sectored area in 5 GHz. The antenna design enables the XV2-2T access points to deliver consistent coverage for optimal user experience.
Cover Areas with Fewer Outdoor Wireless Access Points
Longer range and higher performance at range means that you can cover an area with significantly less equipment, backhaul infrastructure, cabling, installation and ongoing maintenance costs.
Combined with a highly attractive price point, both the initial investment in the solution and the total cost of ownership over its lifetime are dramatically reduced.
Downstream TCP Throughput by Distance
XV2-2T0 Outdoor Enterprise Access Point: Drag Race to One Kilometer
Specifications
Brand
Cambium Networks
Manufacturer Part Number
XV2-2T0
5 GHz Radio
802.11 a/n/ac Wave 2/ax, 2x2
2.4 GHz Radio
802.11 b/g/n/ax, 2x2
Bluetooth
BLE 4.1
SSID Security
WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open
Max PHY Rate
5 GHz radio 1,201 Mbps, 2.4 GHz radio 573.5Mbps
Ports
1 x IEEE 100/1000/2500 Mbps, 1 x IEEE 10/100/1000 Mbps Ethernet with SW configurable passive PoE output of 30V or 48V up to 30 Watts
Antenna
5 GHz 9.3 dBi, Omni; 2.4 GHz 5.3 dBi, Omni
Max EIRP
5 GHz 36 dBm, 2.4 GHz 33 dBm (EIRP may be limited by country regulations)
LTE Filter
Band 38, 40
Power Consumption
20W max, Up to 50W when powering an auxiliary device
Dimensions
582 mm x 200 mm x 80 mm (22.91 in x 7.87 in x 3.15 in)
Weight
1,200 g (2.64 lbs)
Security
Kensington lock slot
LEDs
Multi-color status LEDs
Ambient Operation Temperature
-40°C to 65°C
Storage Temperature
-40°C to 70°C
Humidity
95% RH non-condensing
MTBF
25°C = 669,174 hours, 65°C= 206,739 hours
Mount Options
Pole or wall mounting
Pole Mount Diameter
MIN 30 mm / MAX 75 mm
