Cambium Networks C050900C813 Cambium ePMP Force 300-19 5GHz 19dBi PTP/CPE Radio
Cambium Networks C050900C813 Cambium ePMP Force 300-19 5GHz 19dBi PTP/CPE Radio
- Brand: Cambium Networks
- MPN: C050900C813
- Part #: NETCBN010160
- UPC:
- Brand: Cambium Networks
- MPN: C050900C813
- Part #: NETCBN010160
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Networking





Cambium Networks C050900C813 Cambium ePMP Force 300-19 5GHz 19dBi PTP/CPE Radio
- Brand: Cambium Networks
- MPN: C050900C813
- Part #: NETCBN010160

Product URL: https://www.pbtech.co.nz/product/NETCBN010160/Cambium-Networks-C050900C813-Cambium-ePMP-Force-30
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 5 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The Cambium ePMP™ Force 300-19 combines the latest 802.11ac Wave 2 technology and the field proven scalable performance of ePMP, the Force 300-19 delivers up to 600 Mbps of capacity.
The ePMP Force 300-19 is a powerful yet affordable subscriber module compatible with the ePMP3000 Access Point and using the forward compatibility features also interoperates with the ePMP 2000 to ease the migration into the 802.11ac Wave 2 technology.
- Cambium Networks' ePMP Force 300-19 is designed to operate in high interference environments and provides superior throughput of over 600 Mbps of real user data.
- The ePMP Force 300-19 supports channel sizes from 20MHz up to 80MHz and modulates up to 256 QAM.
- The ePMP Force 300-19 supports real time spectrum monitoring with out degradation in throughput
- Configurable modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 3-5 ms.
- QoS management offers an outstanding quality for triple play services - VoIP, video, and data - and provides three levels of traffic priority.
- The Integrated 19 dBi panel antenna has a small form factor and provides excellent range.

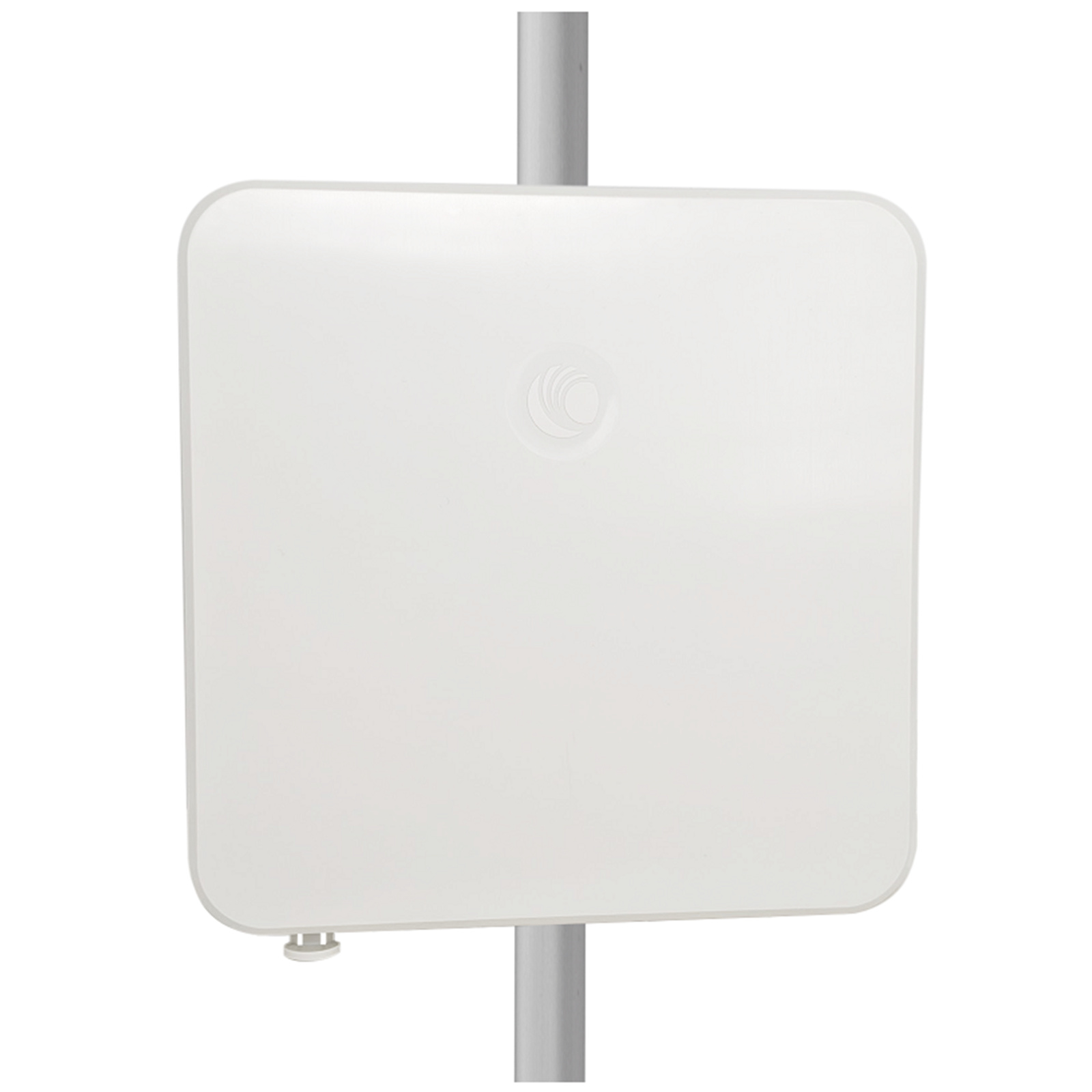

- Installations are quick and reliable supporting both pole and wall mounting.
- Perfect CPE for ePMP 3000 Point to Multi-Point solutions
- Free Cloud or on-premises network management with cnMaestro
- IP55 Outdoor Rated
Specifications
Channel Width
20/40/80 MHz
Proprietary Physical
Layer Air Interface on top of 802.11ac Wave 2 technology (2x2 MIMO/OFDM)
Channel Spacing
Configurable in 5 MHz increments
Frequency Range
Wide Band Operation 4910-5970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)
MAC Layer (Media Access Control)
Cambium Proprietary
Ethernet Interface
10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols Used
IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Network Management
IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro™
VLAN
802.1Q with 802.1p priority
Modulation
MCS0 (BPSK) to MCS9 (256 QAM 5/6)
Transmit Power Range
0 to +28 dBm (combined, to regional EIRP limit) (1 dB interval)
Antenna Gain
19dBi
3 dB Beamwidth Azimuth
14.5º
3 dB Beamwidth Elevation
12.5º
Surge Suppression
1 Joule Integrated
Environmental
IP55
Temperature
-30°C to +60°C
Weight
1.45 kg (Includes mounting bracket)
Wind Survival
180 km/hour
Dimensions
278 x 278 x 450 mm with mounting bracket attached
Pole Diameter Range
25 - 41 mm with included clamp
Power Consumption
12 W (Up to 15 W in extreme cold temperatures when heater is activated.)
Input Voltage
30 V Passive PoE (14-30 V DC Input)
Encryption
128-bit AES (CCMP mode)
