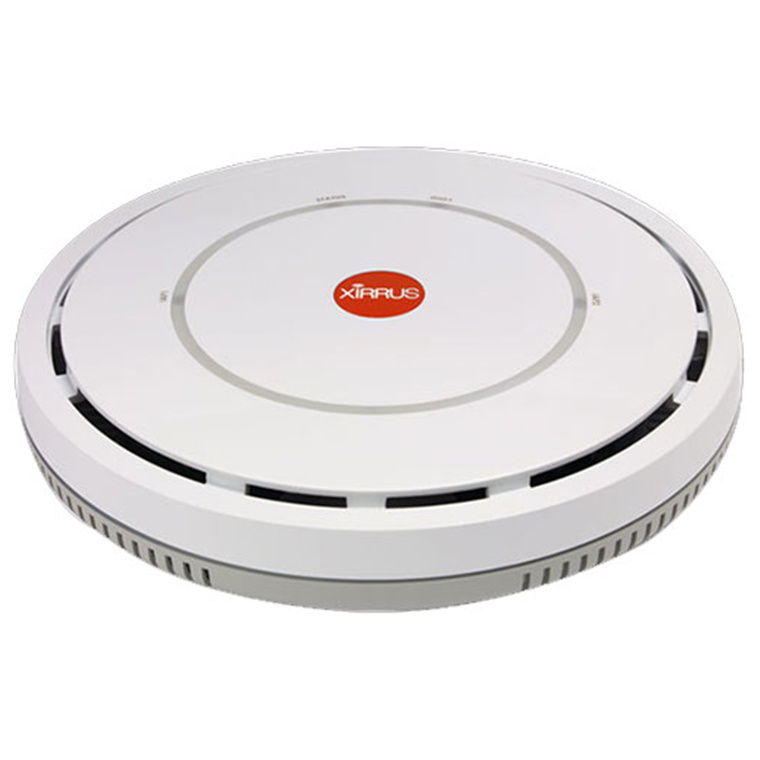

The Cambium cnPilot Xirrus XD2-230 is an Indoor 3x3 Access Point with 11ac Wave 2 5GHz + one Software Defined Radio (2.4/5GHz).
The Xirrus XD2-230 by Cambium Networks is an intelligent 802.11ac Wave 2 Access Point (AP) that is very easy to deploy and simple to manage from the cloud or on-premise. Designed with a powerful integrated controller, layer 7 application visibility and simple user access with EasyPass, this AP provides a seamless solution for environments requiring high performance Wi-Fi connectivity, such as classrooms, offices, hospitals, libraries, and more. The powerful XD2-230 AP has 3 radios, including Bluetooth Low Energy (BLE), and provides secure access for Wi-Fi users and IoT devices. This highly extensible AP easily integrates with 3rd party software through standards based JSON APIs for advanced capabilities such as location services. With a click of a button, software defined radios enable an instant increase in 5GHz capacity to adapt to changing client needs to deliver the industry's best price-performance solution.
Easy to Manage
Designed for simple deployment, zero-touch configuration gets your network up and running in minutes. Combined with the Xirrus Management System (XMS), this solution provides complete visibility and control to easily manage users, devices and applications, all from a single console.
High Performance
Packed with performance, this dual radio AP delivers 2x the 5GHz Wi-Fi capacity compared to competitive APs. Instantly boost performance with the click of a mouse to adapt to changing client devices and optimize the user experience.
Simple User Access
Xirrus EasyPass Access Services, integrated with Xirrus Management System-Cloud (XMS-Cloud): at no extra charge, provides a highly secure solution to simplify users connecting to the network, including single sign-on (SSO) with Microsoft and Google domains, self-provisioned access for guests, and easy onboarding of BYOD and headless IoT devices.
- High performance 802.11ac Wave 2 AP
- Software-defined radios enable all-5GHz deployment
- EasyPass simplifies Wi-Fi access
- Bluetooth ready AP for locationing
- SSO with Office 365 and Google Apps
- Manage from the cloud or on premise
- Supports hot stand-by mode for mission critical areas
- Supports ability to turn off radios based on schedule configuration
Specifications
Brand
Cambium Networks
Supported Standards
802.11a/b/g/n/ac (Wave 2)
Number of Radios
1x 2.4GHz / 5GHz - software defined radio (802.11a/b/g/n/ac Wave 1), 1x 5GHz (802.11a/n/ac Wave1/Wave 2), 1x Bluetooth Low Energy (BLE)
MIMO Technology
MU-MIMO: 3 streams, SU-MIMO: 3 streams
Maximum Wi-Fi Bandwidth
3.9Gbps
Bluetooth Technology
Yes
Wi-Fi Threat Sensor
Yes
Integrated Antennas
6
Maximum Associated Devices
480
Max SSIDs
16
Max VLAN
64
Wired Uplinks
2x 1 Gigabit Ethernet Ports
Maximum Power Consumption
20W - 802.3at PoE+ compatible
Operating Temperature
0-50°C, 5-90% humidity, non-condensing
Storage Temperature
-40°C to 70°C
Chassis Dimensions
7.7" diameter, 2.3" height
Weight
1.8lbs
