Cambium Networks R195W 802.11n/ac Dual Band 2.4 GHz / 5GHz 5-Gigabit Ethernet Ports Dual Radio 2x2 WLAN Router

Cambium Networks R195W 802.11n/ac Dual Band 2.4 GHz / 5GHz 5-Gigabit Ethernet Ports Dual Radio 2x2 WLAN Router
Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Cambium Networks R195W 802.11n/ac Dual Band 2.4 GHz / 5GHz 5-Gigabit Ethernet Ports Dual Radio 2x2 WLAN Router

Part #: NETCBN4623328
  • Wireless Technology: 802.11ac
  • Wireless Transmission Speed: 867Mbps
  • Wi-Fi Bands: Dual
  • Ethernet Ports: 5
  • USB Ports: None
  • Cellular Connectivity: N/A
  • View more

Product is out of stock. View similar products in-stock at PB Tech

Features

EXTEND BROADBAND WIRELESS FOR RESIDENTIAL WLAN

The r195 series provides robust Wi-Fi performance to match and exceed the expectations of the modern family anywhere on the globe. As social media, streaming media, work-from-home and school-from-home increase, the need for high-performance Wi-Fi is here today. Don't be trapped by old 802.11n technology.

With five Gigabit Ethernet ports and dual WLAN radios, the r195 series easily connects all the devices in a home, providing full home coverage from a single Wi-Fi router. For larger homes, extend coverage with WDS MESH to link two Wi-Fi routers together; for example, one r195P can extend Wi-Fi coverage to a remote r195W.

r195P delivers two ATA ports for VoIP, and Cambium 30 V power out for a Cambium PMP or ePMP fixed wireless subscriber module.

PART OF THE CAMBIUM NETWORKS WIRELESS FABRIC

Service providers that leverage the power of cnMaestro to manage a broadband network will be able to integrate the r195 into the wireless fabric. Through cnMaestro web-first interface the r195 features zero-touch configuration, stateful alarms & dashboard KPIs, and device health & inventory reports.

Manage with cnMaestro™

cnMaestro is a simple, unified, end-to-end management system for Cambium Networks' wired and wireless portfolio: Enterprise Wi-Fi, Switching, Fixed Wireless Broadband and Industrial IoT products. With zero-touch provisioning, service providers can create, provision and manage an entire network from a single dashboard. cnMaestro is flexible, allowing the choice for public cloud, private cloud or on-premises deployment. Enterprise, Managed Service Provider (MSP) and Access & Backhaul can use tailored views on the platform.

Specifications

Access Point Specifications

FCC

Ch 1-11, 36-48, 149-165

ISED

Ch 1-11, 36-48, 149-165

ETSI

Ch 1-13, 32-48

ROW

(Individual country limits may apply) Ch 1-14, 36-48, 149-165

Max PHY Rate

2.4 GHz: 300 Mbps
5 GHz: 867 Mbps

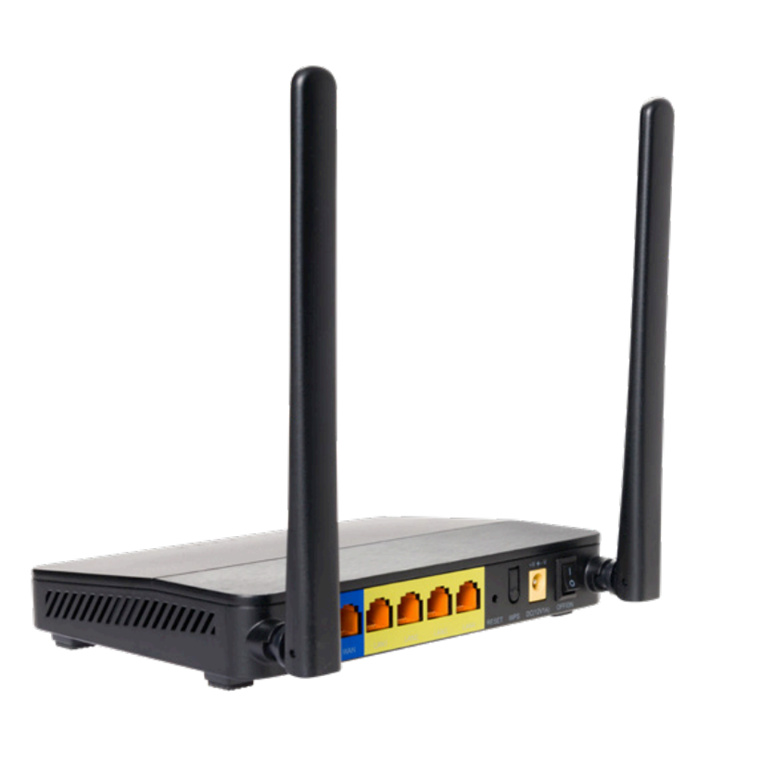

Ports

Five x IEEE 100/100/1000 Mbps Ethernet
Auto Sensin

Voice

No

Power

12 VDC, 1 A

Antenna

2.4 GHz: 5 dBi
5 GHz: 5 dBi
Omni

Max EIRP

2.4 GHz: 27 dBm
5 GHz: 20 dBm

Dimensions

190 mm x 135 mm x 40 mm
(7.48 in x 5.31 in x 1.57 in)

Weight

900 g (1.98 lbs)

LEDs

Power, WLAN, Port status LEDs

Ambient Operating Temperature

0ºC to 40ºC (32ºF to 104ºF)

Storage Temperature

-20ºC to 70ºC (-4ºF to 158ºF)

Humidity

95% RH non-condensing

Certifications (Compliance)

FCC, IC, CE, EN 60601-1-2, EN 60950-1
WEEE & RoHS

WLAN and Network Specifications

WLAN

64 clients, 8 SSIDs

Management Features

Firmware Upgrade, Web Management Interface, Local and Remote Syslog (RFC3164), Auto Provisioning, Time Synchronization, Multi User Level

Management Protocols

TR-069, TR-098, TR-0104, TR-0106, TR-0143
cnMaestro Cloud or on-premises VM, SNTP, SNMPv2, Telnet

Authentication SSID Security

WEP, WPA-PSK (TKIP), WPA2-PSK (TKIP), WPA2-PSK (AES), Open, Mixed mode

Subscriber QoS

WMM, DSCP, 802.1p

Network

NAT router or Bridge mode, DDNS, MAC address cloning, wired speed NAT Router, DHCP Server and Client, IP conflict detection, Port forwarding

Security

DMZ, Rate Limiting, Passthrough, Firewall (SYN Flooding, IP Spoofing, Smurf Attack, Ping of Death, DoS)

Standards

Wi-Fi Protocols

VHT MCS rates, 16/64/256-QAM, 20/40/80 MHz
AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO Power Save, MRC, BPSK, QPSK, CCK, DSSS, OFDM,
IEEE 802.11 a/ac/b/d/e/g/h/i/n

Other Network Protocols

DHCP/PPPoE, HTTP Server for Web Management, TFTP/HTTP for Auto Provisioning, DHCP Option Codes for SIP
(RFC3361), DNS/DNS SRV (RFC1706 and RFC 2782), IEEE802.1Q VLAN, 802.1P, DSCP, IGMPv2 snooping, PPTP/L2TP VPN

r195P Telephony Specifications

IP Signaling

SIP V2 (RFC3261/3262/3263/3264)

Voice CODEC

G.711 (A-law, µ-law), G.722,G.723, G.729

FAX over IP

Real Time FAX over IP via T.38
T.30 Fax with G.711

Voice Features

Adaptive jitter buffer management
Voice activity detection
Comfort noise generation
Echo cancellation
Interactive voice response

Call Features

3-way conference
Call hold, call forwarding, call transfer, call waiting
Speed dial, Hotline, Dial plan
Caller ID, Black list, Call log

Manufacturer Part No:
PL-R195WANA-RW
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
NETCBN4623328
Product Model:
R195W
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
