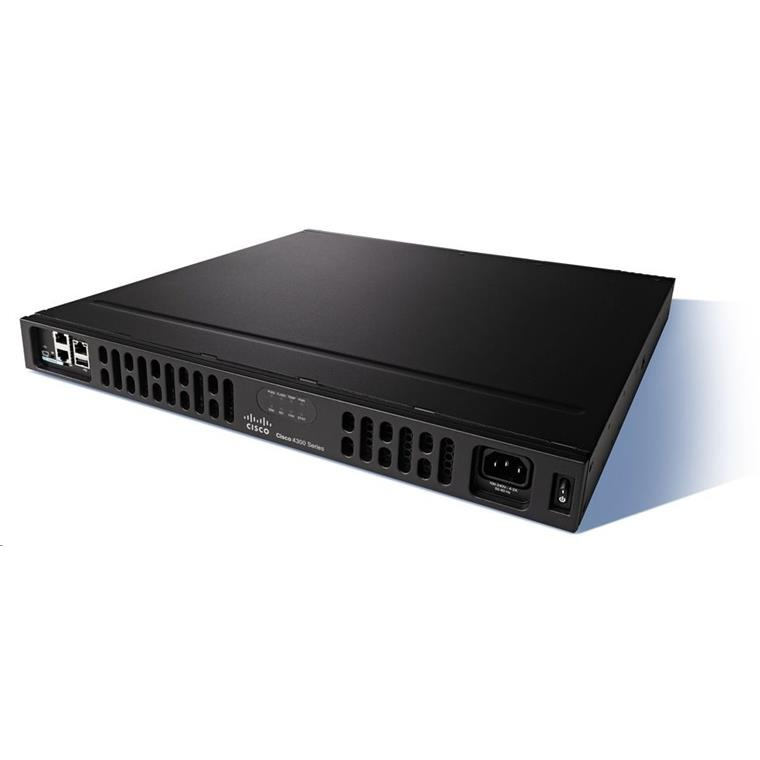

Cisco ISR 4331 AX Bundle

PB Tech price
PB Tech price
$ 9,006 .09
 +GST
$ 10,357 .00
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Cisco ISR 4331 AX Bundle

  • Brand: Cisco
  • MPN: ISR4331-AX/K9
  • Part #: NETCIS2796272
  • UPC:
PB Tech price
$ 9,006 .09 $ 10,357 .00
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: Cisco
  • MPN: ISR4331-AX/K9
  • Part #: NETCIS2796272
  • UPC:

Wireless Technology

N/A

Ethernet Ports Per Unit

2

USB Ports

Yes

Wireless Transmission Speed

300Mbps

WiFi Bands

N/A

Cellular Connectivity

4G (Single SIM)

HyperFibre Compatible

No

Coverage Area

N/A

Features

Cisco ISR4331-AX/K9

- 2 Gigabit Ethernet ports, 2 SFP-base ports
- 1 Enhanced service-module slots, Advanced Services Bundle
- 2 NIM slots, 1 onboard ISC slots
- L2TPv3, BFD, MPLS, VRF, VXLAN, LISP, OTV, VPLS, EoMPLS
- 4GB RAM, 4GB flash memory,2 USB ports
- Pay-as-you-grow performance model, up to 300Mbps system performance

Cisco Intergrated Service Router 4331 is ideally designed for the small to mid-size enterprise branch environment, delivers advanced services and unprecdent level of WAN intelligence. Cisco ISR4331 combines 2 dual mode Gigabit Ethernet ports and PVDM4 DSP for voice and video services, two network modules, one integrated services card slot and one service module slots which you can add a Gigabit Ethernet switch or maybe a Cisco UCS e-series single blade server module to run virtualized applications.Fully support for the OnePK software development kits means mutual awareness between both network and applications. Application visibility and control are natively available on the router, so you can measure user experience without external probes.

Performance is the key to enabling advanced branch services or scaling across the enterprise. With IOS XE and dedicate control, data, and service CPUs, these platform is unmatched in the industry.ISR 4331 delivering 100Mbps-300Mbps performance on demand,with pay-as-you-grow performance, you can increase forwarding capacity when needed, so the platform performance growth with your business, you only pay for the performance you need. This is literally routing redefined.

Specifications

Aggregate Throughput
100 Mbps to 300 Mbps

Total onboard WAN or LAN 10/100/1000 ports
3

RJ-45-based ports
2

SFP-based ports
2

Enhanced service-module slots
1

Doublewide service-module slots
0

NIM slots
2

OIR (all I/O modules)
Yes

Onboard ISC slot
1

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes)
4 GB

Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)
16 GB

Default memory DDR3 ECC DRAM (data plane)
NA

Maximum memory DDR3 ECC DRAM (data plane)
NA

Default memory DDR3 ECC DRAM (control/services plane)
NA

Maximum memory DDR3 ECC DRAM (control/services plane)
NA

Default flash memory
4 GB

Maximum flash memory
16 GB

External USB 2.0 slots (type A)
1

USB console port -type B mini (up to 115.2 kbps)
1

Serial console port - RJ45 (up to 115.2 kbps)
1

Serial auxiliary port - RJ45 (up to 115.2 kbps)
1

Power-supply options
Internal: AC and PoE

Redundant power supply
N/A

AC input voltage
100 to 240 VAC autoranging

AC input frequency
47 to 63 Hz

AC input current range, AC power supply (maximum)
3 to 1.3A

AC input surge current
60 A peak and less than 5 Arms per half cycle

Typical power (no modules) (watts)
42

Maximum power with AC power supply (watts)
250

Maximum power with PoE power supply (platform only) (watts)
530

Maximum endpoint PoE power available from PoE power supply (watts)
250
Manufacturer Part No:
ISR4331-AX/K9
Brand:
Product Type:
Bundle
UPC
-
Product Family:
ISR
Shipping Weight:
2 kg
PB Part No:
NETCIS2796272
Product Model:
4331
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
