Cisco Meraki MA-ANT-MX MERAKI WIRELESS MX REPLACEMENT ANTENNA
Out of stock
Cisco Meraki MA-ANT-MX MERAKI WIRELESS MX REPLACEMENT ANTENNA
- Brand: Cisco Meraki
- MPN: MA-ANT-MX
- Part #: NETCIS3289304
- UPC:
- Brand: Cisco Meraki
- MPN: MA-ANT-MX
- Part #: NETCIS3289304
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Antennas
Cisco Meraki MA-ANT-MX MERAKI WIRELESS MX REPLACEMENT ANTENNA
- Brand: Cisco Meraki
- MPN: MA-ANT-MX
- Part #: NETCIS3289304
Product URL: https://www.pbtech.co.nz/product/NETCIS3289304/Cisco-Meraki-MA-ANT-MX-MERAKI-WIRELESS-MX-REPLACEM
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features

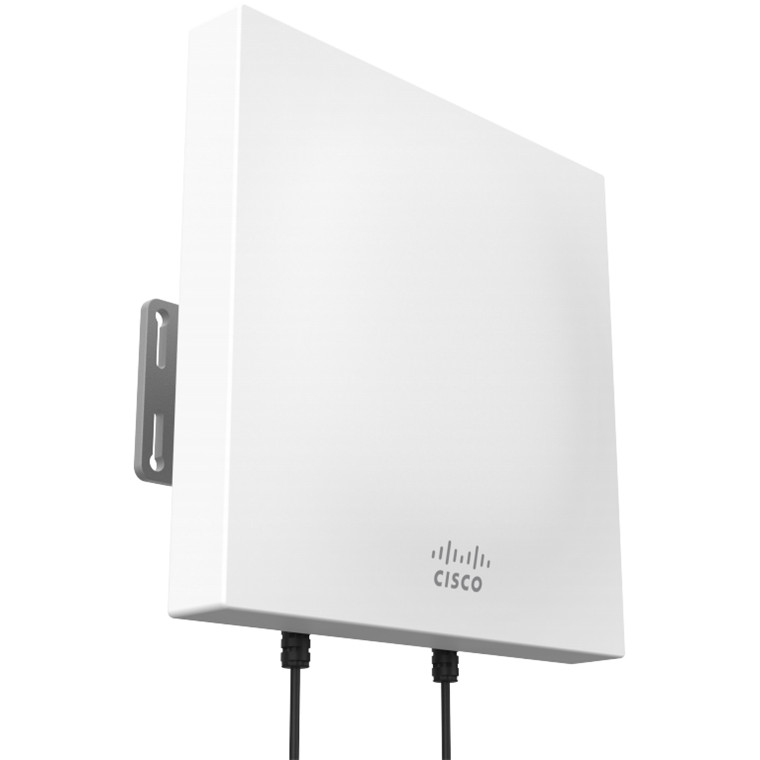

Meraki Dual-Band Patch Antenna, 8 / 6.5 dBi (MA-ANT-25)
The Cisco Meraki MA-ANT-25 patch antenna is a 8 / 6.5 dBi, MIMO, dual-band 2.4 and 5 GHz antenna ideal for providing client coverage over focused areas or creating backhaul links. It is designed for use with Meraki APs that have N-type connectors.
Specifications
Electrical
Antenna type: sector
Frequency range: 2.400 - 2.500, 5.150 - 5.875 GHz
Gain: 8 / 6.5 dBi
Polarization: linear, vertical / horizontal

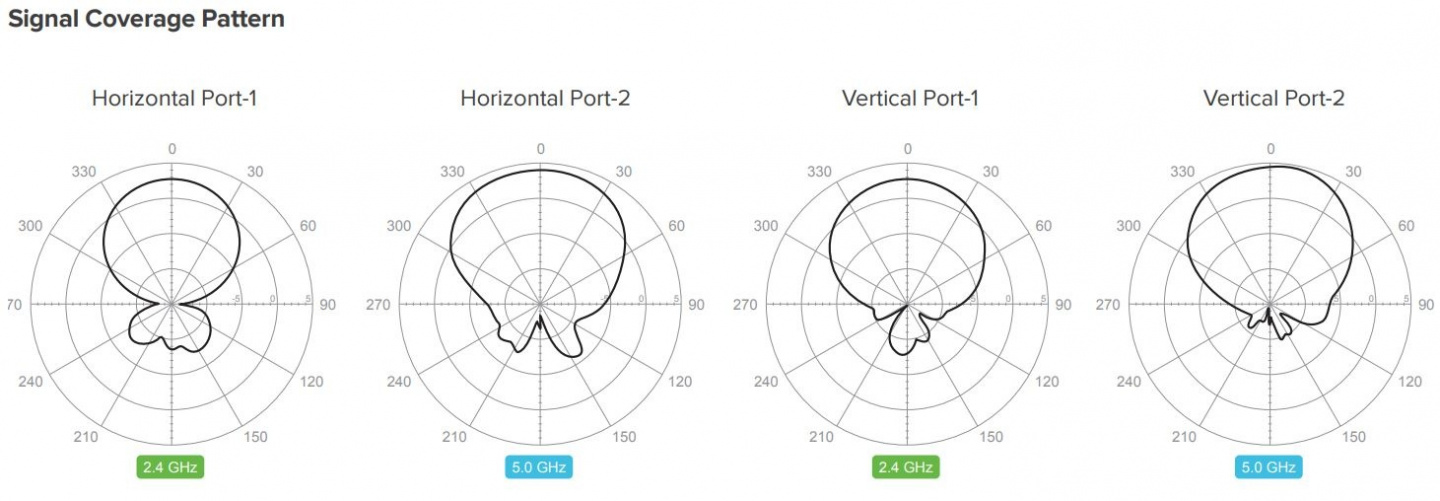

Half power beamwidth / horizontal: 60° / 75°
Cables
Cables with two N-type connectors included
Cable length: 12 inches
Mounting
Mounting hardware and cables included
Mounts to walls and poles
Physical and Environmental
Dimensions: 7.1 x 7.1 x 1.6" (180 mm x 180 mm x 1.8 mm)
Weight: 1.1 lbs (512 g)
Material: UV resistant plastic
Temperature: -40° F - 158° F (-40° C - 70° C)
Connector: 2 x N-type
Warranty
1 year hardware warranty included
Regulatory
Certified for use with the MR72, MR74, and MR84
