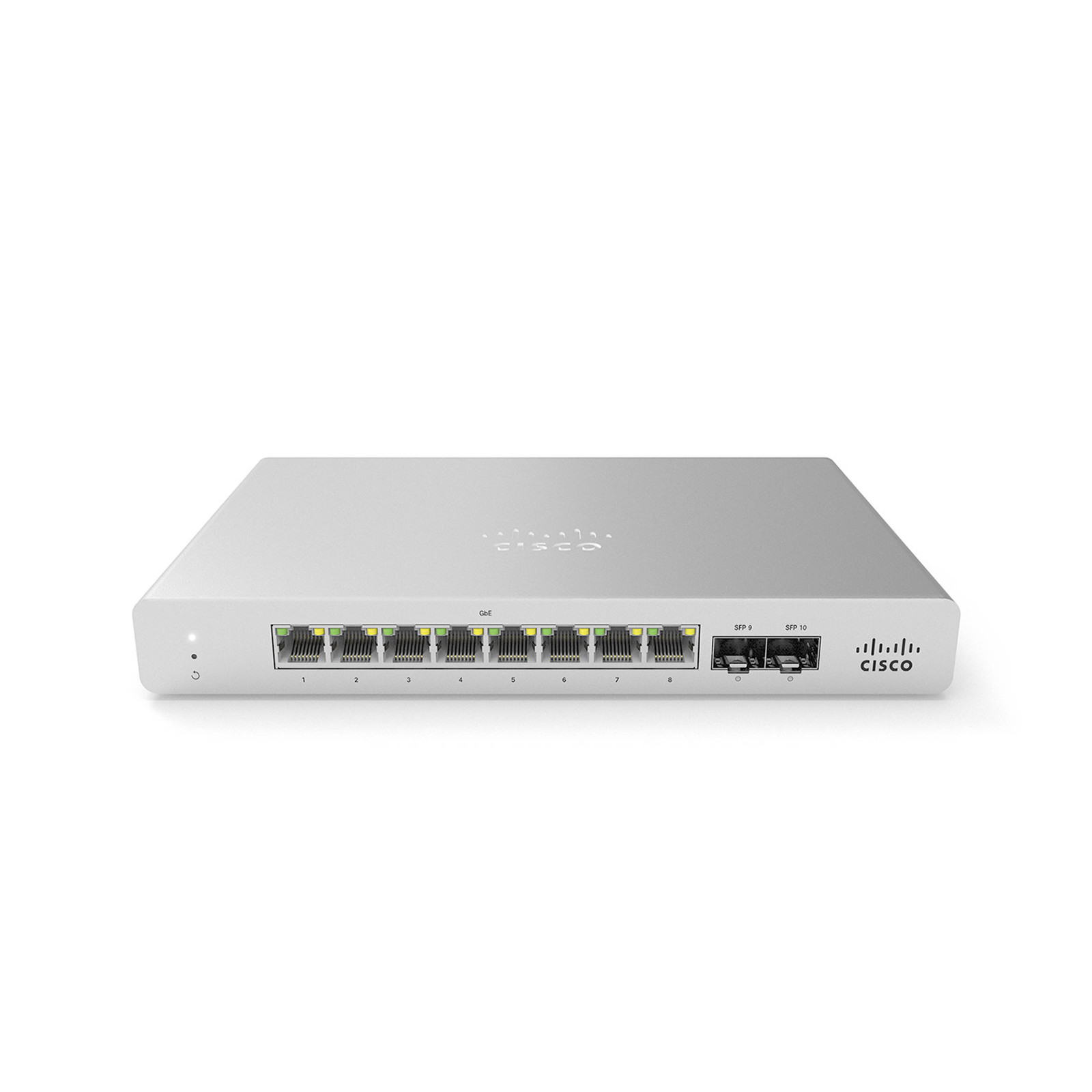

Cisco Meraki MS120-8-HW MS120-8 1G L2 Cloud Managed 8x GIGE Switch
Out of stock
Cisco Meraki MS120-8-HW MS120-8 1G L2 Cloud Managed 8x GIGE Switch
- Brand: Cisco Meraki
- MPN: MS120-8-HW
- Part #: NETCIS3973793
- UPC:
- Brand: Cisco Meraki
- MPN: MS120-8-HW
- Part #: NETCIS3973793
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches





Cisco Meraki MS120-8-HW MS120-8 1G L2 Cloud Managed 8x GIGE Switch
- Brand: Cisco Meraki
- MPN: MS120-8-HW
- Part #: NETCIS3973793

Product URL: https://www.pbtech.co.nz/product/NETCIS3973793/Cisco-Meraki-MS120-8-HW-MS120-8-1G-L2-Cloud-Manage
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Configurations
8 port Gigabit Ethernet
2 × 1GbE SFP uplink
MS120-8 LP includes 67W PoE/PoE+
MS120-8 FP includes 124W PoE/PoE+
Hardware platform
Small, mountable form factor
Low noise, fanless
Voice and Video QoS
Non-blocking switch fabric
Ultra-reliable, includes lifetime warranty
Power
MS120-8FP maximum PoE output: 124 W
PoE available simultaneously on all ports
Intelligent PoE power allocation based on device advertisement (LLDP)
Cloud management
Visibility and control over thousands of ports
Built-in multi site management
Zero touch provisioning
Monitoring and Diagnostics
Cable failure testing
Gateway connectivity testing
Real time troubleshooting tools
Email and text message alerts
Specifications
Interfaces
8 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
48V DC 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on the MS120-8LP/FP model, available on all ports (maximum of 30W per port for PoE+)
2 × 1GbE SPF uplink
Auto negotiation and crossover detection
Management
Managed via the web with the Meraki cloud management platform
Integrated with Meraki wireless and complete portfolio of IT products and solutions
Zero-touch remote provisioning (no staging needed)
Detailed historical per-port and per-client usage statistics
DHCP, client, and hostname fingerprinting
SNMP and Syslog support for integration with other network management solutions
Automatic firmware upgrades with scheduling control
Remote diagnostics
Email, SMS and mobile push notification alerts1
Cable testing and link failure detection with alerting
Live remote packet capture
Dynamic and interactive network discovery and topology
Combined event and configuration change logs with instant search
Stacking
Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet switching capabilities
802.1p Quality of Service, 8 queues and configurable DSCP to CoS mapping
802.1Q VLAN and trunking support for up to 4,094 VLANs
802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
Broadcast storm control
IGMP Snooping
802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
802.3ad Link aggregation with up to 8 ports per aggregate
Port mirroring
MAC forwarding entries: 16,000
Security
Integrated two-factor authentication for Dashboard management
Role-based access control (RBAC) with granular device and configuration control
SSO, Corporate-wide password policy enforcement
IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing
MAC-based RADIUS authentication (MAB)
Port security: Sticky MAC, MAC whitelisting
DHCP snooping, detection and blocking
STP Enhancements include BPDU guard, Root guard
IPv4 ACLs
Power over Ethernet
802.3af (PoE) 15.4W per port and 802.3at (PoE+) 30W per port
Maximum PoE output: 67/124W
PoE available on all ports simultaneously
Performance
Switching capacity: 20Gbps
Forwarding rate: 14.88mpps with standard packet size
Jumbo frame support (9578 byte Ethernet frame)
Flow control support
Power
Power input: 100 - 240 VAC, 47-63 Hz
Power consumption: 5 - 161W
External power supply for MS120-8, MS120-8 LP
Mounting
Wall or utility board mountable with included mount hardware
Desktop-mountable with included feet
Kensington lock slot included
Environment
Operating temperature: 32°F to 104°F (0°C to 40°C), 45°C
Humidity: 5 to 95% non-condensing
Fanless operation
Regulatory
CSA-US (US, Canada)
FCC (USA)
IC (Canada)
CE (Europe)
RCM (Australia/New Zealand)
RoHS
MTBF
MS120-8 1,307,036
MS120-8LP 837,035
MS120-8FP 579,132
Physical dimensions (H×W×D)
MS120-8: 1.1" × 8.74" × 5.91" (2.8 × 22.2 × 15cm)
MS120-8LP: 1.1" × 8.74" × 5.91" (2.8 × 22.2 × 15cm)
MS120-8FP: 1.75" × 8.97" × 8.58" (4.4 × 22.7 × 23cm)
Physical Weight
MS120-8: 2.36 lb (1.07 kg)
MS120-8LP:2.76 lb (1.25 kg)
MS120-8FP: 3.42 lb (1.55 kg)
