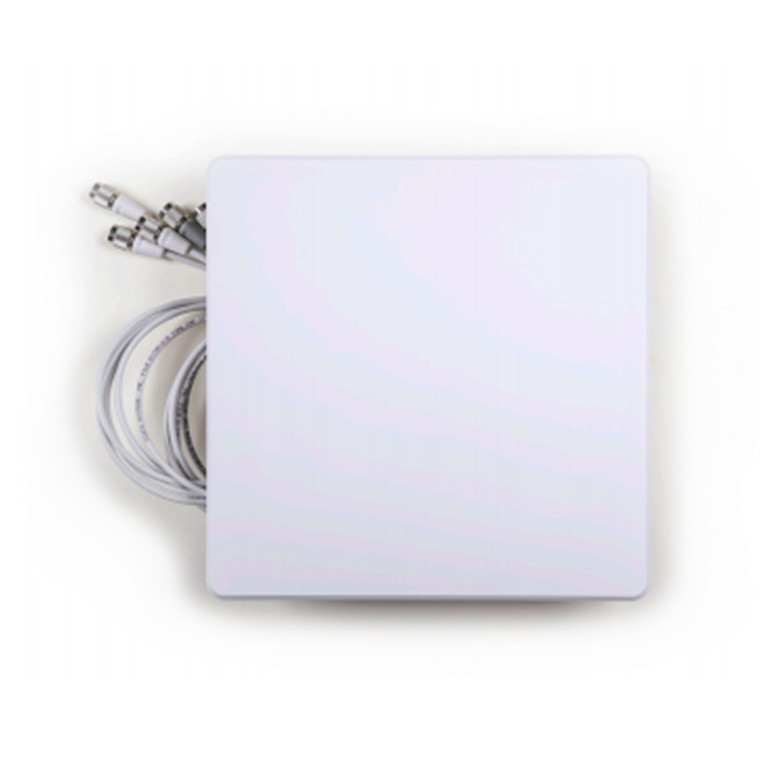

Cisco Meraki MA-ANT-3-E6 Meraki Indoor Dual-band Wide Patch Antenna/ 6-port
Out of stock
Cisco Meraki MA-ANT-3-E6 Meraki Indoor Dual-band Wide Patch Antenna/ 6-port
- Brand: Cisco Meraki
- MPN: MA-ANT-3-E6
- Part #: NETCIS4114344
- UPC:
- Brand: Cisco Meraki
- MPN: MA-ANT-3-E6
- Part #: NETCIS4114344
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Antennas





Cisco Meraki MA-ANT-3-E6 Meraki Indoor Dual-band Wide Patch Antenna/ 6-port
- Brand: Cisco Meraki
- MPN: MA-ANT-3-E6
- Part #: NETCIS4114344

Product URL: https://www.pbtech.co.nz/product/NETCIS4114344/Cisco-Meraki-MA-ANT-3-E6-Meraki-Indoor-Dual-band-W
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The Wide Patch antenna is ideal for wall-mounted deployments, aesthetic consensus installations in low-density applications and wall-mounted or ceiling-mounted below 25 ft in high-density applications. Some example use cases are in vestibules with very high ceilings but few devices connecting and lecture halls where install is close to the users.
Specifications
Antenna type:
Wide Patch
Frequency range:
2.400-2.500, 5.150-5.875 GHz
Gain (per antenna element):
7 dBi (2.4) / 6.3 dBi (5)
Polarization:
Linear, +/- 45°
Half power beamwidth / horizontal:
60° / 60°
Half power beamwidth / vertical:
60° / 60°
Cables
AA-9303, 1M
Mounting
Surface mount nut included; compatible with MA-MNT-ANT-1 or MA-MNT-ANT-2
articulating arm mounts
Mounts to walls and poles
Dimensions:
10.83" x 10.83" 0.93" (275 mm x 275 mm x 23.5 mm)
Weight:
1.17Kg
Material:
PC-ABS
Temperature:
32 °F to 104 °F (0 °C to 40 °C)
Humidity:
5% - 93%
Connector:
RP-TNC
