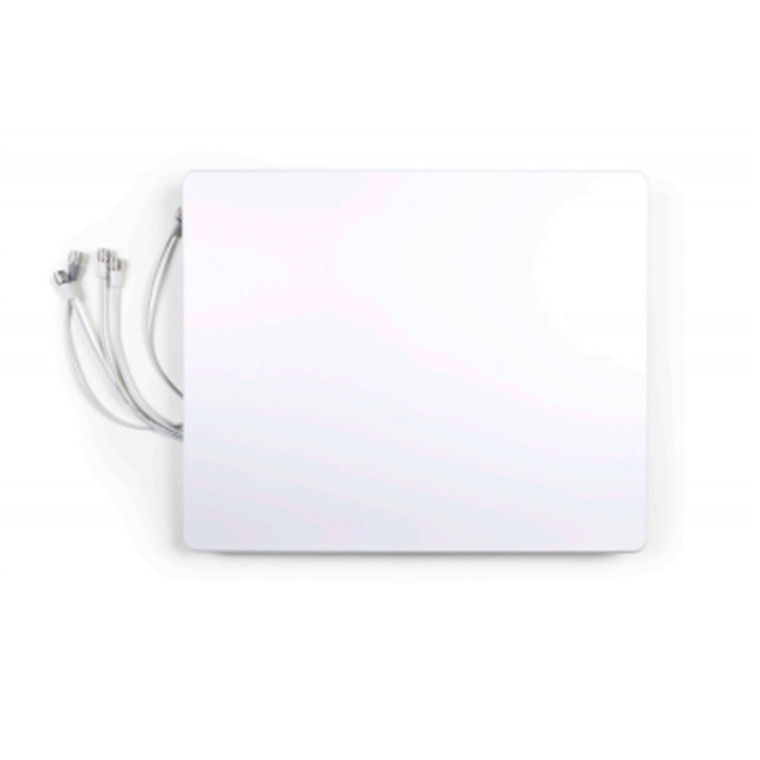

Cisco Meraki MA-ANT-3-F6 Meraki Indoor Dual-band Narrow Patch Antenna/ 6-port
Out of stock
Cisco Meraki MA-ANT-3-F6 Meraki Indoor Dual-band Narrow Patch Antenna/ 6-port
- Brand: Cisco Meraki
- MPN: MA-ANT-3-F6
- Part #: NETCIS4114348
- UPC:
- Brand: Cisco Meraki
- MPN: MA-ANT-3-F6
- Part #: NETCIS4114348
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Antennas





Cisco Meraki MA-ANT-3-F6 Meraki Indoor Dual-band Narrow Patch Antenna/ 6-port
- Brand: Cisco Meraki
- MPN: MA-ANT-3-F6
- Part #: NETCIS4114348

Product URL: https://www.pbtech.co.nz/product/NETCIS4114348/Cisco-Meraki-MA-ANT-3-F6-Meraki-Indoor-Dual-band-N
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The Narrow Patch antenna is ideal for high ceiling (25+ ft) aesthetic consensus installations in high-density applications and where APs are covering high-density users in small zones. Some example use cases are in large lecture halls/stadiums as well as event venue centers.
Specifications
Antenna type:
Narrow Patch
Frequency range:
2.400-2.500, 5.150-5.875 GHz
Gain (per antenna element):
11.2 dBi (2.4) / 10.8 dBi (5)
Polarization:
Linear, +/- 45°
Half power beamwidth / horizontal:
30° / 30°
Half power beamwidth / vertical:
30° / 30°
Cables
Times AA-9303, 1M
Mounting
Compatible with MA-MNT-ANT-1 or MA-MNT-ANT-2 articulating arm mounts
Mounts to walls and poles
Dimensions:
25.98" x 20.87" 5.12" (660 mm x 530 mm x 130 mm)
Weight:
7.1 lbs (113.6 oz)
Material:
PC-ABS
Temperature:
32 °F to 104 °F (0 °C to 40 °C)
Humidity:
5% - 93%
Connector:
RP-TNC
