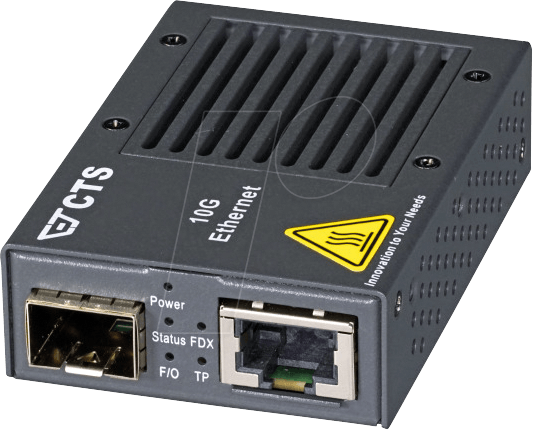

CTS MCT-5002SFPPLUS Compact 10G Ethernet Compact Media Converter
Out of stock
CTS MCT-5002SFPPLUS Compact 10G Ethernet Compact Media Converter
- Brand: CTS
- MPN: MCT-5002SFPPLUS
- Part #: NETCTS0045
- UPC:
- Brand: CTS
- MPN: MCT-5002SFPPLUS
- Part #: NETCTS0045
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Media Converters
CTS MCT-5002SFPPLUS Compact 10G Ethernet Compact Media Converter
- Brand: CTS
- MPN: MCT-5002SFPPLUS
- Part #: NETCTS0045
Product URL: https://www.pbtech.co.nz/product/NETCTS0045/CTS-MCT-5002SFPPLUS-Compact-10G-Ethernet-Compact-M
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
CTS Compact 10G Ethernet Compact Media Converter
MCT-5002SFPPLUS is a 10G high-speed Ethernet media converter with IEEE 802.3bz 10G NBASE-T 5-speed (100M/1G/2.5G/5G/10G) Ethernet support, which is compatible with existing 1G network environment while upgrading to 2.5G/5G/10G without replacing current cabling infrastructure.

MCT-5002SFPPLUS supports one 10GBASE-R SFP+ optical interface, and it provides flexible options for 10GBASE-SR, 10GBASE-LR, 10GBASE-BR or 10G DAC (Direct Attached Cable) SFP+ transceiver.Owning to the compatibility with the transmission speed of the conversion, MCT-5002SFPPLUS in the best solution for upgrading your existing networking infrastructure through a wide range of 5 speed (100M/1G/2.5G/5G/10G) options.
Features:
- 1x 100M/1G/2.5G/5G/10G NBASE-T Auto-negotiation port
- 1x 10GBASE-R SFP+ Port
- Support Link alarm
- Support wire speed transplant
- support loopback mode in the fibre port that allows operators to use 3rd-party testing tools
- Comply with IEEE 802.3ae 10GBase-R: The SFP+ port supports multi-mode, single-mode, including CWDM/DWDM, or Direct Attached Cable (DAC).
- Comply with IEEE 802.3bz N-Base-T (Multi-Gigabit): The RJ45 port supports 100M/1G/2.5G/5G/10G 5 speeds and maximum distance is up to 100m.
- Jumbo frame & Transparent mode: Maximum MTU size up to 9K bytes also transparent to VLAN tagged packets.
- Loopback mode: Support loopback on 10G SFP+ interface, all frames received on loopback mode will be transmitted back.
- Link Alarm: Either Fiber or RJ45 when port link down is detected during operation, the other port will be automatically turned off to alert the user.
- Fully Compatible with MCT-RACK Chassis Series: Space-saving and budget-limited solution for MCT-RACK chassis series to mix the installation of MCT series converters.
- In Rack Management: Support CTS MCT-RACK management, it allows administrators to configure and monitor the slide-in media converters such as port speed, shutdown and SFP DDMIinformation.
- Full compatible with CTS MCT-RACK-12/MCT-RACK-18-MGM/MCT-RACK-2 chassis for in-rack management
Specifications
Interface
F/O Port (Type): 1x 10Gbps (SFP+)
TP Port (Type): 1x 100M/1G/2.5G/5G/10Gbps (RJ45)
Standards
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3bz 2.5G/5GBase-T
IEEE 802.3ae 10GBase-R
IEEE 802.3an 10GBase-T
H/W Specification
Jumbo frame: 9K Bytes
Auto
Auto-Cross Over for MDI/MDIX in TP Ports
Auto-Negotiation in TP Ports
Operation
Full/Half Duplex Mode Operation
LED
Power, TP Speed Link/Act, F/O Link/Act, Status, Duplex
Forward/Filter Rate
100M: 148,800/148,800pps
1G: 1,488,000/1,488,000pps
2.5G: 3,720,000/3,720,000pps
5G: 7,440,000/7,440,000pps
10G: 14,880,000/14,880,000pps
Ethernet Feature
DIP Switch
Power Requirement
AC to DC Power Adaptor
Input: 100V~240V AC, 50/60Hz
Input: 12V DC
Power Consumption: 8W
Environmental Condition
Operating Temperature: 0?~50?
Storage Temperature
-20?~60?
Humidity
5%~90%, non-condensing
Dimension
51x74x20mm (WxDxH)
Weight
0.13kg
EMC/Safety
FCC Class A, CE
