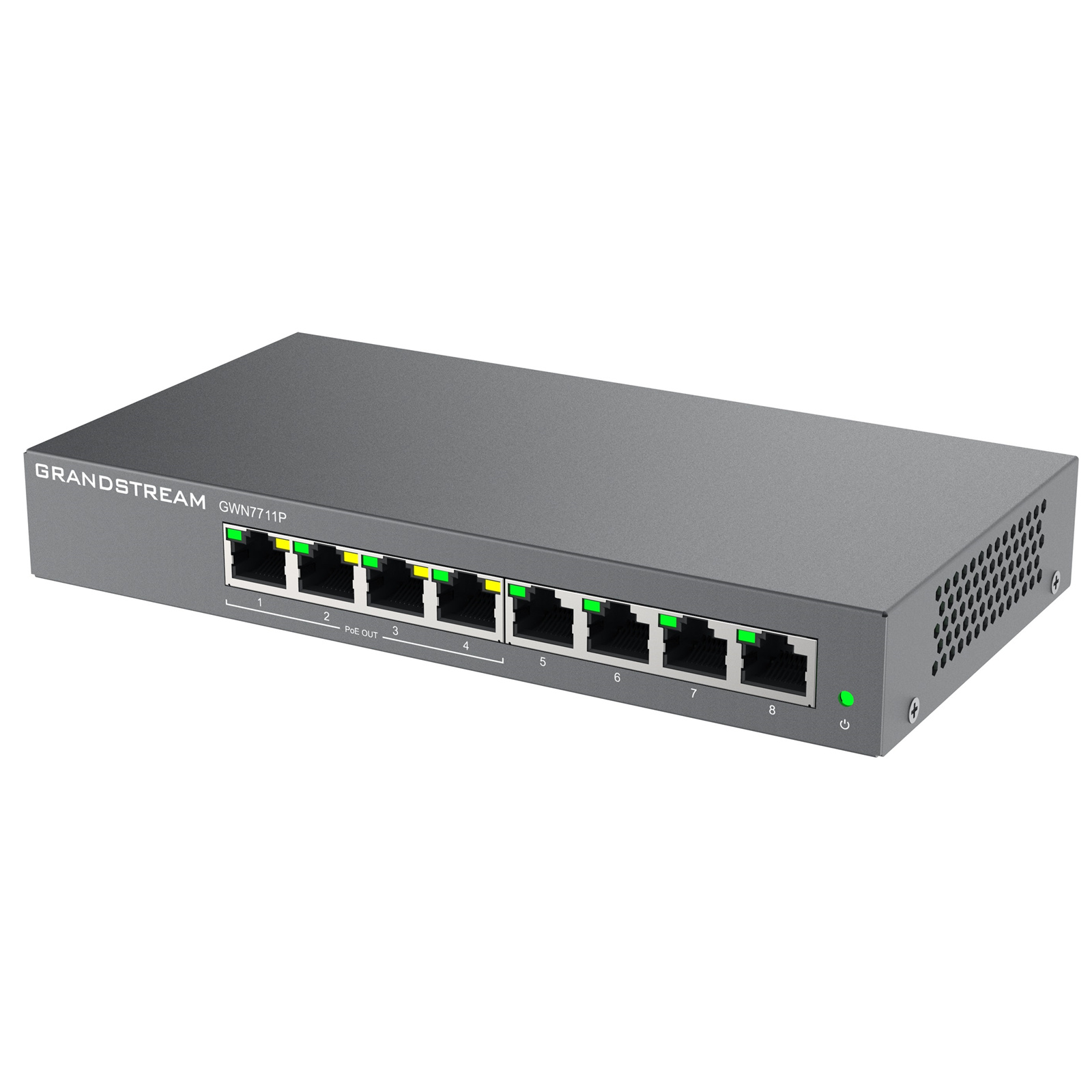

Grandstream GWN7711P 8-Port Gigabit L2 Managed PoE Switch (60W) - 1GbE x4 / 1GbE PoE+ x4

PB Tech price
PB Tech price
$ 103 .12
 +GST
$ 118 .59
 inc GST
$103.12  +GST
$118.59

Grandstream GWN7711P 8-Port Gigabit L2 Managed PoE Switch (60W) - 1GbE x4 / 1GbE PoE+ x4

1
PB Tech price
$ 103 .12 $ 118 .59
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 24 Sep When will I receive it?
$103.12  +GST
$118.59

10 Gigabit

No

10 Gigabit Ports

N/A

Form Factor

Desktop

Management Level

Managed L2

Number of Ports

8 Ports

PoE

Yes

PoE Ports

4 Ports

PoE Budget

60 Watts

Similar in-stock products available at PB Tech right now

Features

Grandstream GWN7711P Layer 2 Lite Managed Switch 8-port PoE Hardware

The GWN7711(P) series are Layer 2 Lite managed network switches designed to help small-to-medium businesses build scalable, secure, and smart business networks that are easy to deploy and manage through the cloud. These switches support VLAN for flexible and advanced traffic segmentation, QoS for network traffic prioritization, IGMP Snooping to optimize network performance, and robust security features to defend against potential attacks.

The GWN7711P model specifically offers 4 PoE ports with smart dynamic PoE output to power devices like IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints. It also supports 24V DC passive PoE-out mode, offering even more flexibility for powering network devices. Both models are designed for easy management through a local web user interface or via Grandstream Device Management System (GDMS) for cloud-based control.

With support for desktop and wall-mount installations, the GWN7711(P) series are a perfect fit for hotels, home offices, small-to-medium businesses, and more. Thanks to their comprehensive suite of switching features, flexible PoE options, and easy cloud management, the GWN7711(P) series deliver reliable performance for small-to-medium sized deployments.

- 8 Gigabit Ethernet ports
- Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
- Supports Loop Detection, Cable Test and Port Mirror to quickly locate network faults
- Whisper Quiet: fan-less
- Convenient and intelligent management through the Web UI and the cloud (GDMS)
- Broadcast/Multicast/Unicast Storm Control to monitor traffic levels
- Built-in QoS allows for prioritization of network traffic

Specifications

Brand

Grandstream

Manufacturer Part Number

GWN7711P

Network Protocol

IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at

Gigabit Ethernet Ports

8

PoE Out Ports

4

Power Supply

External 48-53.5VDC/1.22A

PoE Output

Port 1-4 support 802.3af/at standard PoE out:
Up to 30W per port PoE out , total 60W Power Budget
Port 1-4 support 24VDC Passive mode via UI
Port 1 (up to 30W): 24V 4pair VH mode 1.3A
4pair VH mode Pins: 1,2,4,5 (+); 3,6,7,8 (-)
Port 2-4 (up to 15W): 24V 2pair mode, 0.65A
2pair normal mode Pins: 4,5 (+); 7,8 (-)

Max Total PoE Output Power

60W

Maximum Output Power per PoE Port

30W

Auxiliary Ports

1x Reset Pinhole

Forwarding Mode

Store-and-forward

Total non-blocking throughput

8Gbps

Switching Capability

16Gbps

Jumbo Frame

2K/3K/4K/5K/6K/7K/8//9K/12K/15K

Forwarding Mode

11.9Mpps

Packet Buffer

4Mb

MAC

8K MAC address capacity
Support MAC address search

VLAN

4K VLANs
Port-based VLAN, 802.1Q VLAN

LAG

4

Multicast

IGMP Snooping, Report Message Suppression

QoS

Auto prioritization of the incoming port of the packet
Priority Mapping
Queue scheduling, including SP, WRR, WFQ
Supports port priority, 802.1p priority and DSCP priority
Bandwidth control
Storm control
Rate limit

DHCP

DHCP client

Maintenance

Backup and restore, system reboot, factory reset, firmware upgrade, monitoring including port statistics, port
mirroring, cable test and loop prevention, ping and pong watchdog

Security

Storm control
Port VLAN isolation
Filtering MAC adress
Kensington Security Slot (Kensington Lock) support

Mounting

Desktop/Wall-mount

LED Indicators

Per Port: Link/Activity - Green
GWN7711P Port 1-4: PoE power state - Yellow
Per Device: Power - Green

Environmental

Operating Temperature: 0 to 40 °C (32 to 104 °F)
Storage Temperature: -20 to 60 °C (-4 to 140 °F)
Operating Humidity: 10% to 90% Non-condensing
Storage Humidity: 10% to 90% Non-condensing

Compliance

FCC, CE, RCM, IC

Enclosure

Metal

Dimensions (LxWxH)

190 x 100 x 28 mm

Weight

0.44 kg

Manufacturer Part No:
GWN7711P
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1.4 kg
PB Part No:
NETGSM485557
Product Model:
GWN7711P
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
