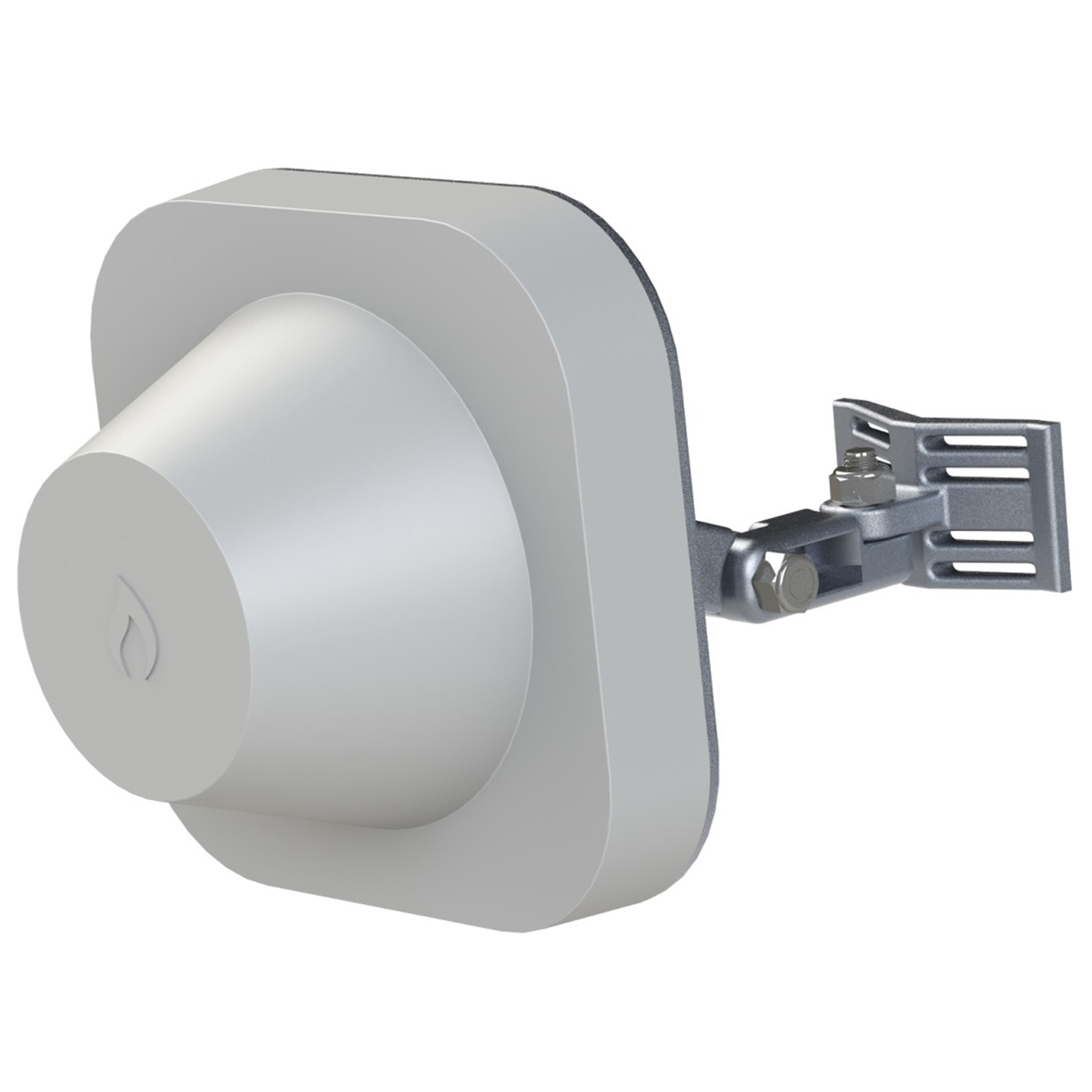

IGNITENET ML-60-19 MetroLinq PTP-19cm 60GHz mmWave Bridge Radio
Out of stock
IGNITENET ML-60-19 MetroLinq PTP-19cm 60GHz mmWave Bridge Radio
- Brand: IGNITENET
- MPN: ML-60-19
- Part #: NETINN1022
- UPC:
- Brand: IGNITENET
- MPN: ML-60-19
- Part #: NETINN1022
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Outdoor Access Points





IGNITENET ML-60-19 MetroLinq PTP-19cm 60GHz mmWave Bridge Radio
- Brand: IGNITENET
- MPN: ML-60-19
- Part #: NETINN1022

Product URL: https://www.pbtech.co.nz/product/NETINN1022/IGNITENET-ML-60-19-MetroLinq-PTP-19cm-60GHz-mmWave
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
IgniteNet's MetroLinq 60 ML-60-19 60GHz mmWave Outdoor PTP + 5GHz with Integrated 36dBi (60GHz) and 16dBi (5GHz) antenna is the world's first cost-effective 60GHz PTP radio enabling high performance, interference-free connections worldwide.
The MetroLinq 60 has an added advantage of being license free in most markets globally, allowing ultra-fast deployment and without the hassle of other frequency bands requiring a license. The MetroLinq 60 also includes a second 5GHz radio which can be configured as an automatic backup/failover for robust operation in any climate or rain zone.
Note: Pole Mount Bracket Not Included, see below for two options; ICC-BRACKET-LR or ICC-BRACKET-STD
Key Features
- 1Gbps Aggregate throughput; dynamically allocated (60GHz)
- 500Mbps Aggregate throughput; dynamically allocated (5GHz)
- Jumbo packet support (up to 7900bytes)
- Management VLAN support and VLAN pass-through
- Supports Service Provider and Enterprise type networks
- Stand-alone or Cloud-controlled operating modes
- PTP/Client modes with Flexible Bridging (60GHz)
- Link failover/backup (60GHz + 5GHz PTP Mode)
- 128bit AES Encryption (standard; 5GHz and 60GHz)
Specifications
Manufacturer's Code
ML-60-19
Output Power
24 dBm
Operating Modes
PTP
Frequency Range
5170 - 5875MHz + 60GHz
Security
128bit AES Encryption
Interfaces (2)
10/100/1000 Ethernet Ports
Wireless standards
802.11ac, 802.11ad
Temperature Range
-30 to +55° C
PoE In
Yes, 24V/1A passive Gigabit PoE
PoE Out
No
Management
Standalone or cloud-managed
Antenna gain dBi
16 dBi 5GHz and 36dBi 60GHz
Max Power consumption
15 W
Polarisation
Dual Linear
Beamwidth
3° (H-pol) / 3° (V-pol)
Maximum Range
up to 650m
Pole Diameter
30-80mm
