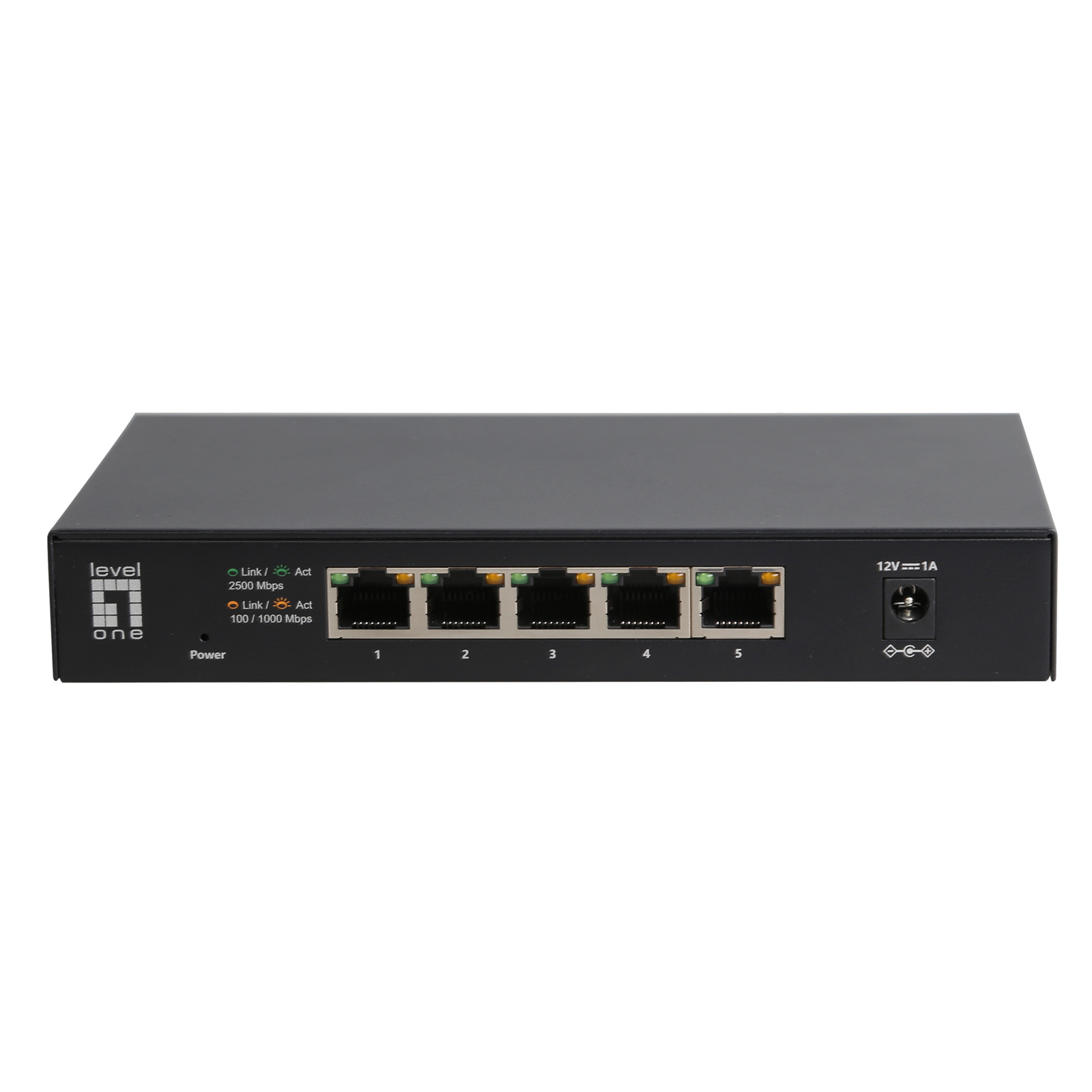

LevelOne GEU-0525 5-Port 2.5GigE Switch Unmanaged Desktop/Wallmount

  • Brand: LevelOne
  • MPN: GEU-0525
  • Part #: NETLEL1005
  • UPC:
PB Tech price
$ 87 .83 $ 101 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 19 Sep When will I receive it?
$87.83  +GST
$101.00

Features

GEU-0525 5-Port Unmanaged 2.5-Gigabit Ethernet Switch

- 5 x 100/1000/2500 Base-T RJ45 copper ports
- 2500Mbps full-duplex, 100/1000Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
- Supports 8K MAC address auto-learning and auto-aging
- 15K jumbo frames to increase data transfer rates
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Desktop and Wall mount design
- Quick and easy installation

2.5-Gigabit Speeds: Take Your Data to the Next Level

The GEU-0525 is a 5-port 2.5-Gigabit Ethernet Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 2500Mbps.

Bandwidth hungry? Not a problem.

What happens when you have several users accessing multimedia applications all at the same time? No need to worry as GEU-0525 allows you to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without lag.

Plug and Play, Flexible and Easy

The GEU-0525 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable. Diagnostic LEDs which display link status and activity, allowing you to quickly detect and correct problems on the network.

Specifications

General

Brand

LevelOne

Manufacturer Part Number

GEU-0525

Color

Black

Grade

Commercial

Fanless

Yes

Dimensions (W x D x H)

175.5 x 105.3 x 27.3 mm

Feature

Security

Standard Security Lock Slot (3 x 7 mm)

Performance

Switching capacity

25 Gbps

System specifications

Power supply

DC 12V/1A

Data rate

2.5Gbps

Power supply included

Yes

Power input

Power Rating (AC/DC ADAPTER)
Input: 100-240V ~ 50-60Hz 0.4A Max
Output: 12.0V, 1.0A 12.0W Max

Packet forwarding rate

18.6 Mpps

Port configuration

5x 100/1000/2500 Mbps RJ-45 copper ports

Standard

IEEE 802.3: 10Base-T (Ethernet)
IEEE 802.3u: 100Base-TX (Fast Ethernet)
IEEE 802.3ab: 1000Base-T (Gigabit Ethernet)
IEEE 802.3bz: 2.5GBASE-T (2.5 Gigabit Ethernet)
IEEE 802.3x Flow Control (full-duplex flow control)

Acoustic noise (dB)

0 dB (A)

Mount

Desk mount, Wall mount

MAC address table

8 K

Jumbo frame (KB)

15 KB

Indicators

Power, Link/Ack

Packet buffer

4 Mbits

Backplane (Gbps)

12.5

Others

Approval and Compliance

CE
FCC Part 15, Subpart B, Class B (SDoC)
UKCA
RoHS

Operating humidity

10% RH ~ 90% RH

Operating temperature

0°C ~ 50°C

Storage humidity

5% RH ~ 90% RH

Storage temperature

-40°C ~ 70°C

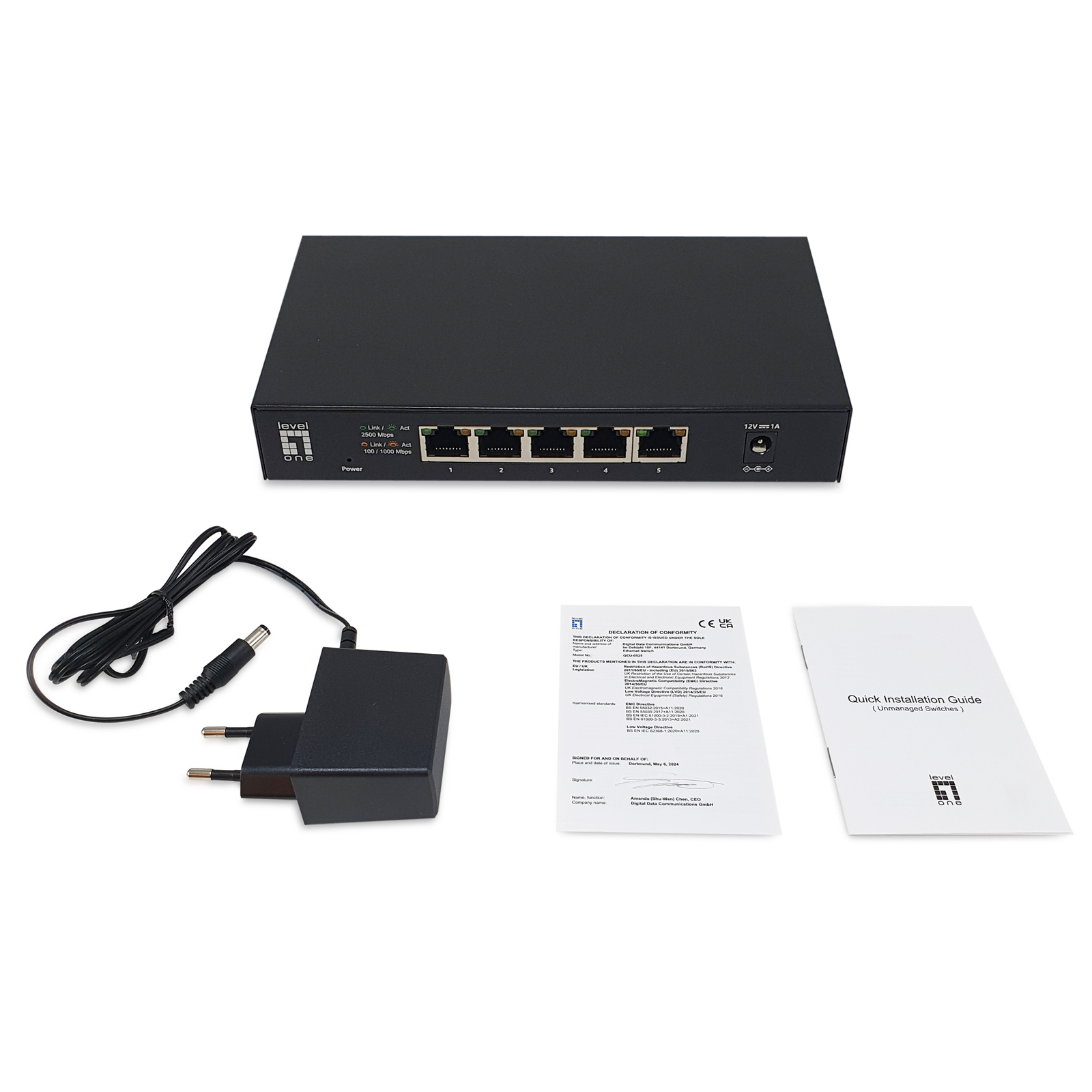

Package contents

GEU-0525
Power Adapter
Quick Installation Guide
Declaration of Conformity

Manufacturer Part No:
GEU-0525
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
NETLEL1005
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
