Milesight UR32S WiFi 4G LTE Industrial Router
CAT4 - 2x PoE Output - Support AP/Client Mode
Out of stock
Milesight UR32S WiFi 4G LTE Industrial Router
CAT4 - 2x PoE Output - Support AP/Client Mode
- Brand: Milesight
- MPN: UR32S
- Part #: NETMLS4320
- UPC:
- Brand: Milesight
- MPN: UR32S
- Part #: NETMLS4320
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular VPN Routers





Milesight UR32S WiFi 4G LTE Industrial Router CAT4 - 2x PoE Output - Support AP/Client Mode
- Brand: Milesight
- MPN: UR32S
- Part #: NETMLS4320

Product URL: https://www.pbtech.co.nz/product/NETMLS4320/Milesight-UR32S-WiFi-4G-LTE-Industrial-Router-CAT4
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
CCTV Router UR32S
Designed for Remote Management in Batch
Wi-Fi Client and AP Mode · Global 4G LTE CAT4/3G Network · NXP Processor · IP30 Protection with Metal Housing · VPN (OpenVPN/IPsec/PPTP/L2TP/DMVPN/GRE)
- Remote Management
- Wireless Router
- 4G
- VPN

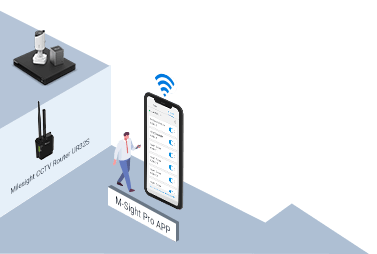

Smart Remote Management Solution
By deploying it in practical CCTV projects, Milesight CCTV Router UR32S can achieve a stable and secure connection between on-site surveillance devices and remote side professional installers or technicians. In this way, Milesight cameras and NVRs can be managed in batch easily and remotely in a more secure and efficient way.
*Enabling smart remote management solution may require higher CPU performance.
Wi-Fi Client and AP Mode
Milesight CCTV Router UR32S supports Wi-Fi Client and AP Mode, allowing users to simply connect the router to M-Sight Pro APP. Since all devices connected to the router will be immediately listed on the APP, users can configure the remote access permissions of devices in batch for installers or technicians within a few steps.
Global 4G LTE Network
Milesight CCTV Router UR32S features global 4G LTE CAT4/3G network with multiple carrier networks, achieving easy global connectivity. Meanwhile, it supports automated failover or failback between Ethernet and cellular with SIM card inserted.
Advanced Routing Features
Milesight CCTV Router UR32S guarantees secure transmission with stateful Firewall VPN tunnels including IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN. At the same time, it supports SNMP v1/v2c/v3 for maximized security and flexibility to meet different needs.

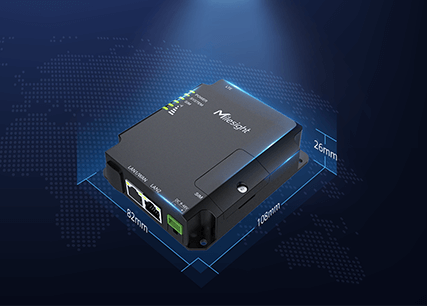

Heavy Cast Aluminum Casing
Equipped with industrial-grade NXP processor and compact design, Milesight CCTV Router UR32S allows great performance and easy deployment even in a limited space. Furthermore, its rugged metal casing with IP30 protection enables reliable operation under harsh environments and can withstand temperatures ranging from -40°C to +70°C.
MilesightVPN
MilesightVPN is an on-premises VPN platform designed for Milesight CCTV Routers to establish VPN rapidly and easily, achieving the one-stop remote access solution.
Specifications
Hardware System
Name
Milesigt CCTV Router UR32S
CPU
ARM Cortex-A7,528 MHz
Memory
128 MB DDR3 RAM and 128MB Flash
Cellular Interface
Antenna Connector
1×50O SMA Connector (Center PIN: SMA Female)
SIM Slots
1 (Mini SIM-2FF)
Ethernet Interface
Numbers
2 × 10/100 Mbps
Property
1 × WAN + 1 × LAN (Default) or 2 × LAN
Mode
Full or half duplex (Auto-Sensing)
PoE
2 × 802.3 af/at PoE PSE on LAN Ports (Optional)
Wi-Fi Interface
Antenna Connector
1×50O SMA Connector (Center PIN: RP-SMA Female)
Standards
IEEE 802.11 b/g/n,2.4GHz
Tx Power
802.11b: 16 dBm +/-1.5 dBm (11 Mbps)
802.11g: 14 dBm +/-1.5 dBm (54 Mbps)
802.11n: 13 dBm +/-1.5 dBm (65 Mbps, HT20/40 MCS7)
Modes
AP or Client mode
Security
WPA/WPA2 authentication, WEP/TKIP/AES encryption
Others
Reset Button
1 × RESET
LED Indicators
1 × POWER, 1 × SYSTEM, 1 × SIM, 3 × Signal strength
Built-in
Watchdog, Timer
Software
Network Protocols
IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH, FRP, etc.
VPN
DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE
Security
Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls,
DoS&DDoS Protection, Filtering(IP&Domain), IP Passthrough
Management
Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3, DeviceHub
AAA
Radius, Tacacs+, LDAP, Local Authentication
Multilevel Authority
Multiple Levels of User Authority
Reliability
VRRP, WAN Failover
Power Supply and Consumption
Power Connector
2-pin 5.08 mm Terminal Block
Input Voltage
9-48 VDC, with Surge-Protection and Reverse Polarity Protection
Power Consumption
Typical 1.8 W, Max 2.2 W (In Non-PoE mode)
Physical Characteristics
Ingress Protection
IP30
Housing
Metal
Dimension
108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in)
Installation
Desktop, Wall or DIN Rail Mounting
Environmental
Operating Temperature
-40°C to +70°C (-40? to +158?)
Storage Temperature
-40°C to +85°C (-40? to +185?)
Ethernet Isolation
1.5 kV RMS
Relative Humidity
0% to 95% (non-condensing) at 25°C/77?
Approvals
Regulatory
CE, FCC, RCM
Environmental
RoHS
EMC
EN 55032, EN 55035
EMS
IEC 61000-4-2 Level 3
IEC 61000-4-3 Level 2
IEC 61000-4-4 Level 2
IEC 61000-4-5 Level 2
IEC 61000-4-6 Level 3
IEC 61000-4-8 Level 1
IEC 61000-4-11 Level 3
Radio Frequency
EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413
Safety
EN62368-1
