Panasonic PN36241E-NZ ZEQUO 6600RE 24 Port Layer 3 Switch

PB Tech price

$ 7,163 .48

+GST

$ 8,238 .00

inc GST

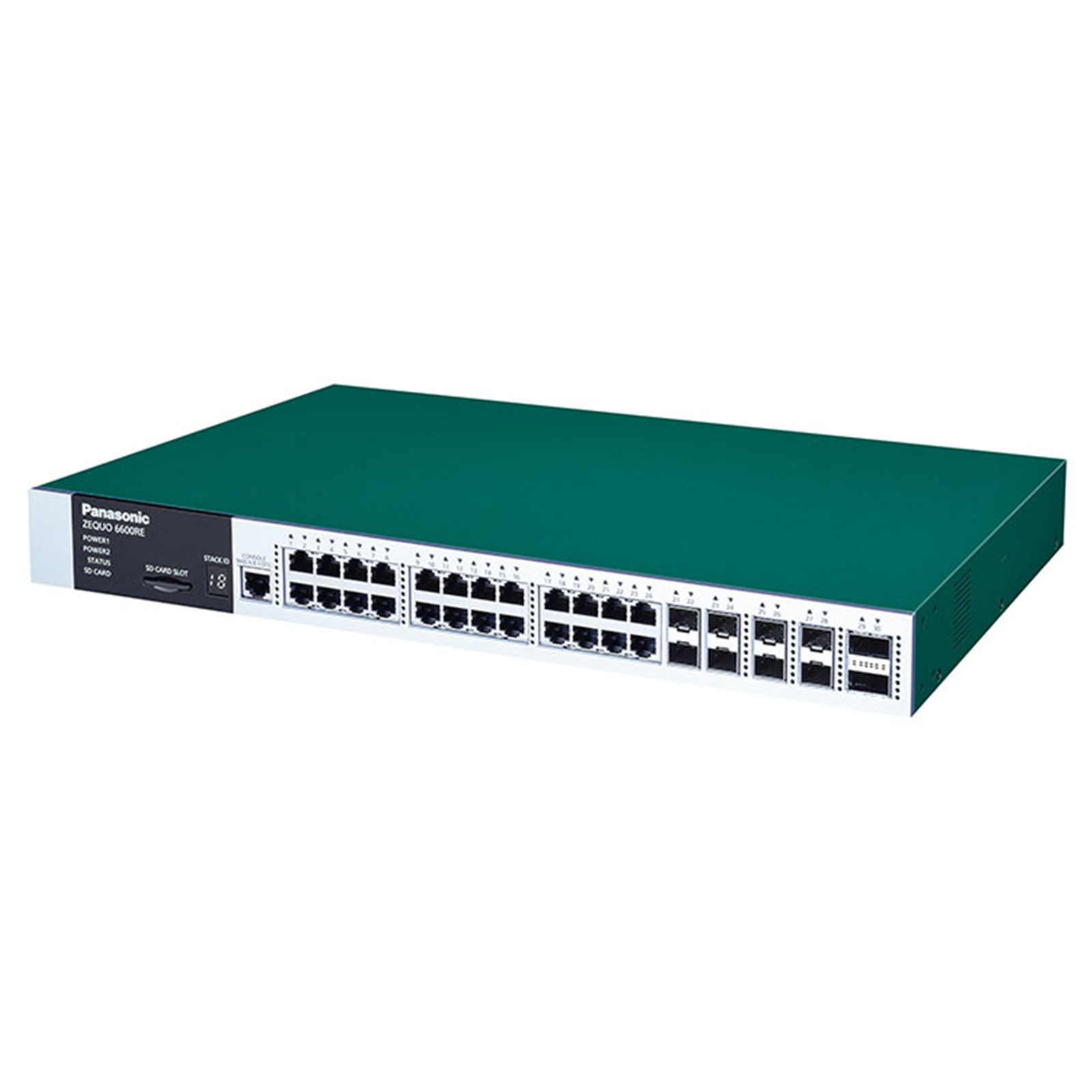

Panasonic PN36241E-NZ ZEQUO 6600RE 24 Port Layer 3 Switch

Brand: Panasonic
MPN: PN36241E-NZ
Part #: NETPAN1019
UPC:

PB Tech price

$ 8,238 .00

inc GST

+GST inc GST

In stock at Supplier

No store stock available.

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 08 Oct When will I receive it?

Add To Compare

Stock Alerts

Finance from $71.65 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

View All Finance Options

Click or hover over image to enlarge

Brand: Panasonic
MPN: PN36241E-NZ
Part #: NETPAN1019
UPC:

Be the first to review this product

10 Gigabit

10 Gigabit Ports

2 Ports

Management Level

Managed L3

Number of Ports

24 Ports

PoE Ports

PoE Budget

Stacking

View full specs

Returns & Warranty Bulk Quote Print Page

Features

ZEQUO 6600RE is a Layer 3 Ethernet Switch with management function having 10BASE-T/100BASE-TX/1000BASE-T ports, SFP extension slots, and SFP+ extension slots.

- Has wire-speed Layer 3 switching function.
- Ports 1 to 24 are 10BASE-T/100BASE-TX/1000BASE-T ports corresponding to auto negotiation. Also their speed and communication mode can be switched by configuration.
- Ports 21 to 24 are SFP extension slots. These ports and the 1000BASE-T twisted pair cable ports cannot be used simultaneously
- Ports 25 to 28 are SFP+ extension slots. They are capable of 10Gbps communications. They can be used as SFP or SFP+ ports.
- Ports 29 and 30 are stacking ports. Up to four units can be stacked by connecting the ports with optical fiber cable or 40G direct attach cable.
- Settings and firmware can be changed and saved by using an SD card.
- Equipped with two power ports, power redundancy is feasible. Normally operates even with just the AC power supplied to either one of the power ports.
- All twisted pair ports support straight/cross cable by auto sensing function. Simply connect devices with straight cables, whether it is a terminal or a network device.
- Equipped with energy efficient Ethernet (EEE) conforming to IEEE802.3az (LPI). When there is no data transmission at link up, the energy-saving state automatically starts so that power consumption can be reduced on each port.
- Power saving mode detects the connection status automatically and saves power consumption to minimum.
- Due to the loop detection/shutoff function, a port where loop has occurred can be automatically shut off to prevent loop failures.
- The ports which the loop has generated are displayed via the LED, and the network administrator can specify the ports which the loop has generated after the loop is resolved via the loop history functions.
- The Ring Redundant Protocol (RRP) is supported, allowing to make a redundant network via ring topology.
- Supports ZEQUO assist Plus. Processes from introduction to maintenance can be performed easily.

Specifications

Model No.

PN36241E-NZ

Power supply

AC100-240V, 50/60Hz, 2.5A (with a built-in power supply)

Power consumption

When either power port 1, or power port 2 is connected
Normally, Max. 46.8 W, Min. 30.7 W
When both power port 1 and power port 2 are connected
Normally, Max. 51.2 W, Min. 34.7 W
*Power redundancy is feasible

Operating environment

Temperature: 0 - 45°C
Humidity: 20 - 80%RH (no condensation)

Storage environment

Temperature: -20 - 70°C
Humidity: 10 - 90%RH (no condensation)

EMC compliance

CISPR 32 Class A
EN 55032 Class A
AS/NZS CISPR32 Class A
VCCI Class A
EN 61000-3-2, EN 61000-3-3
CISPR 24
EN 55024
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5,
IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11

Safety compliance

IEC 62368-1
EN 62368-1

Environment compliance

RoHS compliant

Form and materials/colors

Dimensions :44mm(Height)×440mm(Width)×312mm(Depth)
(Excluding protruding sections)
Case material :Main unit: SECC, Front face: PC/ABS, Face plate: PC
Color :Main unit: Green 03, Front face: Silver 01,
Face plate label: Black 01

Mass(Weight)

5,000g(When either power port 1, or power port 2 is connected)
5,600g(When both power port 1 and power port 2 are connected)

Interface

Twisted pair port 1-24 :RJ45 connector
Transmitting and receiving network system:
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
Transmission speed :10/100/1000Mbps, full/half duplex
Compatible cable :Twisted pair cable
(At least equivalent to EIA/TIA568 category 5e)
Maximum transmission distance :100m
Auto-Negotiation :Communication speed and full/half duplex are
automatically recognized.
The setting can be fixed to 10Mbps, 100Mbps,
or 1000Mbps and full duplex or half duplex.
Power saving mode : Detects the connection status automatically
and saves power consumption to minimum.

SFP extension slot 21-24
SFF-8472(DMI:Diagnostic Monitoring Interface)
*Select either of RJ45 or SFP for use(Port21-24)
Optional Accessories: 1000BASE-SX SFP Module (PN54021K-NZ)
1000BASE-LX SFP Module (PN54023K-NZ)

SFP+ extension slot 25-28
SFF-8472(DMI:Diagnostic Monitoring Interface)
*Select either of RJ45 or SFP for use
Optional Accessories: 1000BASE-SX SFP Module (PN54021K-NZ)
1000BASE-LX SFP Module (PN54023K-NZ)
10GBASE-SR SFP+ Module (PN59021-NZ)
10GBASE-LR SFP+ Module (PN59023-NZ)

Stack port 29-30
Optional Accessories: 40G direct attach cables 1m
FAN Module slot 2slots
Supported FAN Module model: FAN01 Module(PN73002)
Hot swap: Supported
PSU Module slot 2slots
Supported PSU Module model: RP02-200W Module(70002-NZ)
Hot swap: Supported

Manufacturer Part No:

PN36241E-NZ

Brand:

Panasonic

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

NETPAN1019

Product Model:

PN36241E-NZ

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
