Features

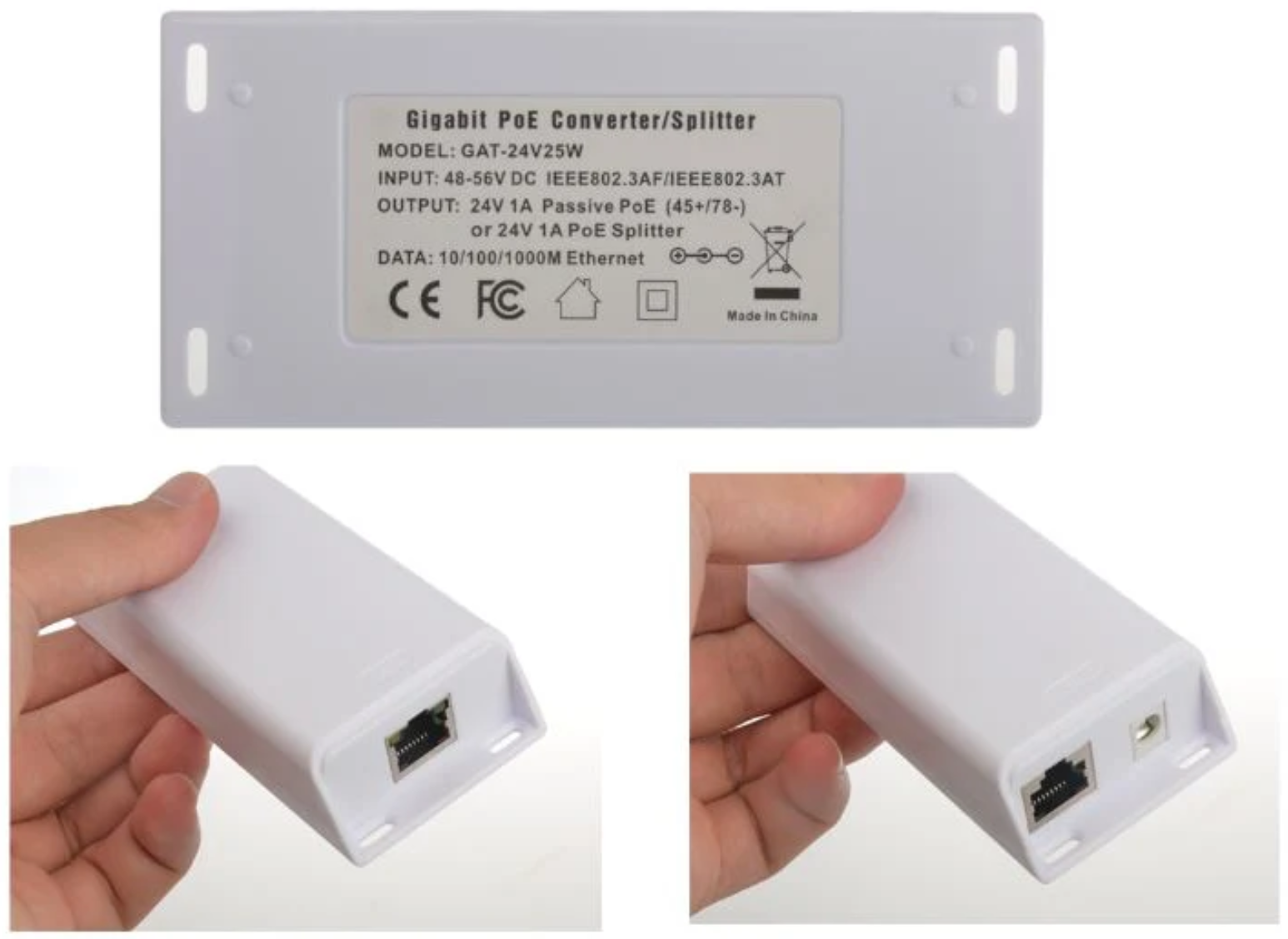

The PoE World 802.3at compatible Active PoE to 24v passive Gigabit Splitter (GAF-24v25w) provides a low cost solution for delivering power to a 24 volt camera or routers over 328ft of network cable.
This device allows power to be carried on 10/100/1000 networks with either 802.3af /802.3at or passive injectors and switches with a CAT5e, CAT6 or CAT7 Ethernet network cable. It also can be used as POE Converter, this device will step the 48 volts down to 24 volts.
- Perfect for adding a single 24v powered device to your 802.3at switch
- Acts as two devices in one: Use it to convert IEEE 802.3at PoE+ standard to 24 volt passive PoE OR Connect a 2.1 mm adapter and convert PoE+ power to 24 volt DC with "split" gigabit data on the RJ45 out port
- Compatible with Ubiquiti and Mikrotik
- Provides continuous 24 volts, 25 watts of power - Automatically converts voltage
- Offers a more secure network via direct Ethernet
- Compatible with an IEEE 802.3at PoE Switch or injector (sold separately)
- Mode A/B compatible
- 2.1mm x 5.5mm DC power plug standard output
Specifications
Brand
PoE World

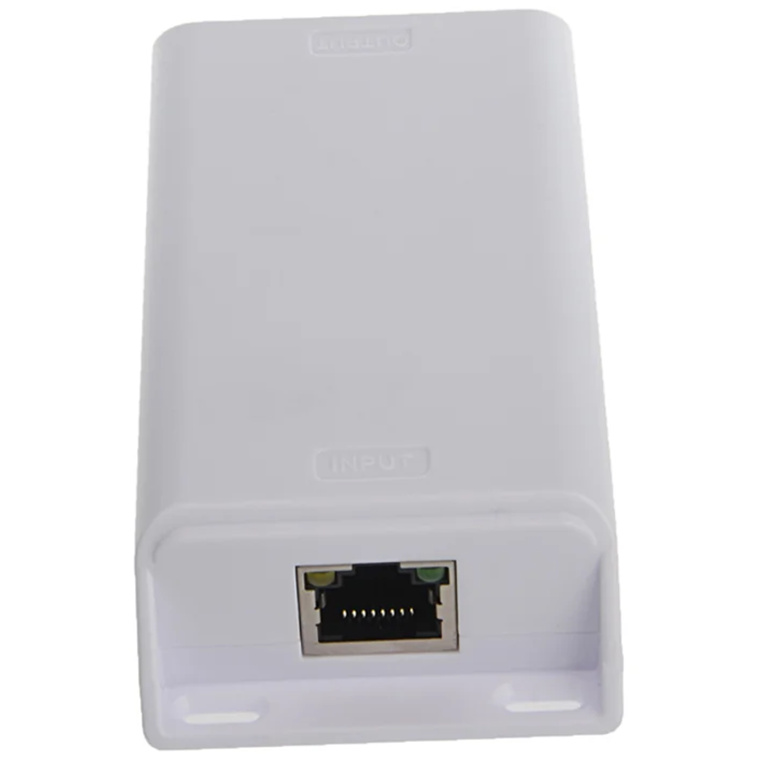

RJ45 PoE Female Input
42-57v DC IEEE 802.3af / IEEE 802.3at
Power and Data Source
RJ 45 male connector, 802.3af or 802.3at
Input Voltage Max
Up to 57 volts
Input Current at 48v
650 ma input delivers . .1A out
Data Pins in and out
All 4 pairs for data are preserved
Data speeds
10/100/1000 mbit/s
Power input mode A
1&2 and 3&6 - either polarity
Power input mode B
4&5 (plus) and 7&8 (minus)

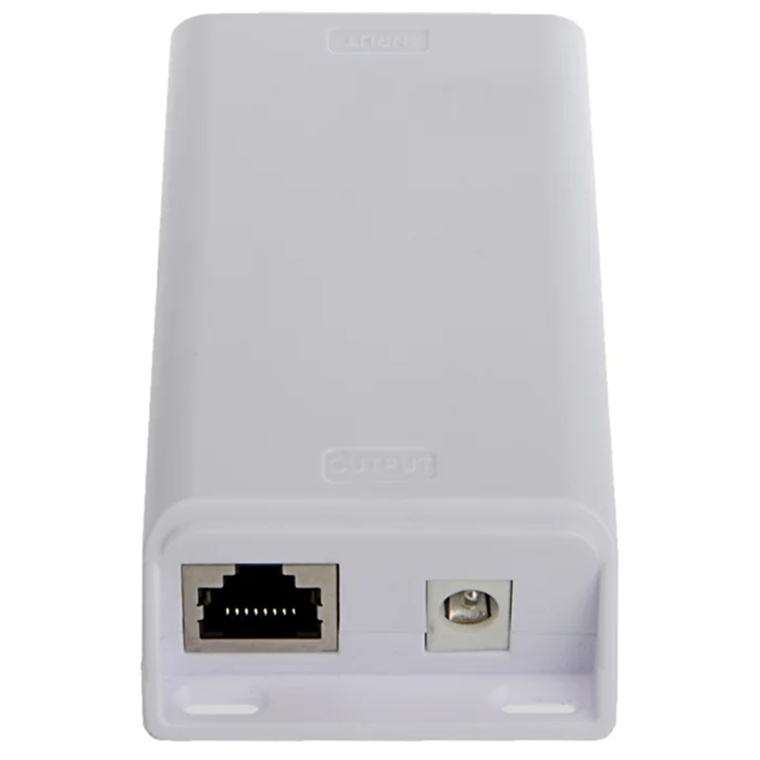

RJ45 Female Output
24V 1A Passive PoE 4,5 (plus) 7,8 (minus) or 24V 1A PoE Splitter
Power and data to load
RJ-45 female, 24v mode B power
DC connector
2.1mm x 5.5mm
Power Output Mode B
45 + and 78 - Isolated
Output Voltage Max load
24v +- 2% at 1.04 amps 25 watts
Output Voltage no load
24v
Operating Temperature
0°C ~ 50°C
Dimensions
120 x 50 x 22 mm
