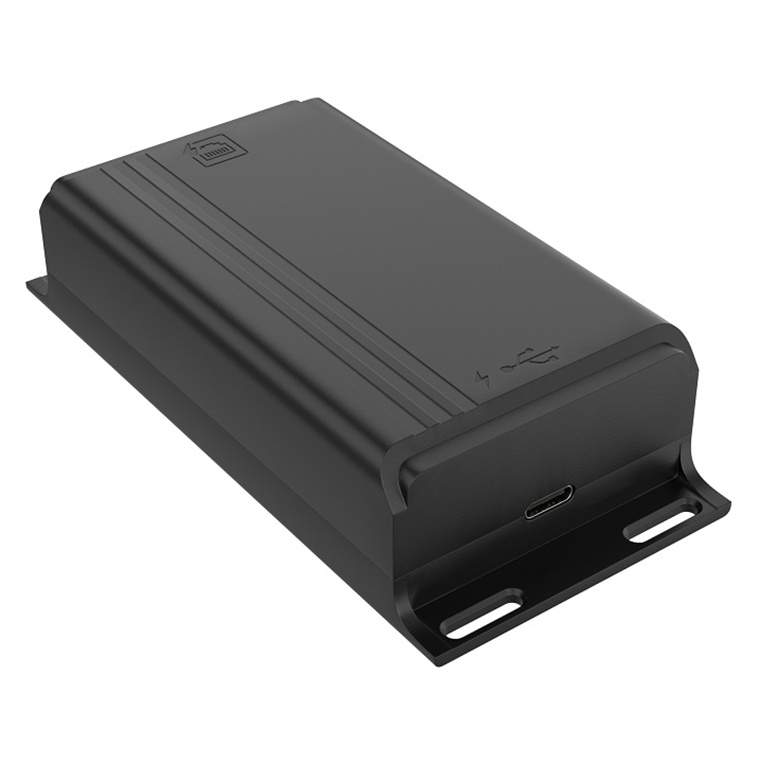

PoE World GAT-USBC-PD-R2V3 Active PoE to USB-C Splitter
PoE World GAT-USBC-PD-R2V3 Active PoE to USB-C Splitter
- Brand: PoE World
- MPN: GAT-USBC-PD-R2V3
- Part #: NETPEW1008
- UPC:
- Brand: PoE World
- MPN: GAT-USBC-PD-R2V3
- Part #: NETPEW1008
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular POE Splitters / Injectors





PoE World GAT-USBC-PD-R2V3 Active PoE to USB-C Splitter
- Brand: PoE World
- MPN: GAT-USBC-PD-R2V3
- Part #: NETPEW1008

Product URL: https://www.pbtech.co.nz/product/NETPEW1008/PoE-World-GAT-USBC-PD-R2V3-Active-PoE-to-USB-C-Spl?srsltid=AfmBOorG0pj4zwy7D93libNVcluMRuGf_AAazpIPtvRmnHC_hiHru3fT
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
This device provides a powerful solution for delivering power and wired Ethernet data to a USB-C device over up to 100m of network cable.
This splitter allows power to be carried on CAT-5e or CAT-6 network cables using either 802.3at standard or 56 volt passive PoE. 802.3af switches can also be used - but only 12 watts can be delivered without overload. 10/100/1000 or 10/100 switches can be used - the device will negotiate at 10/100 full duplex rates.
Intended for use with any 802.3at PoE switch - this active PoE solution negotiates with the switch to activate power and provide it to the client device. It is a compact and cost effective power solution. The PoE switch needs to supply 48 or 56 volts DC at the source location.
The higher DC voltage means the current is reduced by a factor of 9 compared to 5 volts, and then carried with 90% less loss over the Ethernet cable from the source, the 5v converter at the remote end allows you to extend the charge distance for this application up to 328ft or 100 meters.
- Delivers Both USB Type C Power and Data on one cable
- 10/100 Mbps Data Capability
- 25 Watt Max Output Power - (5v/3A, 9V/2.4A, 12v,2A, 15V,1.5A, 20V,1.25A)
- Compatible with IEEE 802.3at PoE+ Switch or Injector
- Low output ripple and noise
- Short-circuit protection
- Transformver isolation, 1500v isolation (input to output)
Specifications
?Brand
PoE World
Connector Types
USB-C (Female) 1x RJ45 Input (Female) 1
Data Rate
Input 10/100/1000mbps; Output 10/100mbps
Dimensions
11.43 x 5.08 x 2.54 cm
Input Voltage Range
44-56 Volts (IEEE 802.3at Compliant)
LEDs Per Port
Green (POE) / Yellow (USB-C)
Max Power
25 Watts
Operating Temperature
-10°C to 60°C
Operating Humidity
5% to 90%
Output Voltage
5v,3A; 9v,2.4A; 12v,2A; 15V,1.5A; 20V,1.25A
POE Method
IEEE 802.3at / PoE+ / Passive 30 watt
POE Mode/Pinout
Mode A (1,2 3,6) / Mode B (4,5 7,8)
