Features

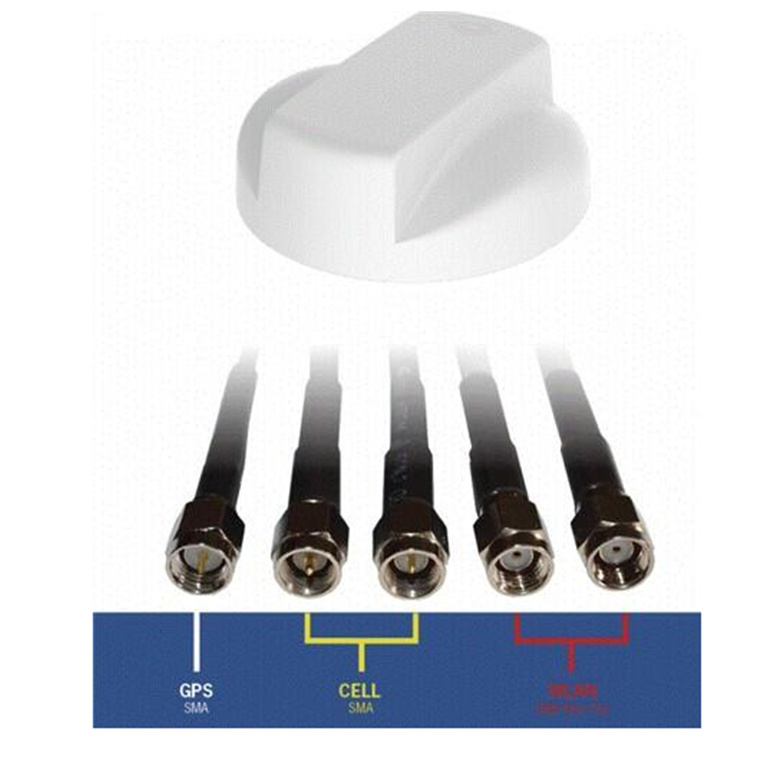

5-in-1 2x2 MiMo 5G LTE + GNSS + 2x2 MiMo WiFi Dome Kit w/ 5m cables (white)
The LG-IN2457 is a high performance 2x2 MiMo LTE, 2x2 MiMo Dual Band WiFi and GPS/GNSS active antenna covering 617-960/1710-6000MHz.
It has been designed to provide 2x2 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and 2x2 MiMo WiFi 2.4/5.0GHz.

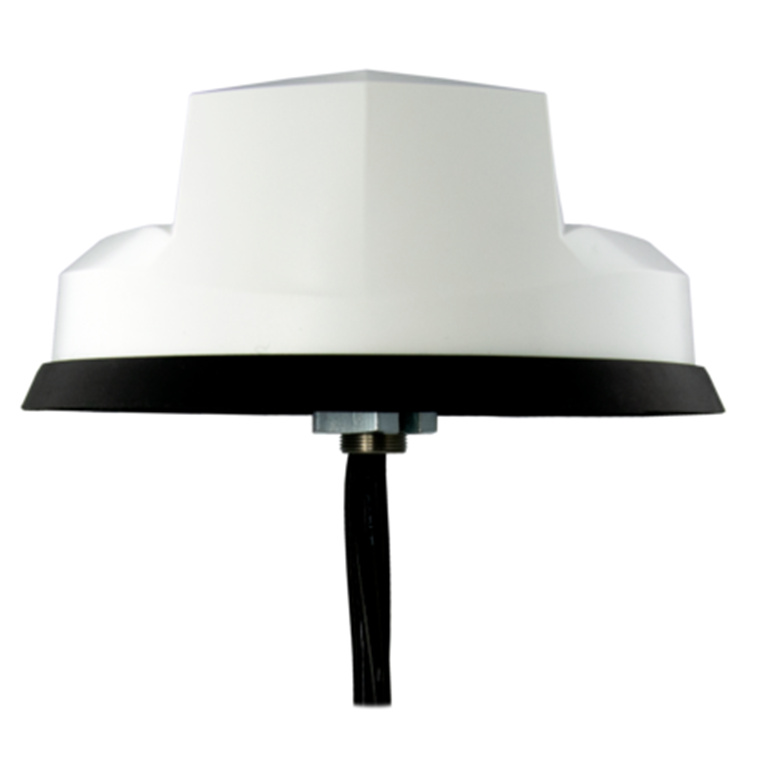

The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications.

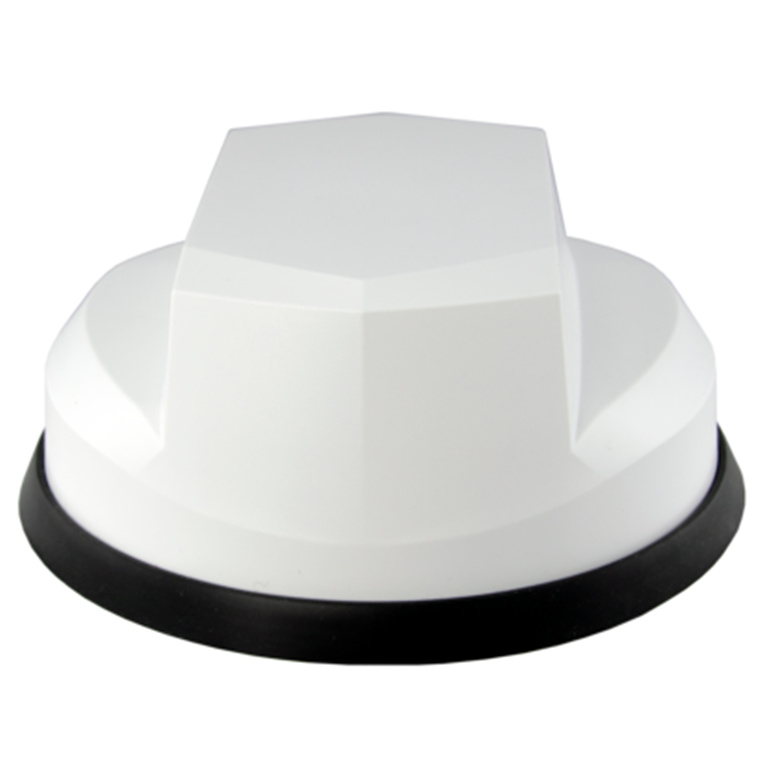

The antenna is available with a white radome which meets IK10 for vandal resistance and IP69K for ingress protection.
- Rugged Low Profile Design
- 2 x Wideband LTE/cellular Elements (MiMo)
- 2 x 2.4 & 4.9-6GHz WiFi Elements (MiMo)
- Integrated GPS Antenna
- Ground Plane Independent
- High Performance
Specifications
Electrical Data
LTE Frequencies
617-960/1710-6000MHz
Global Positioning
GPS / GNSS 1562-1612
Wifi Frequencies
2.4 / 4.9-6.0GHz
Peak Gain (dBi)
9
LTE MiMo
2x2
WiFi MiMo
2x2
Max Input Power (W)
10
Pattern
Omni-directional
Ground Plane Independent
Yes
Mechanical Data
Available Colours
White
Height (mm)
80
Diameter (mm)
180
Operating Temperature
-40 / +85°C
Mounting Data
Mounting Type
Panel Mount
Mounting Method
18mm (3/4") Mounting Bush
Approvals Data
IP Rating
IP69K
