Features

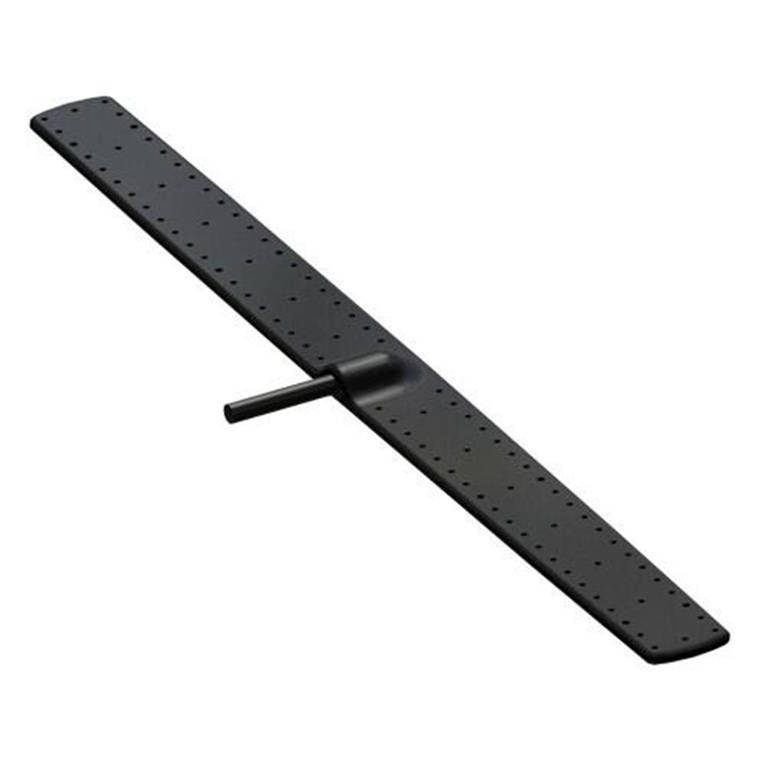

Panorama EFBAD-3F Windshield Mount Antenna for 700MHz and 800MHz bands
The Panorama On Glass antenna Easy Fit can be quickly and easily installed on a windscreen or any plastic surface and is ideal for discrete / semi covert applications or situations when it is not possible to drill a hole.
- Excellent performance at UHF Frequncies
- No-hole installation
- Acrylic Adhesive Mounting Pad
- The antenna is held securely in place using a pressure sensitive acrylic adhesive pad
- 762-870MHz Bands

Specifications
Application Frequency
UHF Frequency Band
B1 (762-800MHz); S5 (806-870MHz); 7/800 (762-870MHz)
Electrical Data
Peak Gain (dBi)
2
Max Input Power (W)
20
Pattern
Omni-directional
Ground Plane Independent
Yes

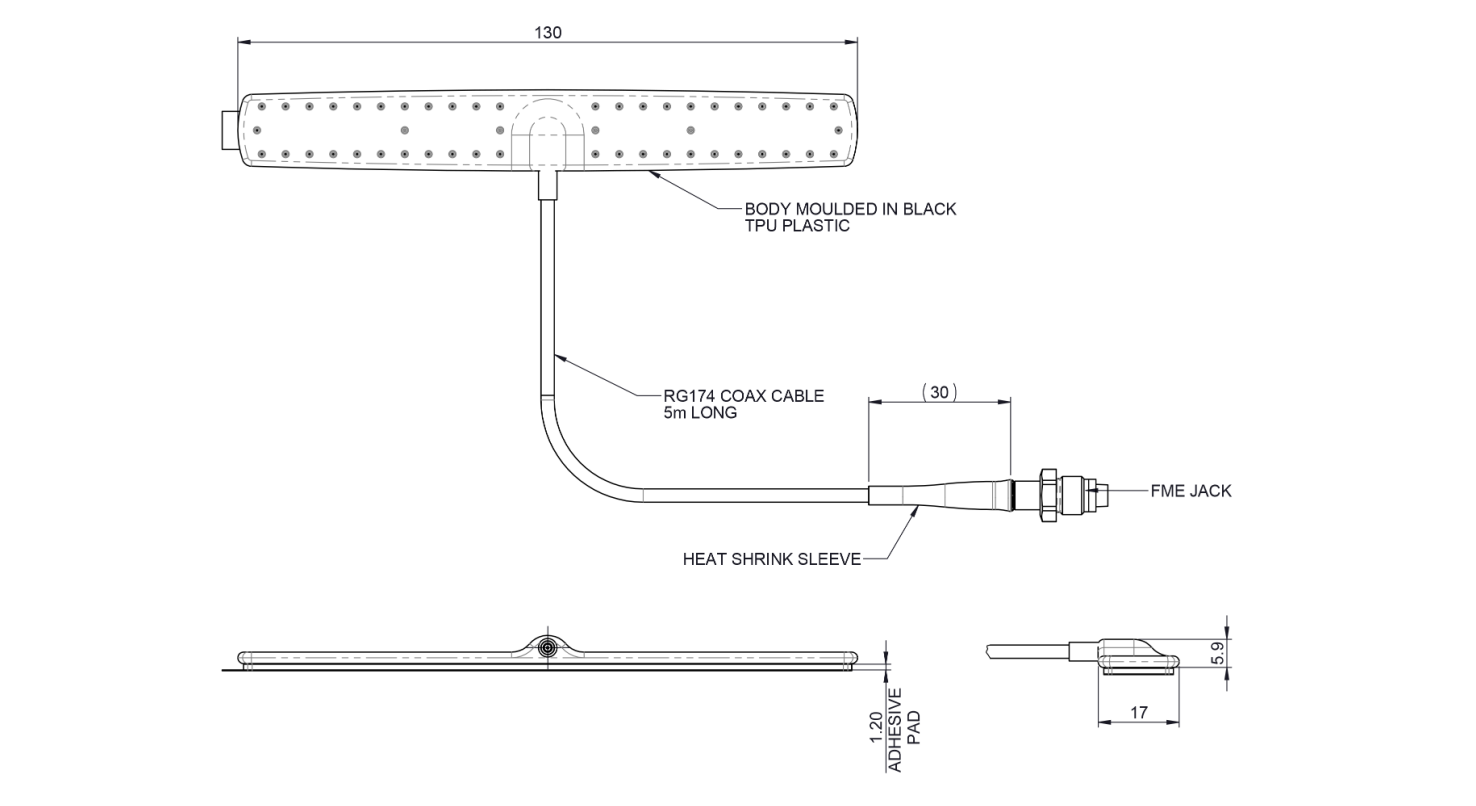

Mechanical Data
Length (mm)
130
Width (mm)
17
Operating Temperature
-30 / + 70°C
Mounting Data
Mounting Type
Glass Mount; Adhesive Mount
Mounting Method
Adhesive Pad
