Panorama 3G/4G LTE Shark Finn Antenna for Vehicles, 2 x Cellular, 1 x GPS Frequencies : 698-960/1710-3800MHz
Panorama 3G/4G LTE Shark Finn Antenna for Vehicles, 2 x Cellular, 1 x GPS Frequencies : 698-960/1710-3800MHz
- Brand: Panorama
- MPN: GPSD-7-27
- Part #: NETPNM4727
- UPC:
- Brand: Panorama
- MPN: GPSD-7-27
- Part #: NETPNM4727
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Antennas





Panorama 3G/4G LTE Shark Finn Antenna for Vehicles, 2 x Cellular, 1 x GPS Frequencies : 698-960/1710-3800MHz
- Brand: Panorama
- MPN: GPSD-7-27
- Part #: NETPNM4727

Product URL: https://www.pbtech.co.nz/product/NETPNM4727/Panorama-3G4G-LTE-Shark-Finn-Antenna-for-Vehicles?srsltid=AfmBOopN3BkzWSfuIdjmG_sTexuXLK-eBNDuUR1Wd6fUIkGT3wjgEKkN
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

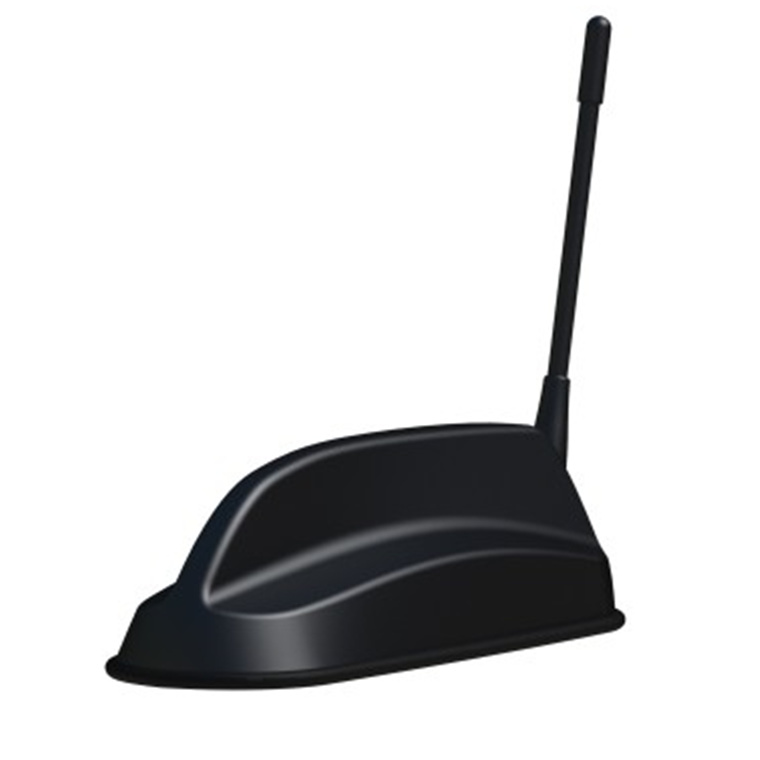

The GPSD 'MiMo Sharkee™' has a compact OEM style shark fin housing that contains 2x2 MiMo antenna function for 4G/3G/2G and an active antenna for GPS/GLONASS/Galileo/Beidou with 26dB gain LNA. In addition, there is an integral stud mount for an external antenna whip that can support a range of VHF, UHF or 700/800MHz antennas.
A further version of GPSD is available that adds 2x2 MiMo antenna function for 2.4/5.8GHz WiFi.
The GPSD shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient and robust antenna is essential. Requiring only a single hole mounting, the GPSD reduces vehicle damage, installation time & cost and visual impact whilst protecting a vehicle's resale value.
Specifications
Electrical Data
2G/3G/4G Frequencies
698-960/1710-3800MHz
Global Positioning
GPS / GNSS 1562-1612
Wifi Frequencies
MiMo - 2.4/5.0GHz - (Optional)
2G/3G/4G MiMo
2x2
WiFi MiMo
Optional 2x2
Max Input Power (W)
50
Pattern
Omni-directional
Global Positioning Data
Frequency Range (MHz)
1562-1612
LNA Gain (dB)
26
Mechanical Data
Available Colours
Black
Length (mm)
172
Width (mm)
61
Height (mm)
50
Mounting Data
Mounting Type
Panel Mount
Mounting Method
18mm (3/4") Mounting Bush
Whip Mounting
M6x0.75
Approvals Data
IP Rating
IP66
Flame Retardancy
UN118.01 Compliant
