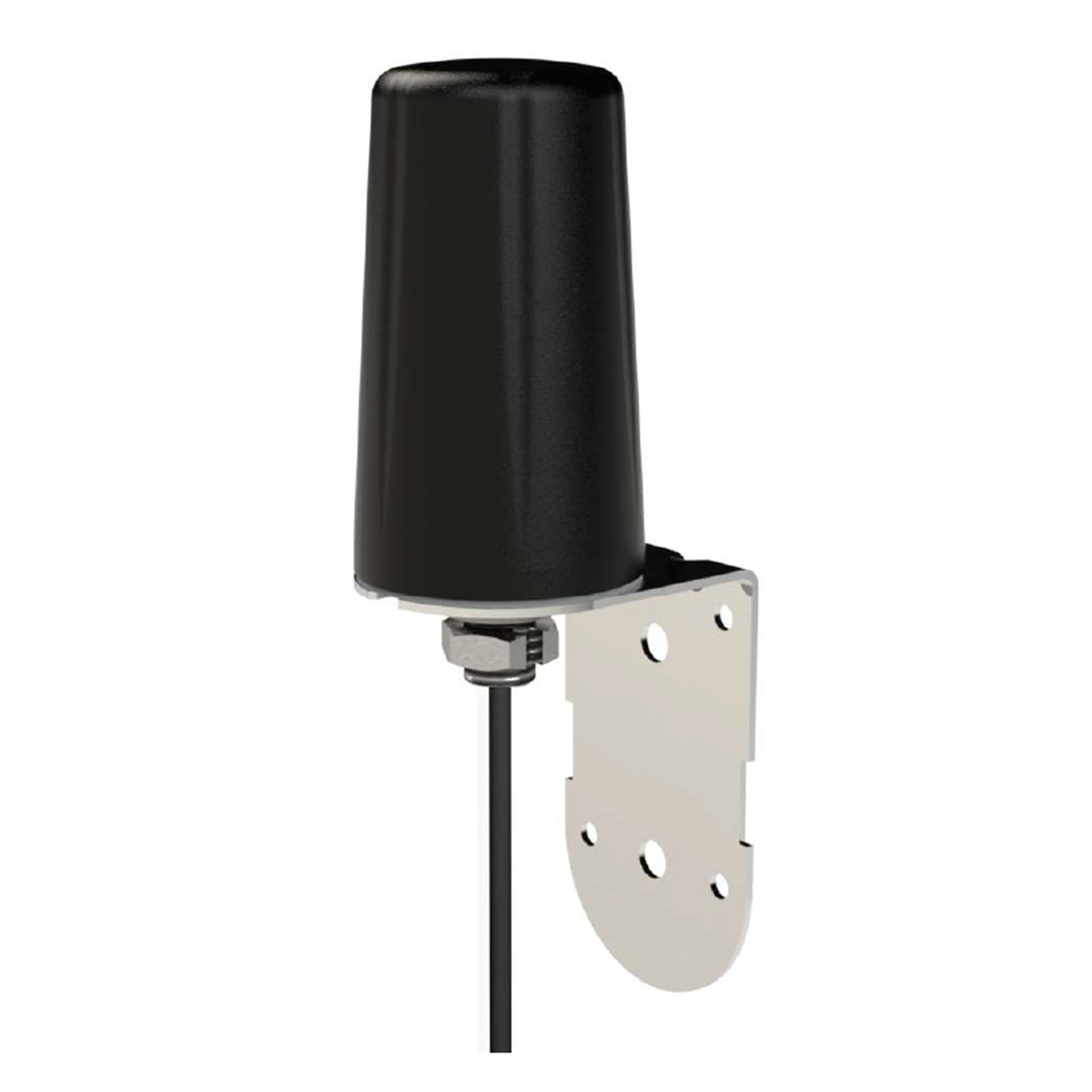

Panorama B4BEE-6-60-2SP 2-3.5dBi 3G/4G LTE High Gain Outdoor Omni-Directional Antenna with 2M Extension Cable, 1 x SMA Male

PB Tech price
PB Tech price
$ 60 .00
 +GST
$ 69 .00
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Panorama B4BEE-6-60-2SP 2-3.5dBi 3G/4G LTE High Gain Outdoor Omni-Directional Antenna with 2M Extension Cable, 1 x SMA Male

Support Full NZ 3G 4G LTE Bands
  • Brand: Panorama
  • MPN: B4BEE-6-60-2SP
  • Part #: NETPNM66051
  • UPC:
PB Tech price
$ 60 .00 $ 69 .00
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: Panorama
  • MPN: B4BEE-6-60-2SP
  • Part #: NETPNM66051
  • UPC:

Features

B4BE[E]-6-60 4G/5G Bracket Antenna

- Cost Effective 2G/3G/4G/5G coverage
- Wall, mast or panel mount
- Integrated low loss cable

The B4BE[E] antenna is a cost effective omni-directional broad band antenna for 4G/3G/2G and 5G devices from 617-960/1710-6000MHz and is suitable for external or internal installation.

The design of the mounting bracket enables simple wall mounting using the supplied screws and wall plugs or mast mounting using a pipe clip or cable ties (not supplied).

The omni-directional radiation pattern allows easy placement of the antenna in an elevated positon. The B4BE variant is supplied with integrated 5mm double shielded CS29 coaxial cable while the B4BEE variant is supplied with RG174 cable for shorter cable runs.

This antenna is an ideal solution for use in industrial and domestic environments with cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications.

Specifications

Electrical Data

Frequency Range (MHz)

617-960 / 1710-6000

Operational Band

2G/3G/4G/5G

VSWR

<2.5:1

Nominal Radiated Efficiency*

> 70%

Polarisation

Vertical

Pattern

Omni-directional

Impedance

50O

Max Input Power (W)

30

Notes

* Peak gain and efficiency simulated in CST microwave studio on a bracket excluding cable loss

Peak Realised Gain: Isotropic*

617-960MHz

2dBi

1710-2700 MHz

3.5dBi

3400-3800MHz

5dBi

4.9-6000Mhz

7dBi

Notes

* Peak gain and efficiency simulated in CST microwave studio on a bracket excluding cable loss

Mechanical Data

Height mounted

164 (6.46")

Diameter

48(1.89")

Operating Temp (°C)

-40° / +85°C ( -40° / 185°F )

Material

ASA, aluminium, zinc plated steel

Material Approvals

Radome ASA Material - UL 746C F2, UL 94-HB

Colour

Black & natural

Ingress Protection

IP66

Mounting Data

Fixing

Wall or mast mount

Mounting Scew Diameter (mm)

4 (0.16")

Weight (g)

219

Cable Data

Type

RG174

Diameter (mm)

2.8 (0.1")

Length (m)

2 (6' 6")

Termination

SMA plug

Manufacturer Part No:
B4BEE-6-60-2SP
Brand:
Panorama
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
NETPNM66051
Product Model:
B4BEE-6-60-2SP
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
