Features

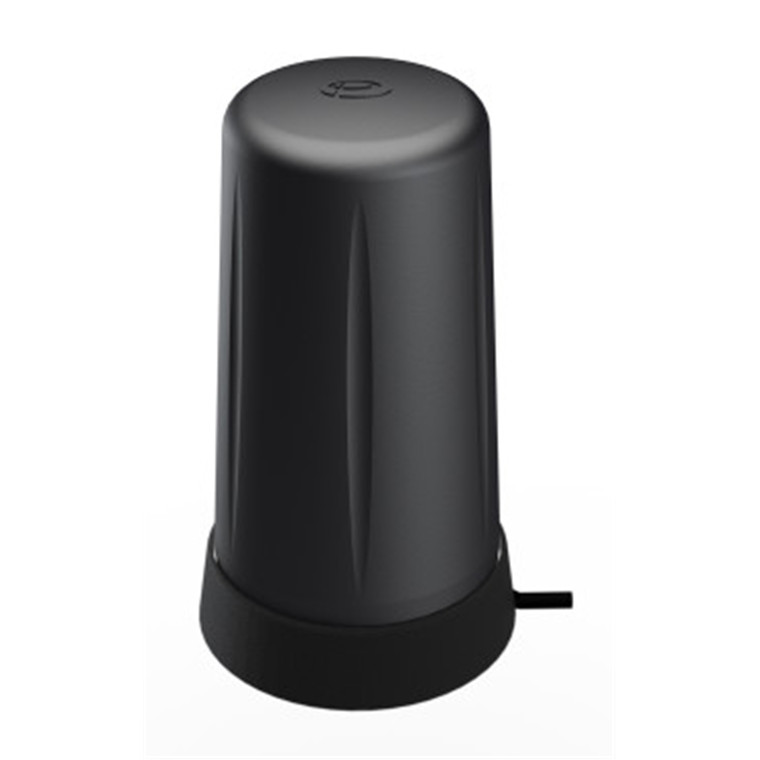

LPBEM-7-27 | Magnetic Low Profile 2G/3G/4G Antenna
The Panorama LPBEM is a versatile low profile magnetic antenna for LTE, 2G/3G/4G/5G, M2M and IOT Applications.
- Low profile magnetic design
- Excellent Bandwidth
- Supports 2G/3G/4G, 3.8GHz 5G 868 & 915MHz
The Panorama LPBEM-7-27 is a range of low cost high performance magnetic mount antennas for temporary fit applications. At only 95mm (3.7") high and protected by a robust high impact radome the antenna is almost impervious to daily wear and tear.
The LPBEM offers excellent performance across a wide bandwidth. The LPBEM-7-27 covers global cellular and LTE frequencies from 698-960 MHz and 1710-3800MHz making it an extremely versatile product. Although intended for magnetic mounting on a conductive ground plane the antenna can also be used for desk mounting applications with some impact on performance.
Supplied with a convenient 2m (6') length of flexible RG174 cable the LPBEM is easy to install and compatible with a large range of modems.

Specifications
Electrical Data
LTE Frequencies
698-960/1710-3800MHz
Typical VSWR
<2:1
Peak Gain (dBi)
5
Max Input Power (W)
25
Pattern
Omni-directional
Ground Plane Independent
Yes
Mechanical Data
Available Colours
Black
Height (mm)
95
Diameter (mm)
48
Operating Temperature
-40 / + 80°C
Mounting Data
Mounting Type
Temporary Mount
Mounting Method
Magnetic Mount
