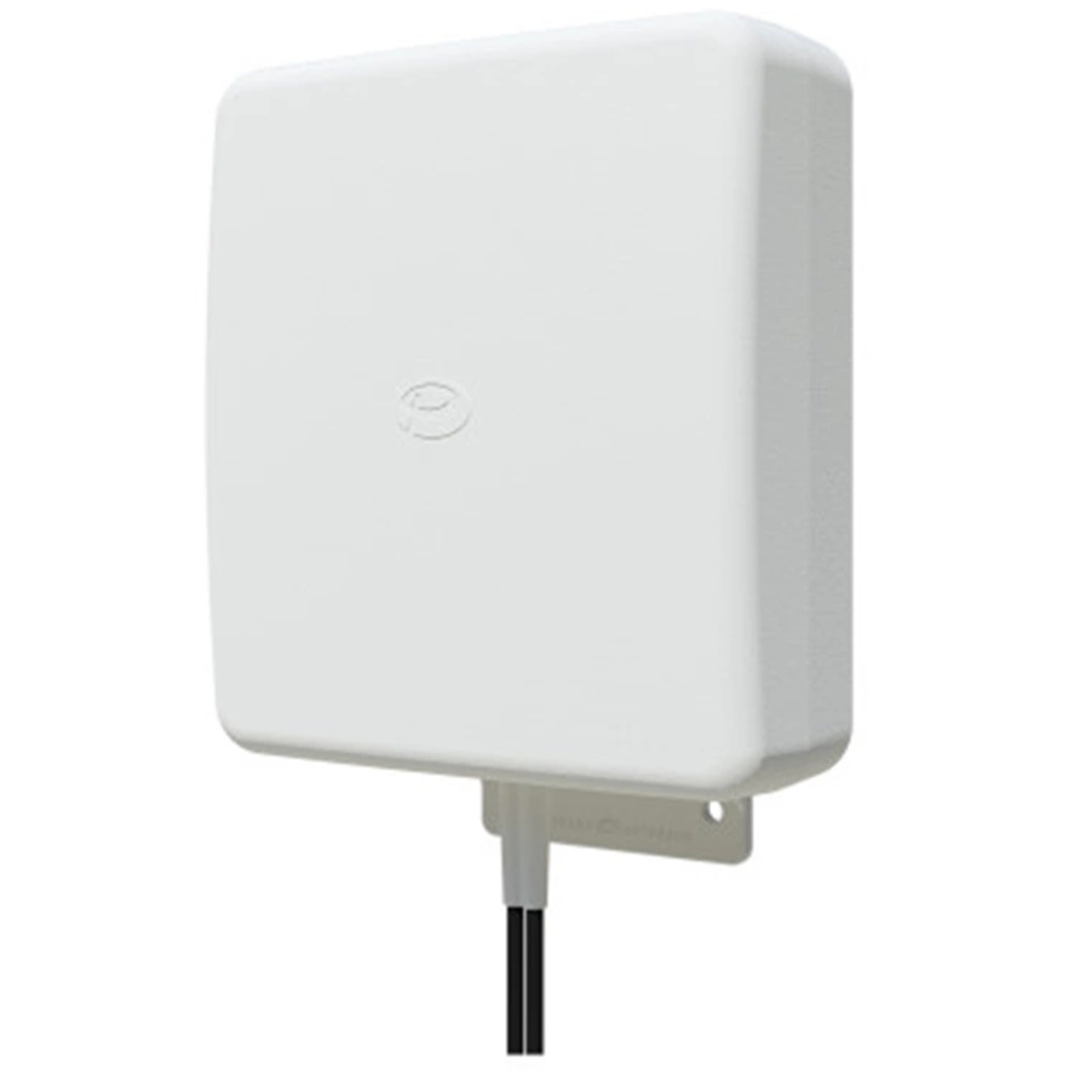

Panorama WMM8G-7-38-TS9 Outdoor High Gain Directional MiMo LTE Antenna, 2 x TS9 Male, Directional, 6-9dBi 5G/4G/3G/2G LTE, 698-960/1710-3800MHz
Out of stock
Panorama WMM8G-7-38-TS9 Outdoor High Gain Directional MiMo LTE Antenna, 2 x TS9 Male, Directional, 6-9dBi 5G/4G/3G/2G LTE, 698-960/1710-3800MHz
- Brand: Panorama
- MPN: WMM8G-7-38-TS9
- Part #: NETPNM87383
- UPC:
- Brand: Panorama
- MPN: WMM8G-7-38-TS9
- Part #: NETPNM87383
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Antennas
Panorama WMM8G-7-38-TS9 Outdoor High Gain Directional MiMo LTE Antenna, 2 x TS9 Male, Directional, 6-9dBi 5G/4G/3G/2G LTE, 698-960/1710-3800MHz
- Brand: Panorama
- MPN: WMM8G-7-38-TS9
- Part #: NETPNM87383
Product URL: https://www.pbtech.co.nz/product/NETPNM87383/Panorama-WMM8G-7-38-TS9-Outdoor-High-Gain-Directio
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
The WMM8G-7-38 antenna is a high gain directional 2×2 MIMO signal boosting antenna for 3G ,4G and 5G networks. Incorporating two separately fed wideband elements in a single housing the WMMG is equipped to provide client side MIMO and diversity support for 3G and 4G networks. The rugged, weatherproof housing is designed for wall mounting.
- Supports 2x2 MiMo 2G/3G/4G/5G
- High Directional gain 6-9dBi
- Wall Mount or Mast Mount

Specifications
Electrical Data
2G/3G/4G Frequencies
698-960/1710-3800MHz
Typical VSWR
<2:1
Peak Gain (dBi)
9
2G/3G/4G MiMo
2x2
Max Input Power (W)
50
Pattern
Directional

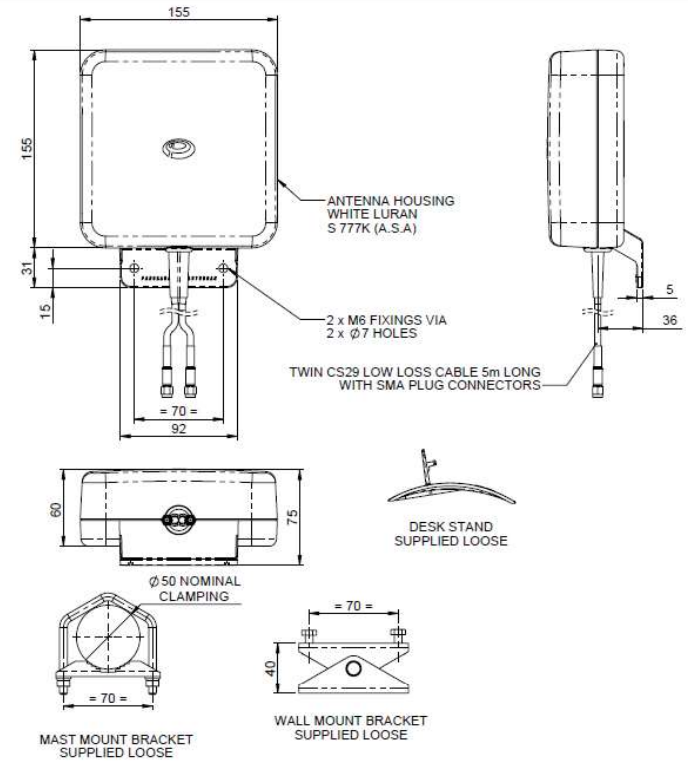

Mechanical Data
Colour
White
Length (mm)
94
Width (mm)
180
Height (mm)
230
Operating Temperature
-30 / +70° C
Mounting Data
Mounting Type
Wall Mount; Mast Mount
Mounting Method
Wall Bracket; Mast Clamp; U Bolt; Screw Mount
Approvals Data
IP Rating
IP65
Flame Retardancy
UL94 V0
