PlatinumTools 202020J Shielded EZ-RJ45 Connectors for CAT5e & CAT6 with Internal Ground (Jar Packaging, 50-Pieces)
PlatinumTools 202020J Shielded EZ-RJ45 Connectors for CAT5e & CAT6 with Internal Ground (Jar Packaging, 50-Pieces)
- Brand: PlatinumTools
- MPN: 202020J
- Part #: NETPNT2020
- UPC: 849160002444
- Brand: PlatinumTools
- MPN: 202020J
- Part #: NETPNT2020
- UPC: 849160002444
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Modular Connectors





PlatinumTools 202020J Shielded EZ-RJ45 Connectors for CAT5e & CAT6 with Internal Ground (Jar Packaging, 50-Pieces)
- Brand: PlatinumTools
- MPN: 202020J
- Part #: NETPNT2020
- UPC:849160002444

Product URL: https://www.pbtech.co.nz/product/NETPNT2020/PlatinumTools-202020J-Shielded-EZ-RJ45-Connectors?srsltid=AfmBOop03jZdYLs3RyuS5jgFuYkk7rMEjdGWRHOTWrOdllOTASgAWmGS
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

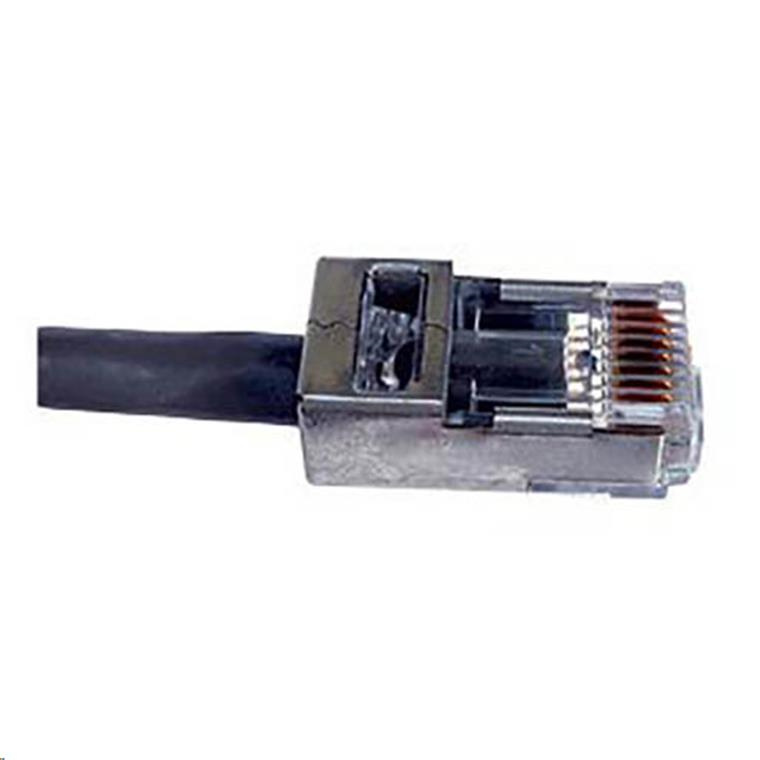

PLATINUM TOOLS Cat5e/6 Shielded EZ-RJ45 Plug with Internal Ground. Easy install RJ45 plug for Cat5e/ Cat6 shielded solid & stranded cable. One piece design. 50pc jar.

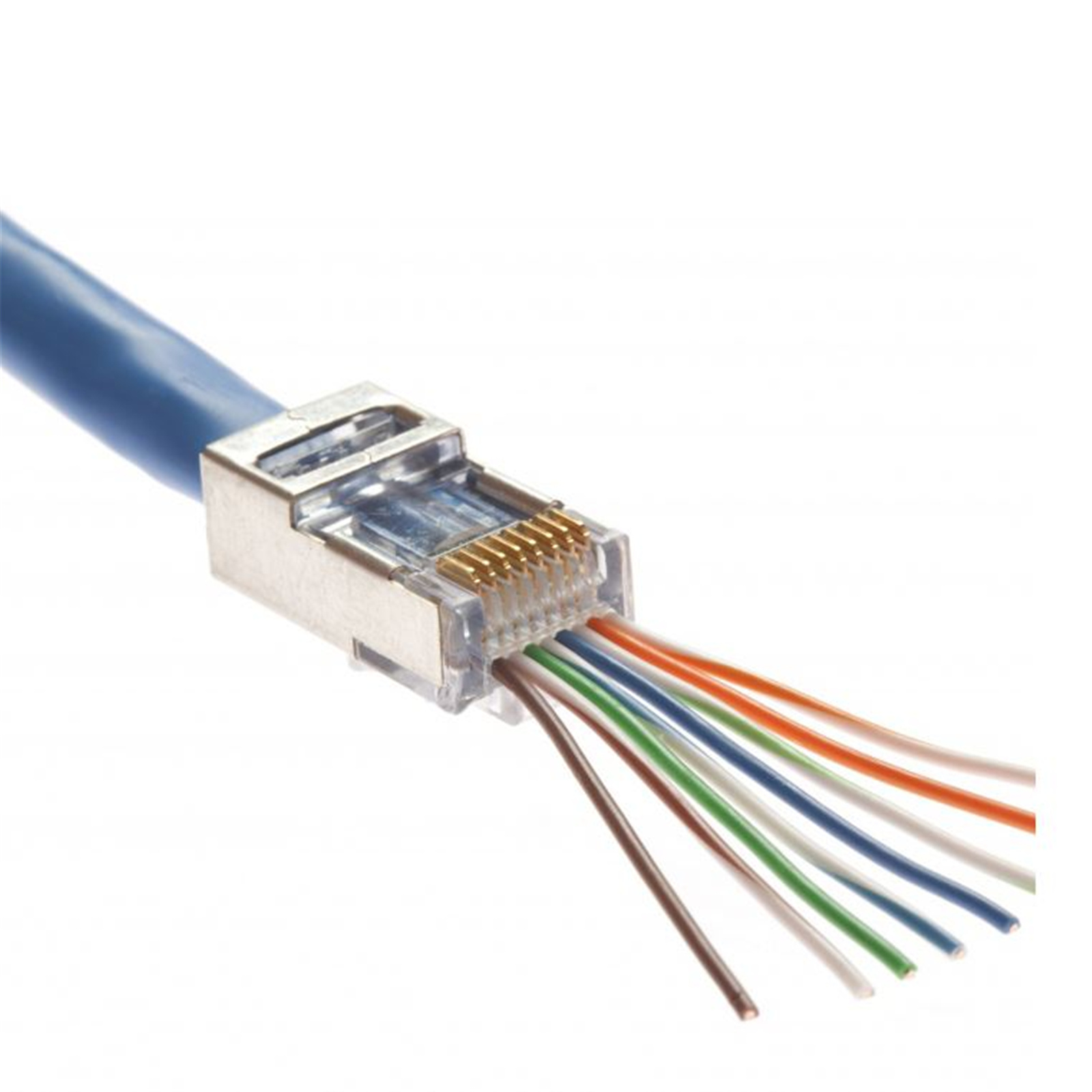

- EZ-RJ45® design allows the wires to pass through the connector so the twists in each pair can be pulled closer to the contacts than conventional plugs.
- Maintaining the twists to the point of termination significantly decreases crosstalk and markedly increases performance.
- Fully shielded products provide reduced pair-to-pair crosstalk, alien crosstalk, and considerably improved immunity to noise at all frequencies.
- Significantly improve Shannon capacity.
- Substantially improve noise immunity at all frequencies, especially above 30 MHz when cable balance starts to significantly degrade.
- Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated. RoHS compliant
- Max Cable OD: 6.60mm (0.260"), Max Insulated wire OD: 1.041mm (0.041")
- For solid round or stranded wire cables.
- Made in the USA, Patented
- TAA Compliant
- 50pc Jar
Specifications
Maximum OD: 0.26" / 6.60 mm
Conductor
Maximum OD: 0.041" / 1.041 mm
Compliance
FCC, UL, and RoHS
