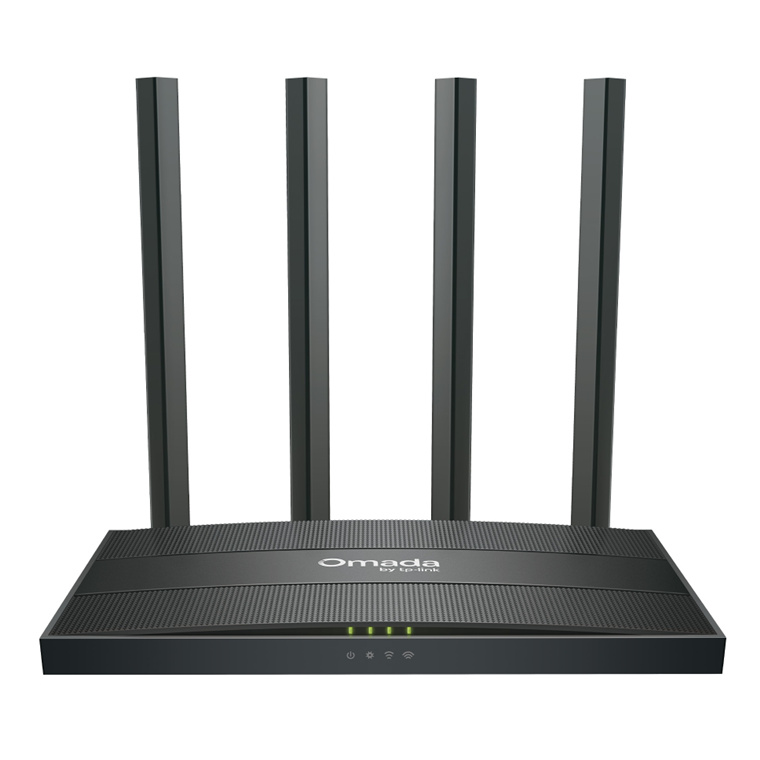

TP-Link Omada ER605W AC1200 Gigabit Wi-Fi Gateway
1GbE x5
TP-Link Omada ER605W AC1200 Gigabit Wi-Fi Gateway
1GbE x5
- Brand: TP-Link
- MPN: ER605W
- Part #: NETTPL1605
- UPC:
- Brand: TP-Link
- MPN: ER605W
- Part #: NETTPL1605
- UPC:
Similar in-stock products available at PB Tech right now
Features
TP-Link Omada AC1200 Gigabit Wi-Fi Gateway
- AC1200 Dual-Band WiFi (867 Mbps on 5 G + 300 Mbps on 2.4 G)[1]
- 5x Gigabit Ethernet Ports Provide High-Speed Connectivity
- 4x High-Gain External Antennas for Boosted Coverage
- Load Balancing on up to 3× WAN Ports
- IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE[2] VPN
- DoS Defense, IP/MAC/URL Filtering, and More Abundant Security Features
- Centralized Cloud Management via Web and Omada App

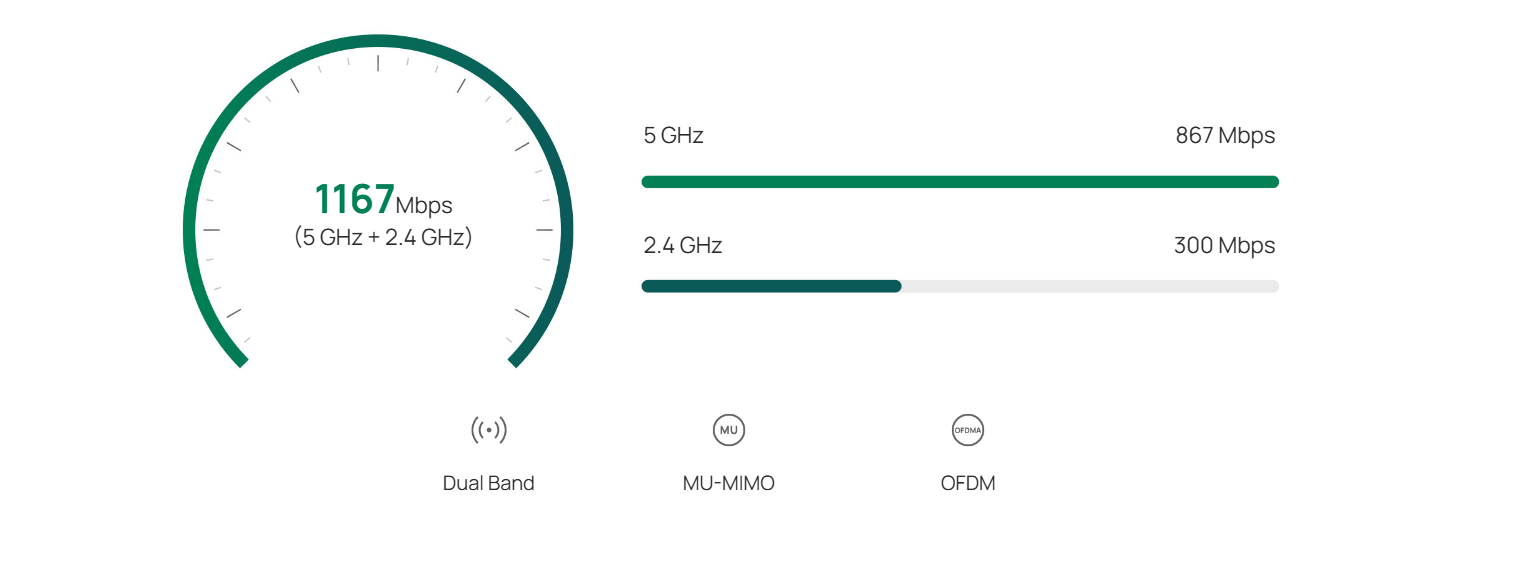

Smooth Networking Starts with AC1200 Dual Band WiFi
ER605W offers up to 300 Mbps on the 2.4 GHz band for everyday use and up to 867 Mbps on the 5 GHz band for HD streaming and conferencing, suitable for retail, small shops, small chain stores, branch offices, and more.

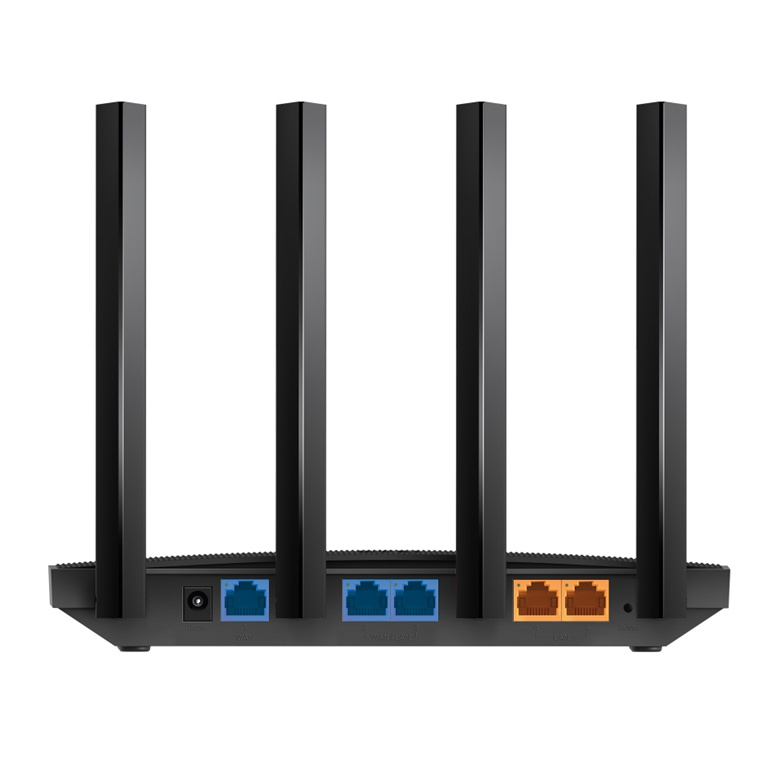

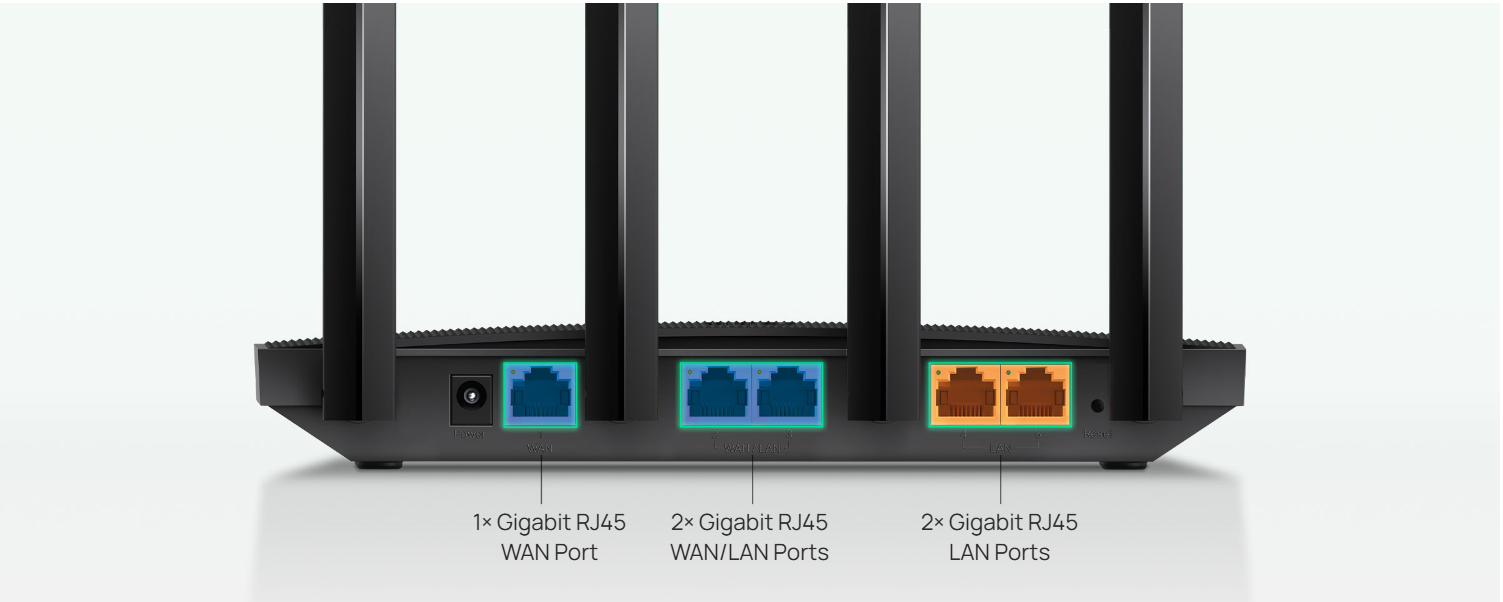

Up to Five Gigabit Ports for Gigabit Connectivity
ER605W boasts 1 WAN, 2 WAN/LAN, and 2 LAN ports, meeting diverse internet needs. Attach your wired devices like desktops or 4K HDTVs to ER605W for a seamless experience.

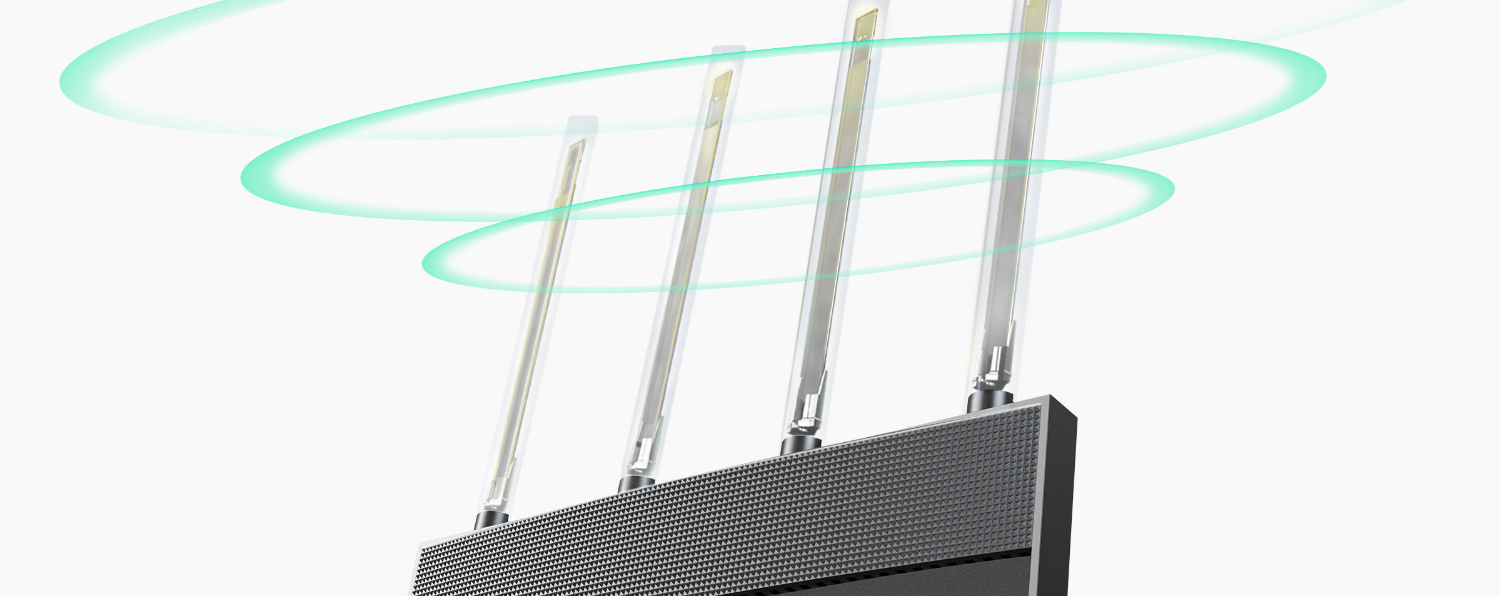

Robust Wireless Coverage Means No Dead Ends
Four external antennas send WiFi signals to every corner of your store. Stay connected and enjoy fast WiFi whether you're working the shelves or register.

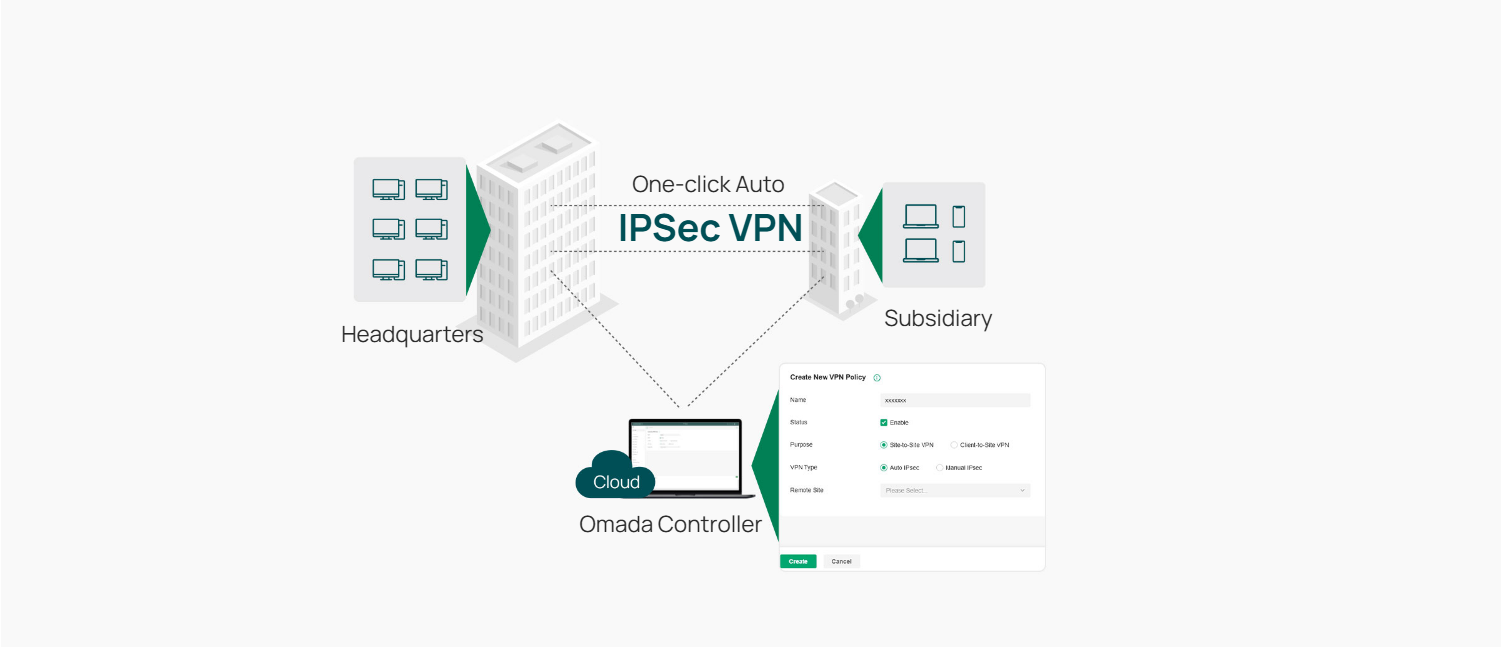

High-Security and High-Performance VPN
IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE[2] VPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
Abundant Security Features

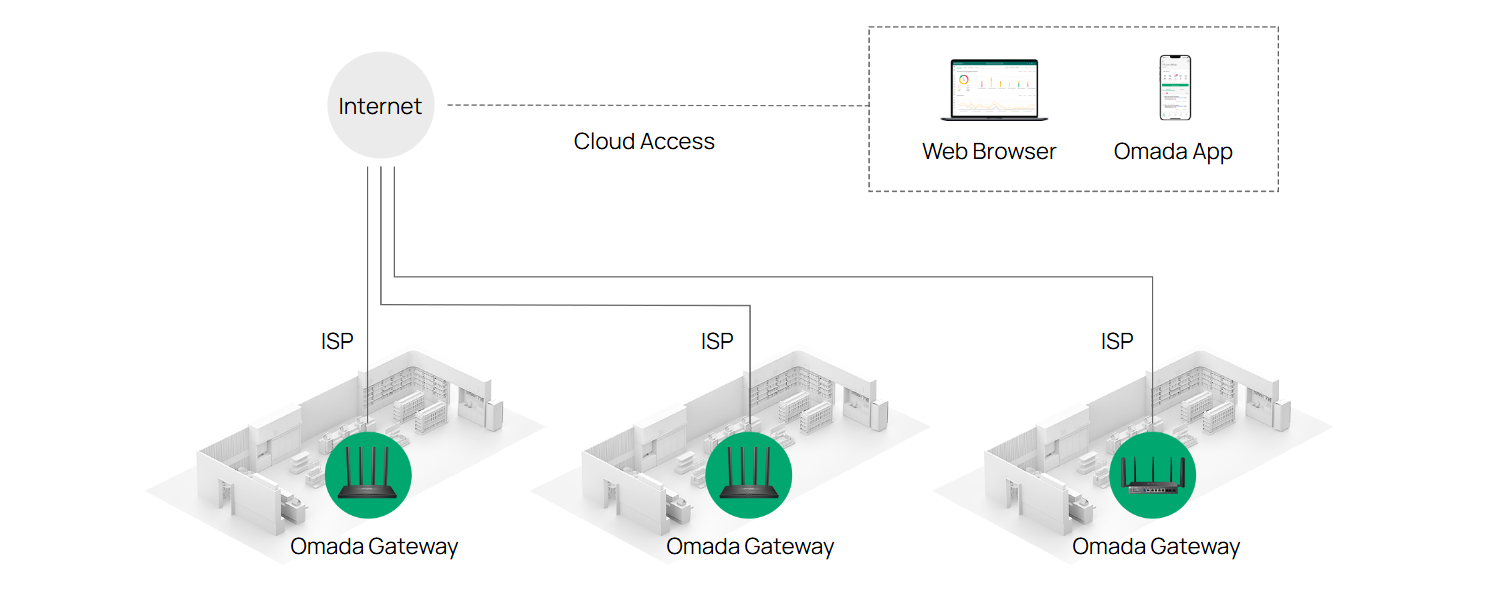

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

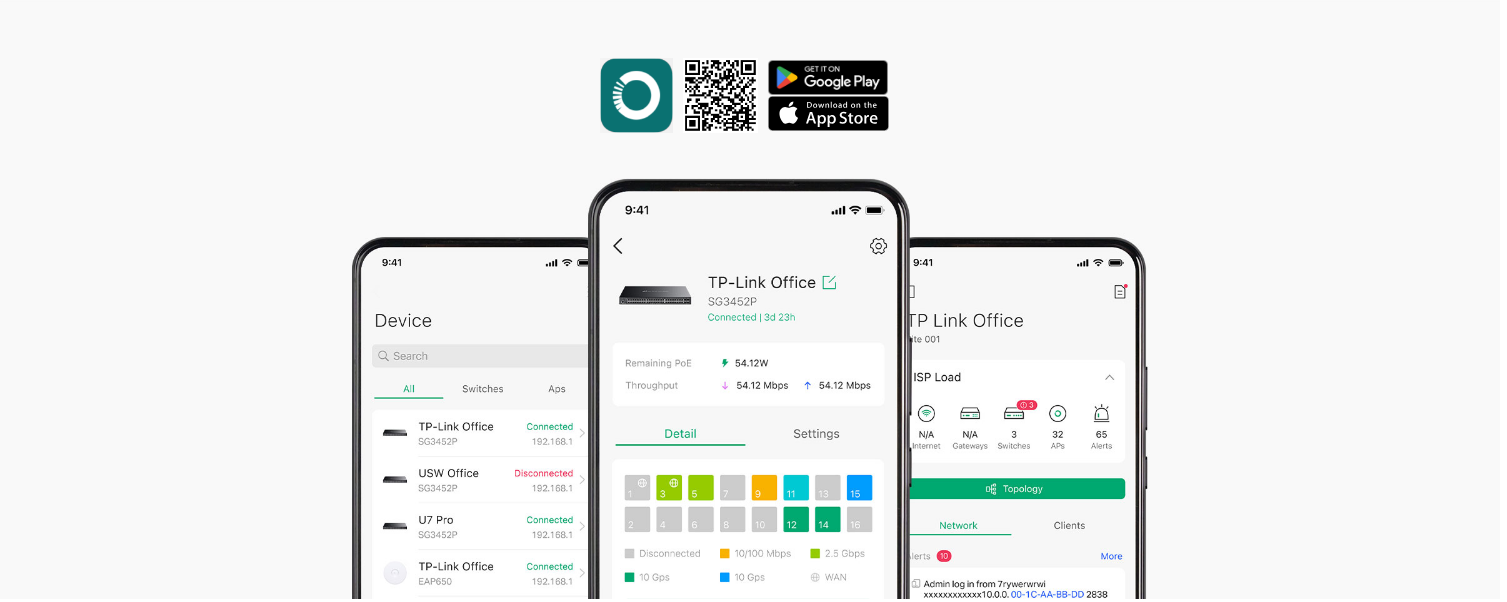

Easy Management with the Omada App
Notes
[1]Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network.
[2]These features are supported only in Standalone Mode.
Specifications
Reviews
Accessories
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-7 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular VPN Routers
Ubiquiti UniFi (UCG-Ultra) Cloud Gateway Ultra 2.5GbE x1 / 1GbE...
Ubiquiti UniFi (UCG-Fiber) 10G Cloud Gateway Fiber (SSD Tray not...
Ubiquiti UniFi (UDR7) Dream Router 7 10G Cloud Gateway with NVR...
Ubiquiti UniFi (UDM-PRO) Dream Machine Pro 10G Cloud Gateway with...
Ubiquiti UniFi (UX7) Express 7 10G Cloud Gateway WiFi 7 Tir-Band...
TP-Link Omada ER605W AC1200 Gigabit Wi-Fi Gateway 1GbE x5
- Brand: TP-Link
- MPN: ER605W
- Part #: NETTPL1605
Product URL: https://www.pbtech.co.nz/product/NETTPL1605/TP-Link-Omada-ER605W-AC1200-Gigabit-Wi-Fi-Gateway
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
TP-Link Omada AC1200 Gigabit Wi-Fi Gateway
- AC1200 Dual-Band WiFi (867 Mbps on 5 G + 300 Mbps on 2.4 G)[1]
- 5x Gigabit Ethernet Ports Provide High-Speed Connectivity
- 4x High-Gain External Antennas for Boosted Coverage
- Load Balancing on up to 3× WAN Ports
- IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE[2] VPN
- DoS Defense, IP/MAC/URL Filtering, and More Abundant Security Features
- Centralized Cloud Management via Web and Omada App
Smooth Networking Starts with AC1200 Dual Band WiFi
ER605W offers up to 300 Mbps on the 2.4 GHz band for everyday use and up to 867 Mbps on the 5 GHz band for HD streaming and conferencing, suitable for retail, small shops, small chain stores, branch offices, and more.
Up to Five Gigabit Ports for Gigabit Connectivity
ER605W boasts 1 WAN, 2 WAN/LAN, and 2 LAN ports, meeting diverse internet needs. Attach your wired devices like desktops or 4K HDTVs to ER605W for a seamless experience.
Robust Wireless Coverage Means No Dead Ends
Four external antennas send WiFi signals to every corner of your store. Stay connected and enjoy fast WiFi whether you're working the shelves or register.
High-Security and High-Performance VPN
IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE[2] VPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
Abundant Security Features
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Easy Management with the Omada App
Notes
[1]Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network.
[2]These features are supported only in Standalone Mode.
Specifications
SECURITY
Access Control
Source/Destination IP Based Access Control
DNS Proxy
DNSSEC, DoH, and DoT
Filtering
Web Group Filtering
URL Filtering
Web Security
ARP Inspection
Sending GARP Packets
ARP Scanning
IP-MAC Binding
Attack Defense
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
HARDWARE FEATURES
Interface
1x Gigabit WAN Port
2x Gigabit WAN/LAN Ports
2x Gigabit LAN Ports
Button
Reset Button
Power Supply
12V DC / 1A Power Adapter
Wi-Fi Frequency & Signal Rate
2.4 GHz: 300 Mbps
5 GHz: 867 Mbps
Flash
128 MB NAND
DRAM
256 MB DDR3
LED
Power, SYS, 2.4G, 5G
WAN (1000/100/10M Link/Act)
WAN/LAN (1000/100/10M Link/Act)
LAN (1000/100/10M Link/Act)
Dimensions ( W x D x H )
8.5 x 4.6 x 1.2 in (215 x 117 x 31 mm)
Antenna
2.4 GHz: 2x 5 dBi non-detachable antennas
5 GHz: 2x 5 dBi non-detachable antennas

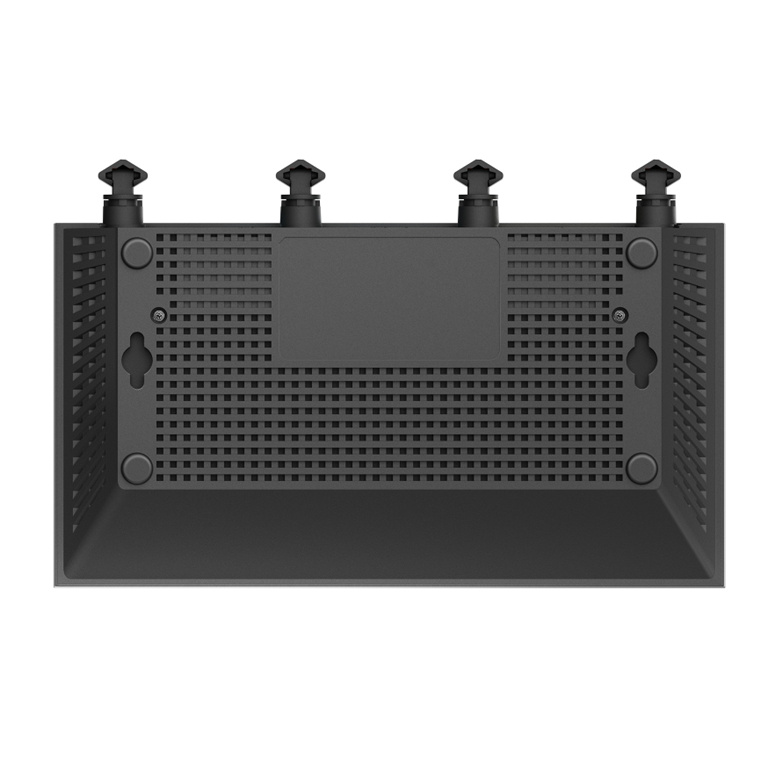

Mounting
Desktop/Wall-mounting
Max. Power Consumption
EU: 9W
US: 10.3W
PERFORMANCE
GRE
Unencrypted: 180.1 Mbps
Encrypted: 56.9 Mbps
WireGuard VPN
71.2 Mbps
Concurrent Session
50,000
New Sessions /Second
2,028
NAT (Static IP)
909.3 Mbps / 937.5 Mbps
NAT(DHCP)
938.3 Mbps / 888.2 Mbps
NAT(PPPoE)
929.9 Mbps / 929.2 Mbps
NAT (L2TP)
346.9 Mbps / 337.6 Mbps
NAT (PPTP)
487.1 Mbps / 454.3 Mbps
IPsec VPN Throughput (AES256)
ESP-SHA1-AES256: 175.5 Mbps
ESP-SHA256-AES256: 185.9 Mbps
ESP-SHA384-AES256: 30.9 Mbps
ESP-SHA512-AES256: 30.7 Mbps
OpenVPN
16.8 Mbps
L2TP VPN Throughput
Unencrypted: 400.3 Mbps
Encrypted: 127.5 Mbps
PPTP VPN Throughput
Unencrypted: 523.6 Mbps
Encrypted: 52.7 Mbps
66 Byte Packet Forwarding Rate
1,453,489 pps / 1,453,489 pps
1,518 Byte Packet forwarding rate
81,275 pps / 81,275 pps
WIRELESS FEATURES
Advanced Features
Multiple SSIDs: 16 in total (8 per radio)
Enable/Disable Wireless Radio
Enable/Disable SSID Broadcast
Automatic Channel Selection Algorithm
Transmit Power Control: Adjust transmit Power on dBm
Rate Limit: Based on SSID/Client
Load Balance
Band Steering
RADIUS Accounting
MAC Authentication
Wireless Schedule
Wireless Encryption: WPA/WPA2 Personal, WPA/WPA2 Enterprise
BASIC FUNCTIONS
WAN Connection Type
Static IP
Dynamic IP
PPPoE (supports MRU Configuration)
PPTP
L2TP
MAC Clone
Modify WAN Address
DHCP
DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP
Stateful ACL
Yes
Quality of Service
Yes
Bridge VLAN
Yes
mDNS Repeater
Yes
IPv6
StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN
802.1Q VLAN
IPTV
IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Advanced Features
Advanced Routing
Static Routing
Policy Routing
RIP
OSPF
Bandwidth Control
IP-Based Bandwidth Control
Load Balance
Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing, Failover)
Online Detection
NAT
One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP
Session Limit
IP-Based Session Limit
VPN
GRE
Only in Standalone Mode
IPsec VPN
6 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec
Failover
IKE v1/v2
MD5, SHA1, SHA-256, SHA2-384 and SHA2-512 Authentication
Algorithm NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
PPTP VPN
PPTP VPN Server
PPTP VPN Client (6) 6 Tunnels
PPTP with MPPE Encryption
L2TP VPN
L2TP VPN Server
L2TP VPN Client (6) 6 Tunnels
L2TP over IPSec
OpenVPN
OpenVPN Server
OpenVPN Client (3)
18 OpenVPN Tunnels
"Certificate + Account" Mode
Full Mode
WireGuard VPN
Yes
AUTHENTICATION
Web Authentication
No Authentication
Simple Password*
Hotspot (Local User / Voucher* / SMS* / Radius*)
External Radius Sever
External Portal Sever*
LDAP
(*These features are supported only in Controller Mode.)
Management Features
Omada App
Yes.
Centralized Management
Omada App
Omada Hardware Controller
Omada Software Controller
Service
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance
Web Management Interface
Remote Management
Export & Import Configuration
Diagnostics (Ping & Traceroute)
NTP Synchronize
Port Mirroring
Syslog Support
Management Features
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
OTHER
Network Services Enabled by Default
Web Server
Manage and configure device through web (HTTP/HTTPS)
Port: 80/443 Protocol: TCP
TDP Server
Device discovery
Port: 20003 Protocol: UDP
DHCP Server
Handle DHCP packets
Port: 67 Protocol: UDP
DNS
Handle DNS packets
Port: 53 Protocol: TCP/UDP
OTHERS
Certification
CE, FCC, RoHS
Package Content
ER605W
Power Adapter
Ethernet Cable
Quick Installation Guide
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
MAC OS, NetWare, UNIX or Linux
Environment
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
