Features
Passive PoE Adapter
Powers TP-Link products that support 24V passive PoE

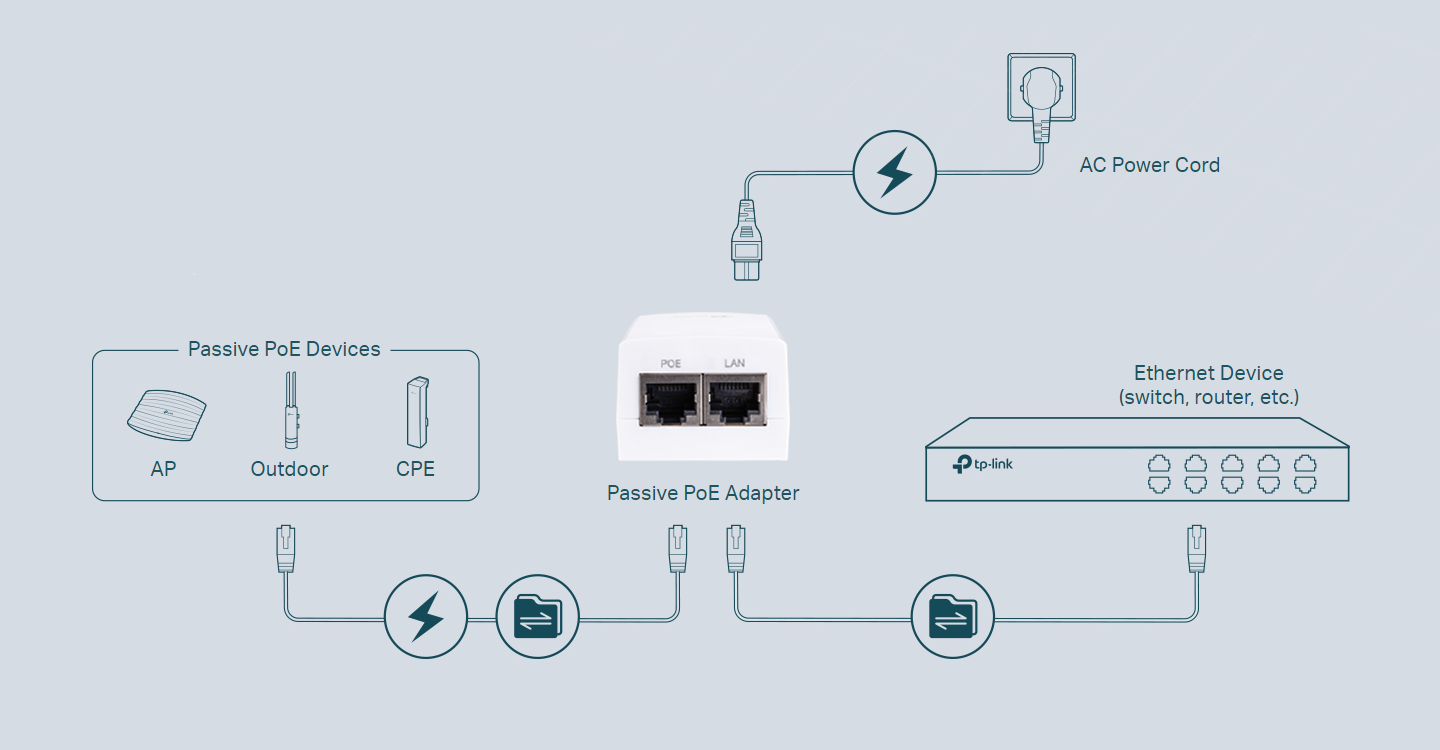

Power Your Devices
Use the passive PoE adapter TL-POE2412G to simultaneously supply power and transmit data to a passive PoE device.

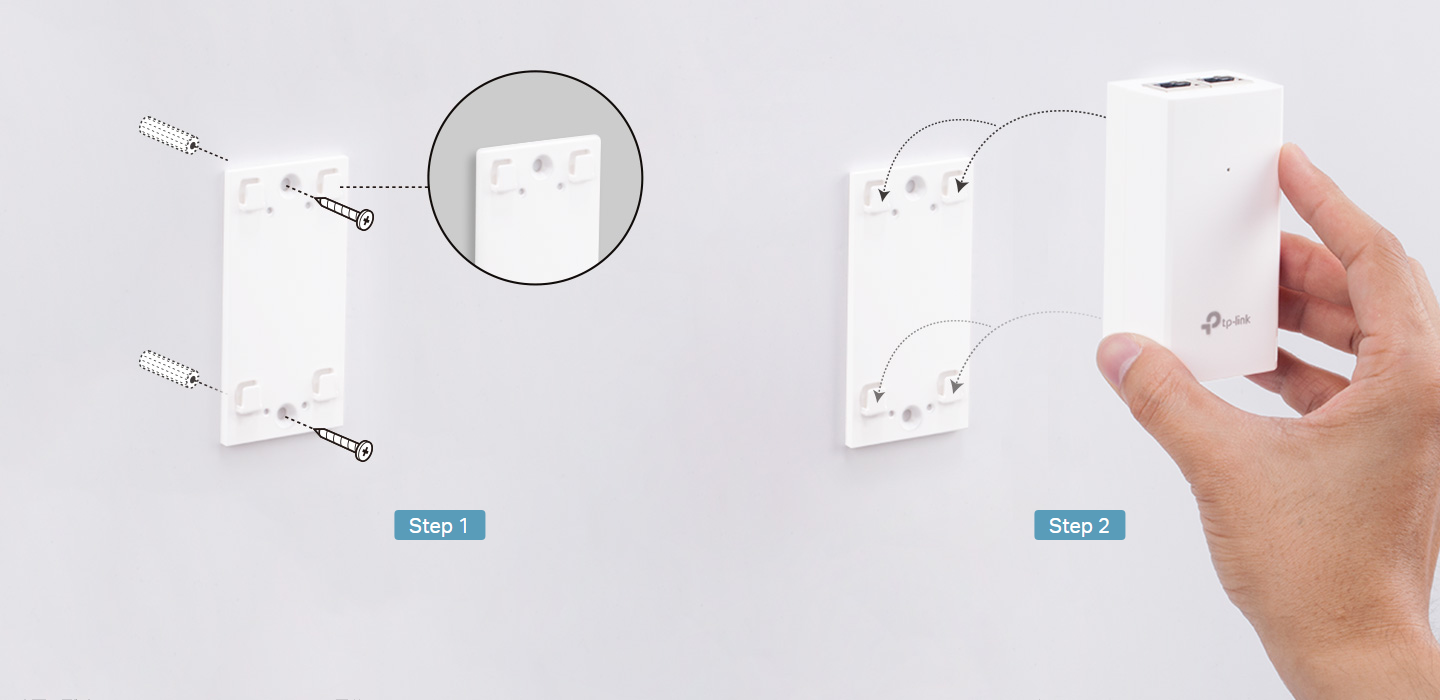

Convenient Wall-Mounting Design
TL-POE2412G offers a convenient wall-mounting brackets to be easily installed on a wall.

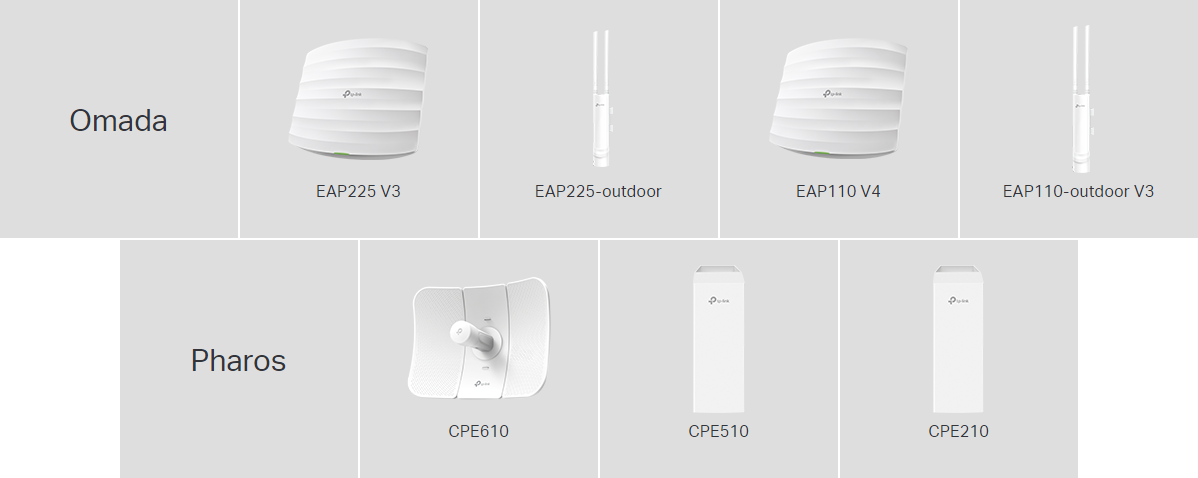

Compatible Devices
TL-POE2412G is the recommended power supply for compatible devices.

Specifications
HARDWARE FEATURES
Interface
2 x 10/100/1000Mbps RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
1 100~240V / 50~60Hz AC Power Input Port
Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Power Supply
12W (Max. 24VDC)
LED Indicator
Power (PWR)
Dimensions ( W x D x H )
3.4 x 1.7 x 1.4 in.
( 85.8mm x 43.9mm x 35mm)
OTHERS
Certification
FCC, RoHS
Package Contents
24V, 12W Passive PoE Adapter TL-POE2412G
Power Cord
Wall Mounting Kits
Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
