TP-Link PHAROS WBS510 5GHz 300Mbps Outdoor Wireless Base Station (Radio only), Supports AP Router, AP Client Router, AP, AP Client, Multi-Bridge and Repeater Operation modes
Out of stock
TP-Link PHAROS WBS510 5GHz 300Mbps Outdoor Wireless Base Station (Radio only), Supports AP Router, AP Client Router, AP, AP Client, Multi-Bridge and Repeater Operation modes
- Brand: TP-Link
- MPN: WBS510
- Part #: NETTPL5012
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
Features
Features
- Broad operating frequency channels ensure less wireless interference
- Wireless N speed up to 300Mbps
- Selectable bandwidth of 5/10/20/40MHz
- Adjustable transmission power from 0 to 27dBm/500mW
- 2 RP-SMA connectors for external MIMO antenna
- Work with TP-LINK dish antenna for long-distance wireless data transfer up to 50+Km
- 1 10/100Mbps Ethernet port for passive PoE and 1 10/100Mbps Ethernet port for extended applications
- TP-LINK Pharos MAXtream (Time-Division-Multiple-Access) technology improves product throughput, capacity and latency performance, ideal for PtMP applications
- Centralized Management System - Pharos Control
- Supports AP Router, AP Client Router, AP, AP Client, Multi-Bridge and Repeater Operation modes
- Weatherproof enclosure, 15kV ESD and 6KV lightning protection
Access Where You Need It Most
TP-LINK's 5GHz 300Mbps Outdoor Wireless Base Station is specifically designed to provide an effective solution for outdoor wireless networking applications. With its centralized management platform and high degree of flexibility, it is the ideal choice for providing point-to-point, point-to-multipoint, and outdoor Wi-Fi coverage. The TP-LINK Outdoor Wireless Base Station pairs professional performance with user-friendly design, making it the perfect solution for both business and home users.

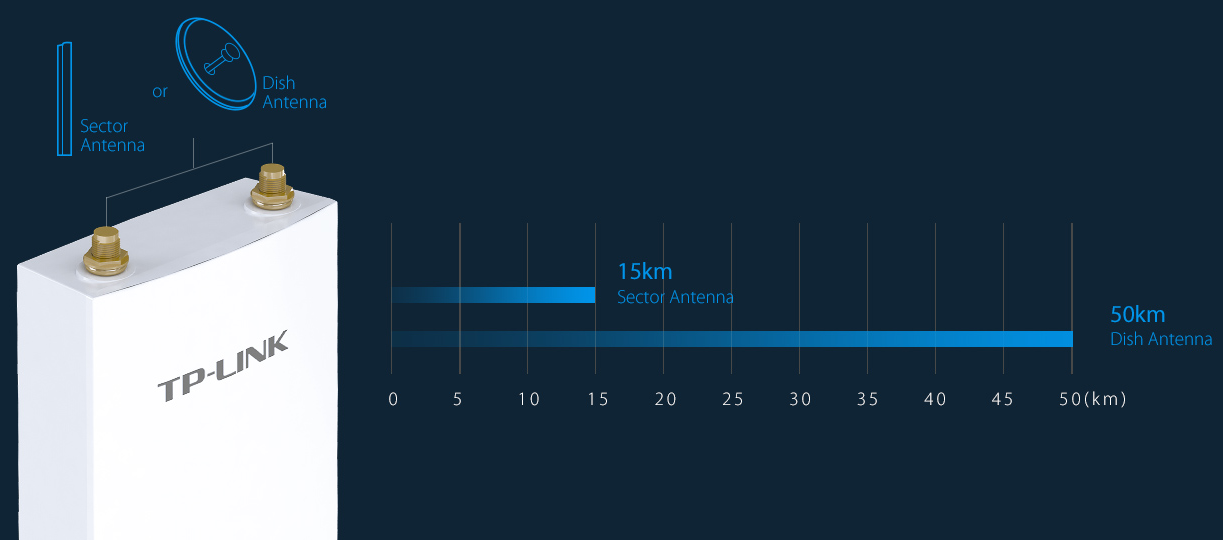

Long-Distance Wireless Data Transmission
Two external RP-SMA antenna interfaces allow the Outdoor Wireless Base Station to integrate seamlessly with TP-LINK's line of sector and dish antennas. Where long- distance wireless data transmission is necessary, the WBS510 can be paired with a TP-LINK dish antenna, allowing it to transfer data over distances of up to 50 km.
Easy Installation, No Tools Needed
Pharos Base Stations works seamlessly with TP-LINK dish and sector antennas to provide efficient PtP and PtMP data transmission. Pharos Base Stations also feature a built-in mount, meaning that no tools are required for installation.
Enterprise Level Hardware Design
To maximize performance and stabilize long distance wireless transmission, the Pharos Series is built with Qualcomm Atheros enterprise level chipsets, high gain-antennas, and high-power amplifiers. In addition to excellent internal components, Pharos Series Base Stations also feature specially designed, weatherproof enclosures and PoE capability. This industry-leading hardware ensures that Pharos Series Base Stations can be deployed in a wide variety of environments, withstanding broad ranges of humidity and temperature (-30°C~70°C) (-22°F~158°F).
MAXtream TDMA Technology - Guaranteed Throughput
As networks grow in scale, base stations and other devices often compete for access to a single data connection, resulting in diminished throughput and a poorer experience for the end-user. Pharos Base Stations utilize MAXtream TDMA Technology to counteract this competition and ensure that data transfer rates remain high, even as demand increases.
Pharos Control - Centralized Management System
Pharos Base Stations are equipped with Pharos Control, a centralized management software that helps users easily manage all network devices from a single PC. Pharos Control provides ultimate convenience for users who wish to control device discovery, monitor network status, upgrade device firmware, or perform other network maintenance tasks.
PharOS
PharOS is a user-friendly, web-based management system that allows advanced users and network professionals to perform fine-tune calibration and access more advanced configuration options.
TP-LINK Pharos Provides High Performance Solutions
TP-LINK Pharos series products are dedicated to provide high performance solutions for outdoor wireless networking applications. Nowadays Pharos includes a variety of CPE and Base station devices, carrier class antennas, and a centralized management application.
Specifications
Reviews
Accessories
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular CPE
TP-Link Omada EAP215-Bridge KIT (AC867) 5GHz 2-Stream IP65...
Ubiquiti LiteBeam LBE-5AC-Gen2 airMAX ac CPE, 5GHz,450+ Mbps, PtP...
TP-Link Omada EAP211-Bridge KIT (AC867) 5GHz 2-Stream IP65...
Ubiquiti NanoBeam NBE-5AC-Gen2 High-Performance airMAX ac Bridge,...
Ubiquiti NanoStation LocoM5 Outdoor airMAX CPE 5GHz, 150+ Mbps,...
TP-Link PHAROS WBS510 5GHz 300Mbps Outdoor Wireless Base Station (Radio only), Supports AP Router, AP Client Router, AP, AP Client, Multi-Bridge and Repeater Operation modes
- Brand: TP-Link
- MPN: WBS510
- Part #: NETTPL5012
Product URL: https://www.pbtech.co.nz/product/NETTPL5012/TP-Link-PHAROS-WBS510-5GHz-300Mbps-Outdoor-Wireles
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Features
- Broad operating frequency channels ensure less wireless interference
- Wireless N speed up to 300Mbps
- Selectable bandwidth of 5/10/20/40MHz
- Adjustable transmission power from 0 to 27dBm/500mW
- 2 RP-SMA connectors for external MIMO antenna
- Work with TP-LINK dish antenna for long-distance wireless data transfer up to 50+Km
- 1 10/100Mbps Ethernet port for passive PoE and 1 10/100Mbps Ethernet port for extended applications
- TP-LINK Pharos MAXtream (Time-Division-Multiple-Access) technology improves product throughput, capacity and latency performance, ideal for PtMP applications
- Centralized Management System - Pharos Control
- Supports AP Router, AP Client Router, AP, AP Client, Multi-Bridge and Repeater Operation modes
- Weatherproof enclosure, 15kV ESD and 6KV lightning protection
Access Where You Need It Most
TP-LINK's 5GHz 300Mbps Outdoor Wireless Base Station is specifically designed to provide an effective solution for outdoor wireless networking applications. With its centralized management platform and high degree of flexibility, it is the ideal choice for providing point-to-point, point-to-multipoint, and outdoor Wi-Fi coverage. The TP-LINK Outdoor Wireless Base Station pairs professional performance with user-friendly design, making it the perfect solution for both business and home users.
Long-Distance Wireless Data Transmission
Two external RP-SMA antenna interfaces allow the Outdoor Wireless Base Station to integrate seamlessly with TP-LINK's line of sector and dish antennas. Where long- distance wireless data transmission is necessary, the WBS510 can be paired with a TP-LINK dish antenna, allowing it to transfer data over distances of up to 50 km.
Easy Installation, No Tools Needed
Pharos Base Stations works seamlessly with TP-LINK dish and sector antennas to provide efficient PtP and PtMP data transmission. Pharos Base Stations also feature a built-in mount, meaning that no tools are required for installation.
Enterprise Level Hardware Design
To maximize performance and stabilize long distance wireless transmission, the Pharos Series is built with Qualcomm Atheros enterprise level chipsets, high gain-antennas, and high-power amplifiers. In addition to excellent internal components, Pharos Series Base Stations also feature specially designed, weatherproof enclosures and PoE capability. This industry-leading hardware ensures that Pharos Series Base Stations can be deployed in a wide variety of environments, withstanding broad ranges of humidity and temperature (-30°C~70°C) (-22°F~158°F).
MAXtream TDMA Technology - Guaranteed Throughput
As networks grow in scale, base stations and other devices often compete for access to a single data connection, resulting in diminished throughput and a poorer experience for the end-user. Pharos Base Stations utilize MAXtream TDMA Technology to counteract this competition and ensure that data transfer rates remain high, even as demand increases.
Pharos Control - Centralized Management System
Pharos Base Stations are equipped with Pharos Control, a centralized management software that helps users easily manage all network devices from a single PC. Pharos Control provides ultimate convenience for users who wish to control device discovery, monitor network status, upgrade device firmware, or perform other network maintenance tasks.
PharOS
PharOS is a user-friendly, web-based management system that allows advanced users and network professionals to perform fine-tune calibration and access more advanced configuration options.
TP-LINK Pharos Provides High Performance Solutions
TP-LINK Pharos series products are dedicated to provide high performance solutions for outdoor wireless networking applications. Nowadays Pharos includes a variety of CPE and Base station devices, carrier class antennas, and a centralized management application.
Specifications
Wireless Performance
Compatibility
802.11 a/n
Wireless Speed
300Mbps
Transmit Power
27dBm
Maximum Transfer distance
50+km
MIMO
Yes
Hardware
External Antenna Interface
2 RP-SMA connectors for MIMO antenna
Weatherproof Enclosure
v(IP65)
ESD Protection
15kV
Lightning Protection
6kV
Software
Operation Modes
AP / Client / Bridge / Repeater / AP Client Router (WISP Client) / AP Router Mode
MAXtream TDMA Mode
Yes
Channel Bandwidth
5/10/20/40MHz
Pharos Control Supported
Yes
