TP-Link TL-SM5110-LR 10GBase-LR Single-mode SFP+ LC Transceiver, Up to 10km
TP-Link TL-SM5110-LR 10GBase-LR Single-mode SFP+ LC Transceiver, Up to 10km
- Brand: TP-Link
- MPN: SM5110-LR
- Part #: NETTPL51102
- UPC:
- Brand: TP-Link
- MPN: SM5110-LR
- Part #: NETTPL51102
- UPC:
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular Transceivers





TP-Link TL-SM5110-LR 10GBase-LR Single-mode SFP+ LC Transceiver, Up to 10km
- Brand: TP-Link
- MPN: SM5110-LR
- Part #: NETTPL51102

Product URL: https://www.pbtech.co.nz/product/NETTPL51102/TP-Link-TL-SM5110-LR-10GBase-LR-Single-mode-SFP-LC
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
TL-SM5110-LR - 10GBase-LR SFP+ LC Transceiver
- Single-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)

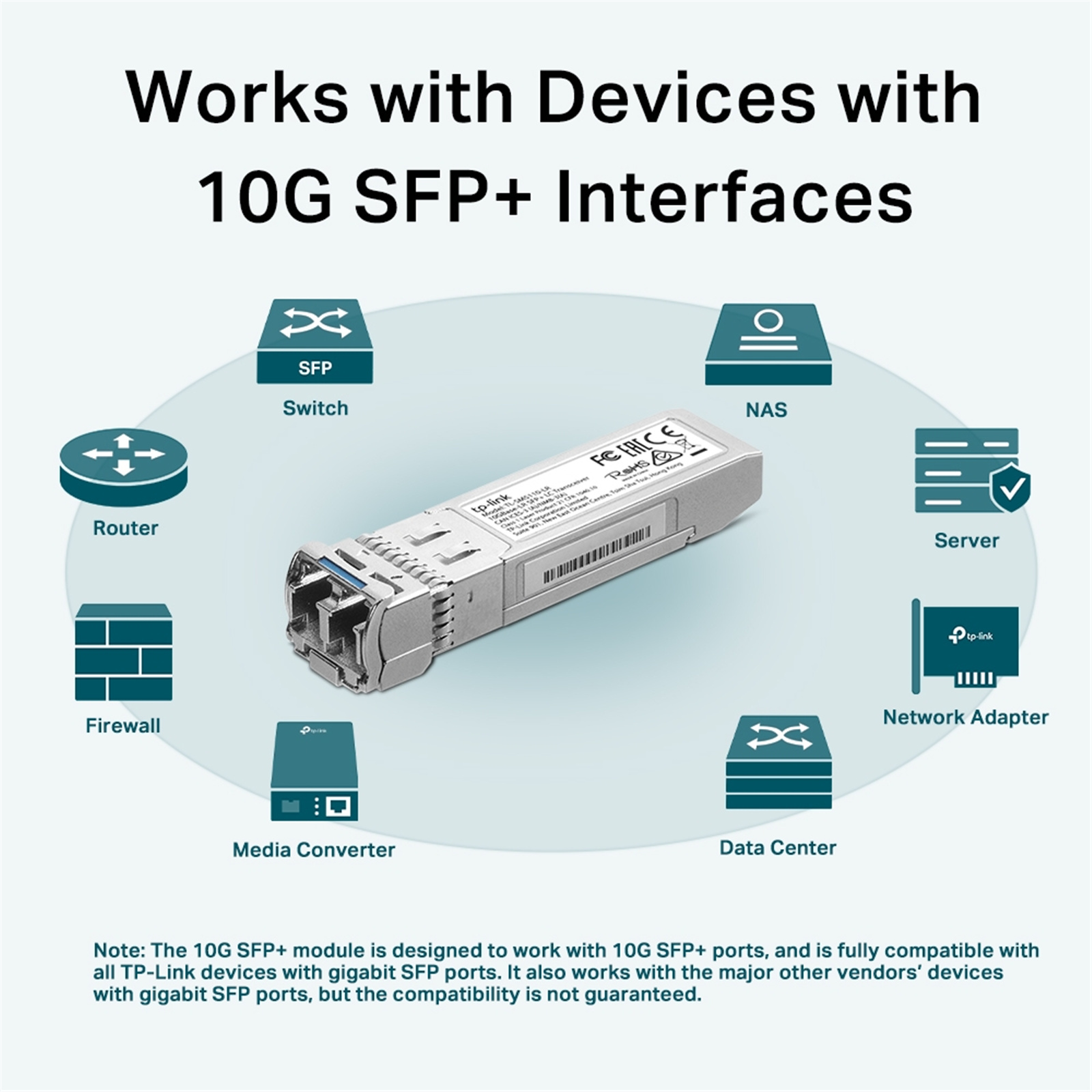

- Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
What This Product Does

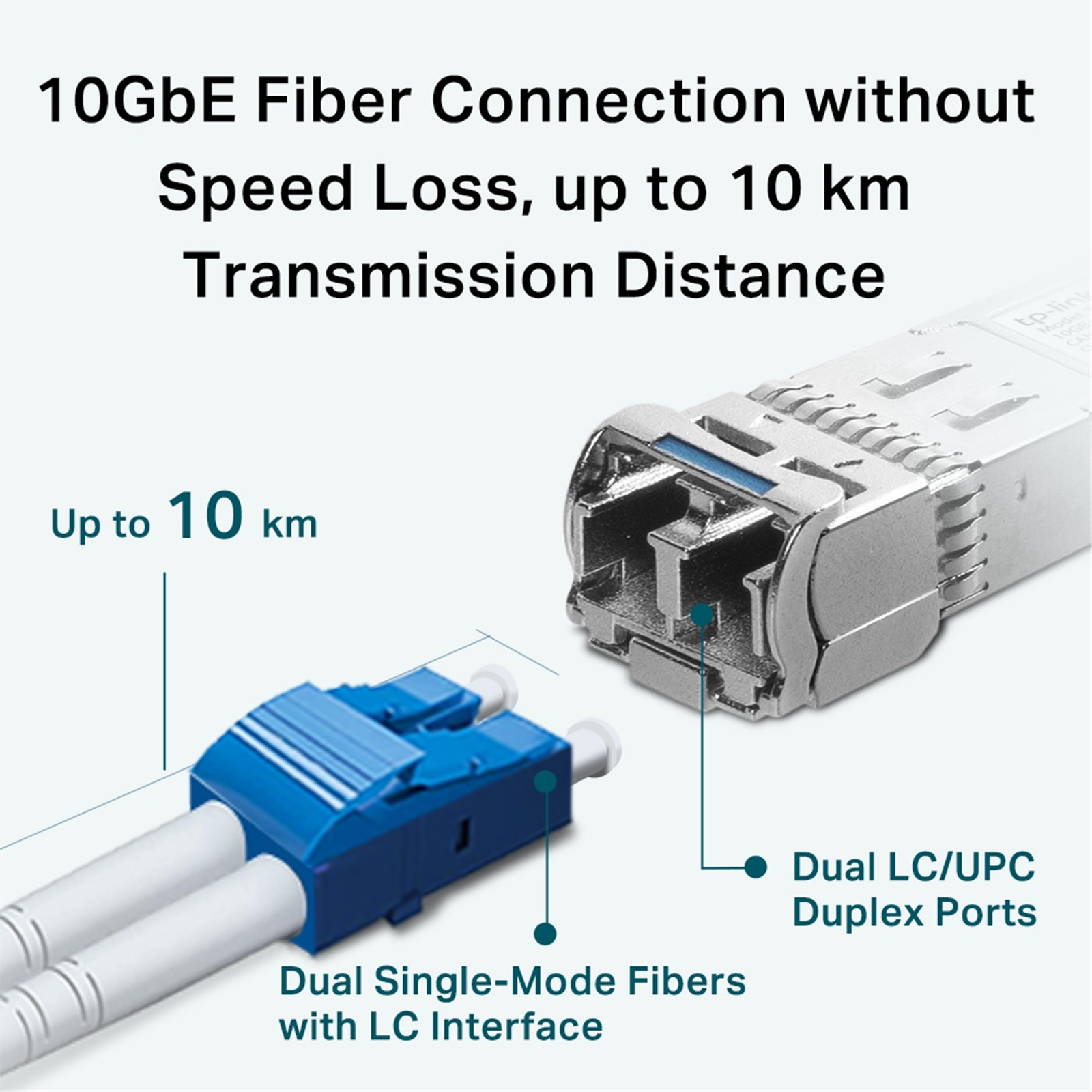

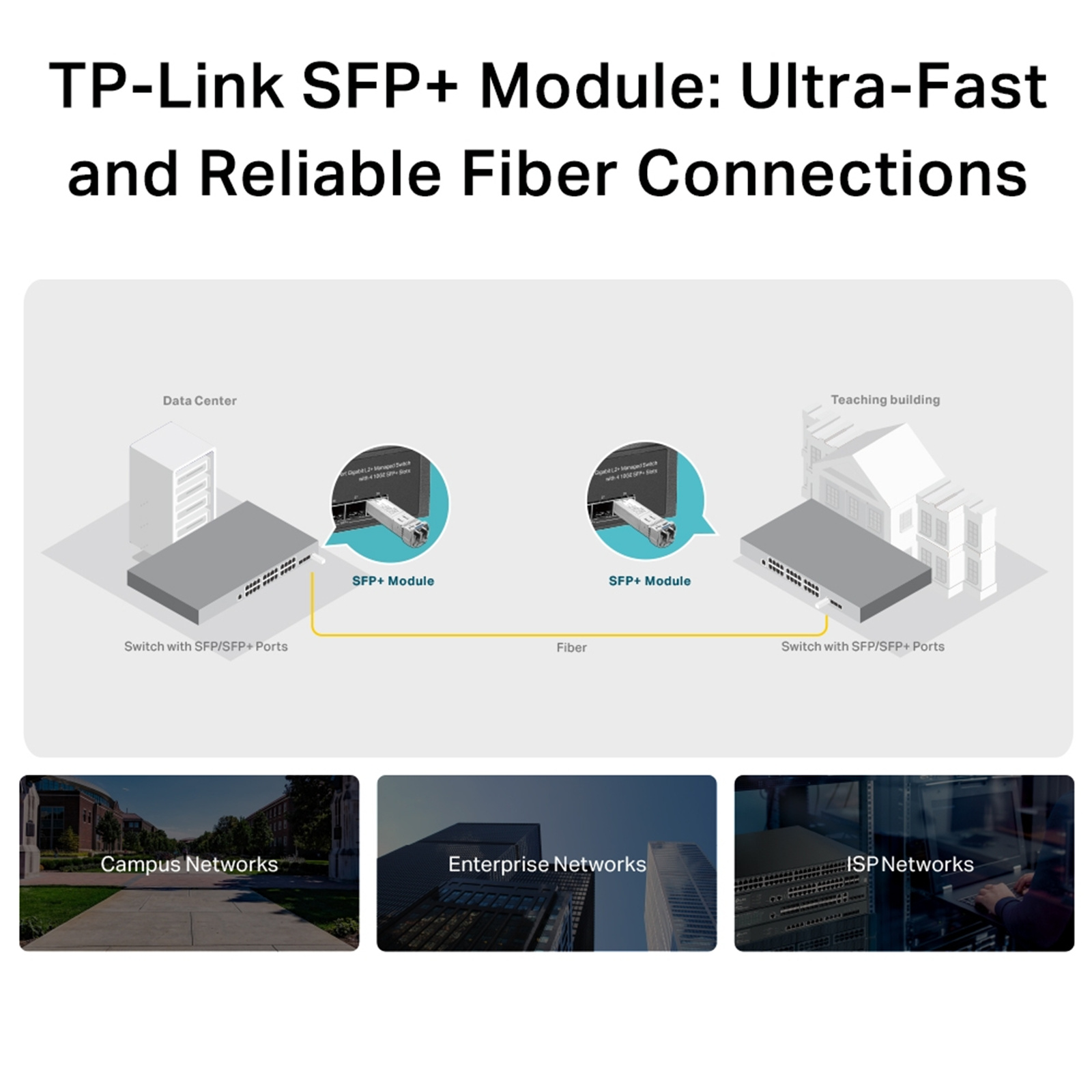

The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
Specifications
PACKAGE CONTENTS
Package Contents
- 10G SFP+ Module TL-SM5110-LR
- Installation Guide
HARDWARE FEATURES
DDM
Yes
SFP-MSA
Yes
Hot Swappable
Yes
MEDIA CONVERTER & MODULE

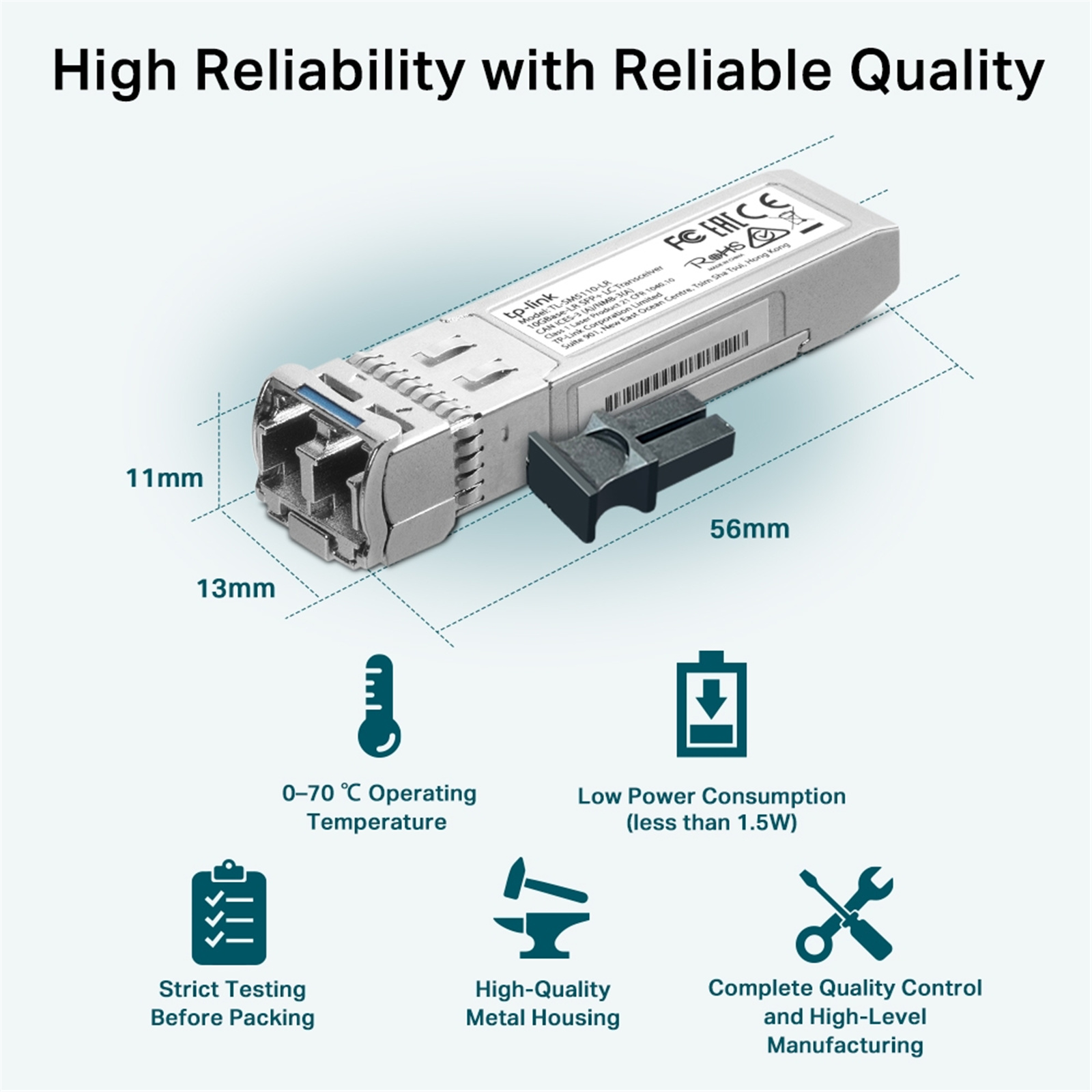

Dimensions (W*D*H)
2.2*0.5*0.4 in (56.7*13.9*10.35 mm)
TRANSCEIVER
Standards and Protocols
IEEE 802.3ae, TCP/IP
Wave Length
1310 nm
Power Supply
3.3V
Fiber Type
9/125um Single-Mode
Max. Cable Length
10 km
Data Rate
10 Gbps
Port Type
LC Duplex
Safety & Emission
FCC, CE
Environment
Operating Temperature: 0-70 °C (32-158 °F)
Storage Temperature: -40-85 °C ( -40-185 °F)
Operating Humidity: 10-90% RH, Non-Condensing
Storage Humidity: 5-90% RH, Non-Condensing
