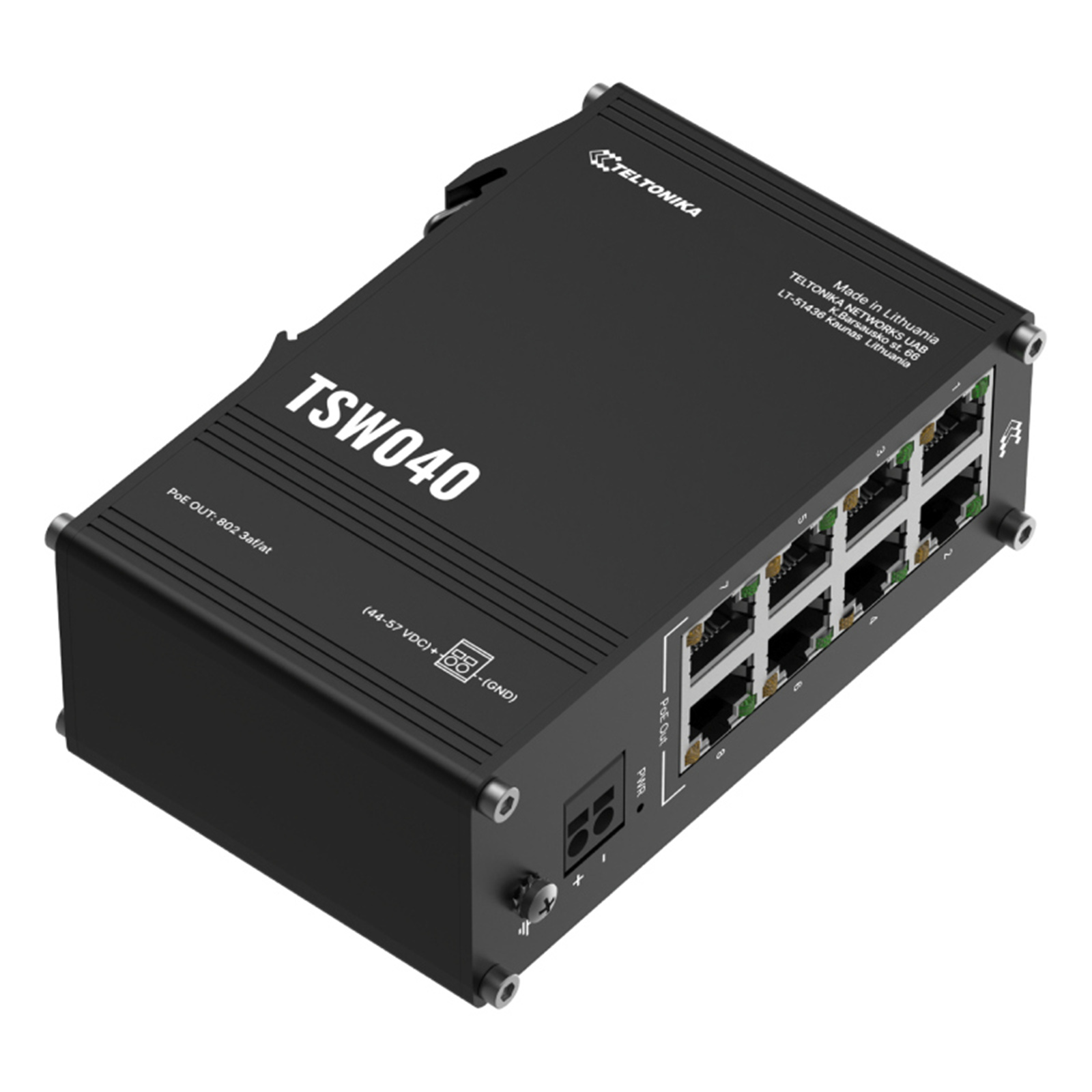

Teltonika TSW040 8 Port 10/100 PoE+ Switch with Integrated DIN Rail Mounting

  • Brand: Teltonika
  • MPN: TSW040
  • Part #: NETTTK0401
  • UPC:
PB Tech price
$ 97 .43 $ 112 .04
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 05 Nov When will I receive it?
$97.43  +GST
$112.04
  • Brand: Teltonika
  • MPN: TSW040
  • Part #: NETTTK0401
  • UPC:

Form Factor

Desktop

10 Gigabit Ports

0 Ports

10 Gigabit

No

Management Level

Not Specified

Number of Ports

8 Ports

PoE

Yes

PoE Ports

8 Ports

PoE Budget

240 Watts

Similar in-stock products available at PB Tech right now

Features

Teltonika TSW040 8 Port 10/100 PoE+ Switch with Integrated DIN Rail Mounting

Teltonika TSW040 8 Port 10/100 PoE+ Switch with Integrated DIN Rail Mounting. The TSW040 is an unmanaged 8-port PoE+ switch by Teltonika, featuring eight RJ45 ports with a total power budget of 240 W, or up to 30 W per port. This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. The TSW040 has a wide voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC.

- Plug and Play, no configuration needed
- Integrated DIN rail bracket and surface mounting options
- Anodized aluminium housing and panels
- 8 PoE 802.3af/at ports
- 30W Power per Port
- 240W PoE Budget



Specifications

Product code

TSW040

Ports

8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover

IEEE 802.3 series standards

802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Profinet

Profinet Class A conformance (available with optional order code)

PoE ports

Port 1 - 8

PoE standards

802.3af and 802.3at compliant PSE ports, over spare pairs - Mode B

PoE Max Power per Port (at PSE)

30 W

Total PoE Power Budget (at PSE)

240 W

Bandwidth (Non-blocking)

20 Gbps

Packer buffer

128 KB

MAC address table size

2K entries

Jumbo frame support

9216 bytes

Connector

2-pin industrial DC power socket

Input voltage range

7 - 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND

PoE-out input voltage range

44 - 57 VDC

Power consumption

Idle: 1 W / Max: 2 W / PoE Max: 246 W

Status LEDs

1 x Power LED, 16 x ETH status LEDs

Power

1 x 2-pin industrial DC power socket

Other Physical Interfaces

1 x Grounding screw

Casing material

Anodized aluminum housing and panels

Dimensions (W x H x D)

113.1 x 41.2 x 74.6 mm

Mounting options

Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

Weight

280 g

Operating temperature

-40 °C to 75 °C

Operating humidity

5% to 95% non-condensing

Ingress Protection Rating

IP30

Manufacturer Part No:
TSW040
Brand:
Teltonika
Product Type:
8 Port 10/100 PoE+ Switch
UPC
-
Product Family:
-
Shipping Weight:
10 kg
PB Part No:
NETTTK0401
Product Model:
TSW040
Warranty: 12 months *
