Teltonika DAP142 RS232 Industrial DIN Rail mount Wi-Fi Mesh Access Point

PB Tech price
PB Tech price
$ 140 .44
 +GST
$ 161 .51
 inc GST
$140.44  +GST
$161.51

Teltonika DAP142 RS232 Industrial DIN Rail mount Wi-Fi Mesh Access Point

  • Brand: Teltonika
  • MPN: DAP142
  • Part #: NETTTK10182
  • UPC:
PB Tech price
$ 140 .44 $ 161 .51
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 14 Nov When will I receive it?
$140.44  +GST
$161.51

Four payments of $40.78 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

  • Brand: Teltonika
  • MPN: DAP142
  • Part #: NETTTK10182
  • UPC:

Ethernet Ports

2

USB Ports

None

WiFi Bands

Dual

Wireless Technology

WiFi 4 (802.11n)

Wireless Transmission Speed

Not Specified

Pack Size

1-Pack

Similar in-stock products available at PB Tech right now

Features

Teltonika DAP142 RS232 Industrial DIN Rail mount Wi-Fi Mesh Access Point

The DAP142 is a Teltonika industrial wireless access point with passive PoE, engineered for enhanced and reliable Wi-Fi coverage and performance in industrial environments. This access point is equipped with an RS232 port and two RJ45 ports, and is powered via a 3-pin power connector, making it ideal for specialised industrial applications. In addition to Wi-Fi 4 capabilities, the DAP142 supports Wi-Fi mesh, Fast Roaming, and up to 50 simultaneous connections. With an integrated DIN rail bracket, durable aluminium casing, and plug-and-play functionality, this wireless access point provides simple installation and configuration at minimum effort.

- Seamless Wi-Fi 4 with Wi-Fi mesh & Fast Roaming
- 2 x 10/100 RJ45
- RS232 port
- 1 x 3-pin power connector tailored for industrial use
- DIN Rail Bracket for easy mounting for plug-and-play deployment

Specifications

Wireless mode

IEEE 802.11b/g/n (Wi-Fi 4), Access Point (AP), Client (STA), Mesh (802.11s), Multi AP

WiFi security

WPA-PSK, WPA2-PSK, WPA3-SAE, WPA-EAP, OWE, WPA2-EAP, WPA3-EAP

SSID/ESSID

ESSID stealth mode

Wi-Fi users

Up to 50 simultaneous connections

Wireless Connectivity Features

Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

LAN

2 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

CPU

Mediatek, 580 MHz, MIPS 24KEc

RAM

128 MB, DDR2

FLASH storage

16 MB serial NOR flash

Routing

Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Network protocols

TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake On Lan (WOL)

DHCP

Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

Authentication

Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

Firewall

Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64

VPN

OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale

TR-069

OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

DNP3 Supported modes

Station, Outstation

Supported connection

TCP, RTU(RS232)

DLMS/COSEM Support

DLMS - standard protocol for utility meter data exchange, and Client

Serial RS232

Terminal block connector: TX, RX, RTS, CTS

Serial functions

Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client

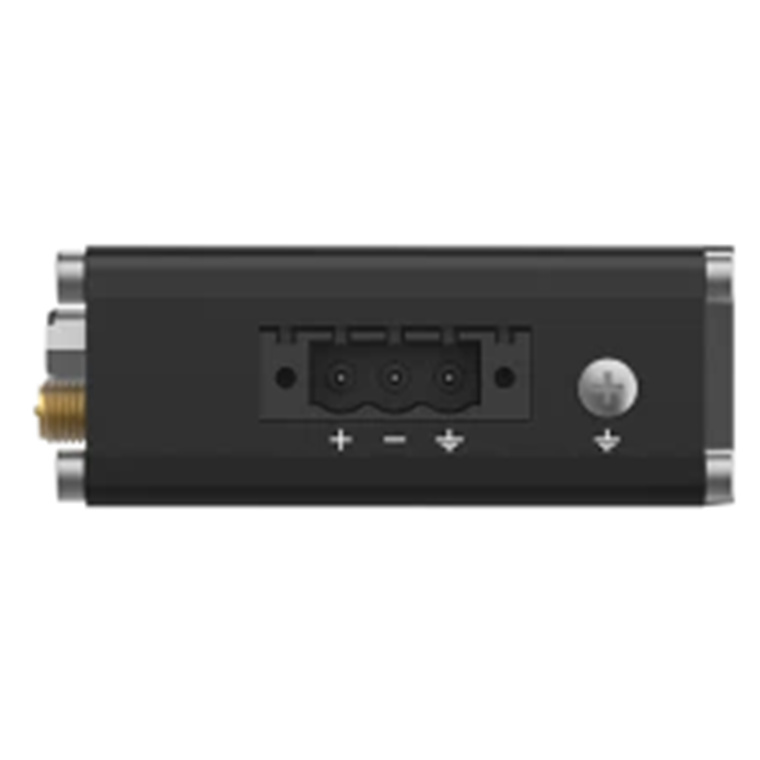

Power Connector

3-pos plugable terminal block

Input voltage range

9-30 VDC, reverse polarity protection, surge protection >31 VDC 10us max

PoE (passive)

Passive PoE over spare pairs. Possibility to power up through LAN2 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC

Power consumption

Idle: < 1 W / Max: < 2 W

Status LEDs

2 x LAN type LED, 1 x Power LED

Antennas

1 x RP-SMA for Wi-Fi

RS232

1 x DB9 socket

Reset

Reboot/User default reset/Factory reset button

Casing material

Aluminium housing

Dimensions (W x H x D)

113.10 x 25 x 68.6 mm

Weight

149.2 g

Mounting options

Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

Operating temperature

-40 °C to 75 °C

Operating humidity

10% to 90% non-condensing

Ingress Protection Rating

IP30

Regulatory

CE, UKCA, CB, FCC/IC

Manufacturer Part No:
DAP142
Brand:
Teltonika
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1.5 kg
PB Part No:
NETTTK10182
Product Model:
DAP142
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
