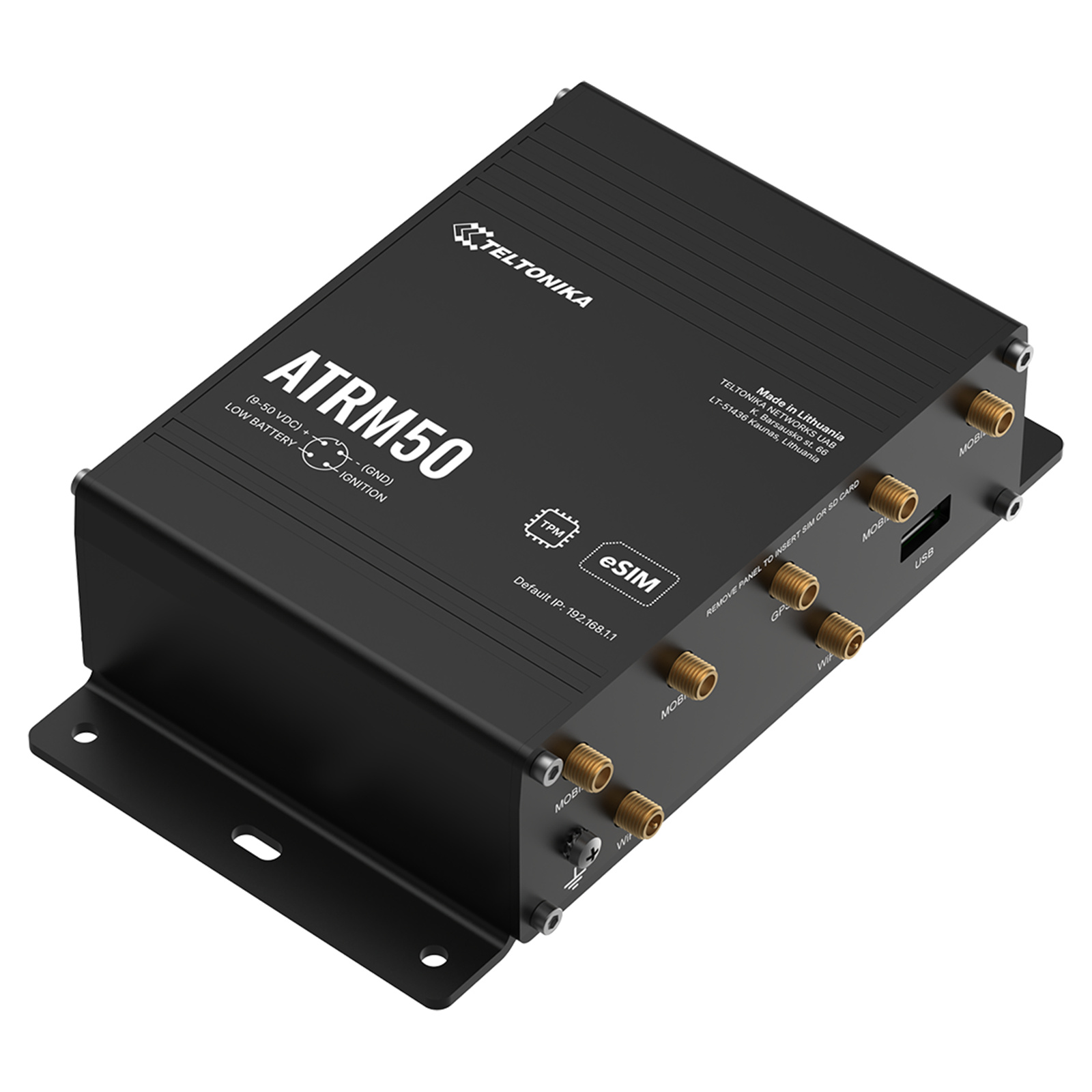

Teltonika ATRM50 5G Gigabit Transportation Router with M12 Connectors
Teltonika ATRM50 5G Gigabit Transportation Router with M12 Connectors
- Brand: Teltonika
- MPN: ATRM50
- Part #: NETTTK50001
- UPC:
- Brand: Teltonika
- MPN: ATRM50
- Part #: NETTTK50001
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular 4G / 5G Routers





Teltonika ATRM50 5G Gigabit Transportation Router with M12 Connectors
- Brand: Teltonika
- MPN: ATRM50
- Part #: NETTTK50001

Product URL: https://www.pbtech.co.nz/product/NETTTK50001/Teltonika-ATRM50-5G-Gigabit-Transportation-Router
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The ATRM50 is a rugged 5G router built for transportation, featuring 4 x M12 Gigabit Ethernet ports and M12 power input for durable, secure connections. It delivers ultra-high cellular speeds up to 3.4 Gbps and supports dual SIM with eSIM™ for seamless failover. Certified to EN 45545-2 and EN 50155 standards, the ATRM50 is engineered to meet the rigorous safety and reliability requirements of railway systems-while also being a strong fit for other demanding transportation environments. The router comes with GNSS, an integrated mounting bracket, and is compatible with RMS for efficient on-site and remote management.
- 4 × M12 X-coded Gigabit Ethernet ports, 1 × M12 A-coded power input
- 5G Ultra-high cellular speeds of up to 3.4 Gbps
- DUAL SIM & eSIM With auto failover, backup WAN and other switching scenarios
- EN 45545-2 and EN 50155 Certificates
Specifications
Mobile module
5G Sub-6 GHz SA, NSA 2.4, 3.4Gbps DL (4x4 MIMO) 900, 550Mbps UL (2x2 MIMO); 4G LTE: DL Cat 19 1.6Gbps (4x4 MIMO), UL Cat 18 200Mbps; 3G 42 Mbps (DL)/ 5.76 Mbps(UL)
3GPP Release
Release 16
eSIM
Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
SIM switch
Dual sim cards and esim, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail
SMS
SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Wireless mode
802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
Wi-Fi security
WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID
SSID stealth mode and access control based on MAC address
Wi-Fi users
Up to 150 simultaneous connections
Wireless Connectivity Features
Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
WAN
1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN
3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Routing Static
routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall
Port forward, traffic rules, custom rules, TTL target customisation
Hotspot 2.0
Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks
DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM)
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS
Supported >25 service providers, others can be configured manually
VPN
OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
MODBUS Supported modes
Server, Client
CPU
MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
RAM
256 MB, DDR3
FLASH storage
16 MB serial NOR flash, 256 MB serial NAND flash
GNSS
GPS, GLONASS, BeiDou, Galileo and QZSS
USB Data rate
USB 2.0
Applications
Samba share, USB-to-serial
External devices
Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formats
FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
Input
2 x Inputs for Ignition Detection and Low Battery
Events
Email, RMS, SMS
I/O juggler
Allows to set certain I/O conditions to initiate event
SD CARD Micro SD (internal)
Up to 2 TB
Power Connector
M12 A code 4 pin male
Input voltage range
9 - 50 VDC, reverse polarity protection, Overvoltage protection (70V), Surge protection >69 VDC 10us max
I/O's
2 x Input (Ignition detection/Low battery)
Power consumption
Idle: < 5.5 W, Max: < 16 W
SIM
2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Casing material
Anodized aluminum housing and panels
Dimensions (W x H x D)
167 x 46.2 x 112.4 mm
Weight
550 g
Ingress Protection Rating
IP30
